Item:
ONSV23PCS17

Original German WWI Model 1913 Kugel Hand Fragmentation Grenade - Kugelhandgranate - Inert

Item Description

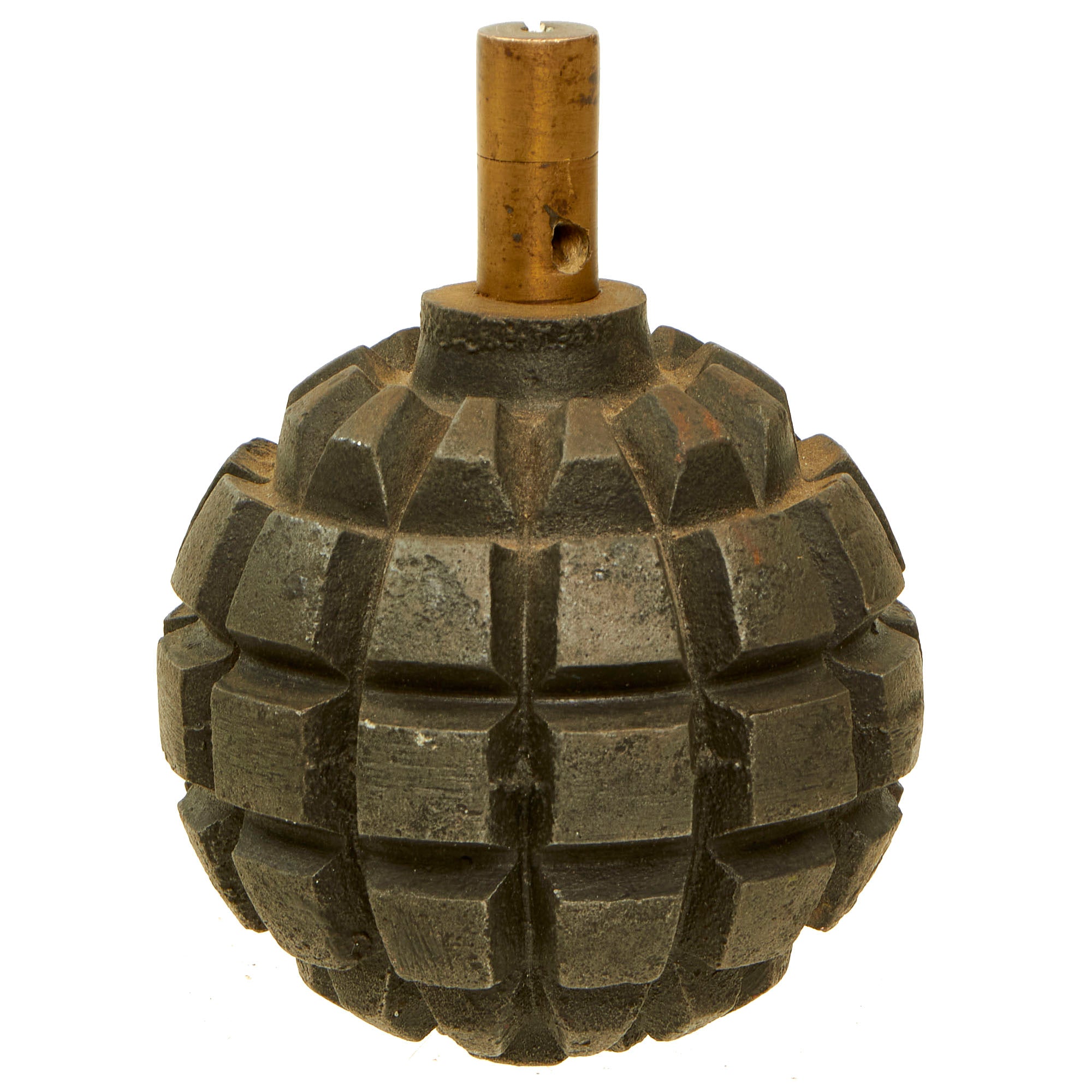

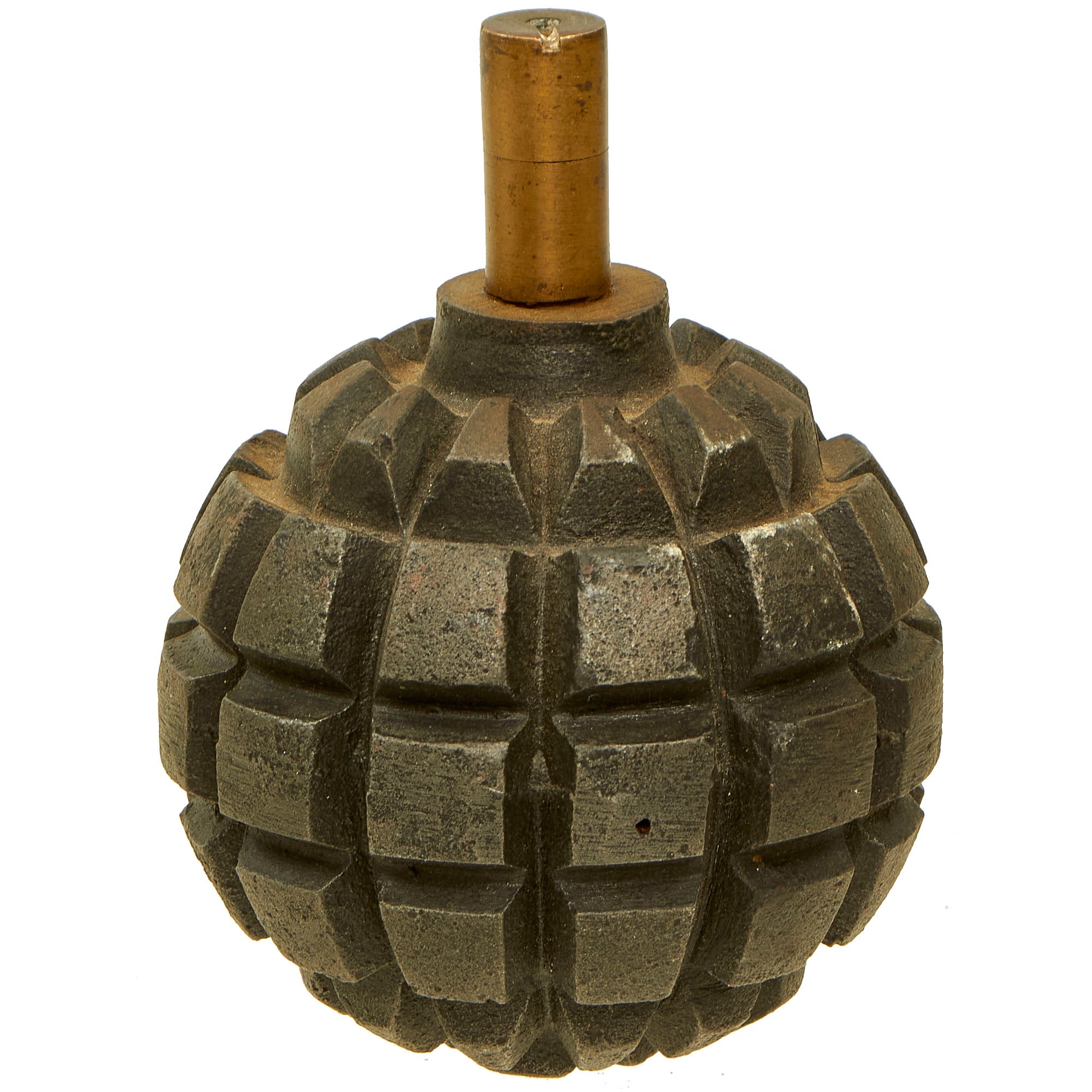

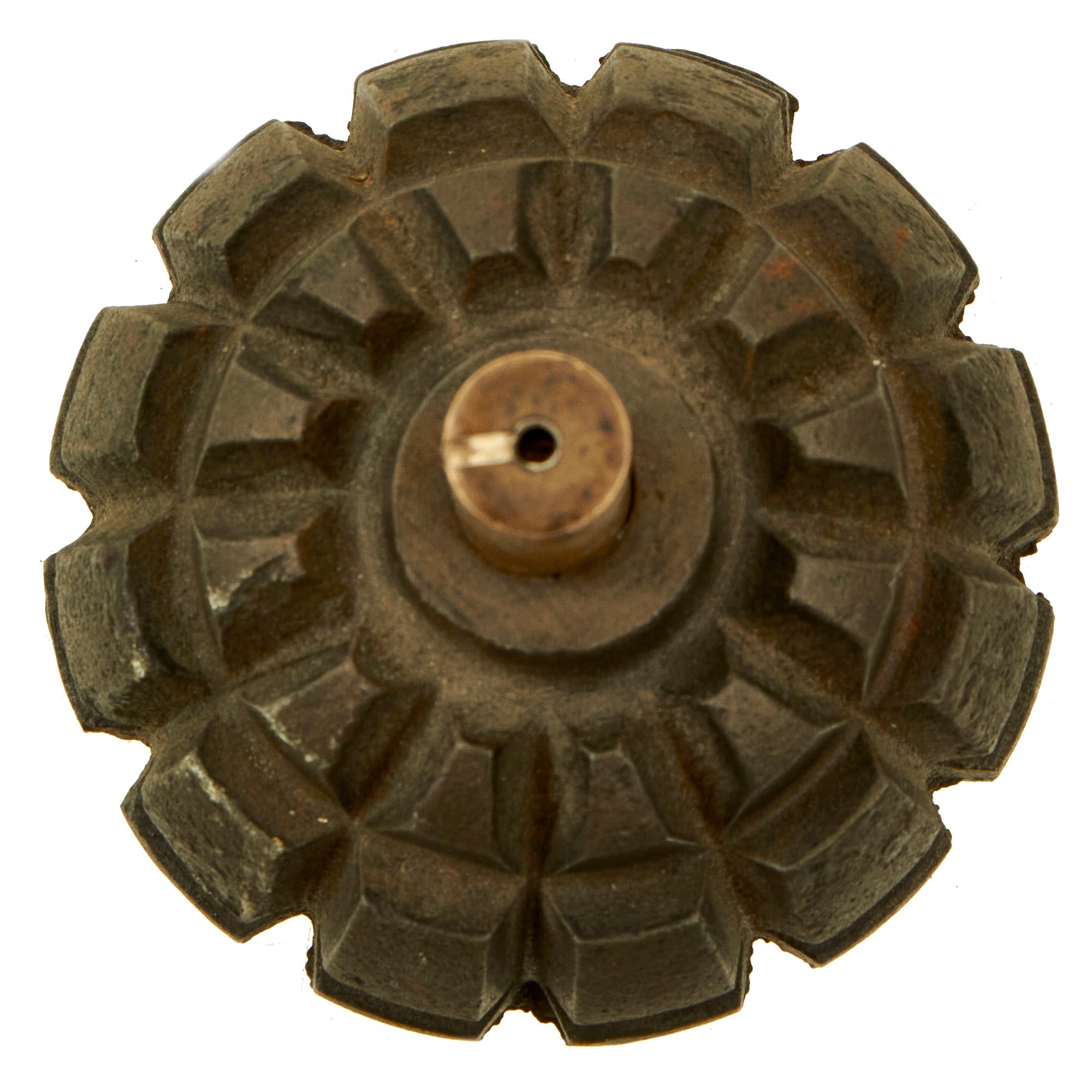

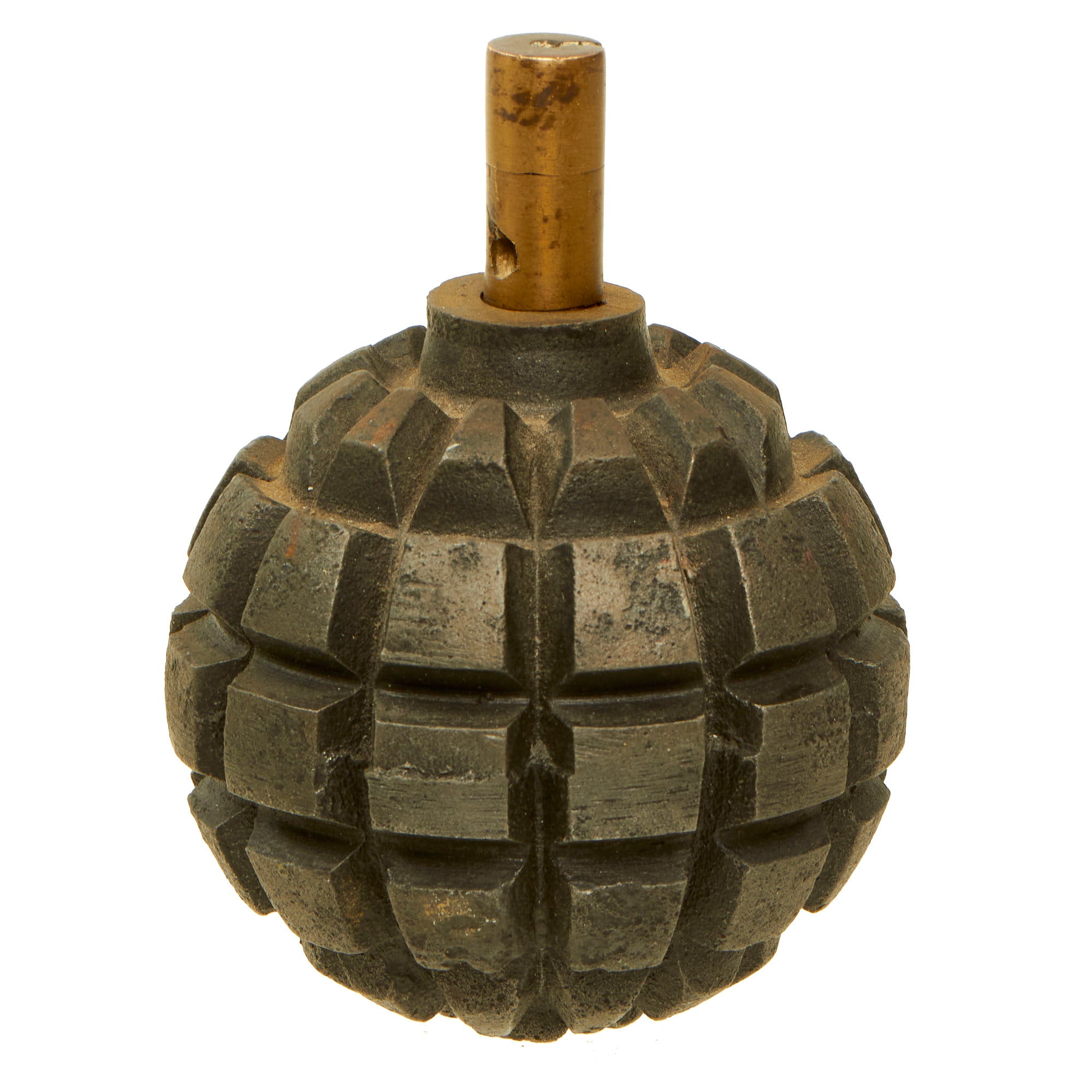

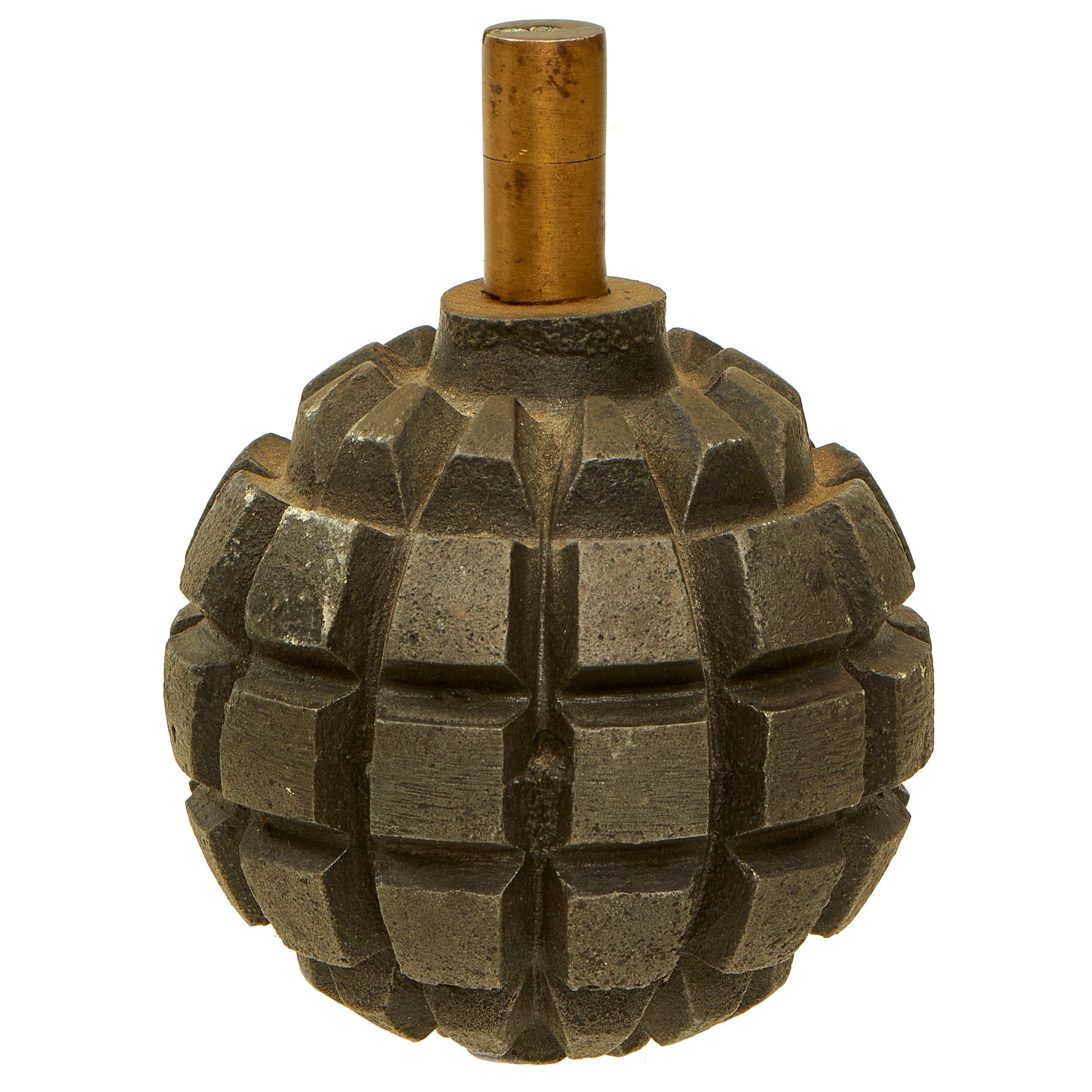

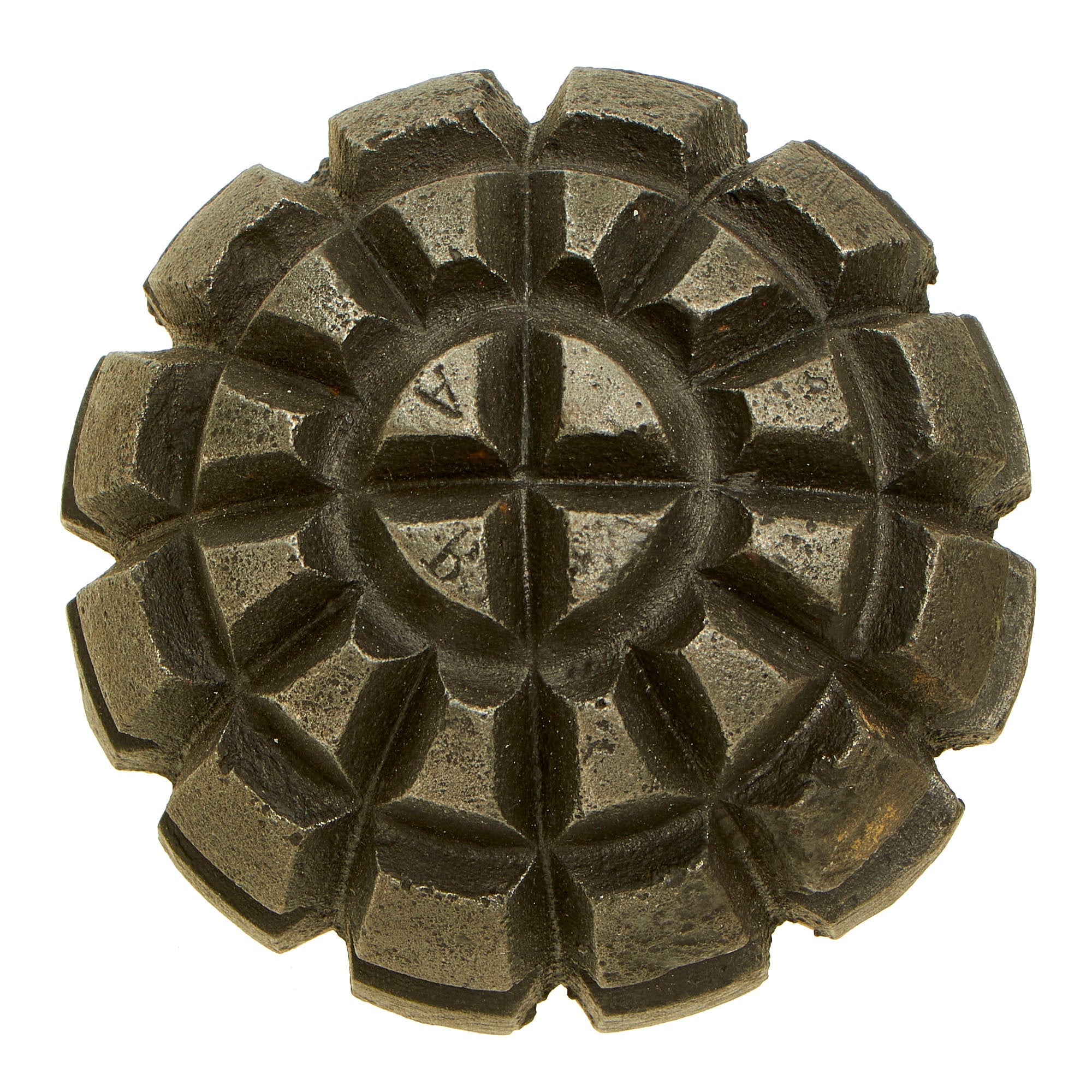

Original Item: Only One Available. The Kugelhandgranate ("ball hand grenade") is the name given to several models of hand thrown fragmentation grenades manufactured in WWI Germany. This example is known as the Model 1913, which differs from the later version in that it has more fragmentation sections unlike the more simplified 1915 model. As they were not made in any large quantities, German Ball Grenades are rare in any condition.

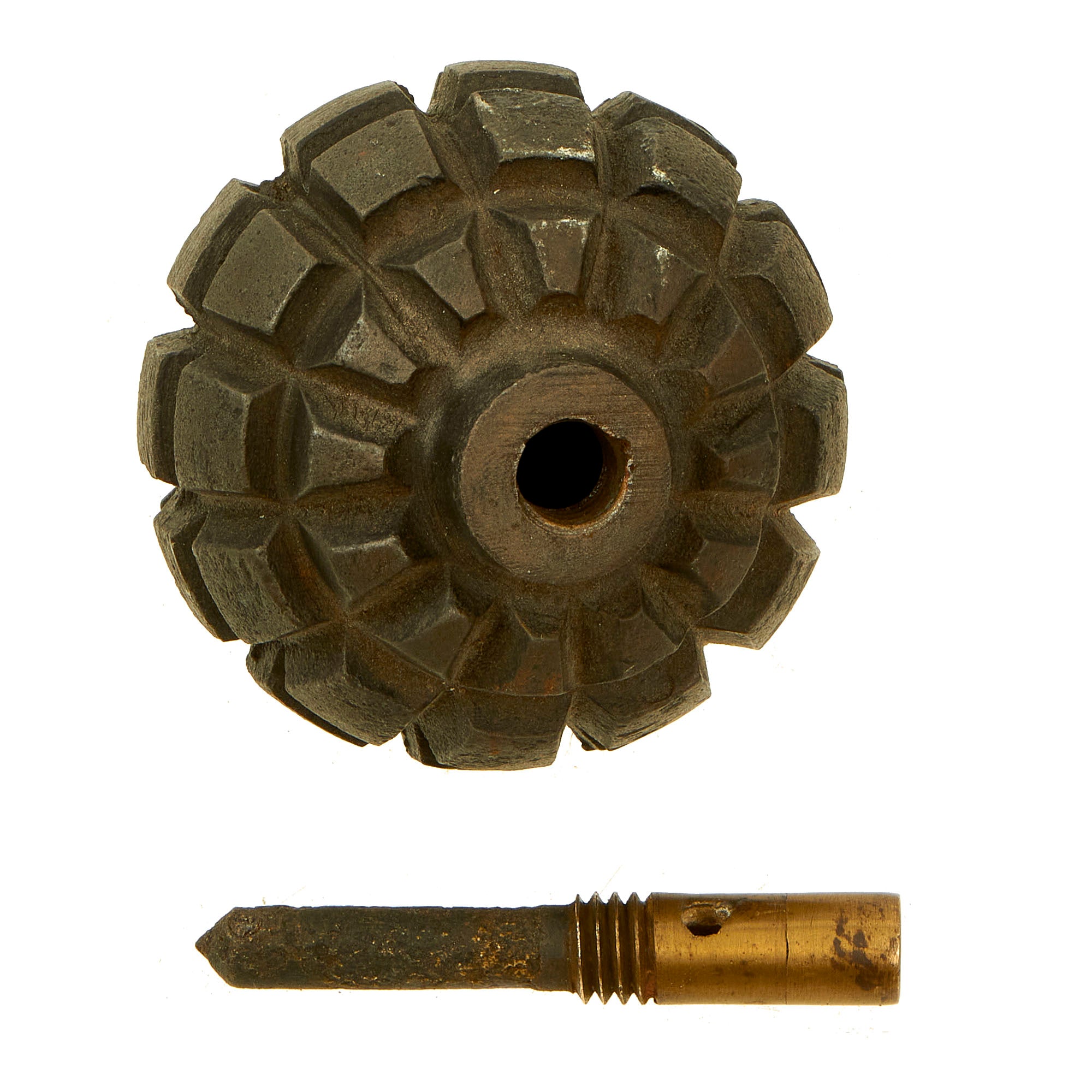

This example is quite nice though it most definitely was cleaned of any surface corrosion which removed the lacquered finish. It still has an original deactivated friction-ignited fuze, without the pull wire. The zinc M1915 traction fuze assembly still screws out, with the detonator stalk showing some corrosion. Highly desirable, and sure to be the centerpiece of any grenade collection!

This example is completely inert and is unable to be rendered live again to be used as a destructive device. This is in total compliance with the current BATF standards on ordnance.

Not Available For Export

Germany entered World War I with this single grenade design: a heavy 750-gram (26 oz) ball-shaped fragmentation grenade for use only by pioneers in attacking fortifications. It was too heavy for regular use on the battlefield by untrained troops and not suitable for mass production. This left Germany without a standard-issue grenade and improvised
designs similar to those of the British were used until a proper grenade could be supplied.
The body of the Kugelhandgranate was cast iron 8 mm thick, spherical shaped and externally segmented designed to produce between 70 and 80 fragments. A bronze-like stick (which was the igniter) was introduced to the spherical body. The filling was a mixture of black powder, barium nitrate, and potassium perchlorate, and did not require a detonator.

The friction igniter consisted of a bronze body with a central chamber filled with black powder and supplied with a 5 or 7 second delay, the powder train was topped with a priming wire made of brass with a loop at one end and serrated on the other. The serrated portion was coated with a mixture of ground glass, manganese dioxide, and potassium chlorate.

To be used, the friction wire had to be pulled from the igniter, starting the delay train at the last possible moment. To do this, a piece of leather was attached to the igniter with a snap hook; pulling this removed the wire so the grenade could be thrown. A man with average strength could throw this grenade about 15 m, which made it completely ineffective for standard infantry uses, unless they were used on a slope where the grenade could roll. The only way to reach longer (up to 300 m) ranges was the use of mechanical spring based grenade launchers.
