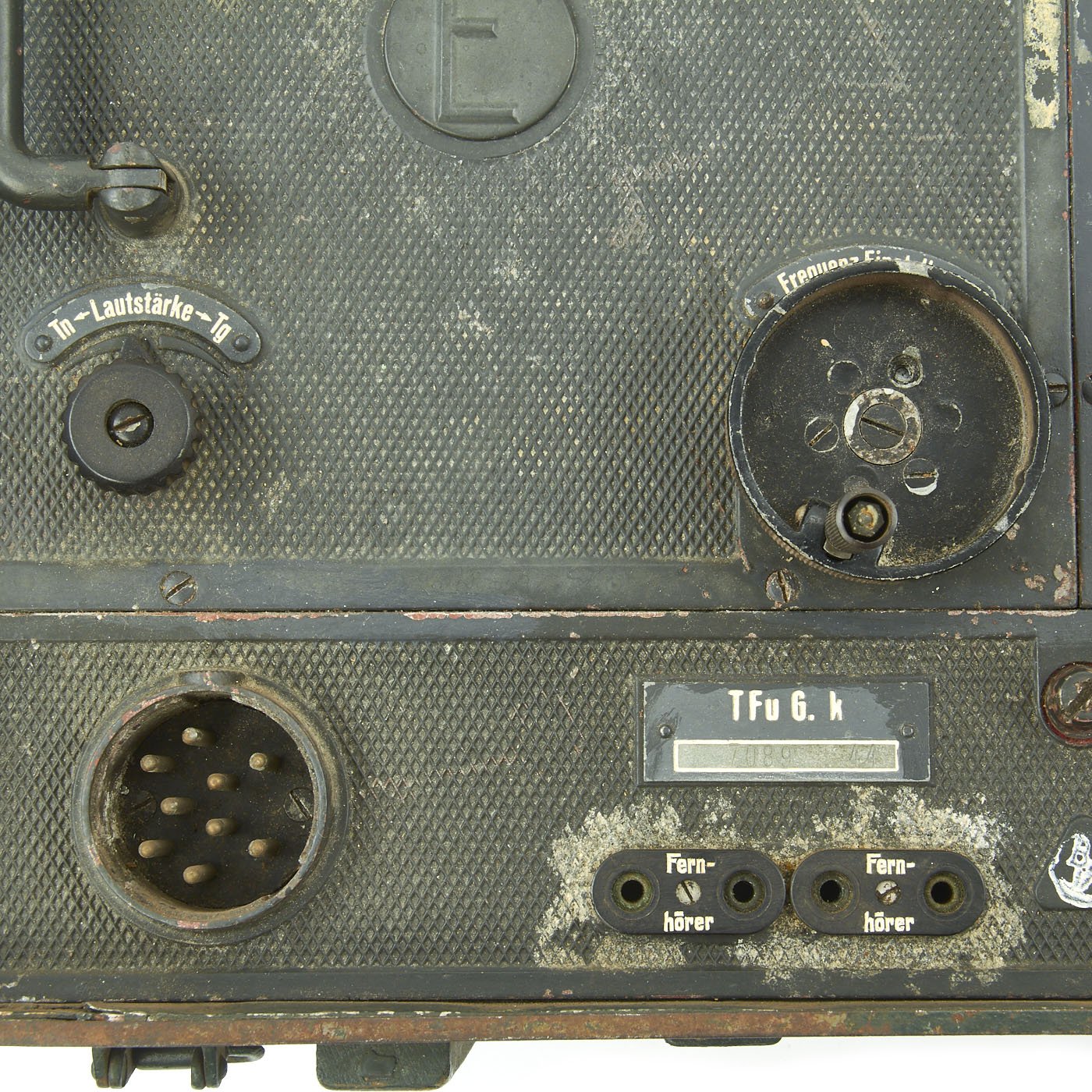

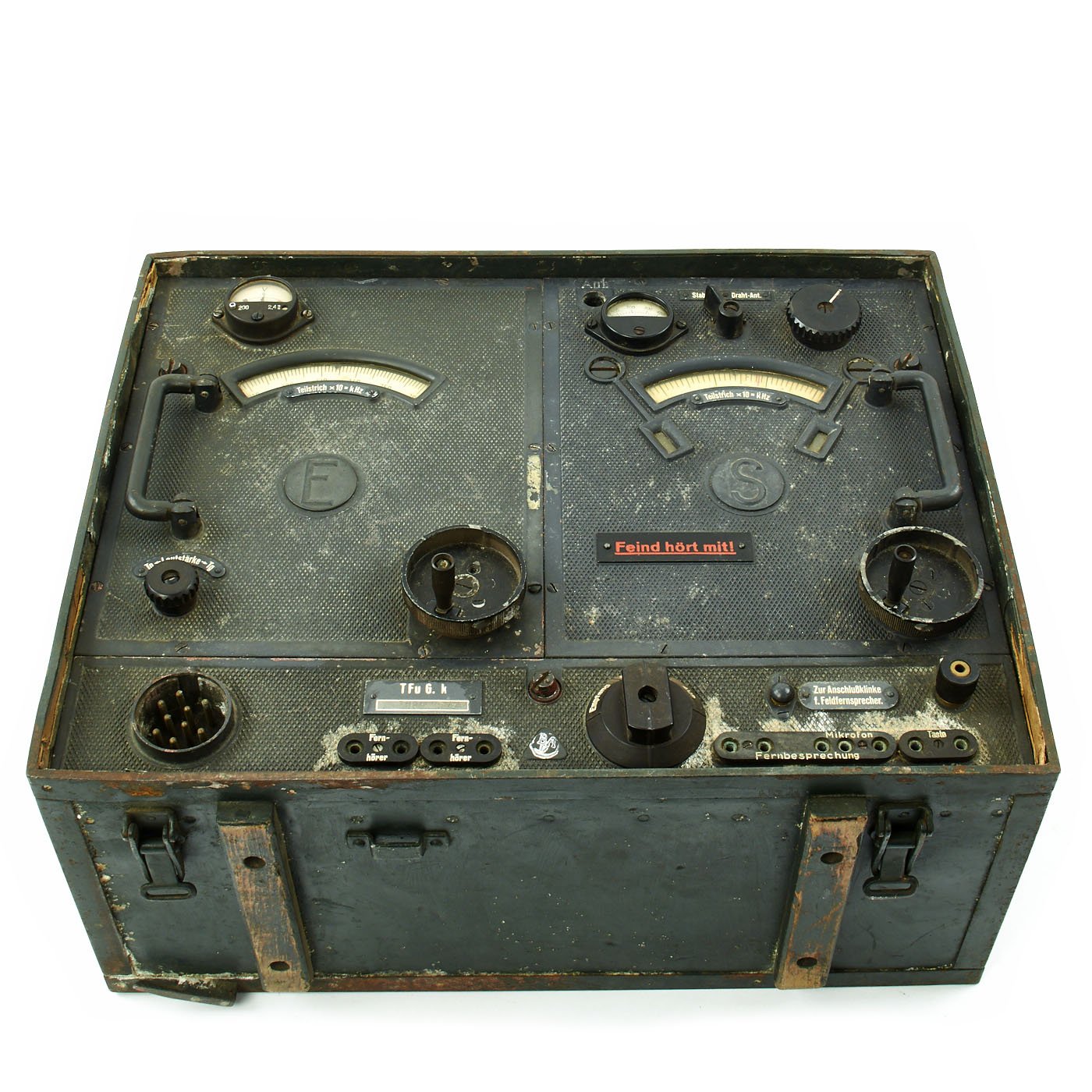

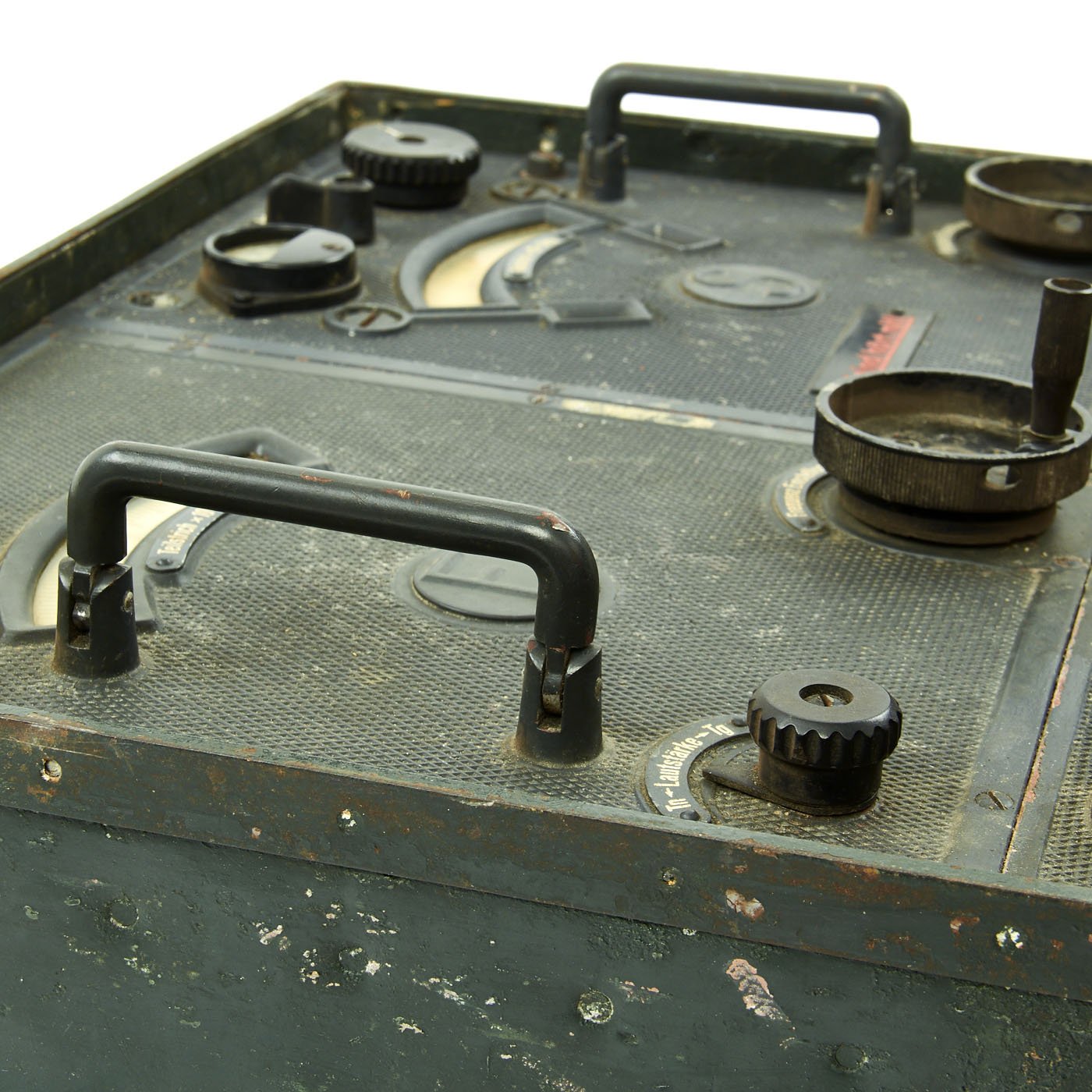

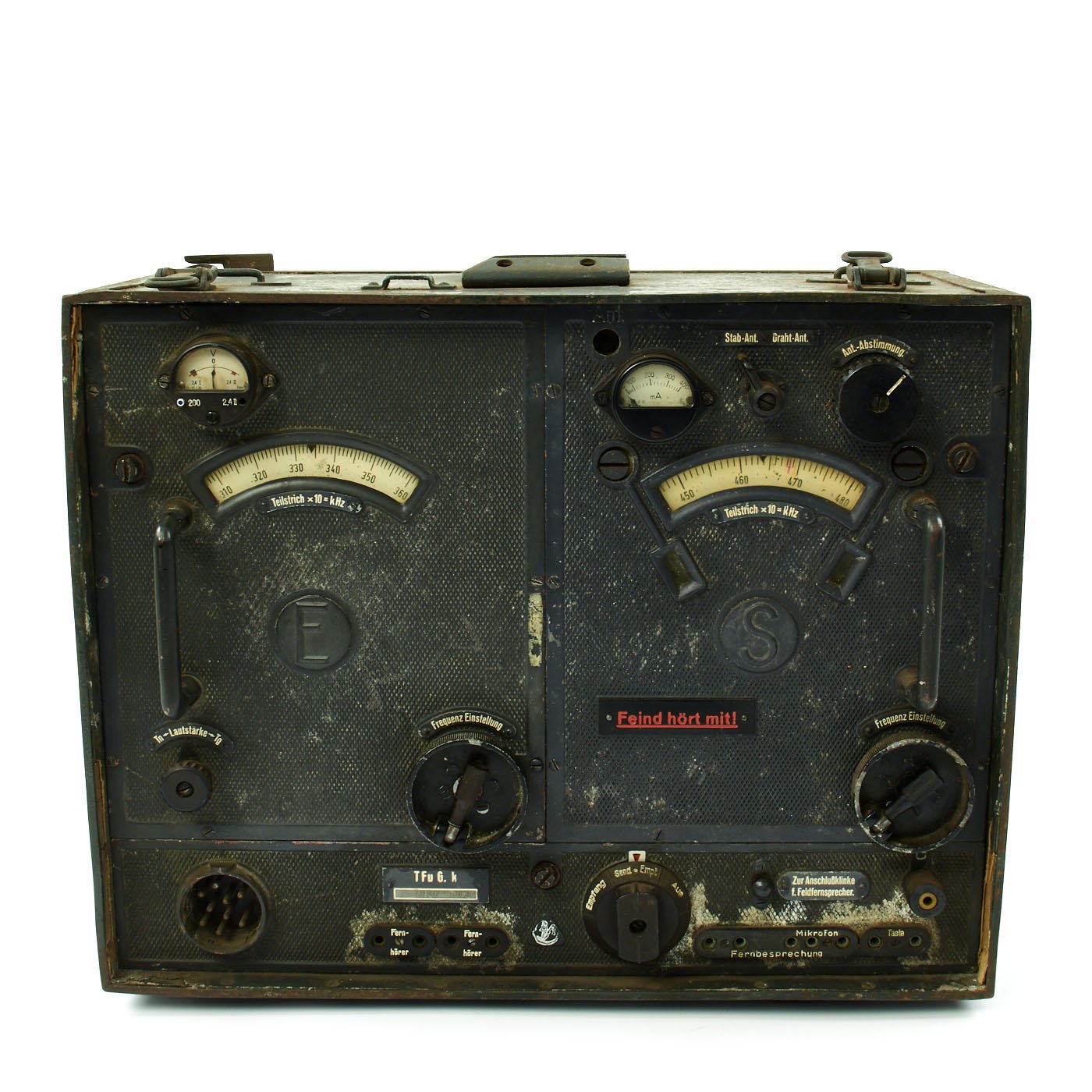

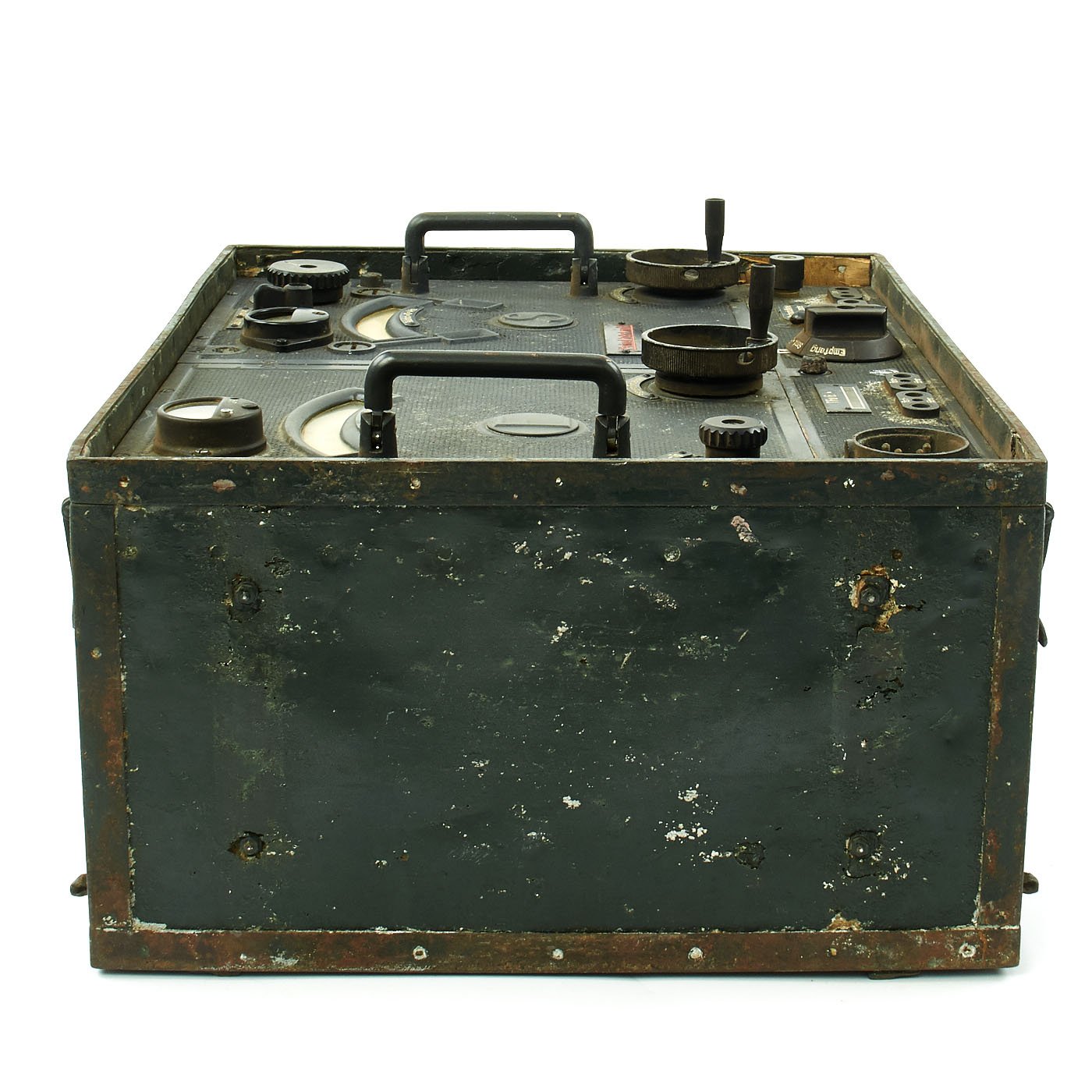

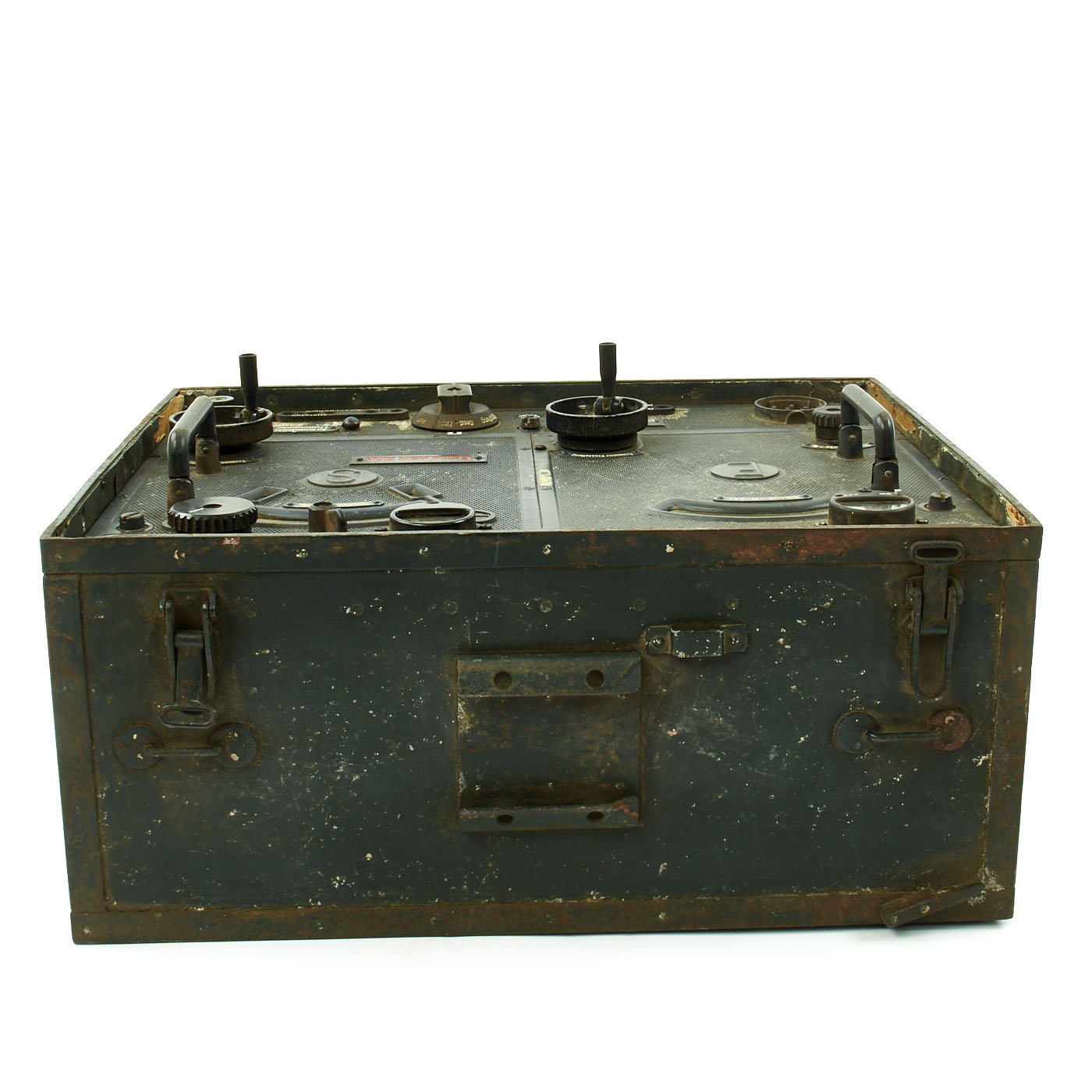

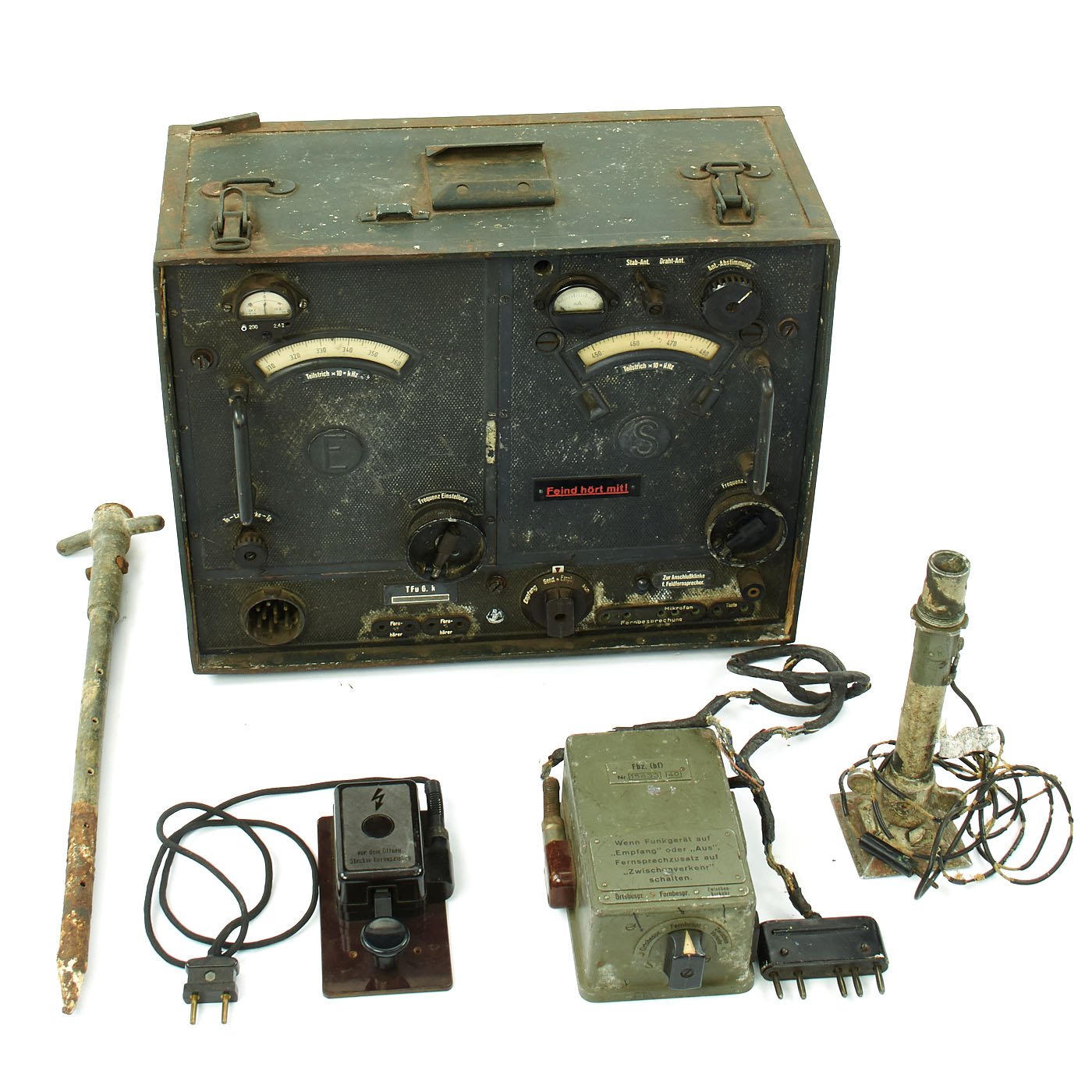

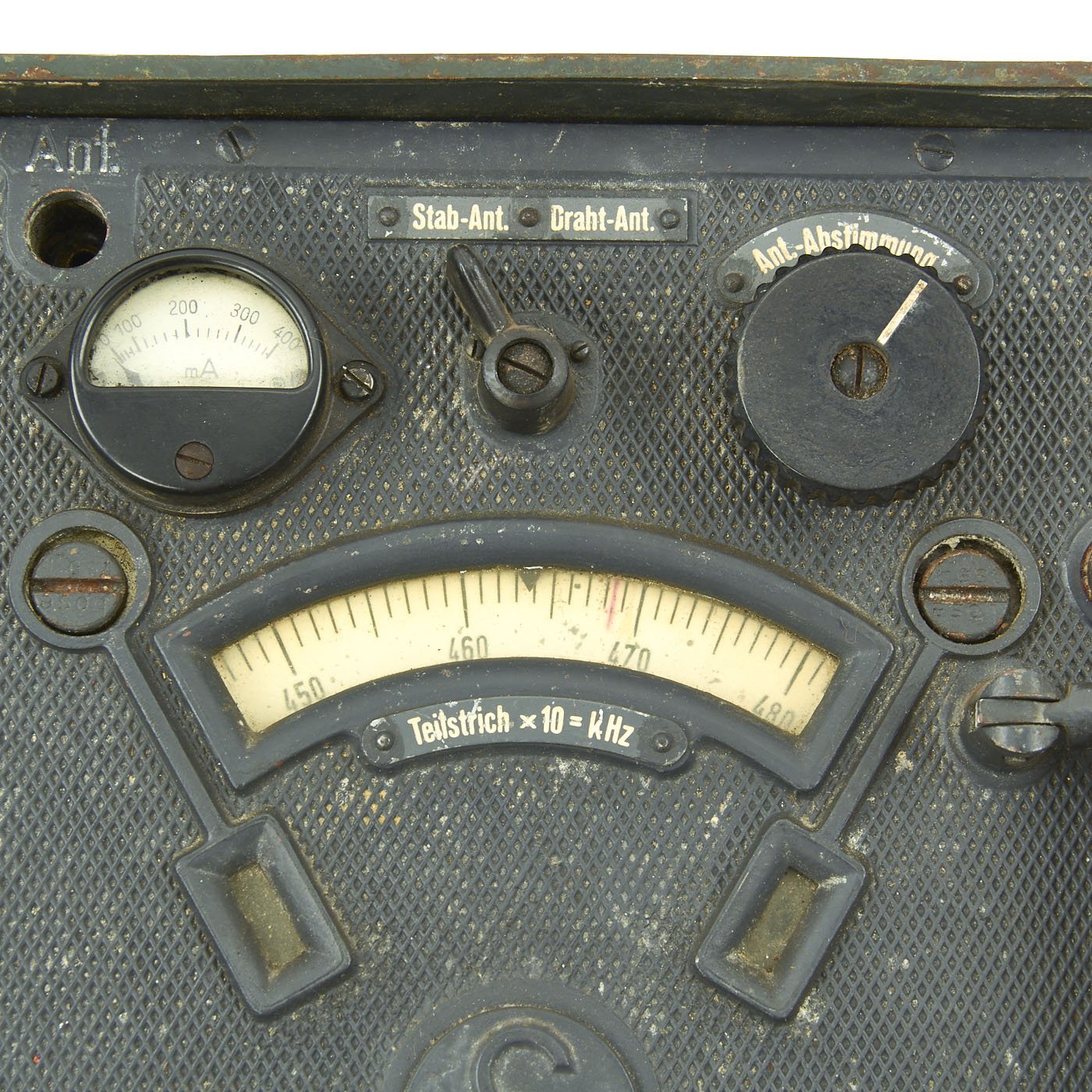

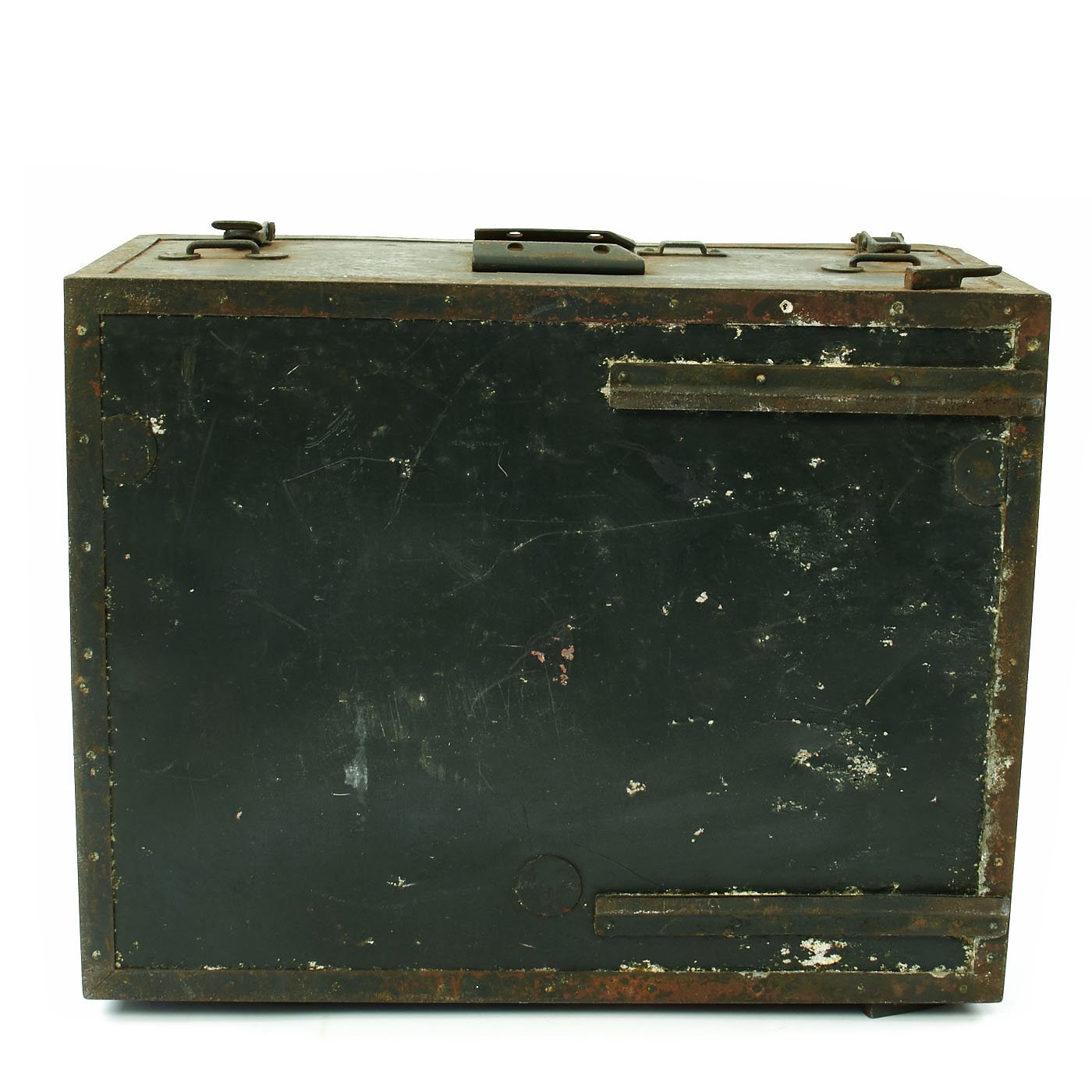

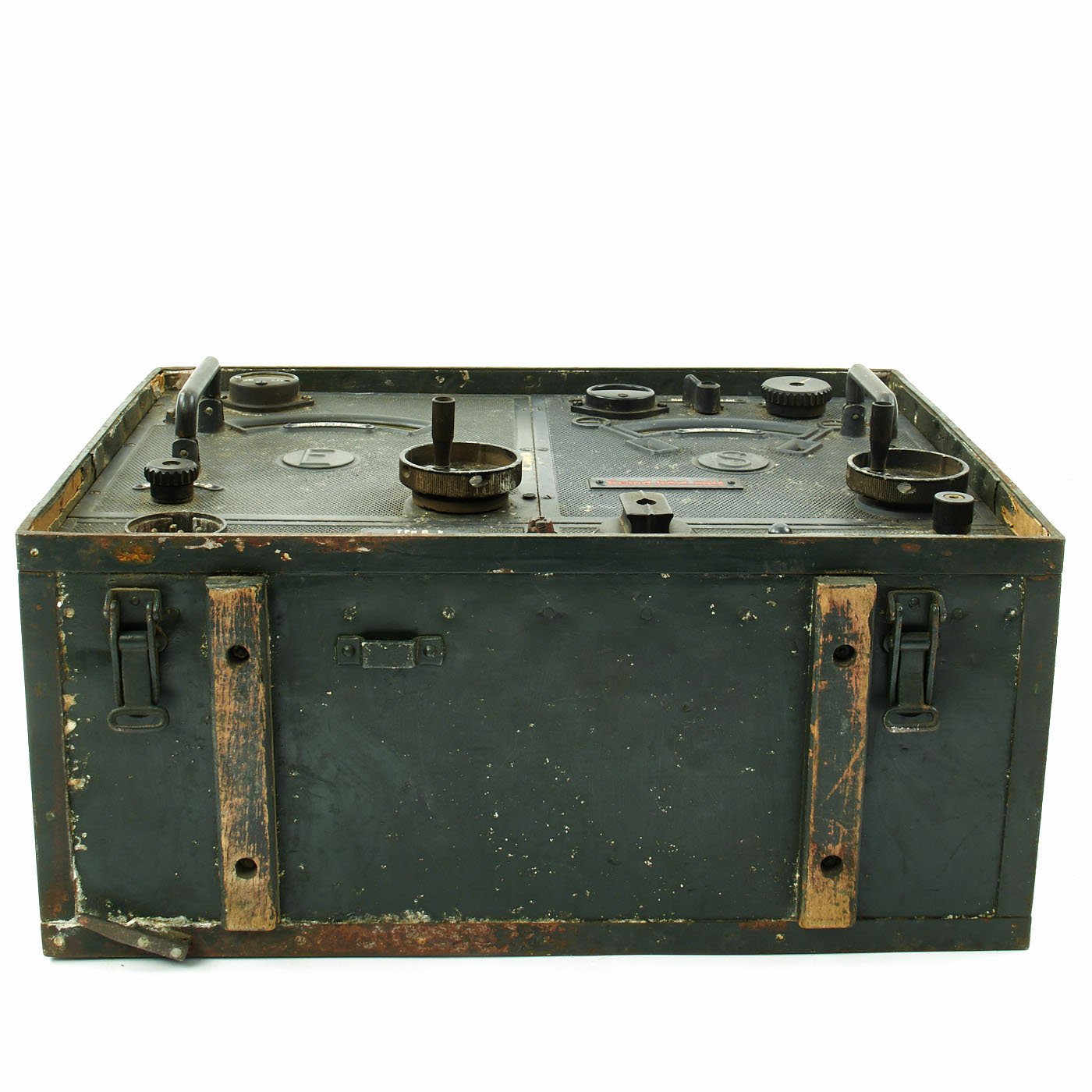

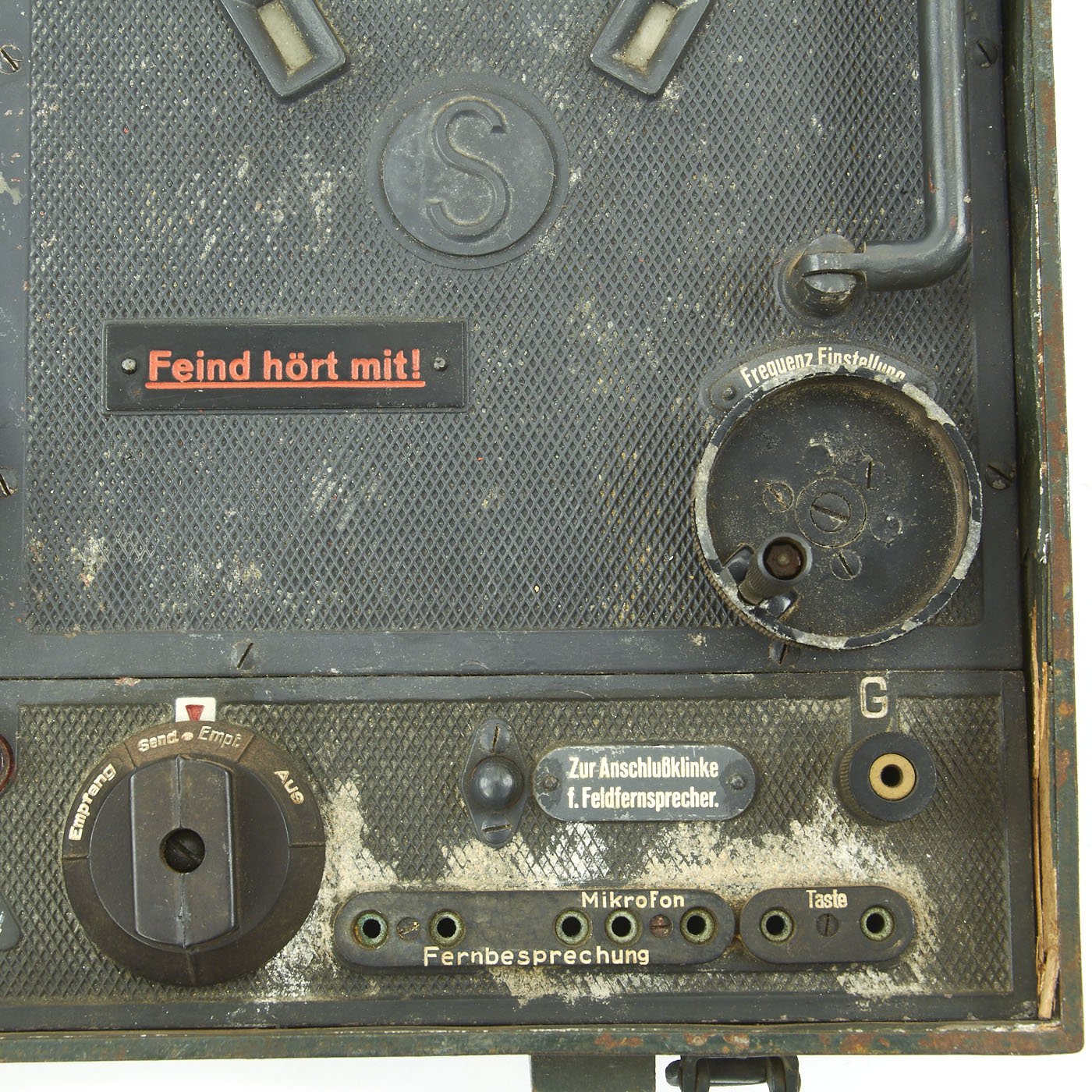

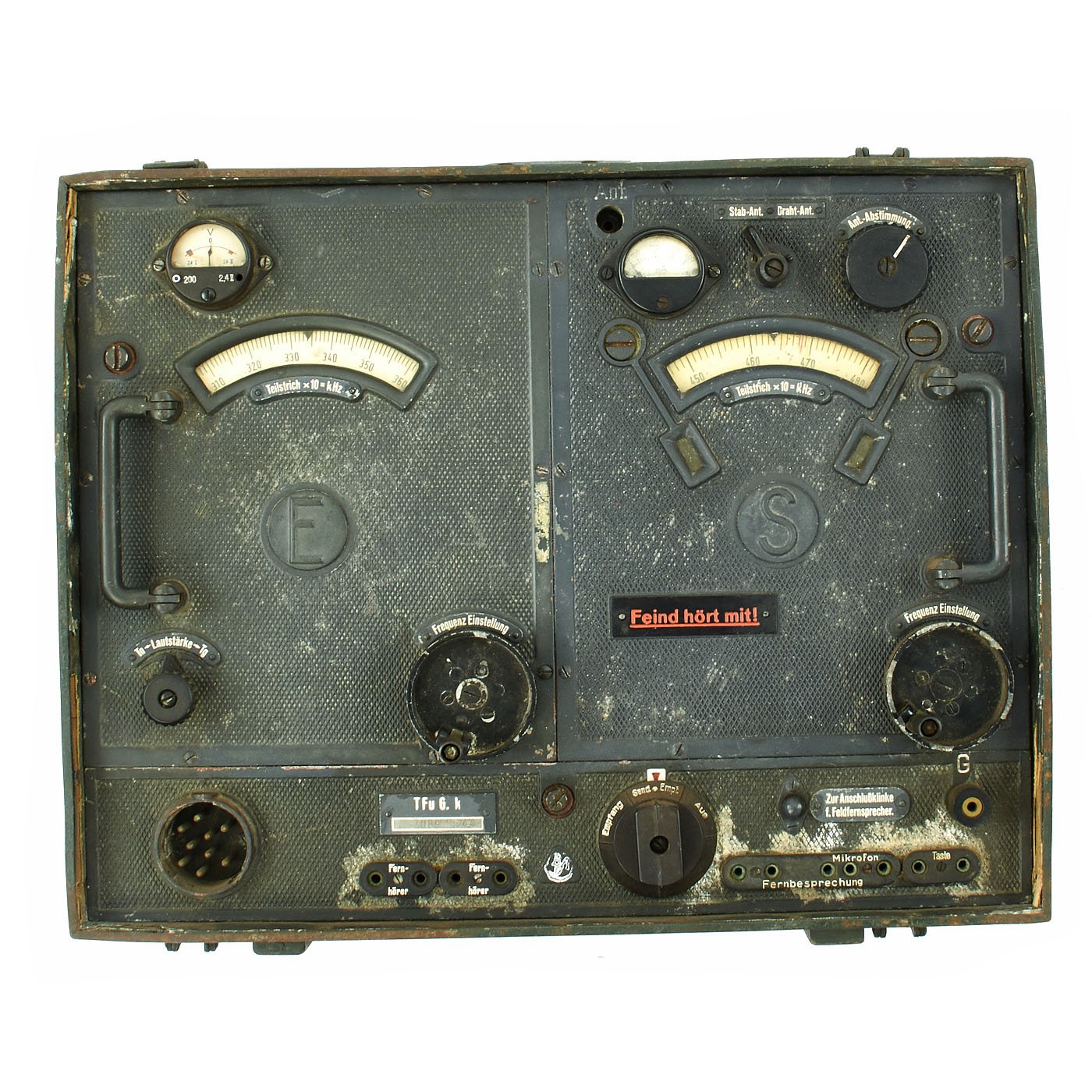

Original Item: Only One Available. This is an ultra rare German WWII field radio set. We believe its a varian of the Torn.Fu.b1 which was a portable radio set intended for field service as pack set. The set was carried by two men. One for transmitter and receiver and the other for battery pack which houses also headphones, key, microphone, antenna gear and other accessories.

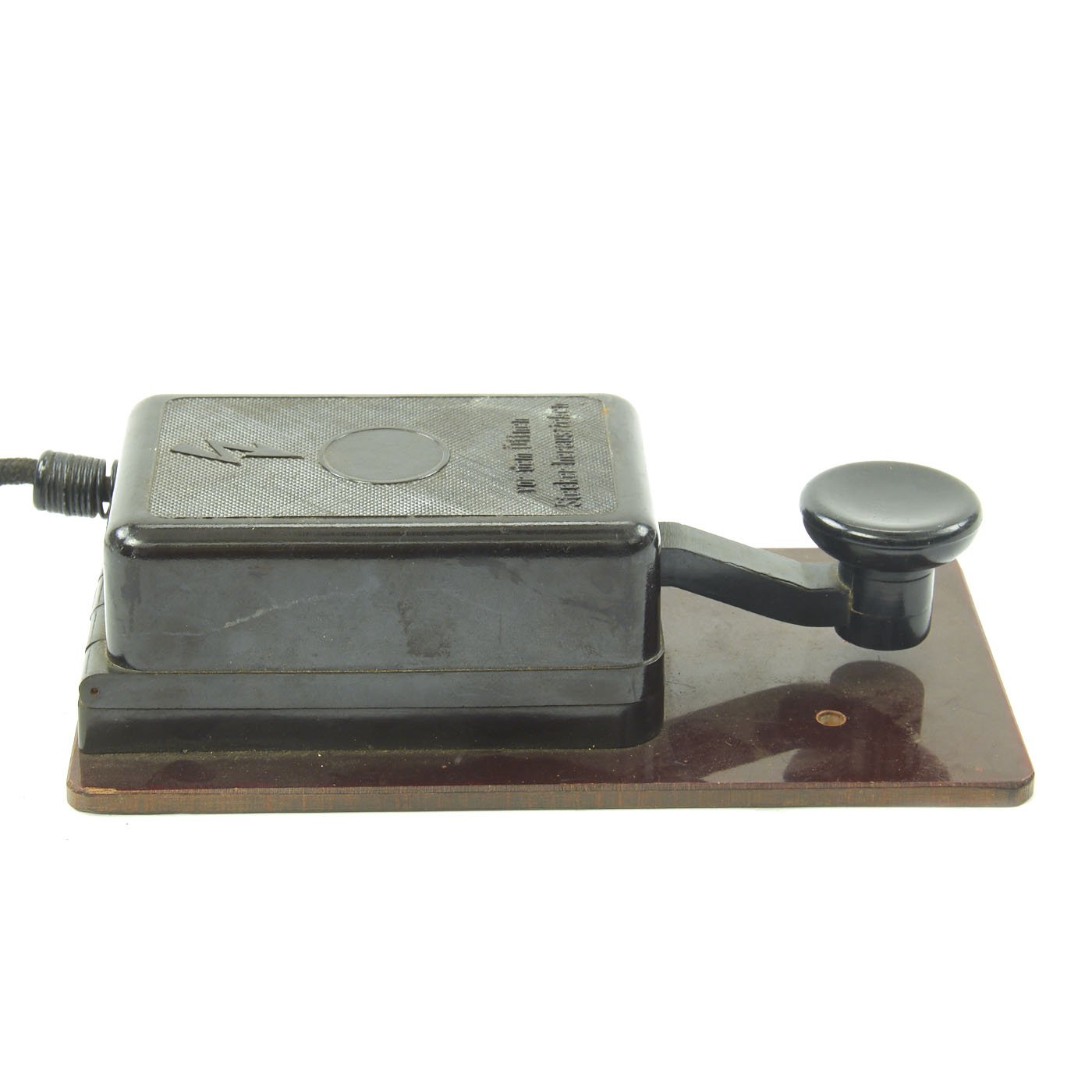

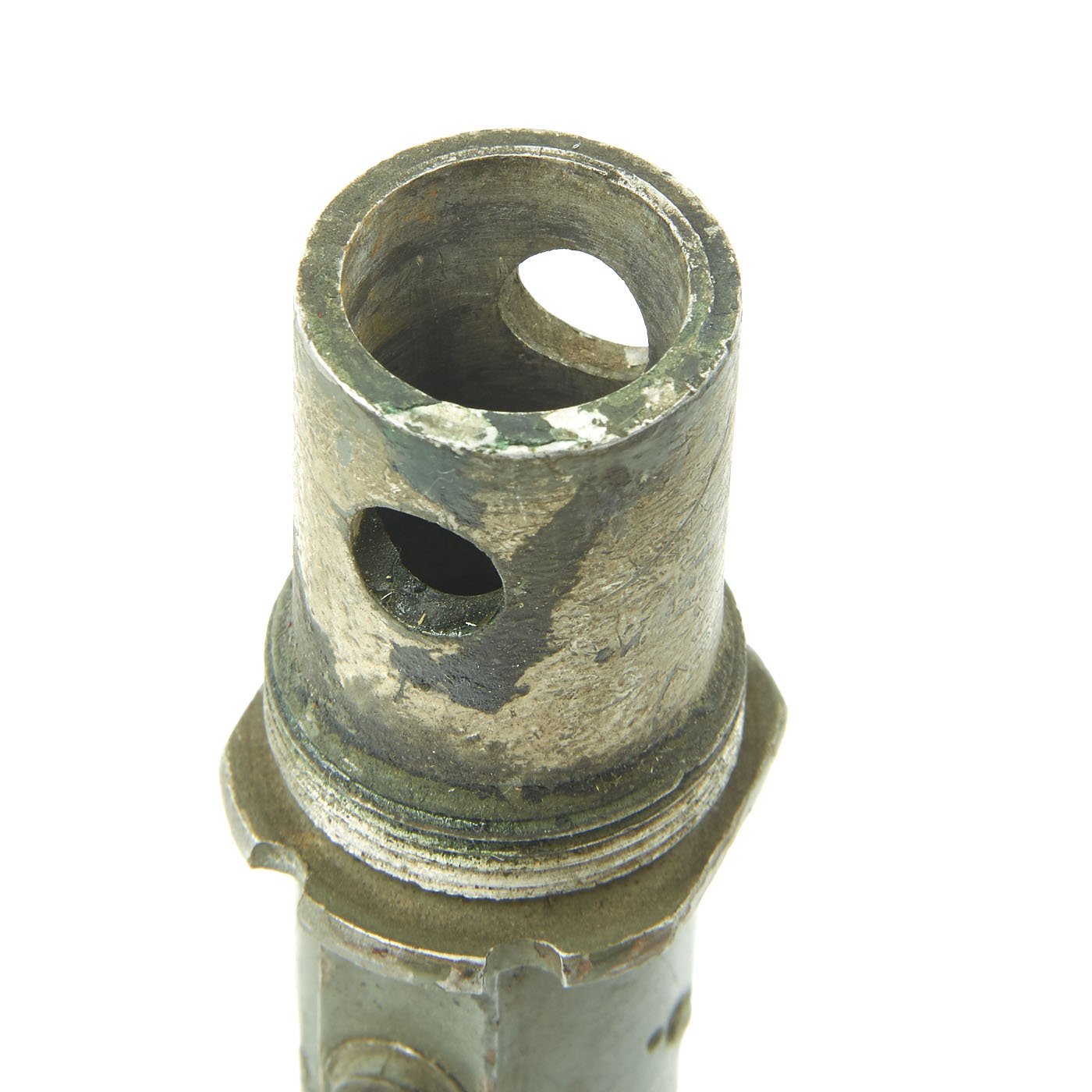

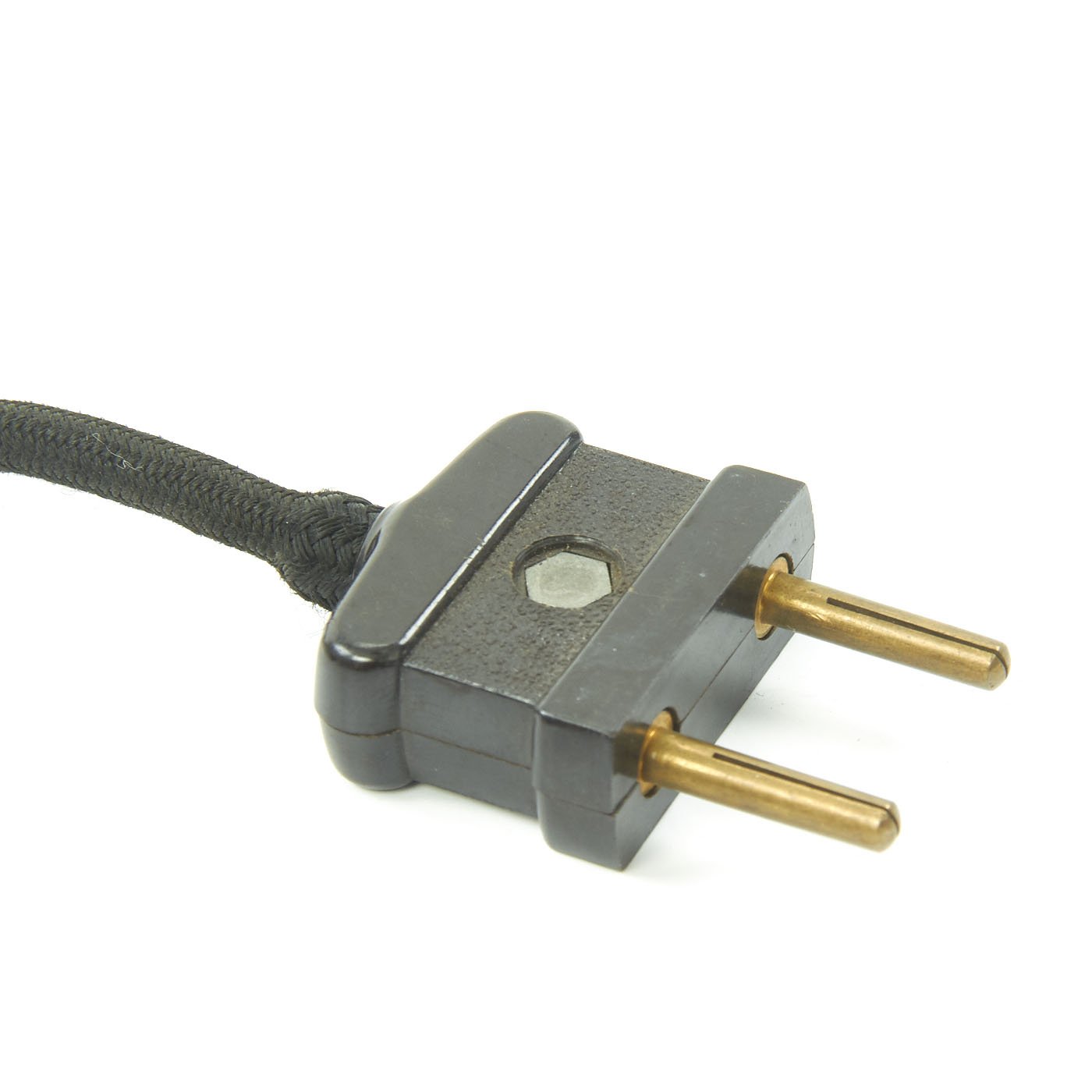

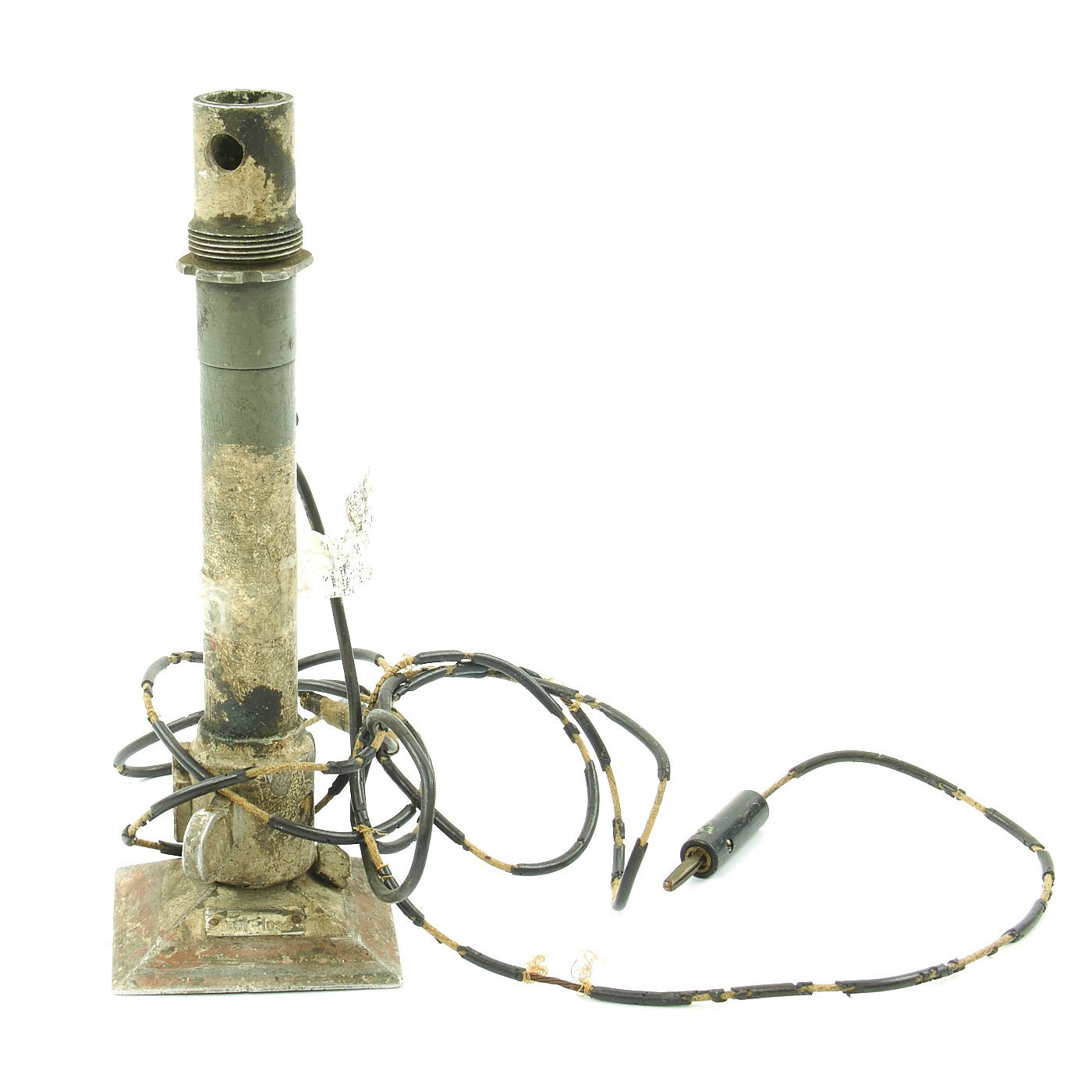

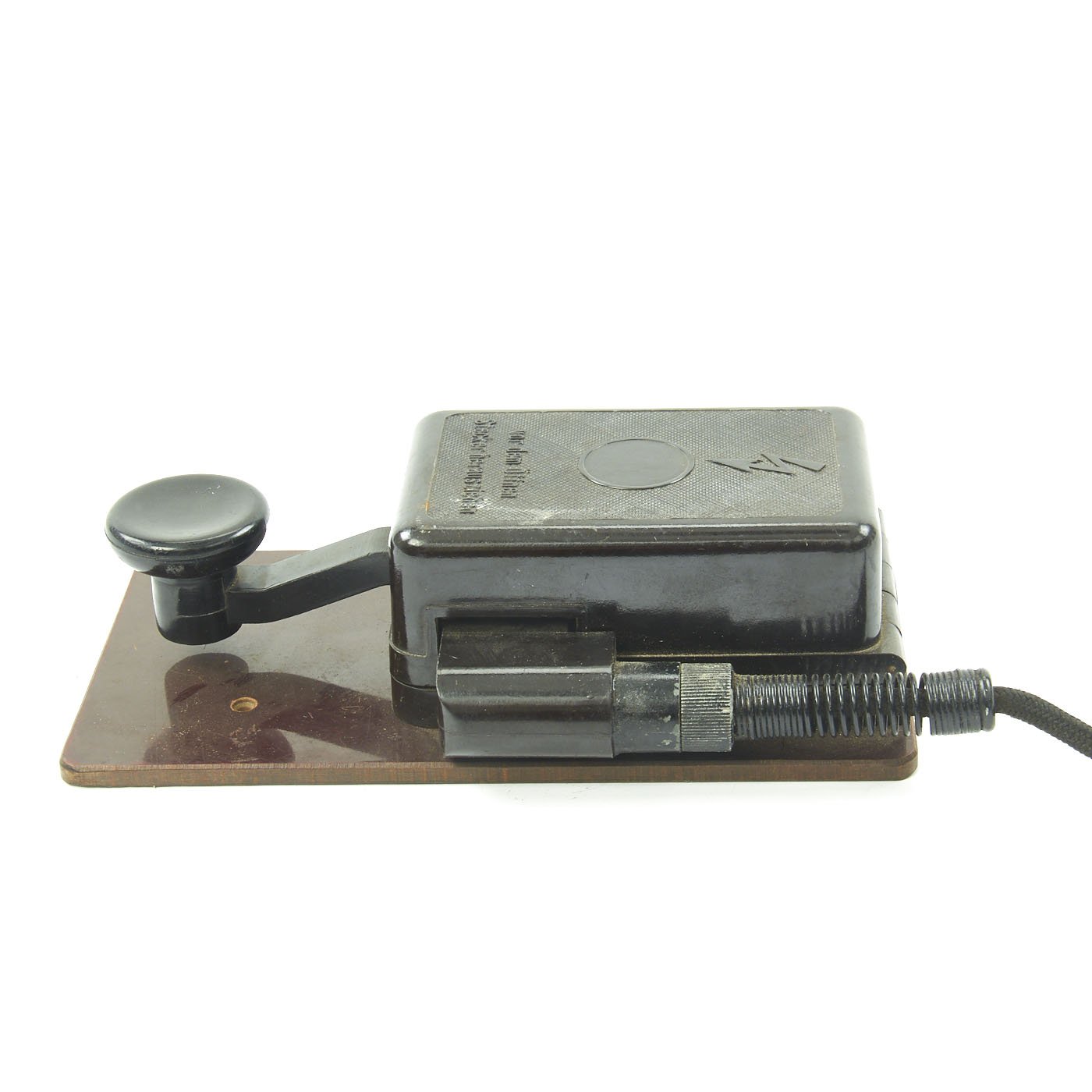

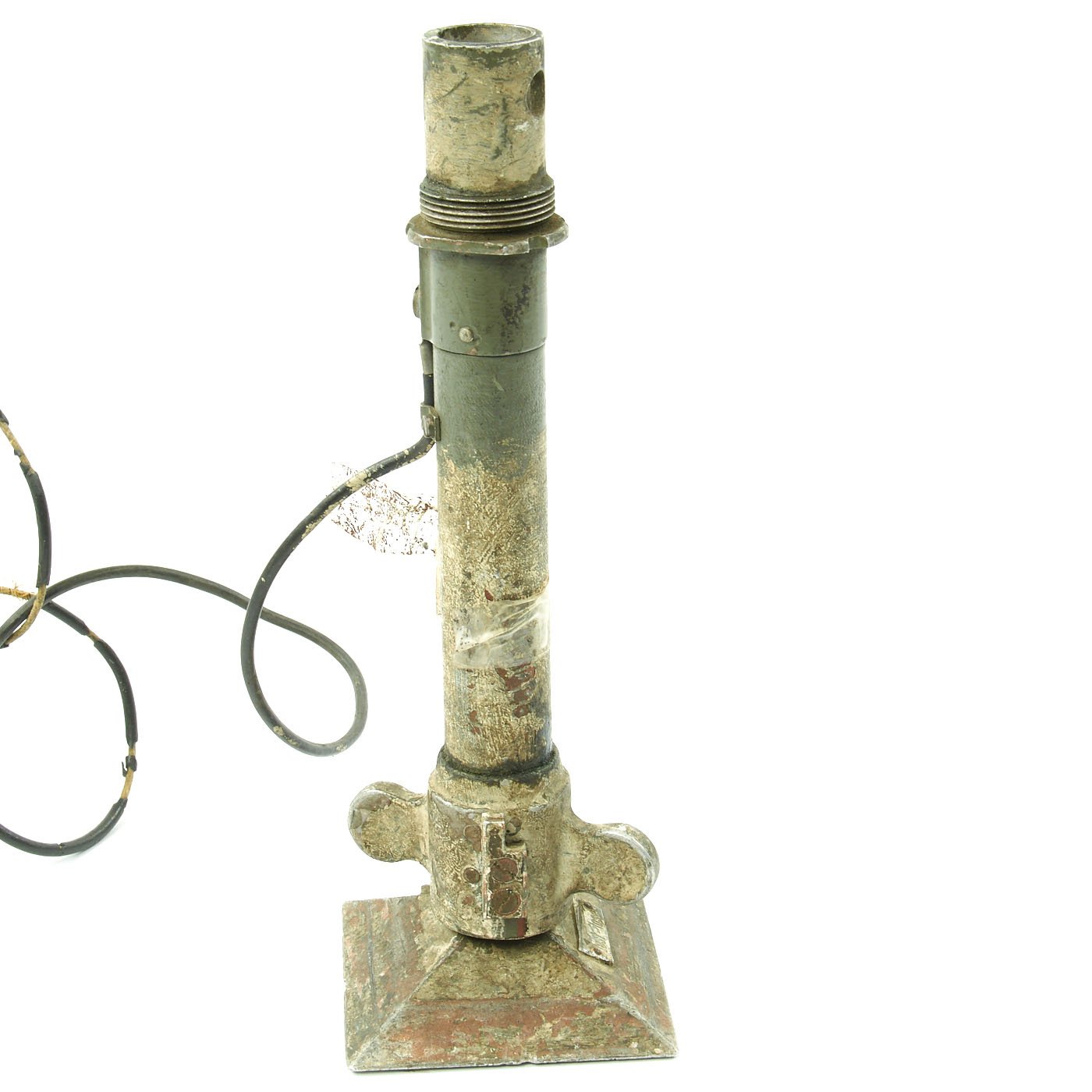

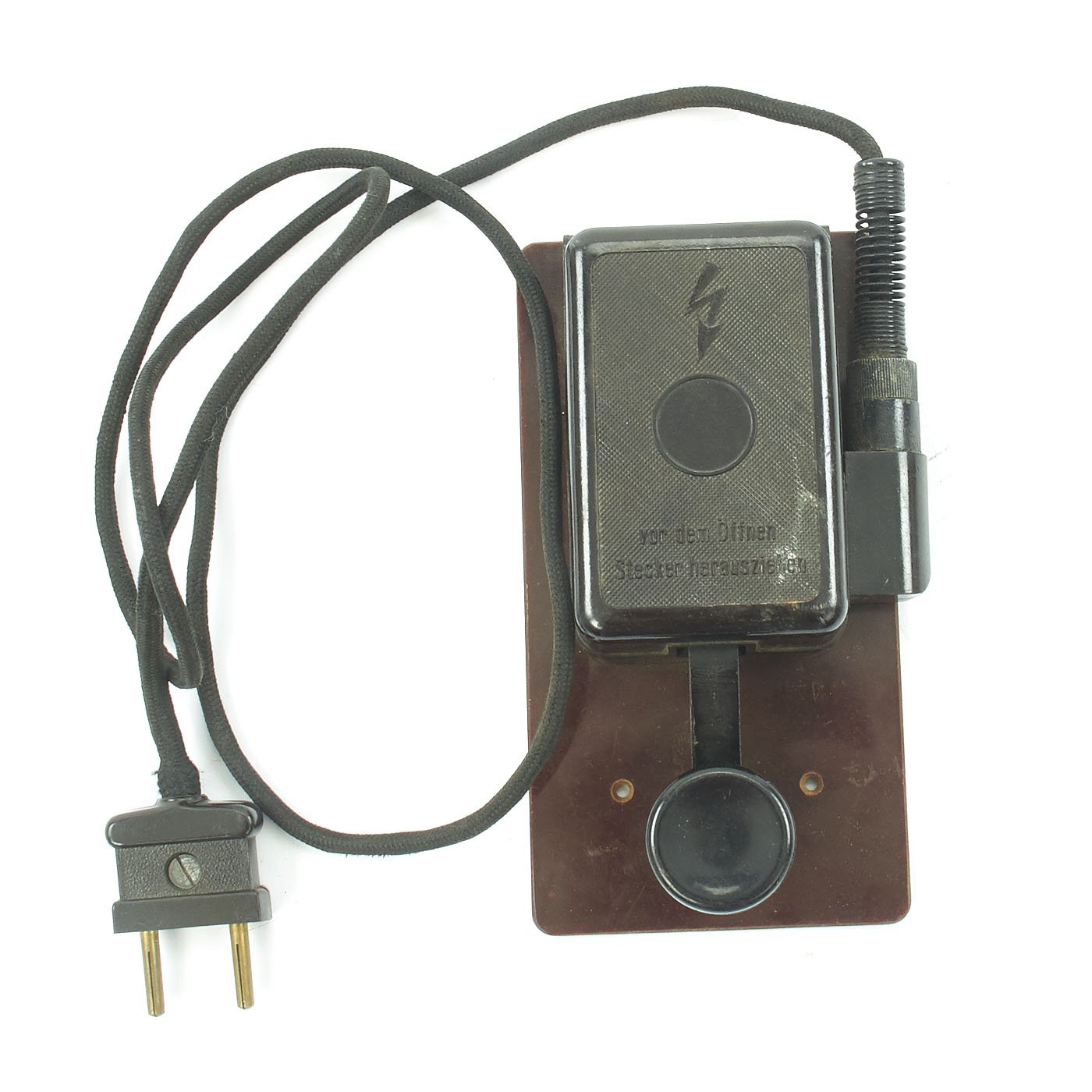

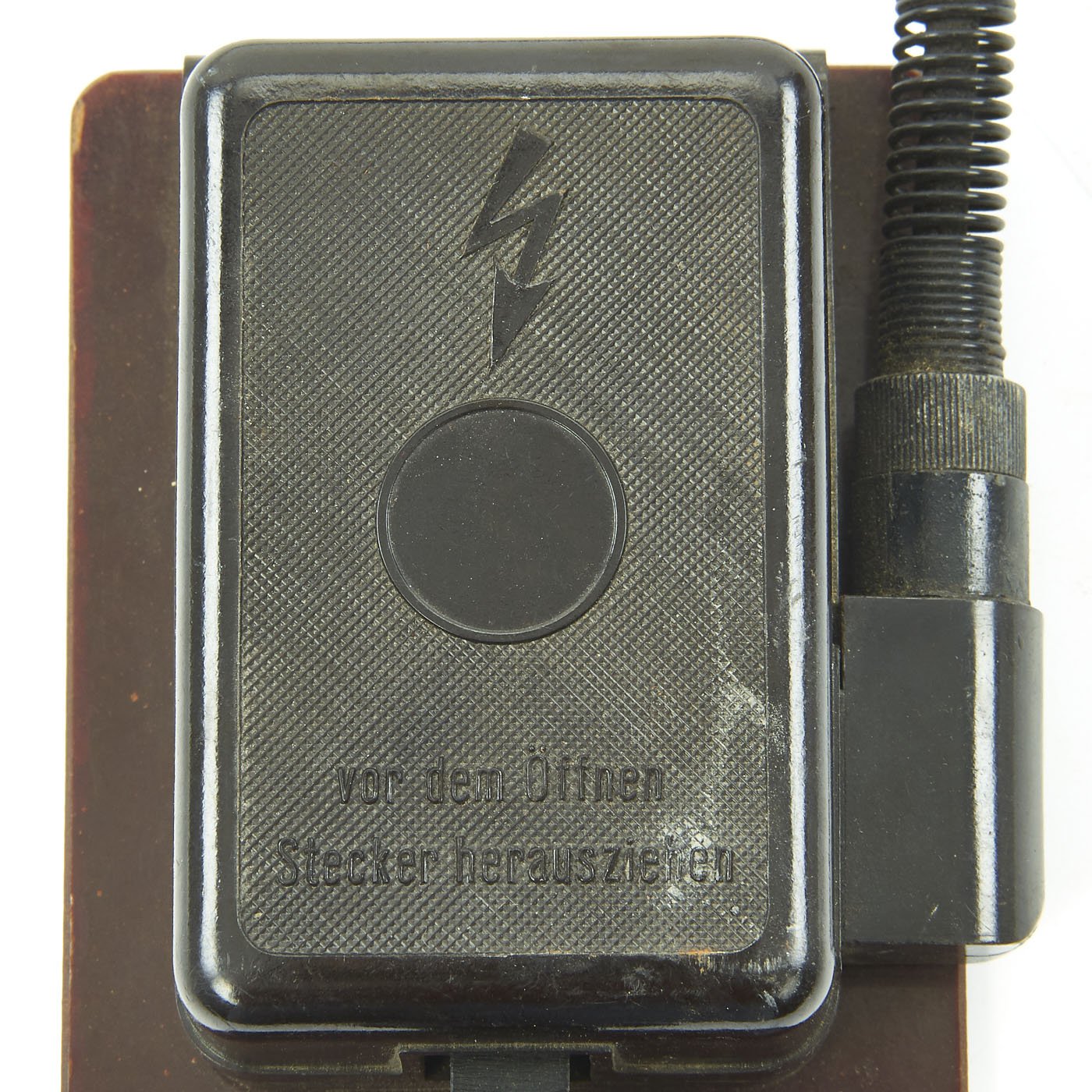

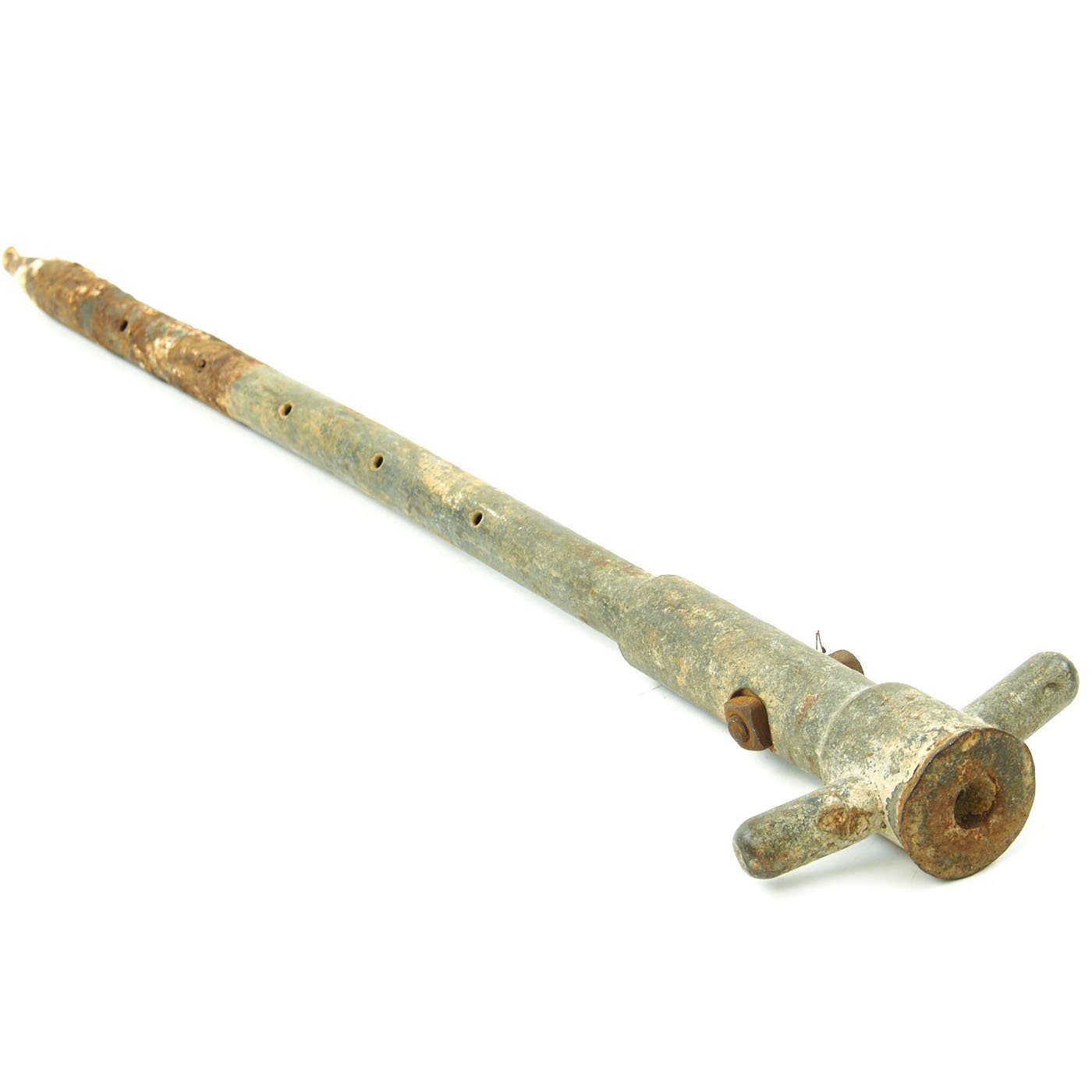

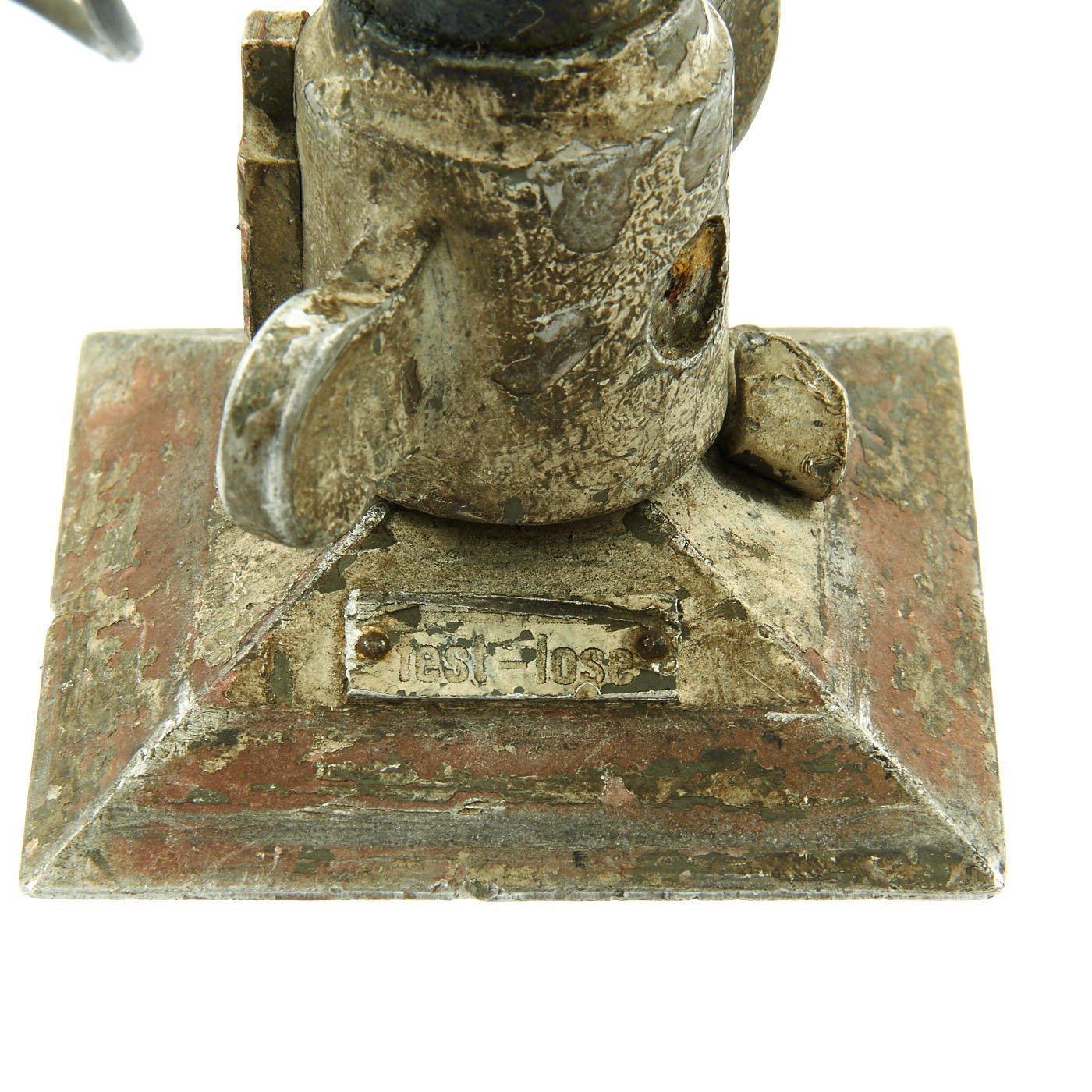

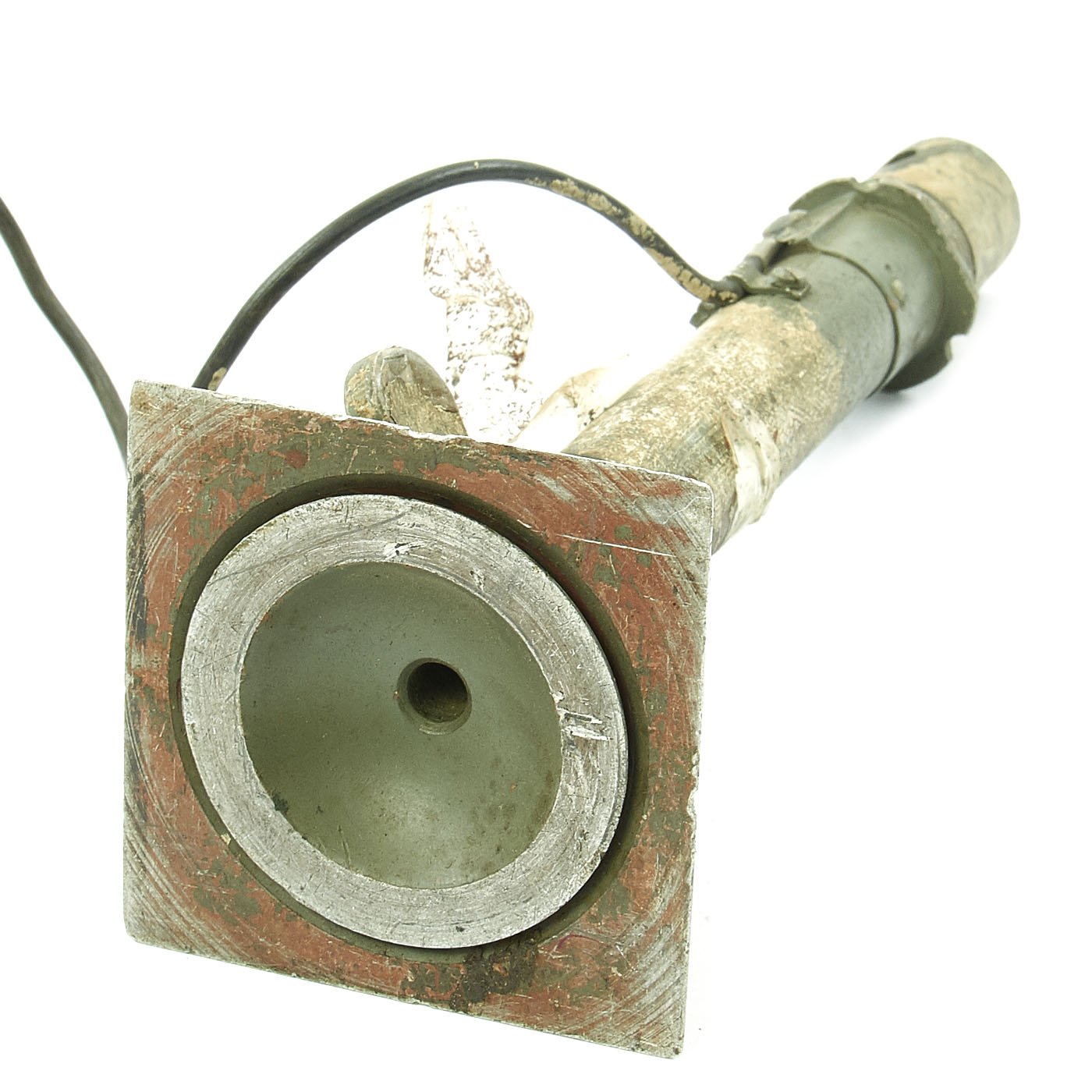

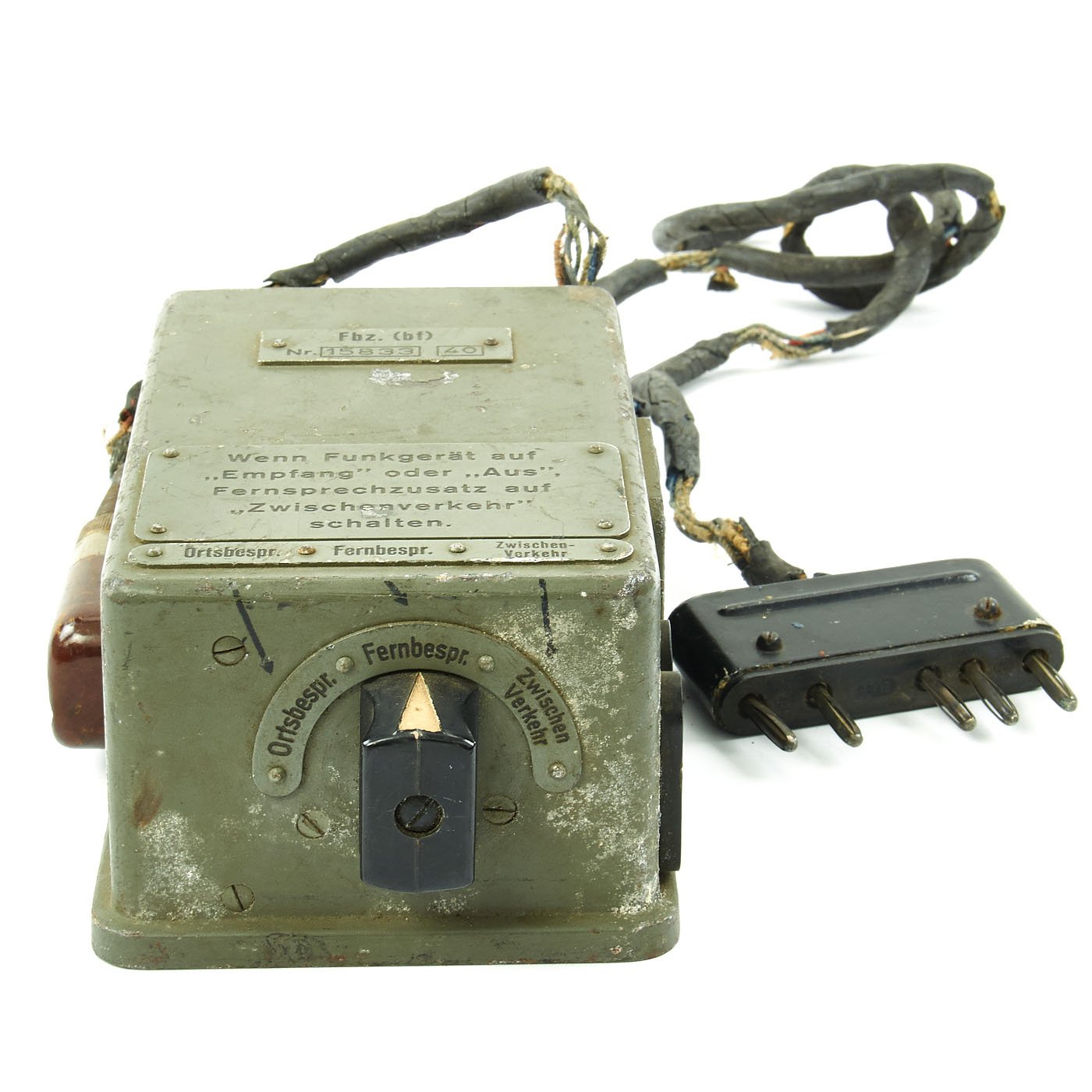

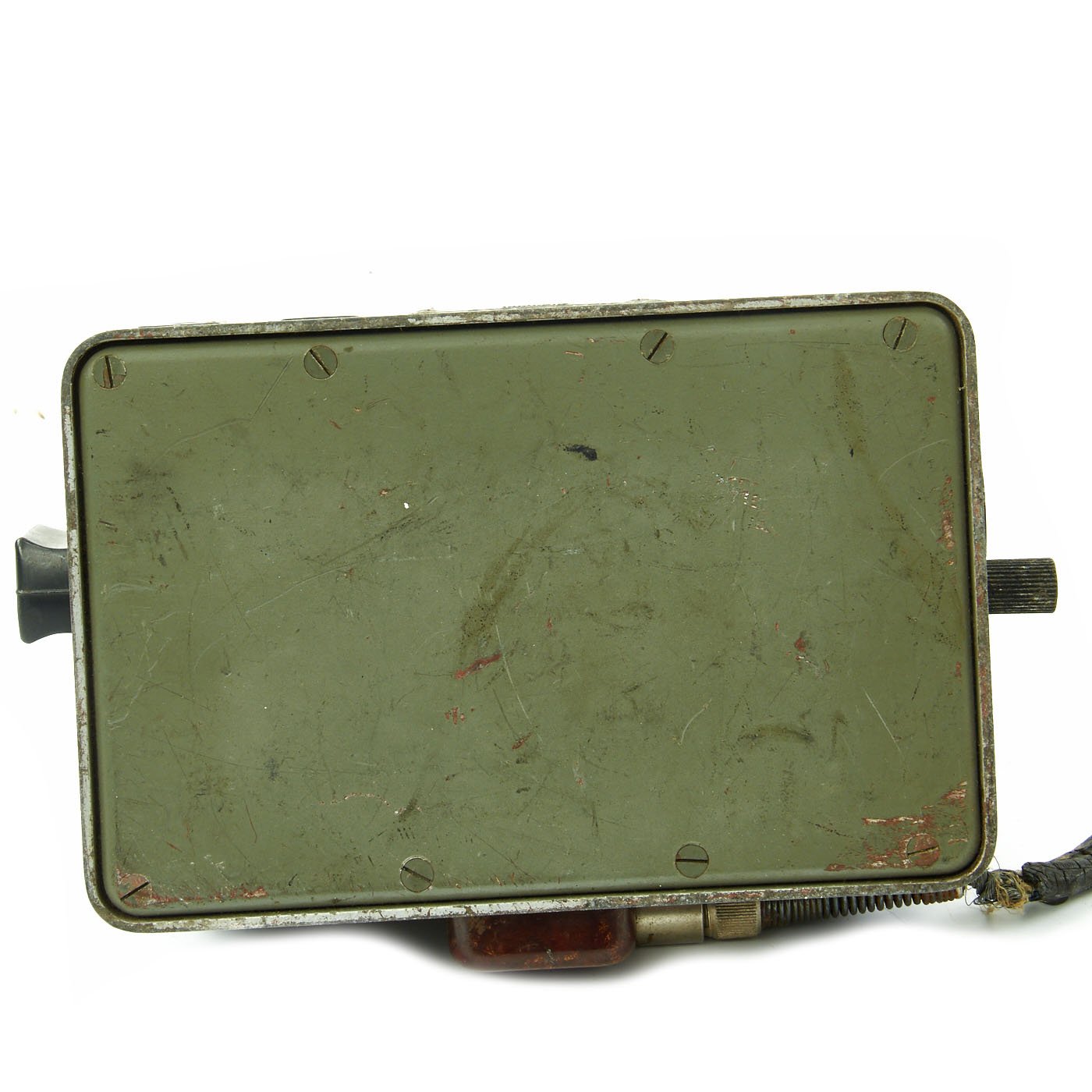

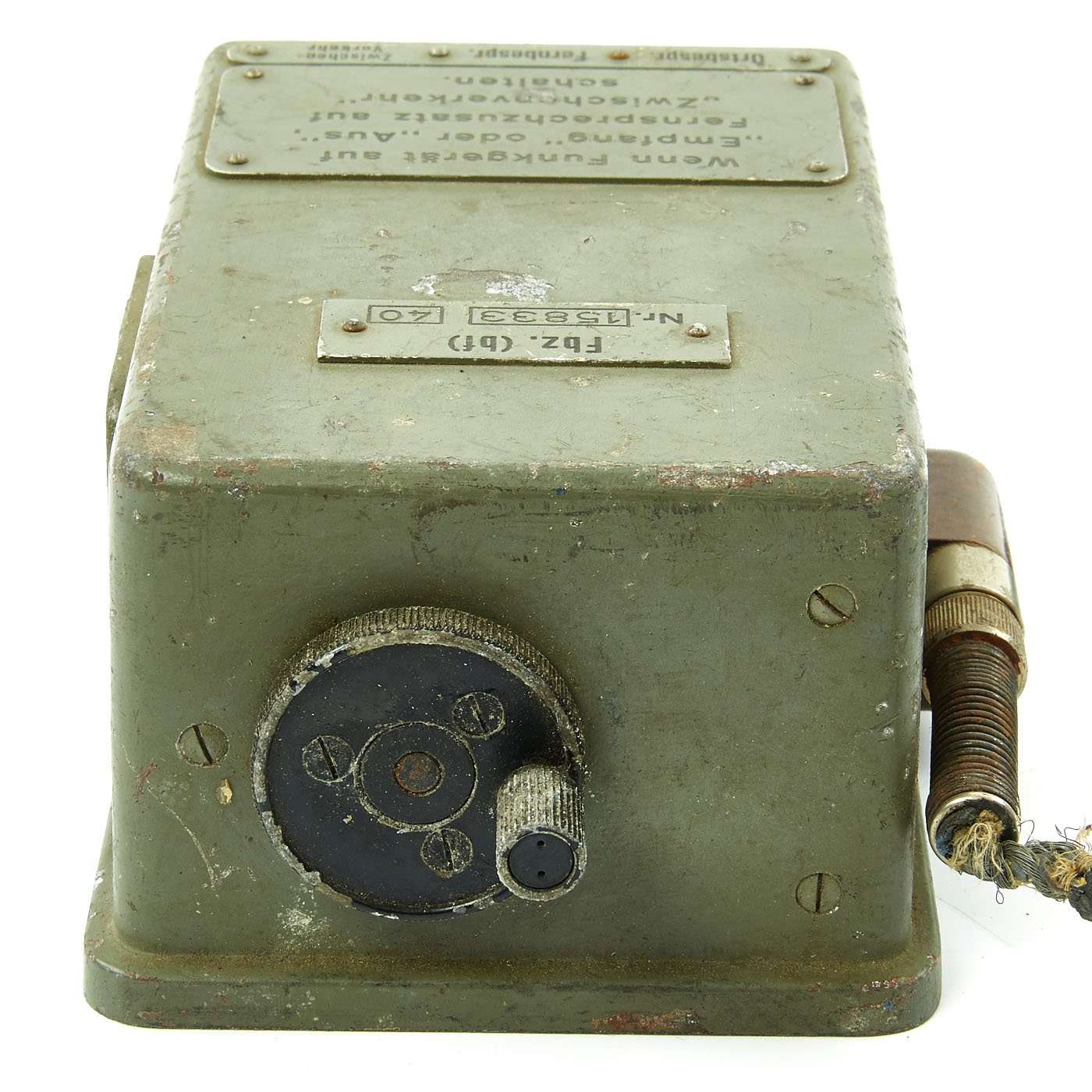

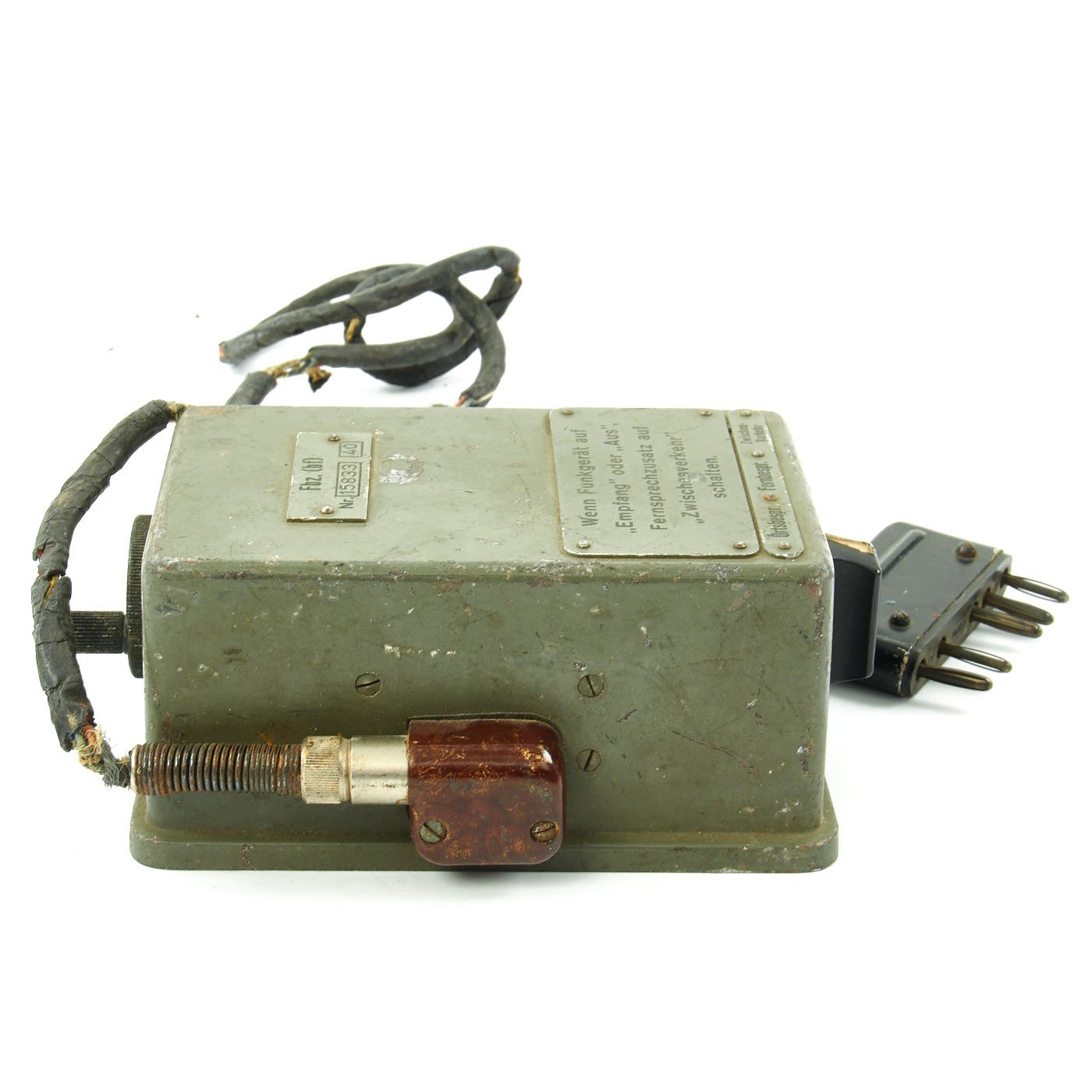

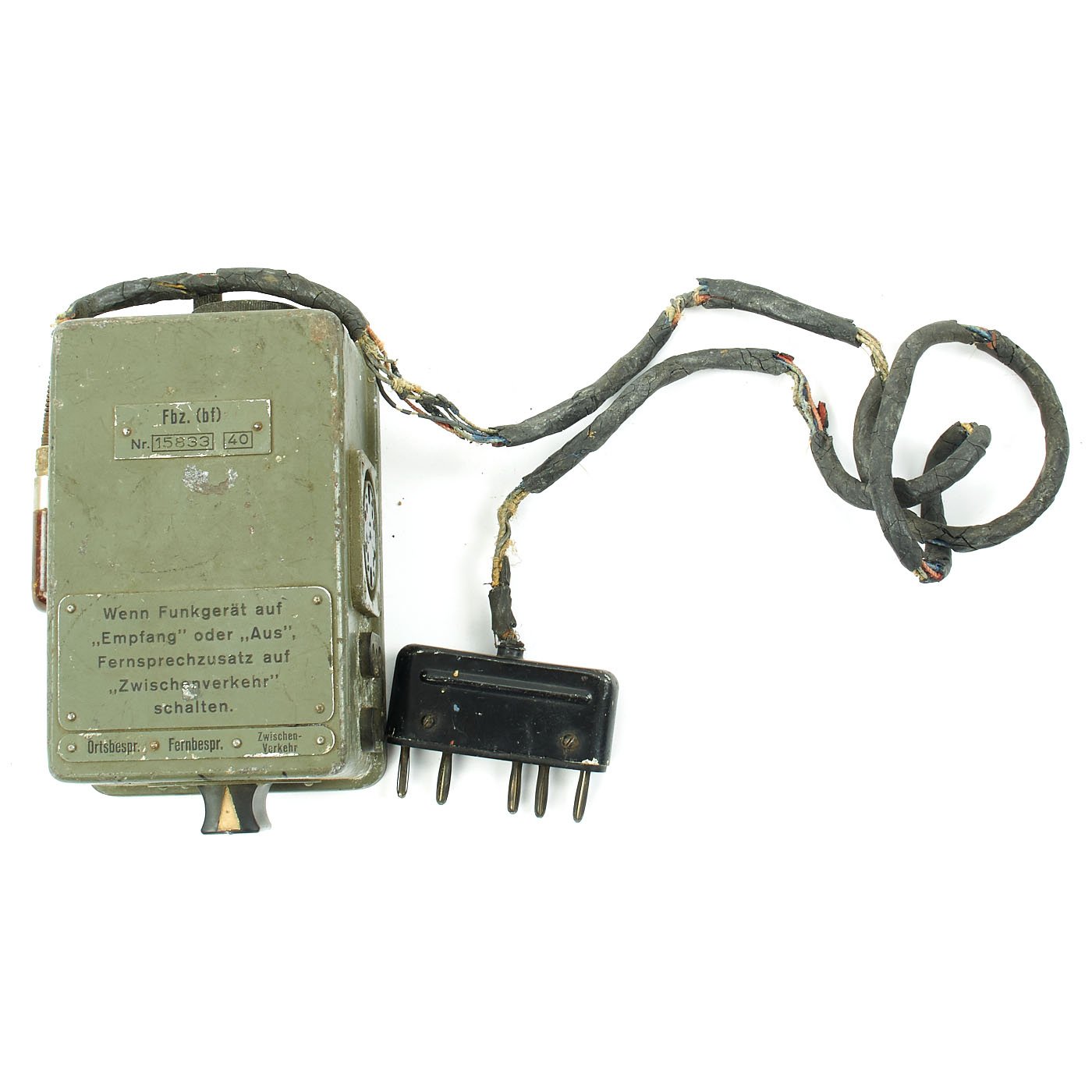

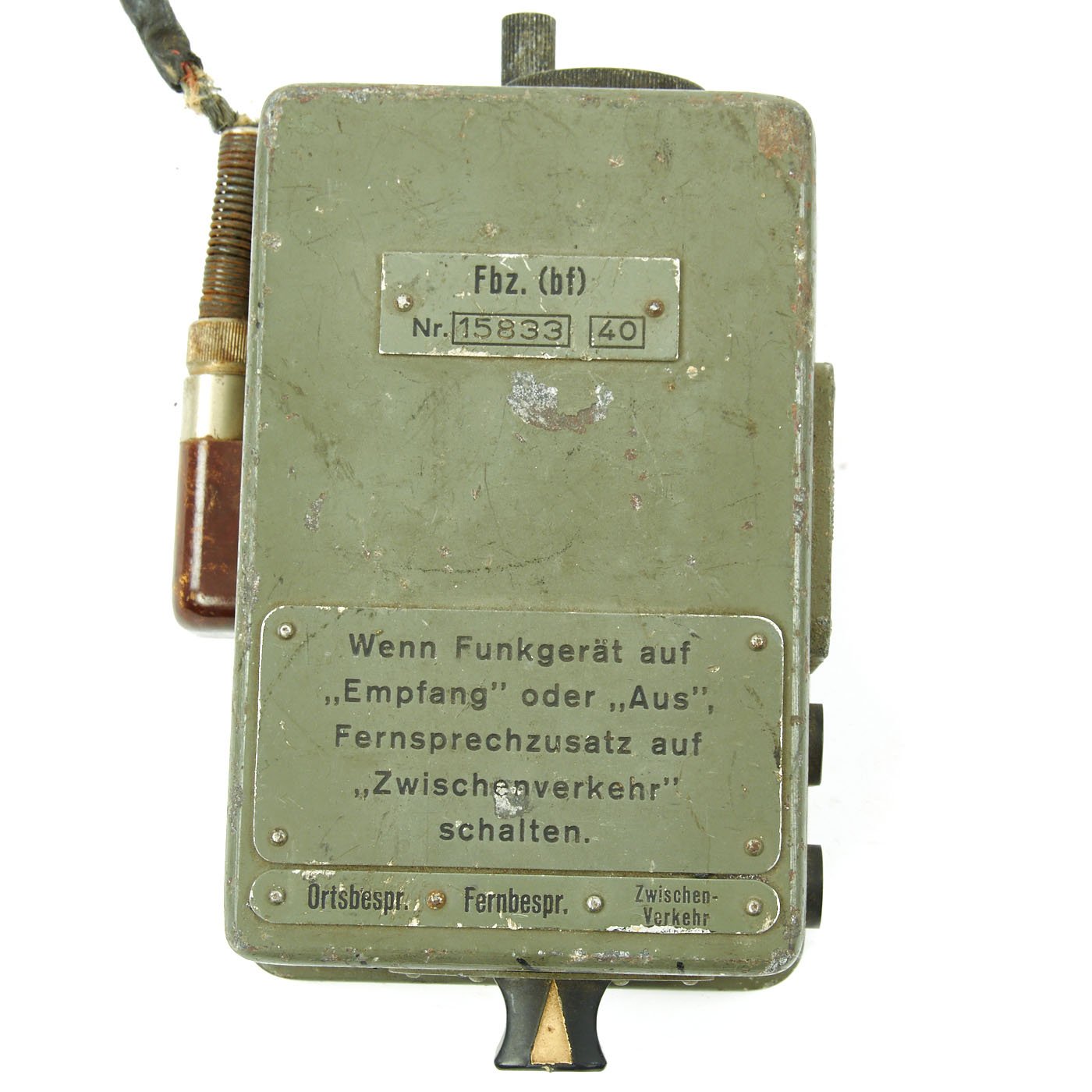

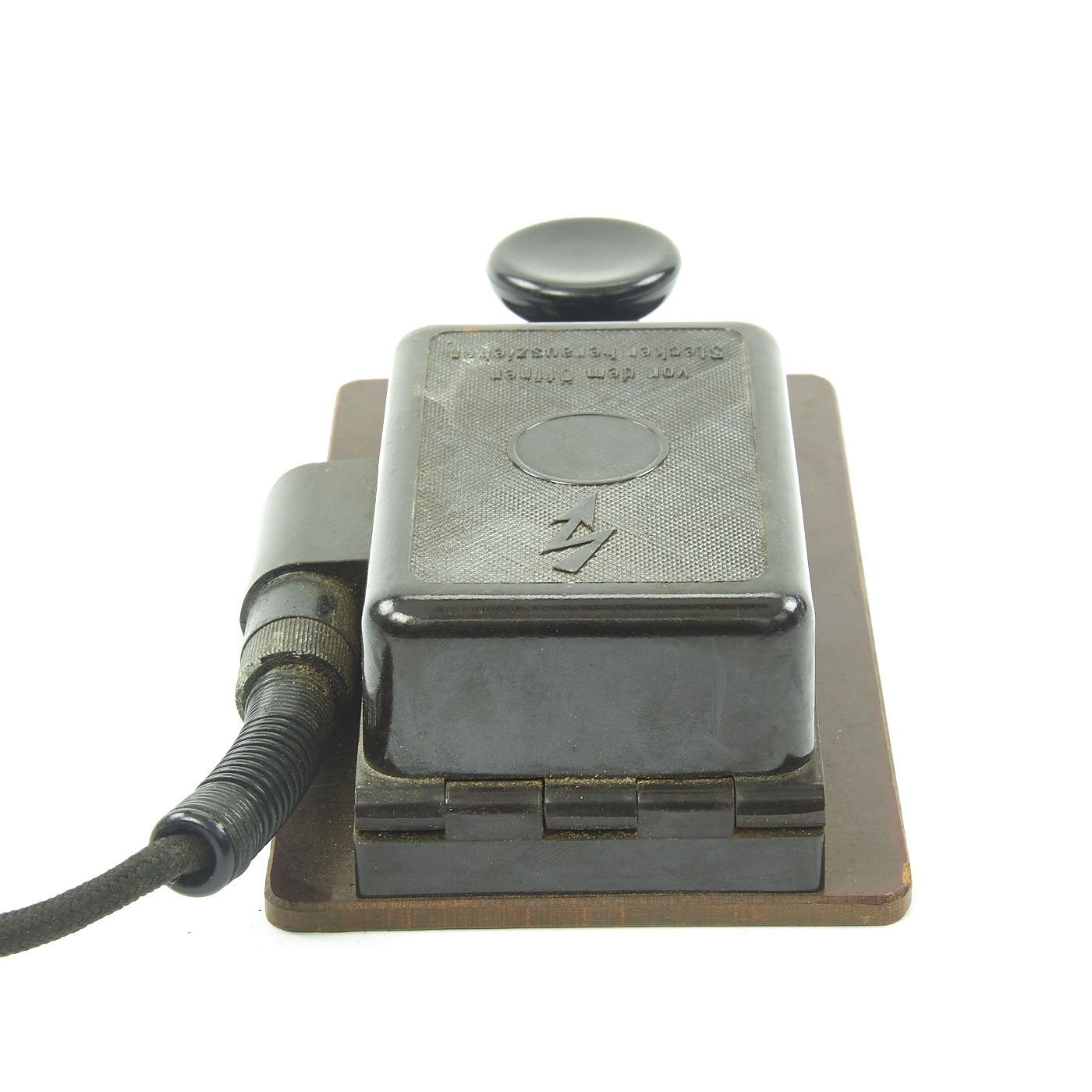

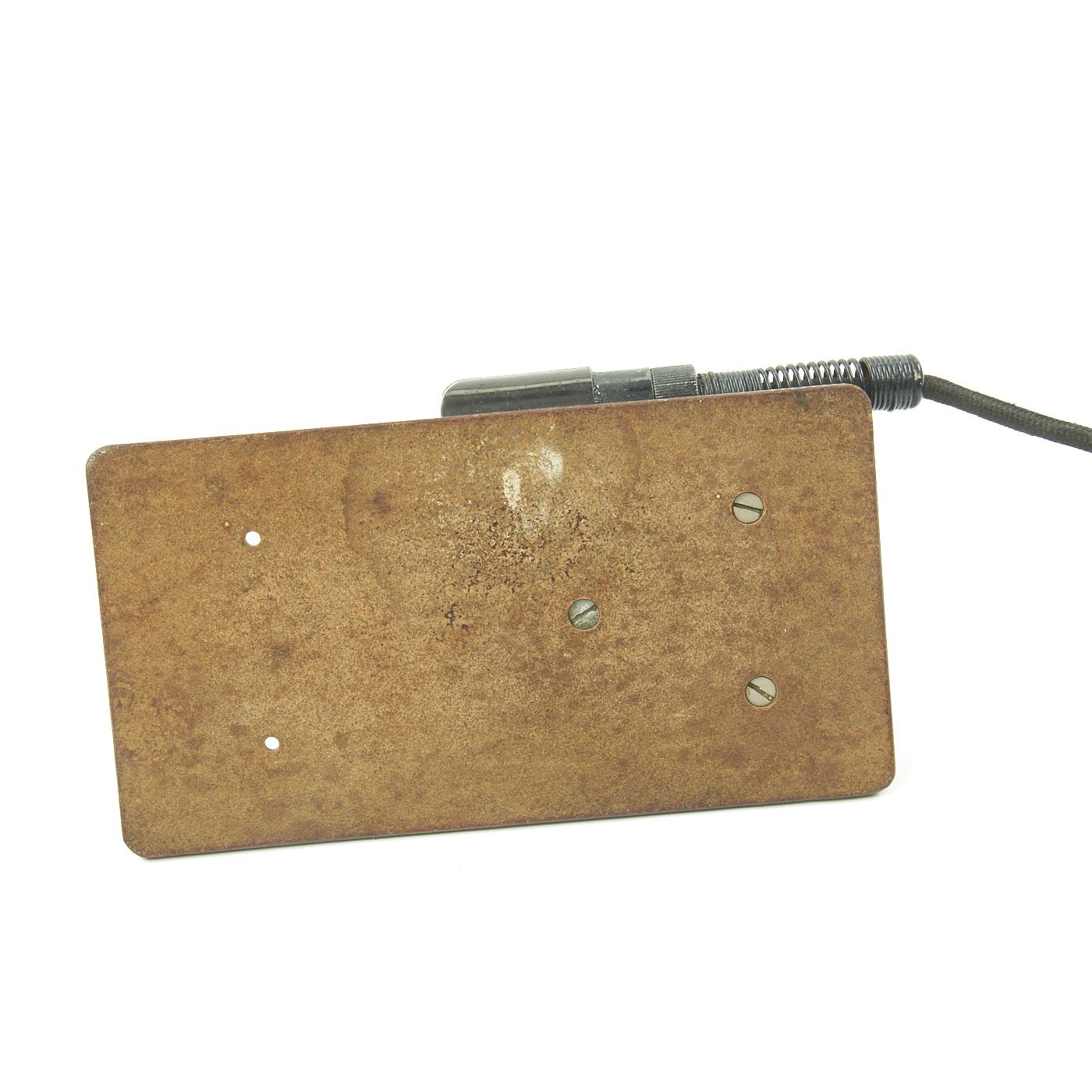

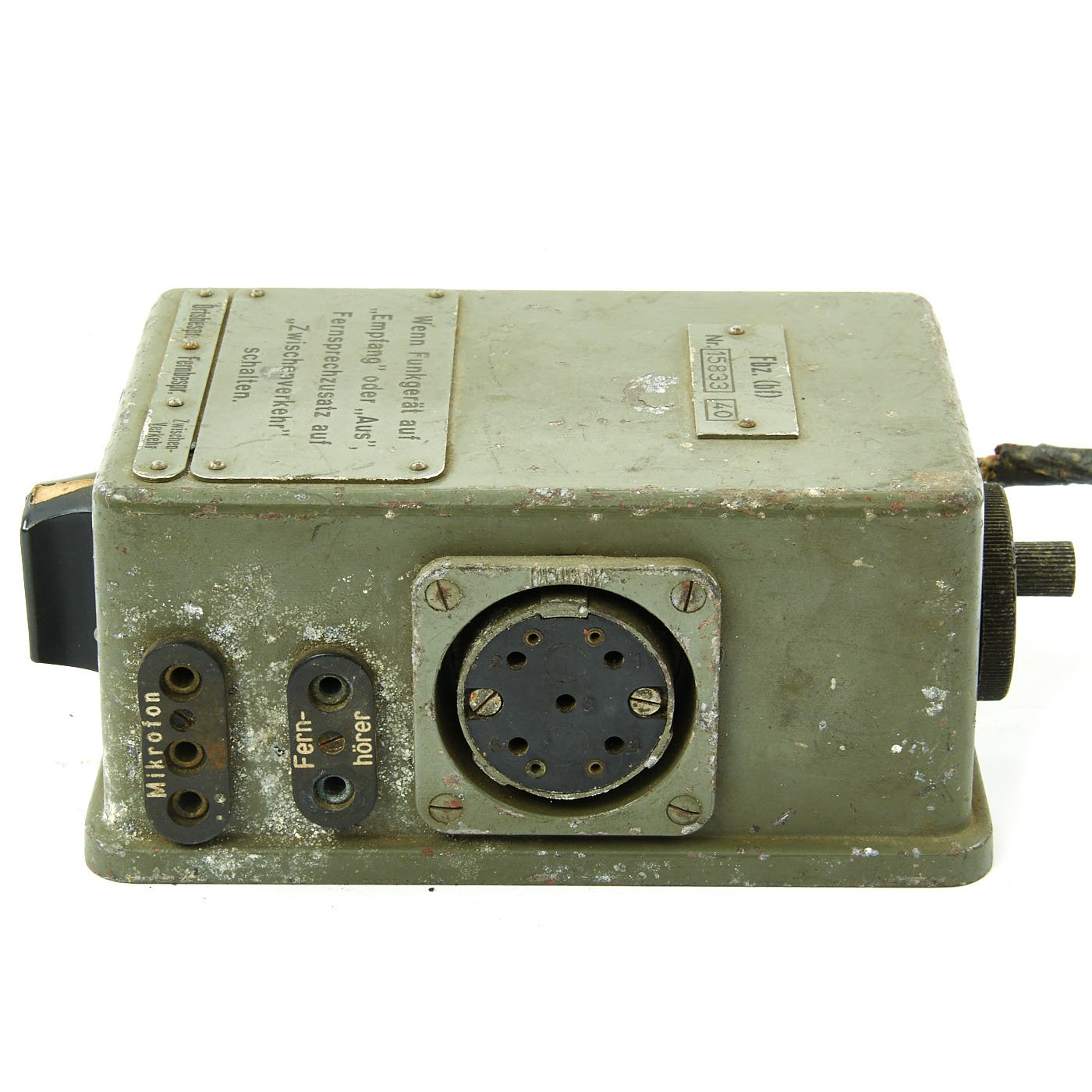

This radio does not include the battery pack but does include the attend base, morse code paddle, and other accessories. It is offered in AS IS condition, we have no idea if it works or could be made to work. The interior appears to be full as it is full weight.

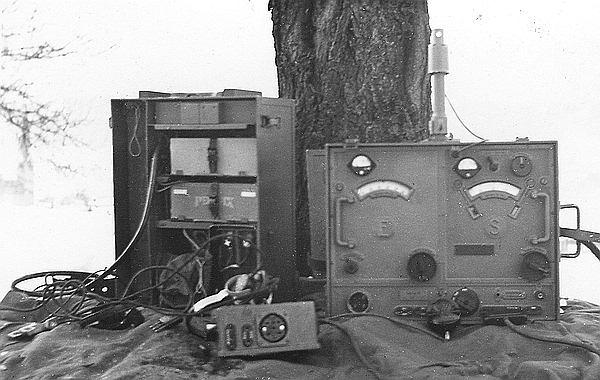

There are loads of Wartime photos of German soldiers using this same radio in the field.
Frequency coverage:
Rx 3.0 - 6.6 Mhz
Tx 3.0 - 5.0 Mhz
Pre-set Frequency: two click stops
Mode: AM R/T and CW
Power output: 0.65 watt
Tubes Rx: 6 x RV2P800
Tubes Tx: 2 x RV2P800
Crystal: one quarz Glow Tube (calibration crystal)
External Power Supply: 12V 4,5A
Dimensions Rx-Tx: 13 1/2 x 17 x 8 inch. Weight Rx-Tx: 38 lb
Dimension Power Supply Pack: 13 1/2 x 17 x 8 inch
Weight Power Supply Pack: 35 lb
Power Source: Batteries
- For filaments 2 volt storage cell
- For Plate 125.5 volt dry batteries
- For grid 4.5 volt dry batteries
This radio does not include the battery pack but does include the attend base, morse code paddle, and other accessories. It is offered in AS IS condition, we have no idea if it works or could be made to work. The interior appears to be full as it is full weight.
There are loads of Wartime photos of German soldiers using this same radio in the field.
Frequency coverage:
Rx 3.0 - 6.6 Mhz
Tx 3.0 - 5.0 Mhz
Pre-set Frequency: two click stops
Mode: AM R/T and CW
Power output: 0.65 watt
Tubes Rx: 6 x RV2P800
Tubes Tx: 2 x RV2P800
Crystal: one quarz Glow Tube (calibration crystal)
External Power Supply: 12V 4,5A
Dimensions Rx-Tx: 13 1/2 x 17 x 8 inch. Weight Rx-Tx: 38 lb
Dimension Power Supply Pack: 13 1/2 x 17 x 8 inch
Weight Power Supply Pack: 35 lb
Power Source: Batteries
- For filaments 2 volt storage cell
- For Plate 125.5 volt dry batteries
- For grid 4.5 volt dry batteries
