Item Description
Original Item: Only One Available. This mortar round is totally non-functional and inert, having been deactivated according to specifications outlined by the BATF (Bureau of Alcohol, Tobacco, Firearms and Explosives). It is totally inert, and cannot be converted to an explosive device.
Not Available For Export

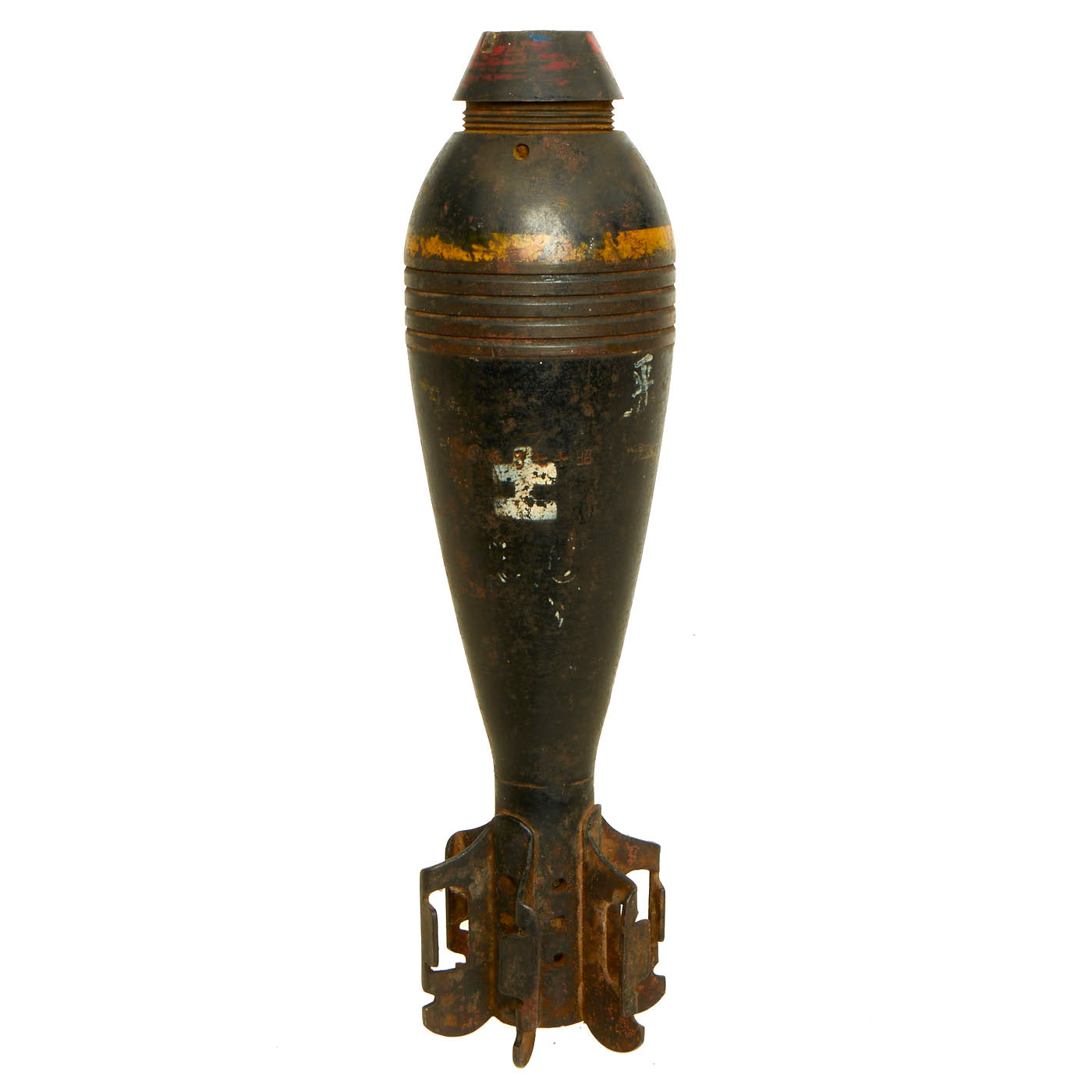

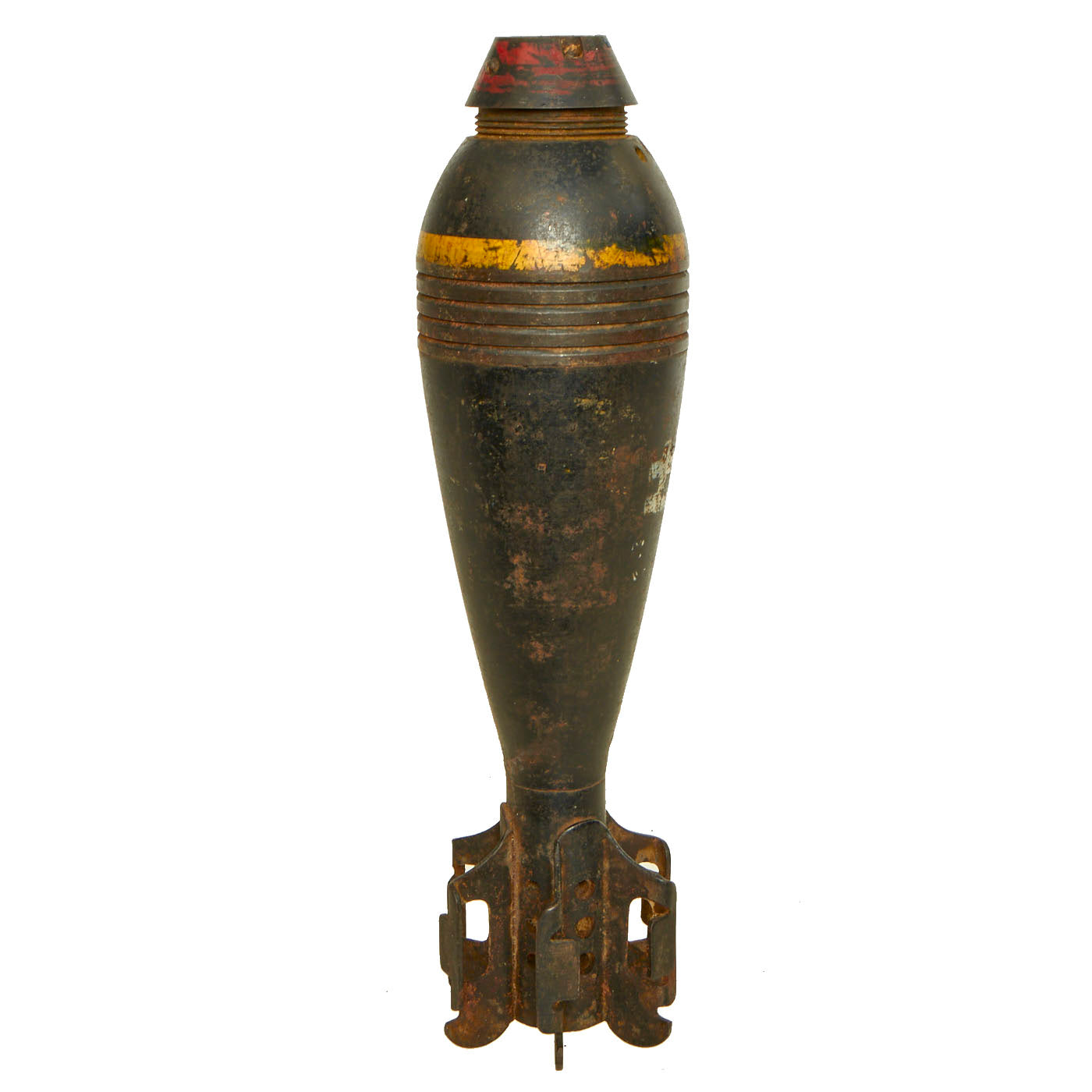

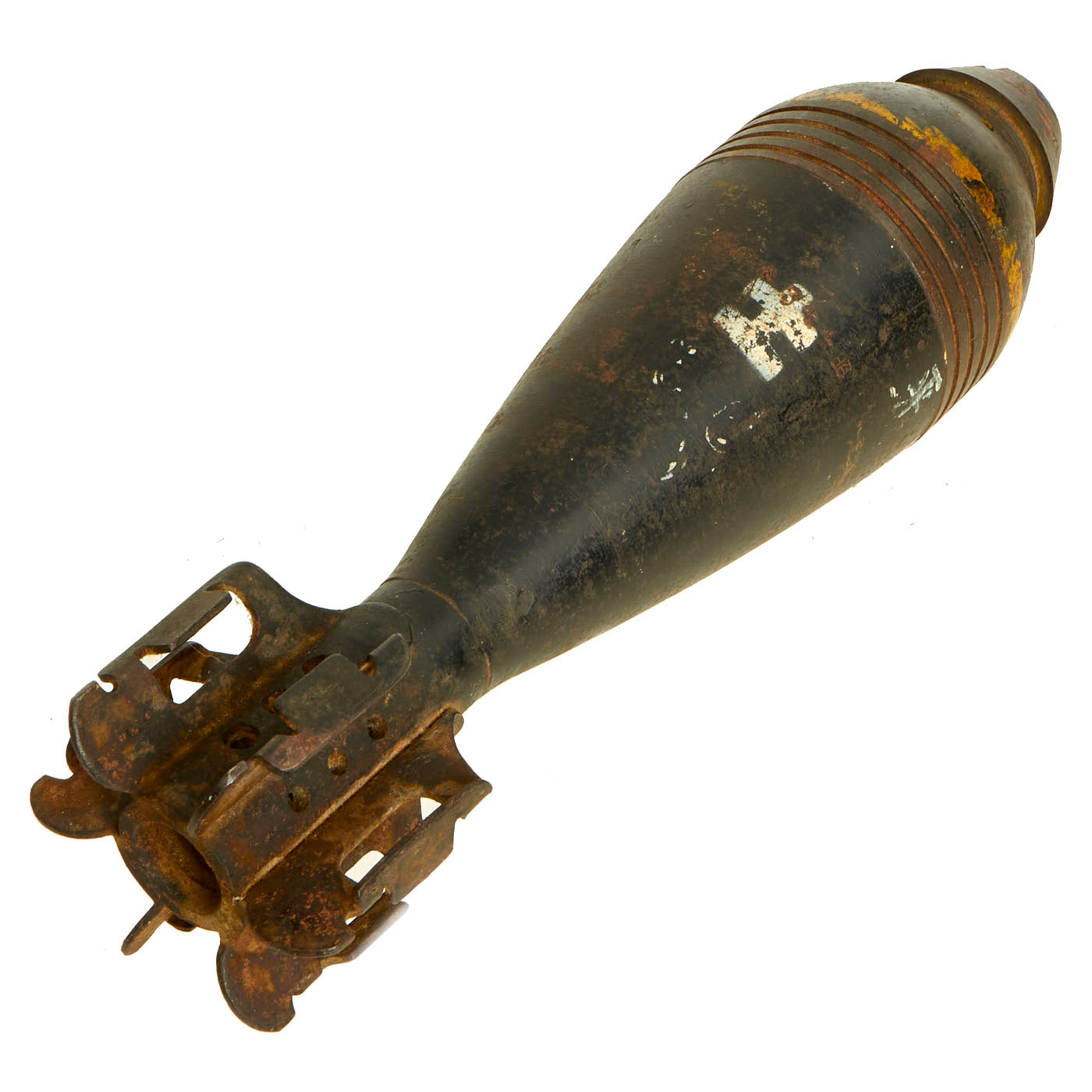

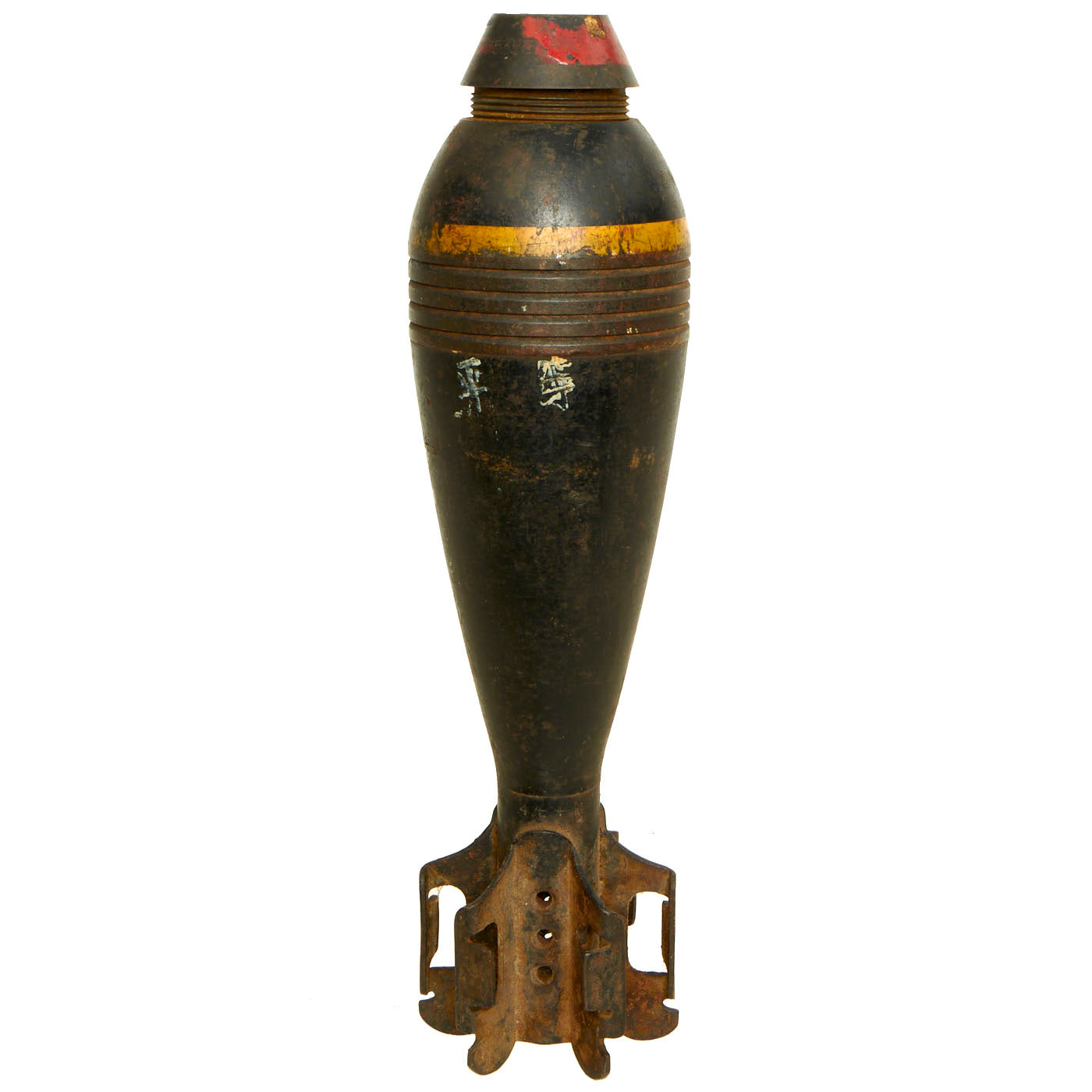

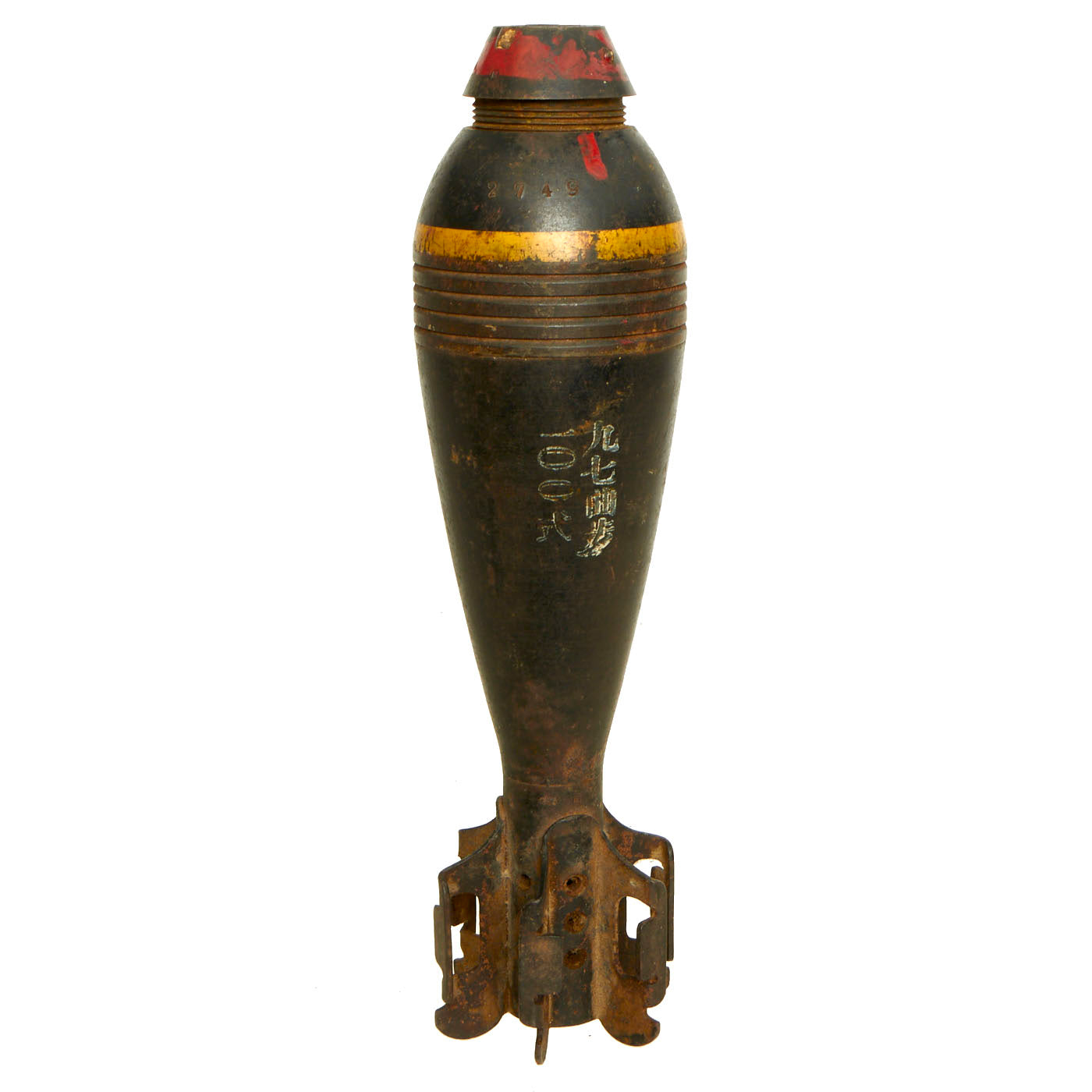

This is a rare example of the Japanese Type 100 HE Mortar Round used with the Type 97 (1937) and later the Type 99 small trench mortar. This is based on the Stokes-Brandt design, as was the U.S. 81mm, and this round was actually interchangeable with the U.S. M43A1 shell.

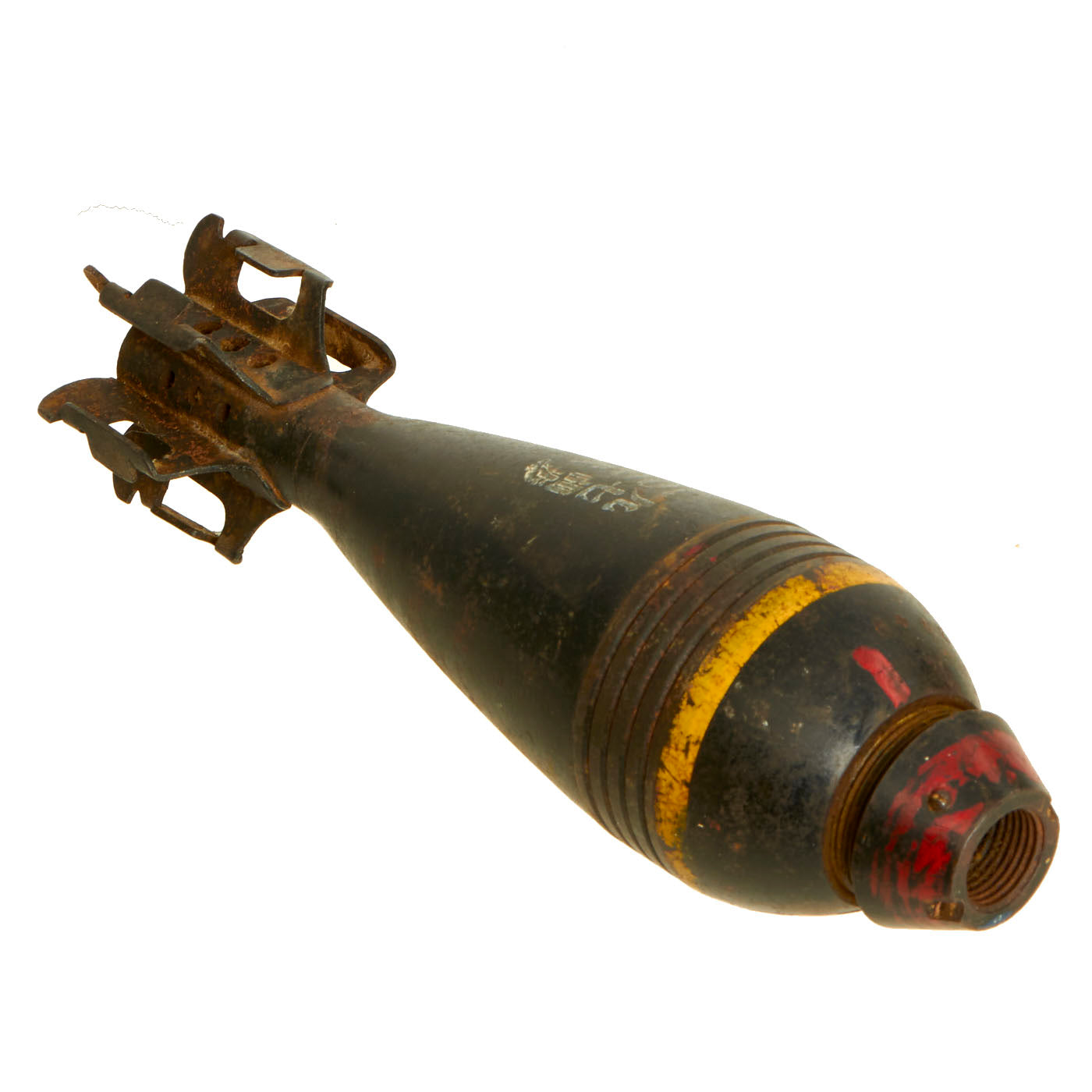

The Japanese Type 100 round had a maximum range of about 3,000 yards. Loaded weight: ~3kg (6.9lbs) of which 1 pound was TNT. This round is complete, except it does not have an inert fuze installed on the top. The top cap is also not currently removable. It still has the original paint markings indicating type and other information regarding the round. The paint markings are now faded from cleaning and wear, but are still mostly legible.

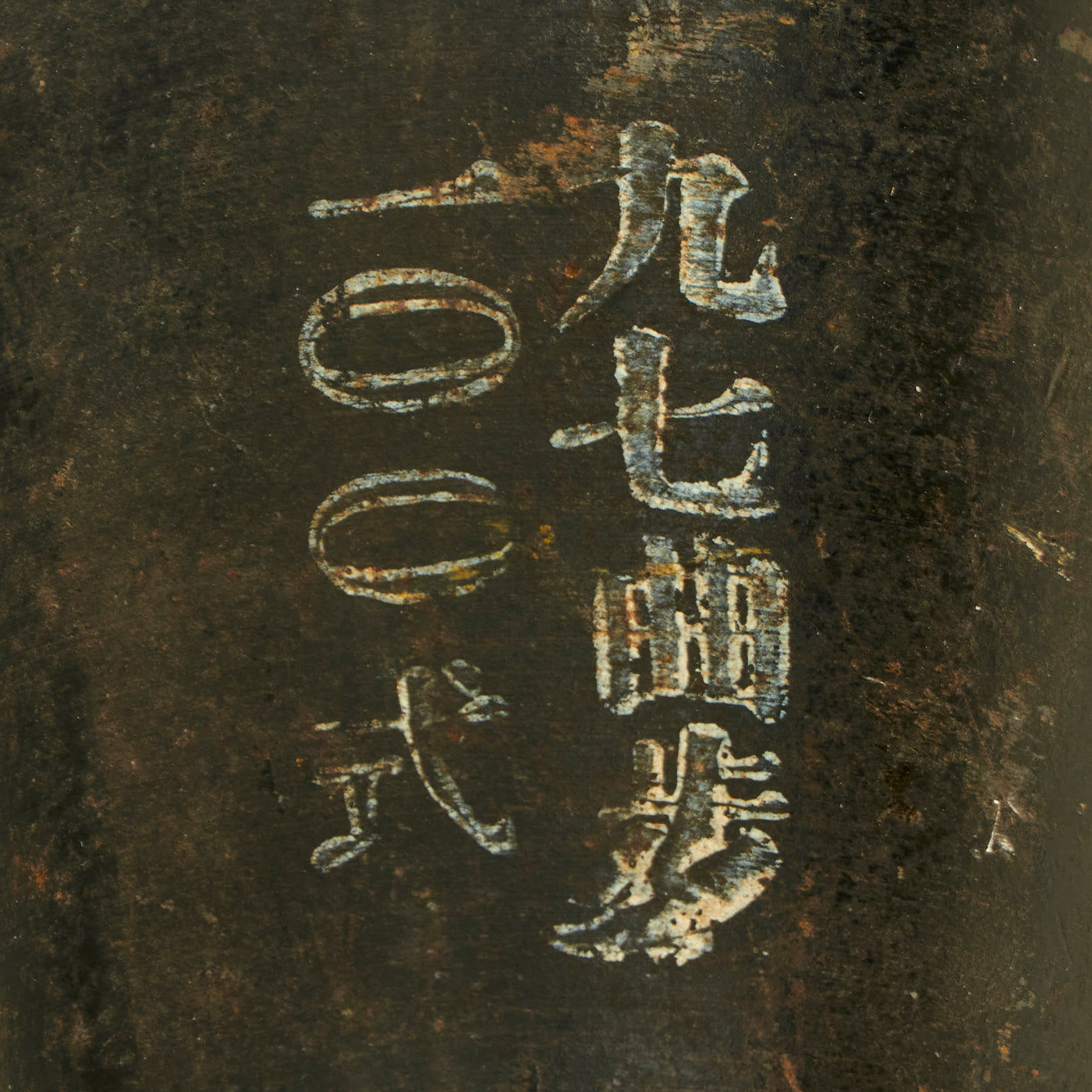

The stenciled text with translations read:
Left column:
100 式 - 100 Shiki (Type / Model)
Right column:
九 七 曲 歩 - Kyuu Nana Kyoku Ho (97 Infantry Mortar)
Kyoku Ho is the abbreviation of "Kyokusha Hoheiho", which the IJA called the infantry mortar. It has another stencil indicating the weight specification. There are 5 possible markings for this: ++ + +/- - -- . ++ as this example is marked indicates 1.5% to 2.5% over weight, while + means 0.5 - 1.5% over, and -- means 1.5% to 2.5% under.
Evidently this was to make up for variations in manufacturing variables. These weight indicators would be taken into account when aiming, to obtain the desired ballistics. Also the range could be adjusted by wrapping weights around the tail fins.

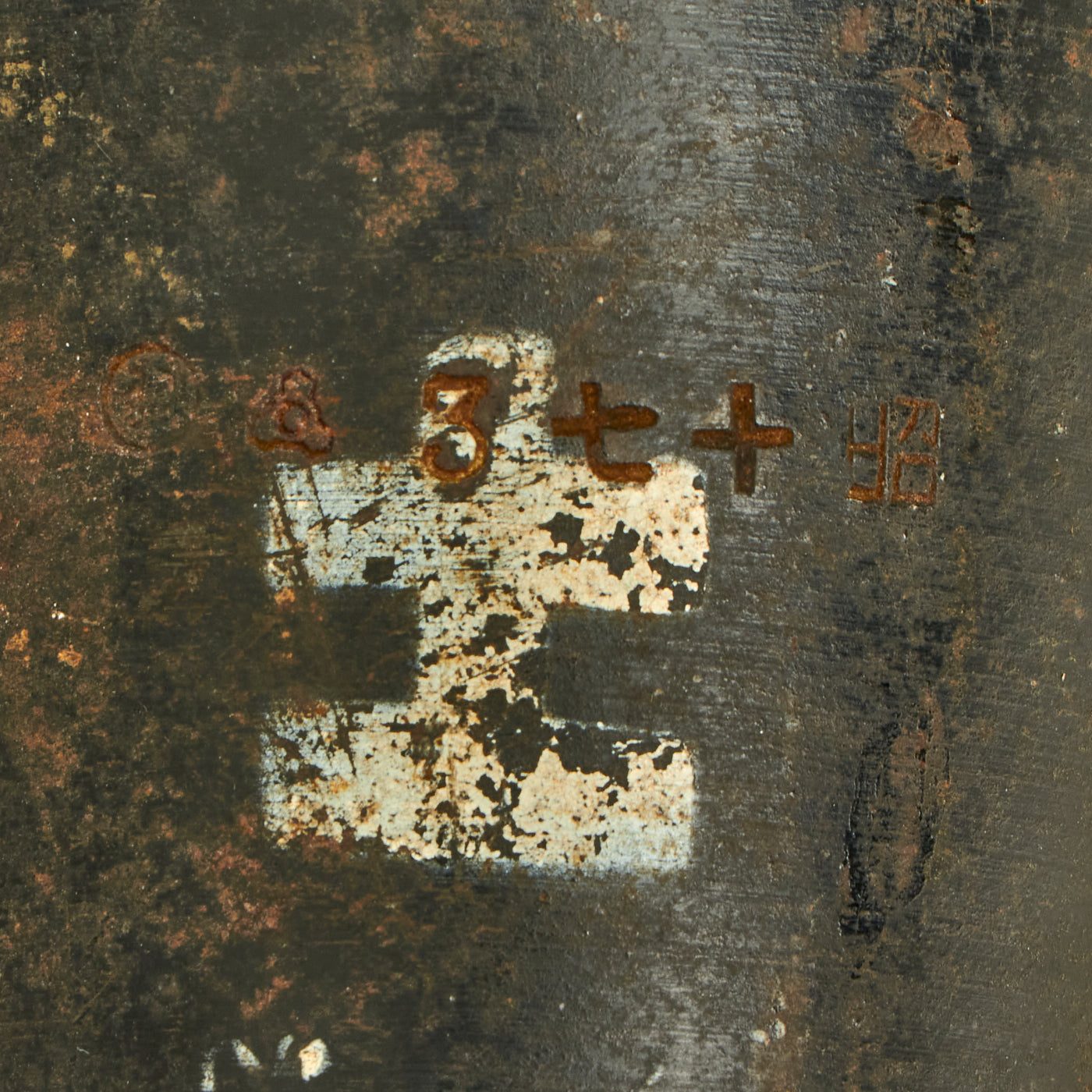

The markings stamped into the body are 3 七 十 昭. This marking is written right to left, and would be read: SHOWA (current reigning emperor) Juu-Nana Nen (17th year of reign - 1942), probably the 3rd month of March. Measures approximately 13 inches long.
This piece would make a great addition to any WWII Ordnance collection. Ready to display!
