Original Item: Only One Available. The 9M14 Malyutka (Russian: Малютка; "Little one", NATO reporting name: AT-3 Sagger) is a manual command to line of sight (MCLOS) wire-guided anti-tank guided missile (ATGM) system developed in the Soviet Union. It was the first man-portable anti-tank guided missile of the Soviet Union and is probably the most widely produced ATGM of all time—with Soviet production peaking at 25,000 missiles a year during the 1960s and 1970s. In addition, copies of the missile have been manufactured under various names by at least five countries.

Since supplemented by more advanced anti-tank guided missiles, the Sagger and its variants have seen widespread use in nearly every regional conflict since the 1960s.

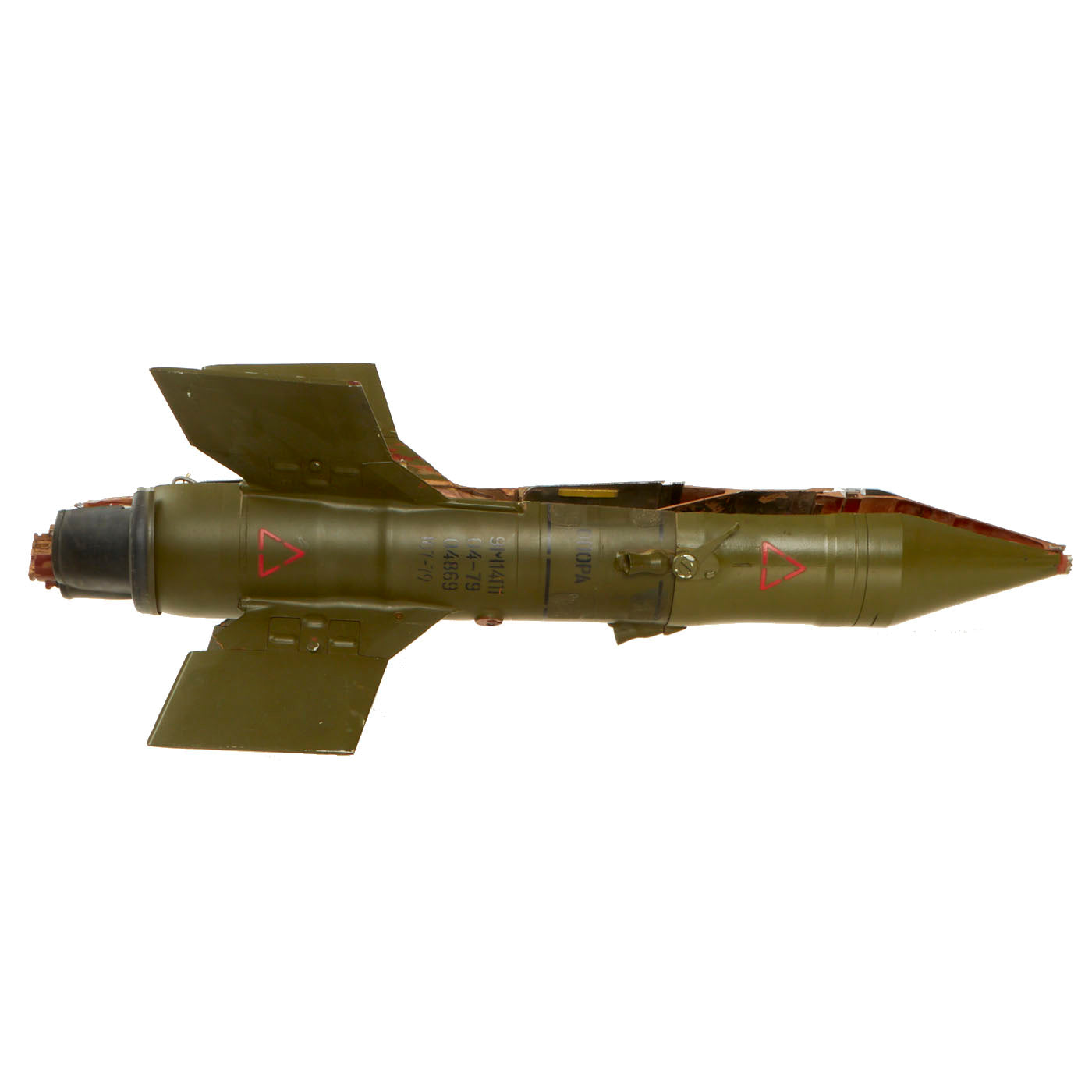

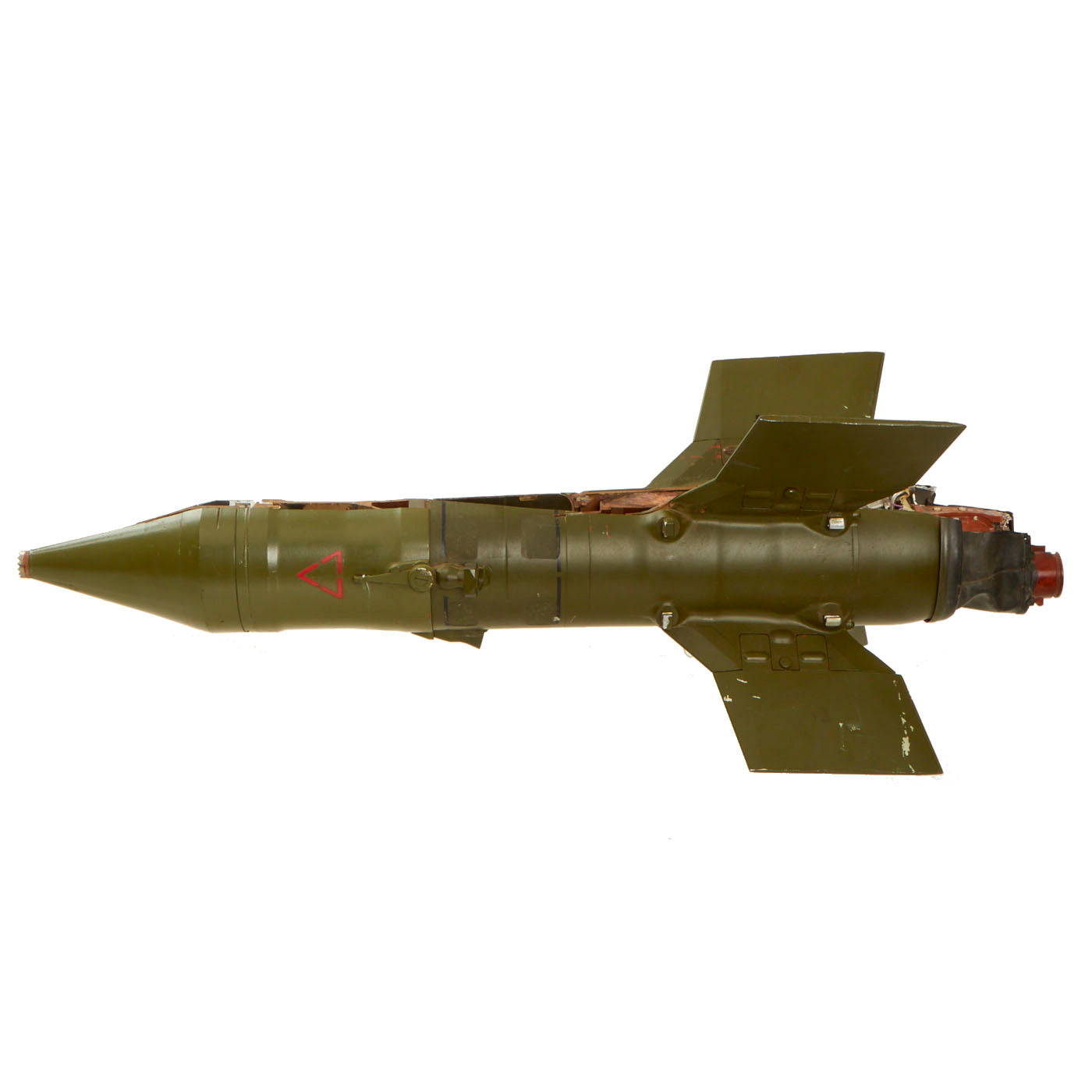

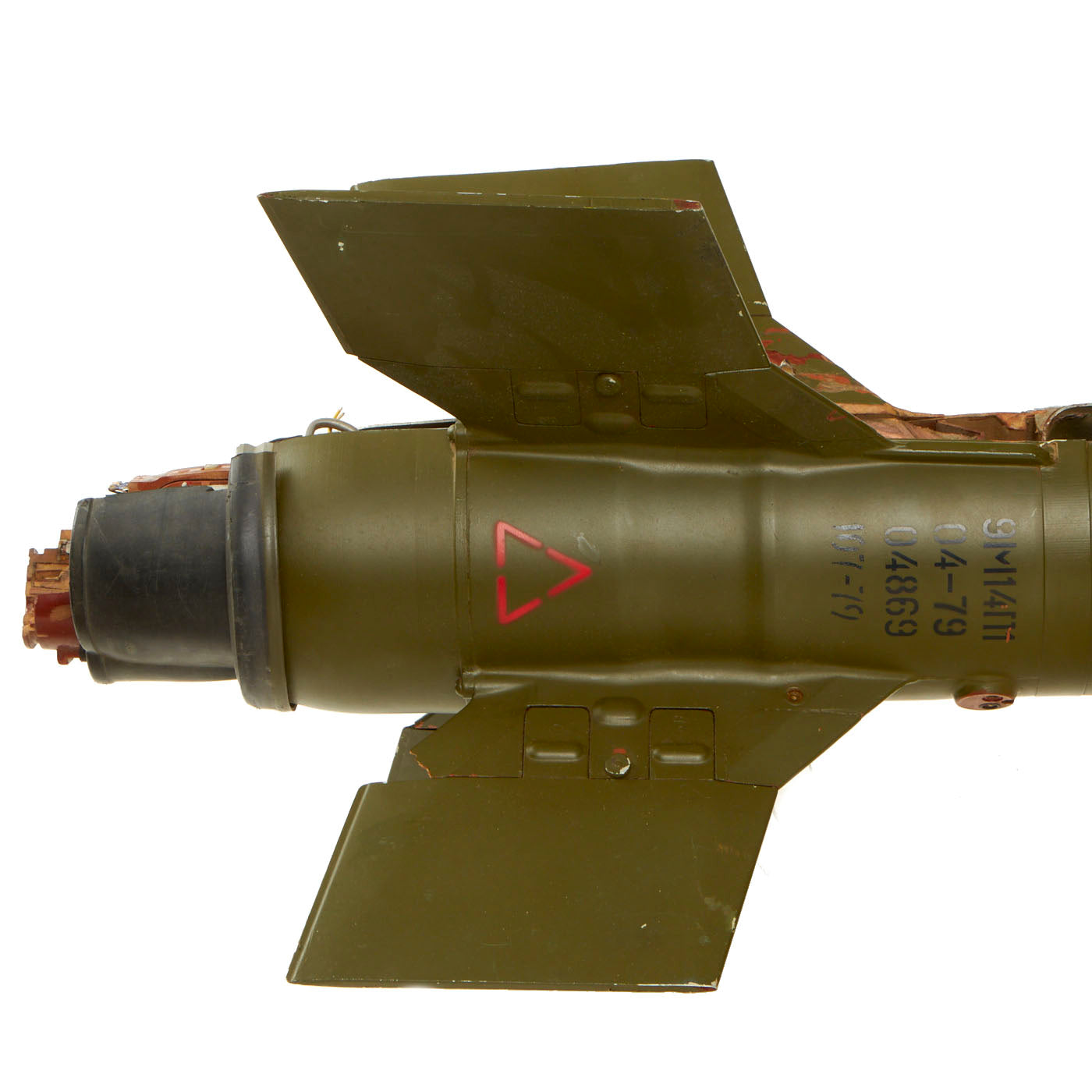

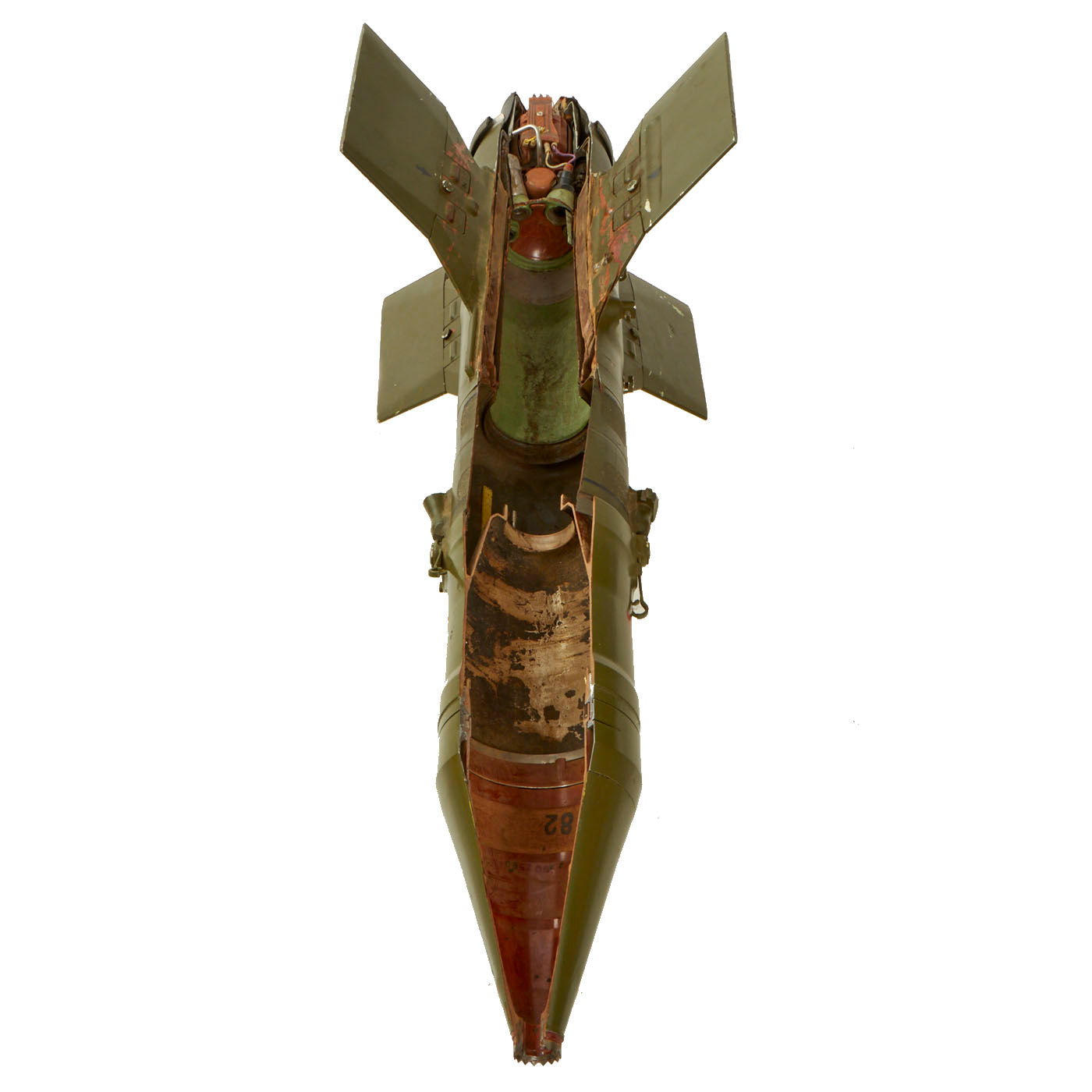

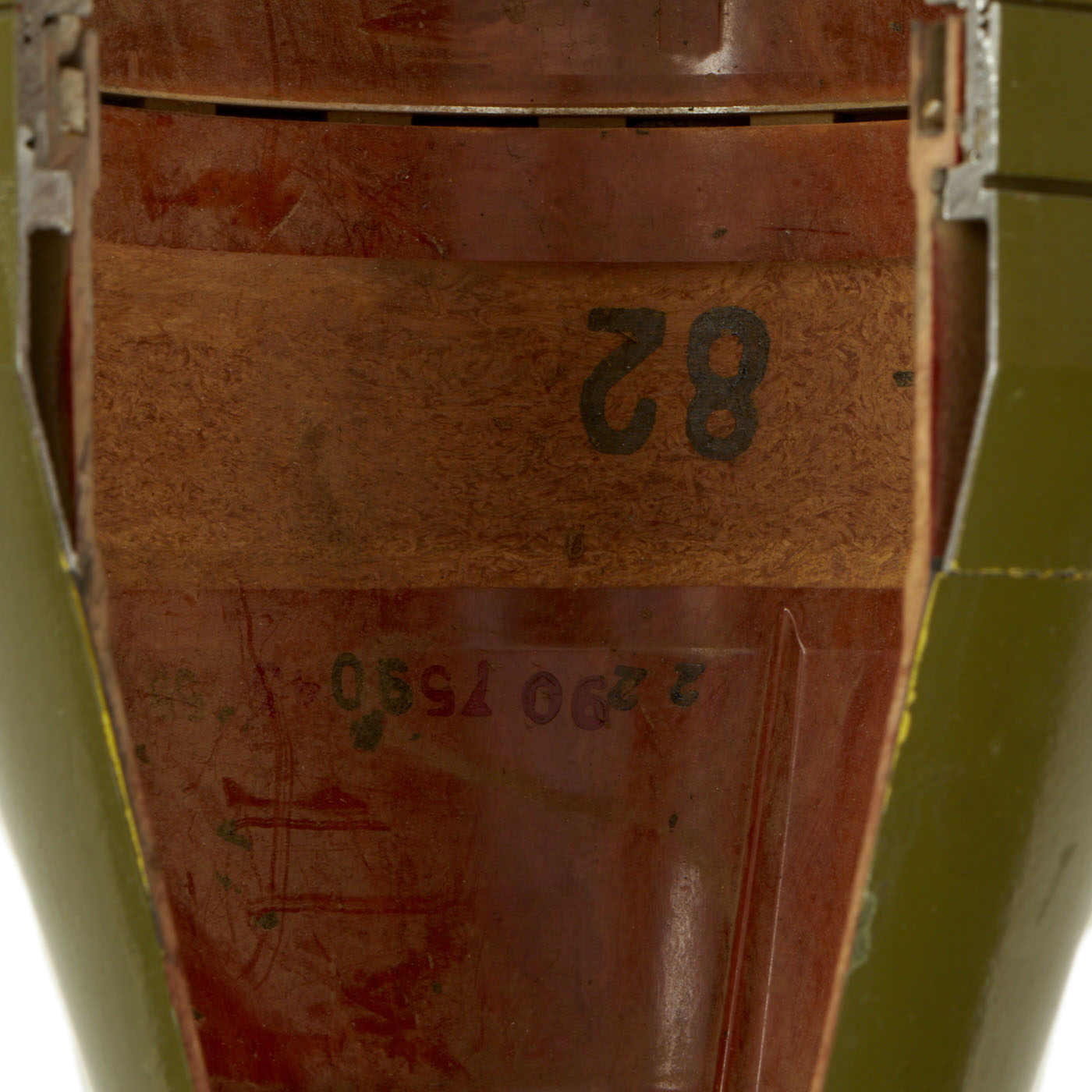

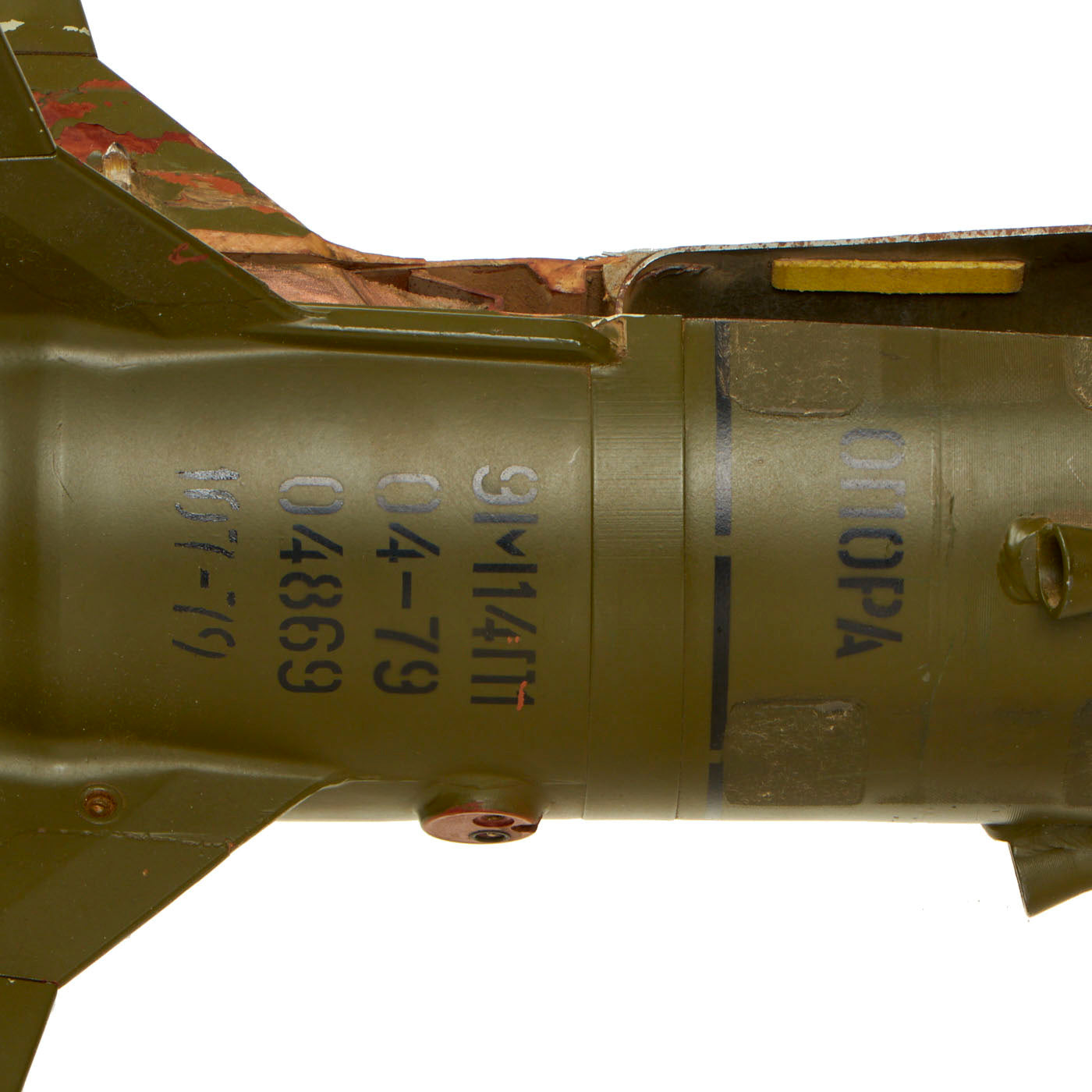

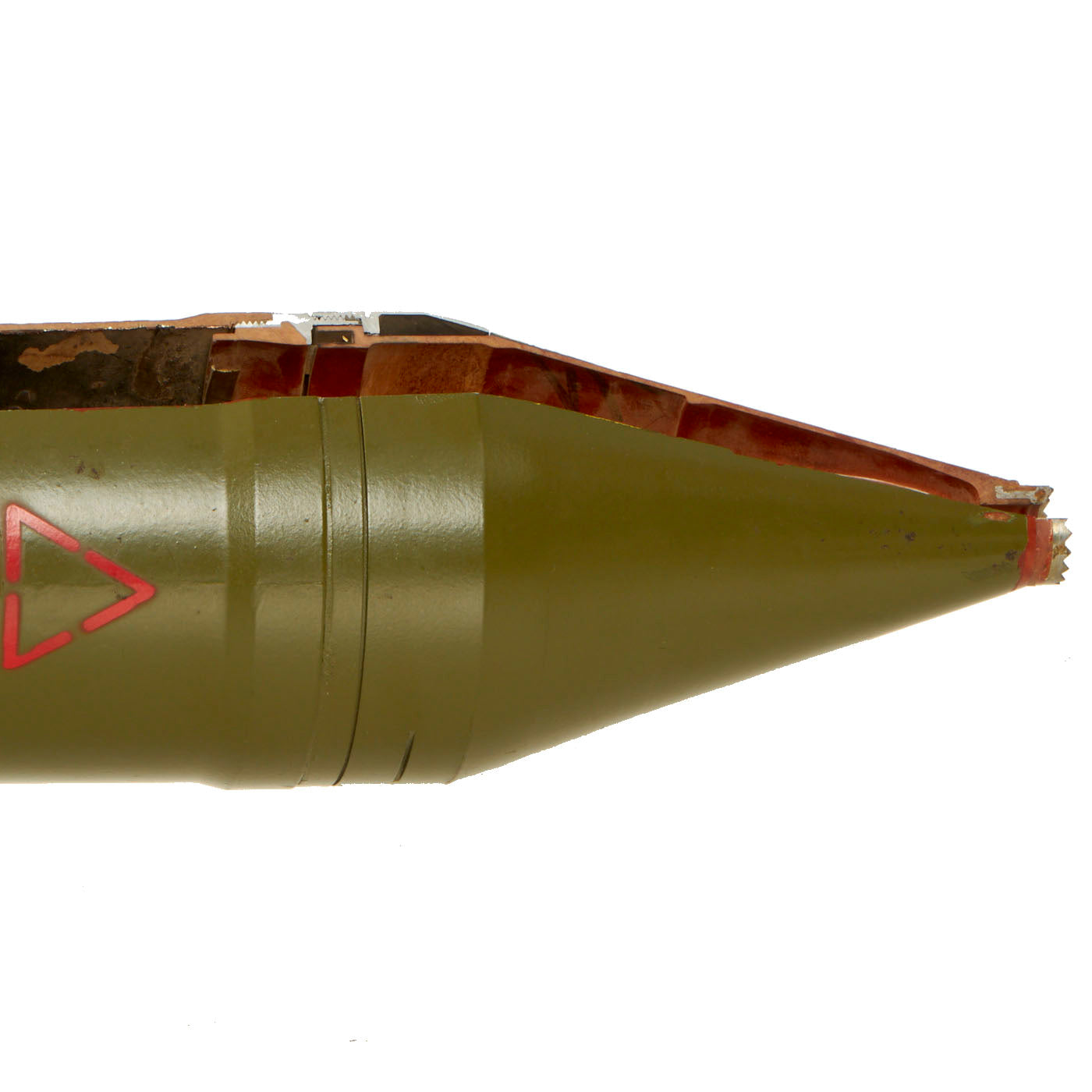

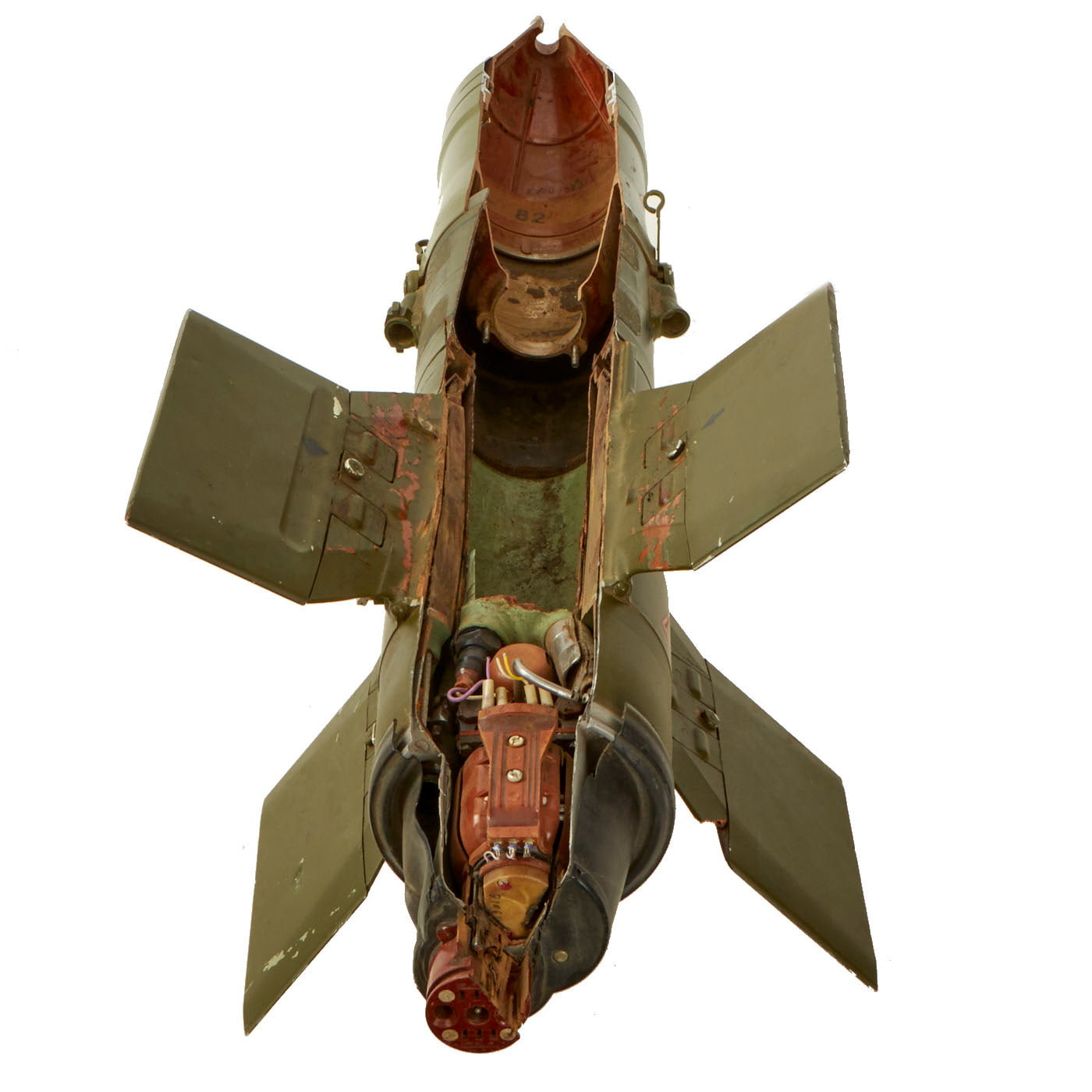

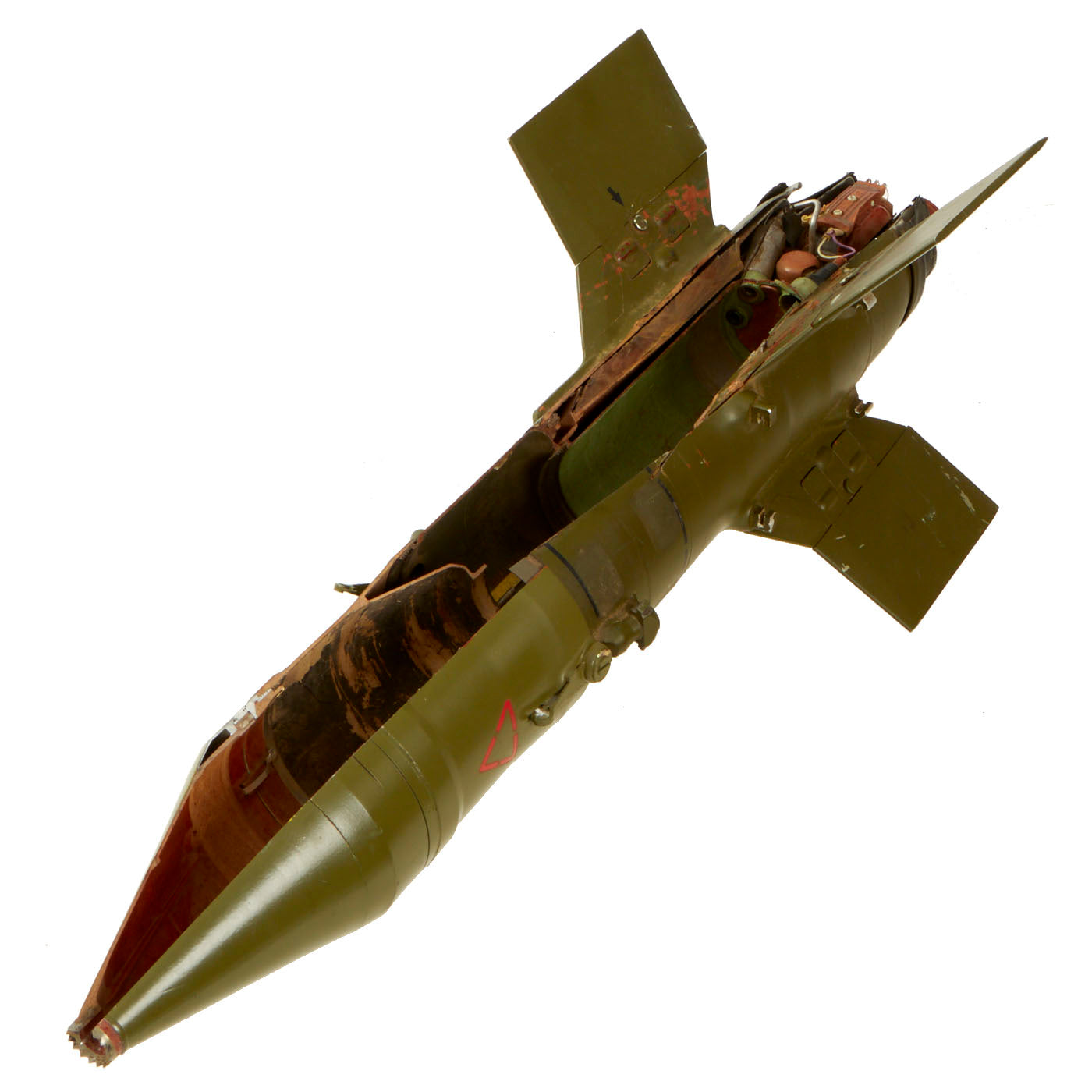

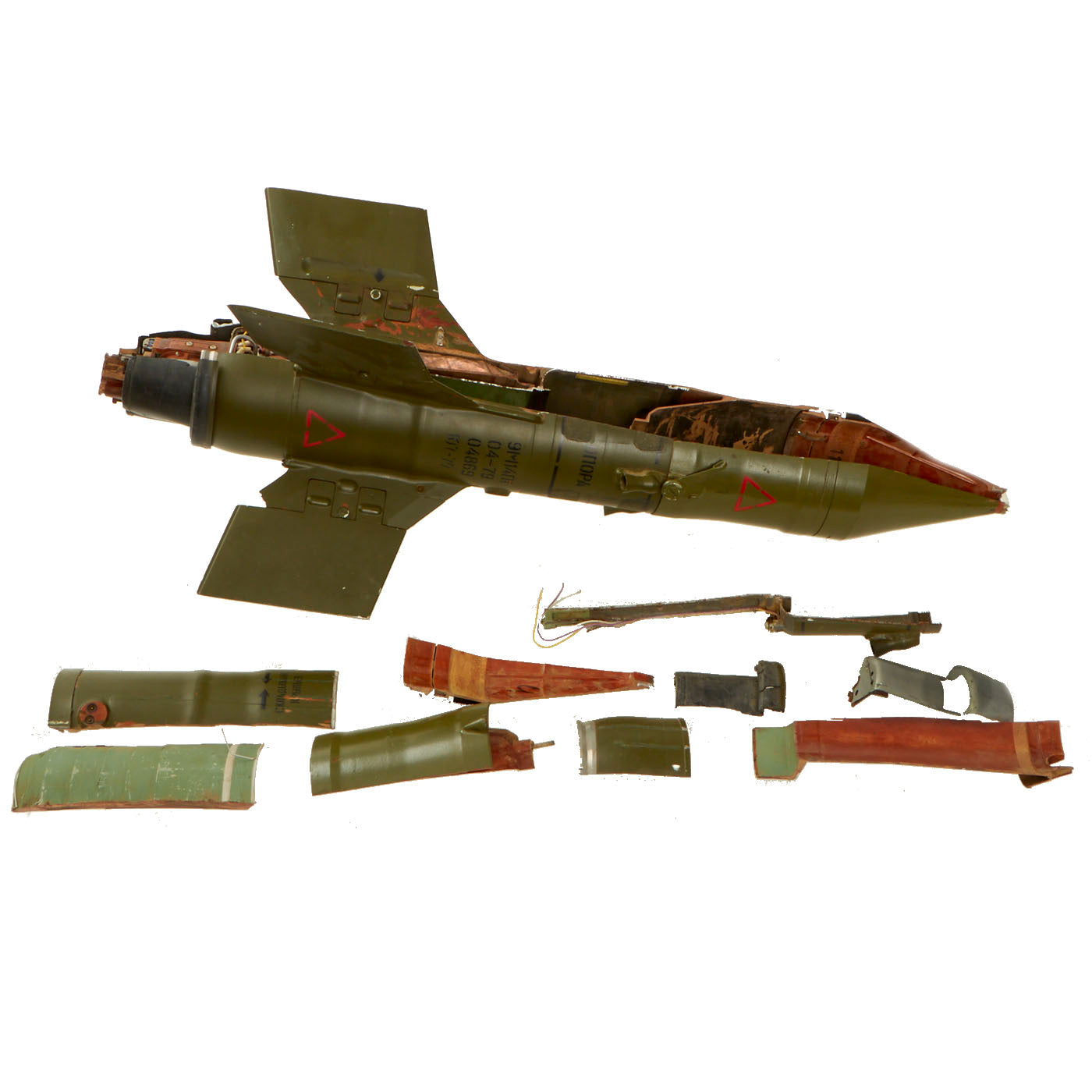

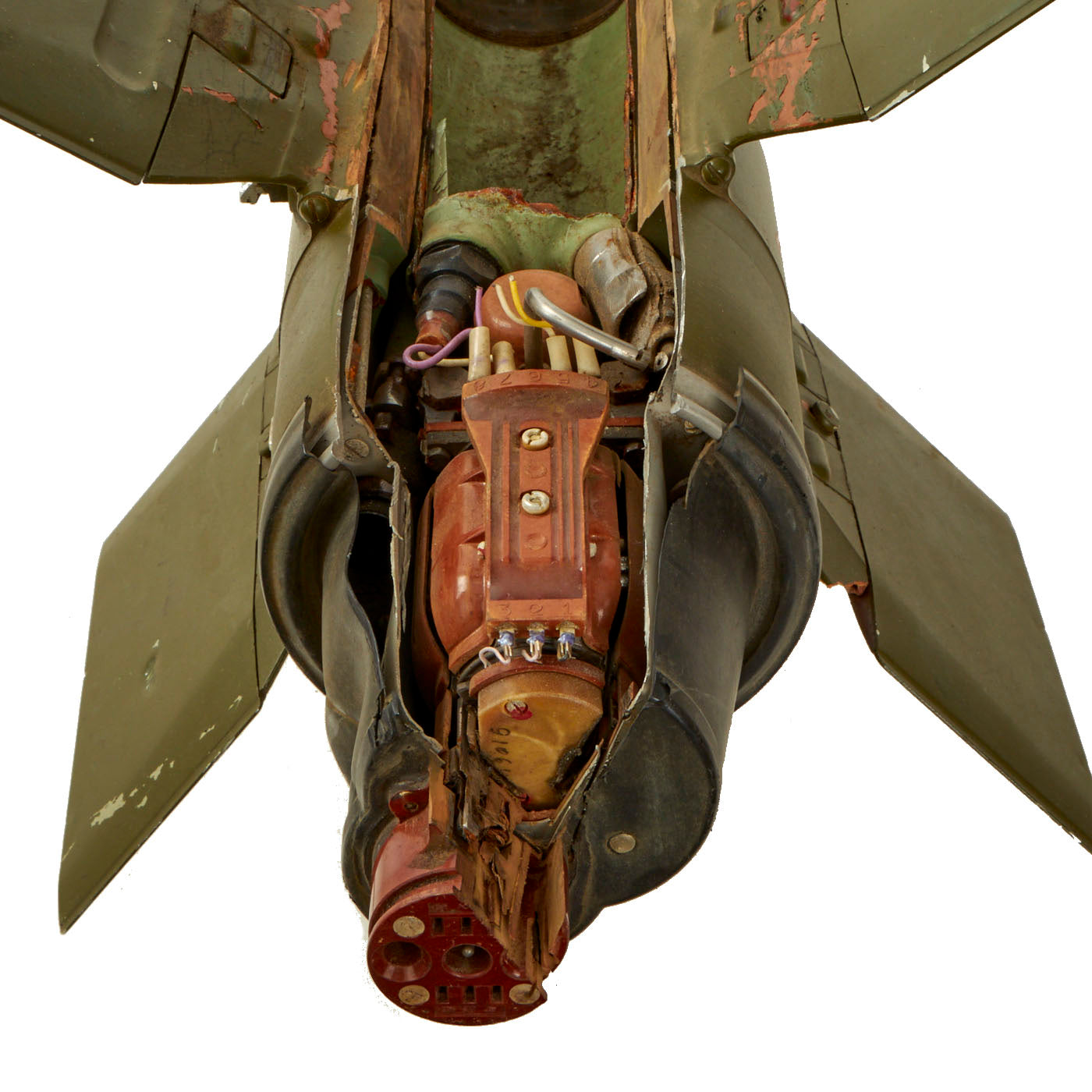

This example is a “cut away” and has had a section removed to show the inner workings of the missile for military educational purposes. This is a fully inert example and is in compliance with the BATF guidelines. All pieces of this example that were removed are included, if you would wish to try and piece it back together. Measures 34" long.

A very impressive piece of world history, ready to display!

Not Available For Export

The missile can be fired from a portable suitcase launcher (9P111), ground vehicles (BMP-1, BRDM-2) and helicopters (Mi-2, Mi-8, Mi-24, Soko Gazelle). The missile takes about five minutes to deploy from its 9P111 fiberglass suitcase, which also serves as the launching platform.

The missile is guided to the target by means of a small joystick (9S415), which requires intensive training of the operator. The operator's adjustments are transmitted to the missile via a thin three-strand wire that trails behind the missile. The missile climbs into the air immediately after launch, which prevents it from hitting obstacles or the ground. In flight, the missile spins at 8.5 revolutions per second—it is initially spun by its booster, and the spin is maintained by the slight angle of the wings. The missile uses a small gyroscope to orient itself relative to the ground; as a result, the missile can take some time to bring back in line with the target, which gives it a minimum range of between 500 and 800 m. For targets under 1,000 m, the operator can guide the missile by eye; for targets beyond this range the operator uses the 8x power, 22.5-degree field of view 9Sh16 periscope sight.

The engagement envelope is a 3 km, 45-degree arc centered on the missile's launch axis. At ranges under 1.5 km, this arc reduces until, at the 500 m range, the missile can only hit targets 50 m either side of the center line. Accuracy falls off away from the launch axis—falling to approximately half its optimal accuracy at the extremes.

While early estimates of the missile hitting the target ranged from 60 to 90%, experience has shown that it can drop to an efficiency between 2 and 25% in case of less than optimal conditions and lack of skill from the operator. In fact, MCLOS requires considerable skill on the part of the operator, nevertheless, the weapon has always been quite popular with its operators and has enjoyed a constant updating effort both in the Soviet Union/Russia and in other countries.

The two most serious defects of the original weapon system are its minimum range of between 500 and 800 m (targets that are closer cannot be effectively engaged) and the amount of time it takes the slow moving missile to reach maximum range—around 30 seconds—giving the intended target time to take appropriate action, either by retreating behind an obstacle, laying down a smoke-screen, or by returning fire on the operator.

Later versions of the missile addressed these problems by implementing the much easier to use SACLOS guidance system (though only available for ground vehicle and helicopter mounts), as well as upgrading the propulsion system to increase the average flight speed. The latest updates feature tandem-charge warheads or standoff probes to counteract explosive reactive armor, as well as thermal imaging systems. Even in these latest versions, the Malyutka is probably the most inexpensive ATGM in service today, with a unit cost far less than that of more advanced systems.
