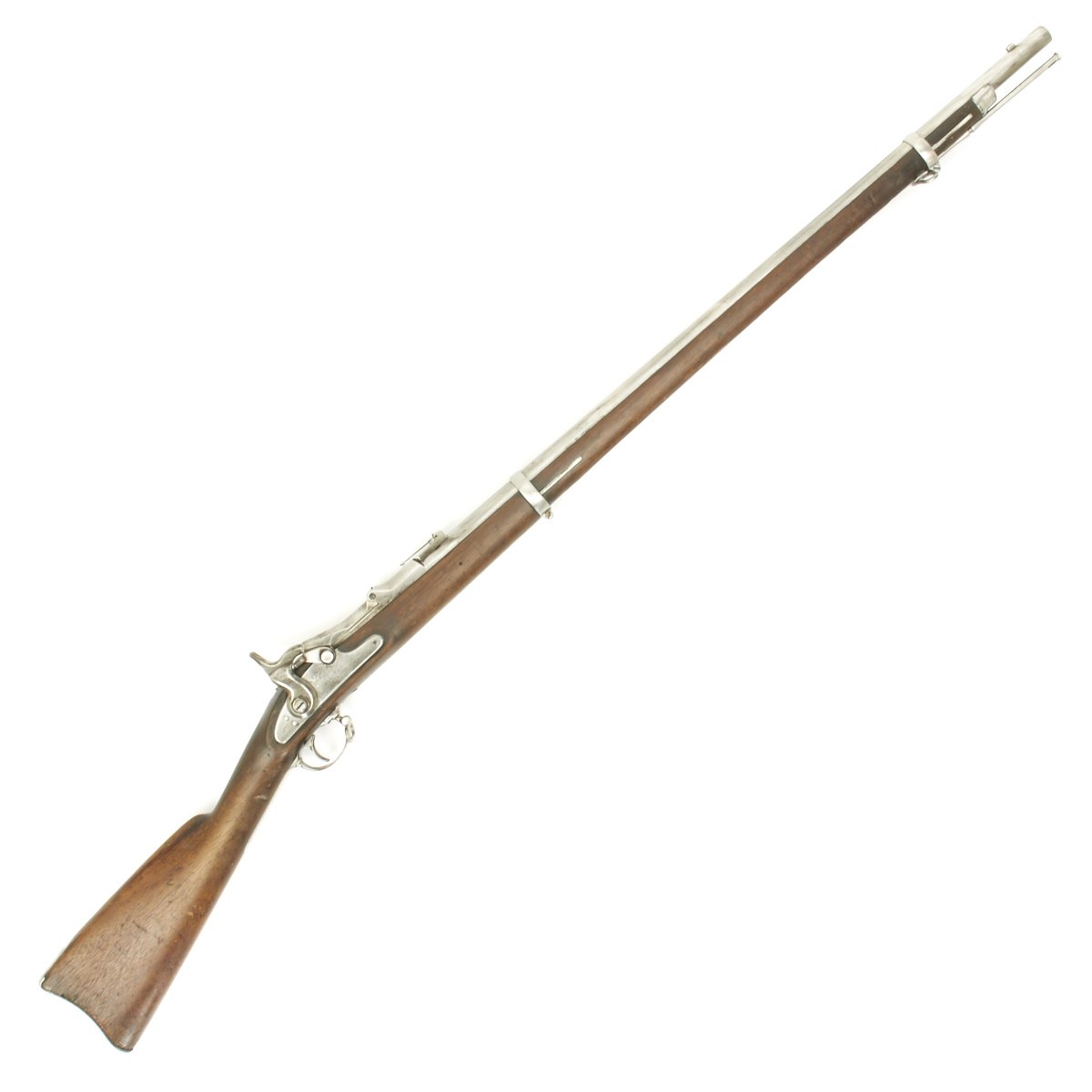

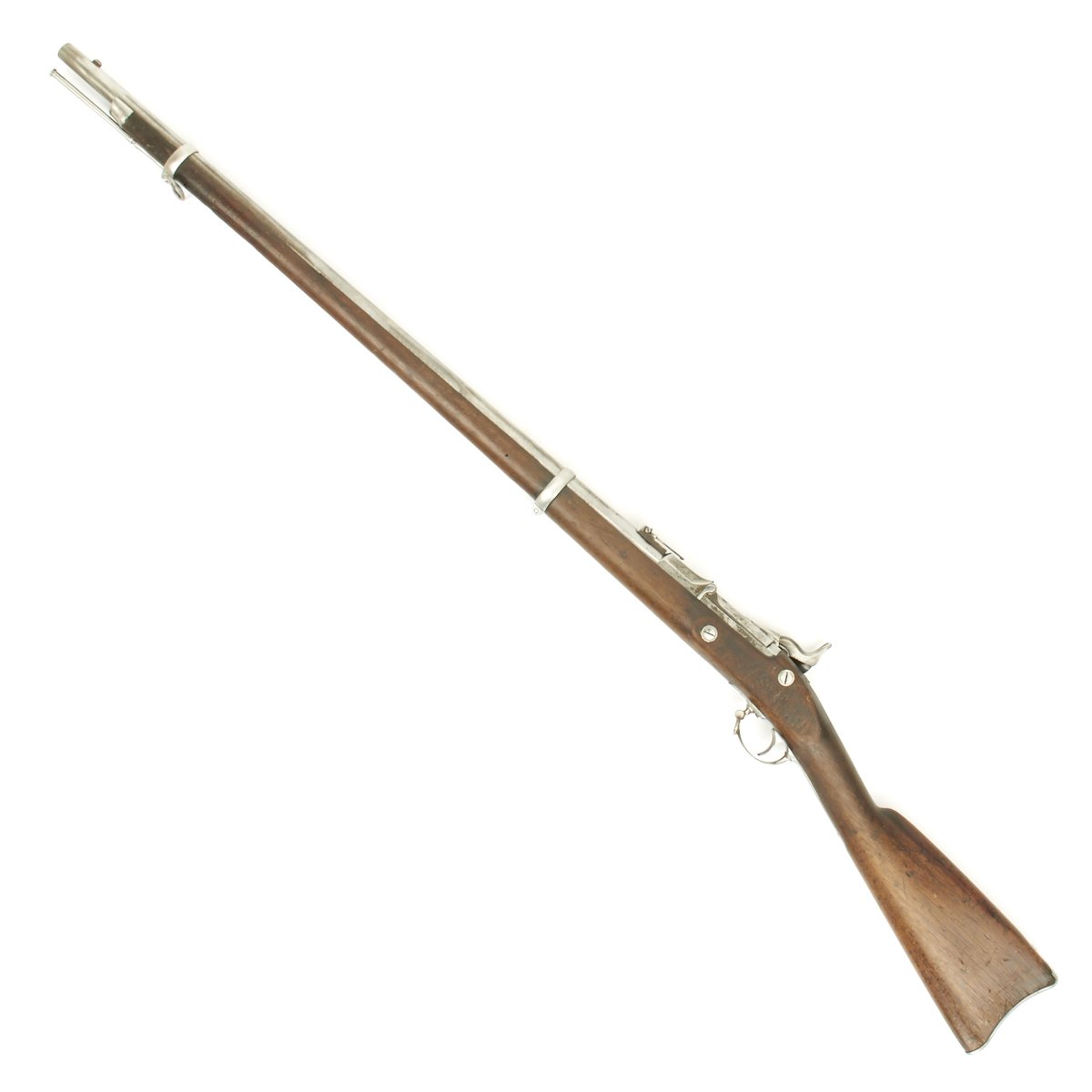

Original Item: Only One Available. This is really a Peach! This rifle started out as a Civil War Springfield Rifle Musket, dated 1863, made by SPRINGFIELD ARMORY, as indicated on the lock plate. There is also the "Spread Eagle" over U.S. marking, indicating military production. This particular rifle is technically a Model 1863, Type I, and originally did not have any band retaining springs. This variant used clamp barrel springs, which are still installed on this rifle, even though the conversion added the band springs. Around 700,000 of all Model 1863 types were produced from 1863 until the end of the Civil War in 1865.
The U.S. Civil war had confirmed the adage of NEED is the Mother of INVENTION. Muzzle Loading Muskets and Rifles were extensively used but new developments continually resulted in a "fresh" breach loading system being adopted on a trial basis. The Union had as many as NINETEEN different systems issued during the war and the ALLIN system was a version that was considered a determination was made to standardize.
The Trapdoor system seemed to be the one that satisfied most authorities so more trials were held, and the trapdoor was adopted. The government then looked for for cost effective ways to modernize their rifles, and one way was to convert muzzle loading Rifle muskets to a breech loaders, as seen throughout the world.

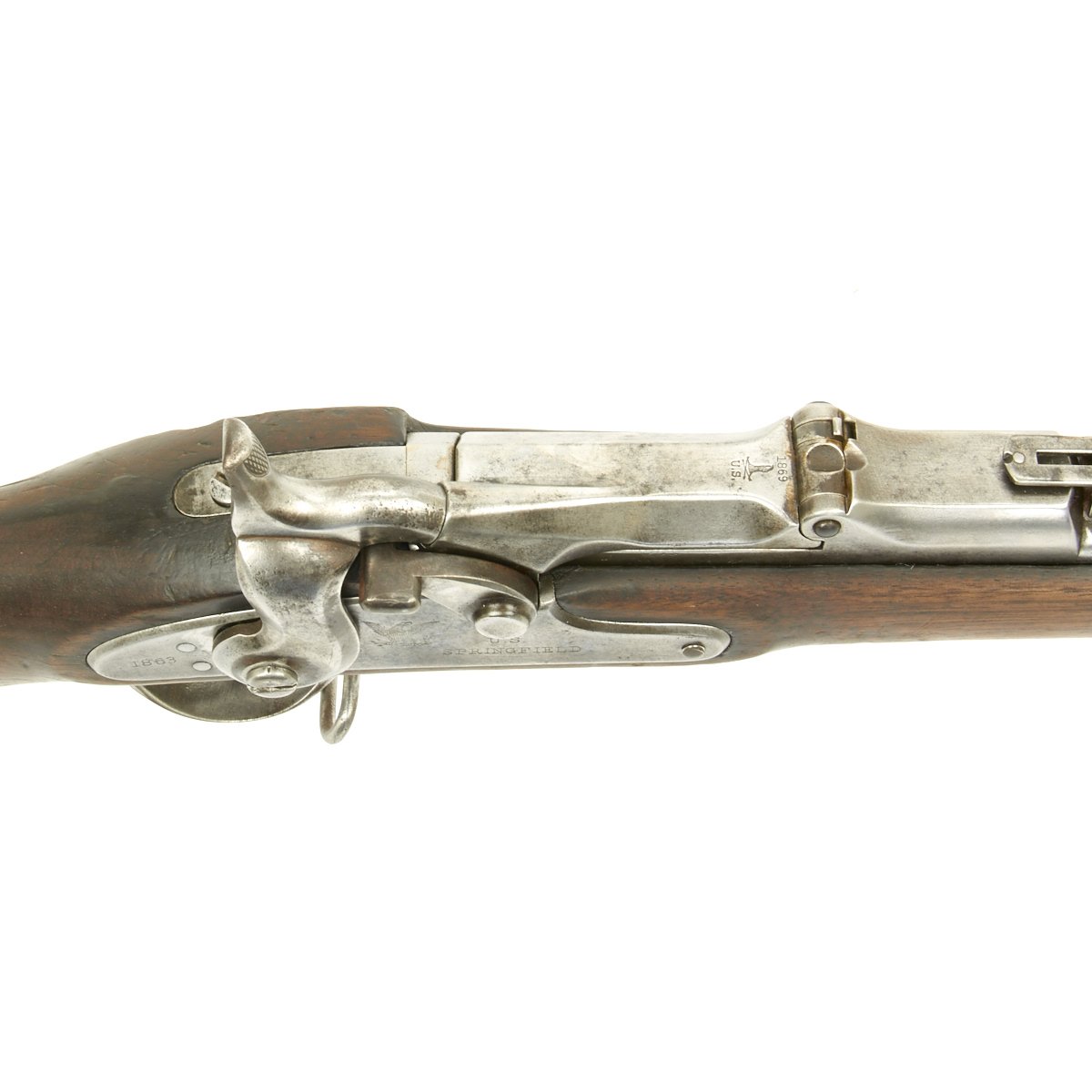

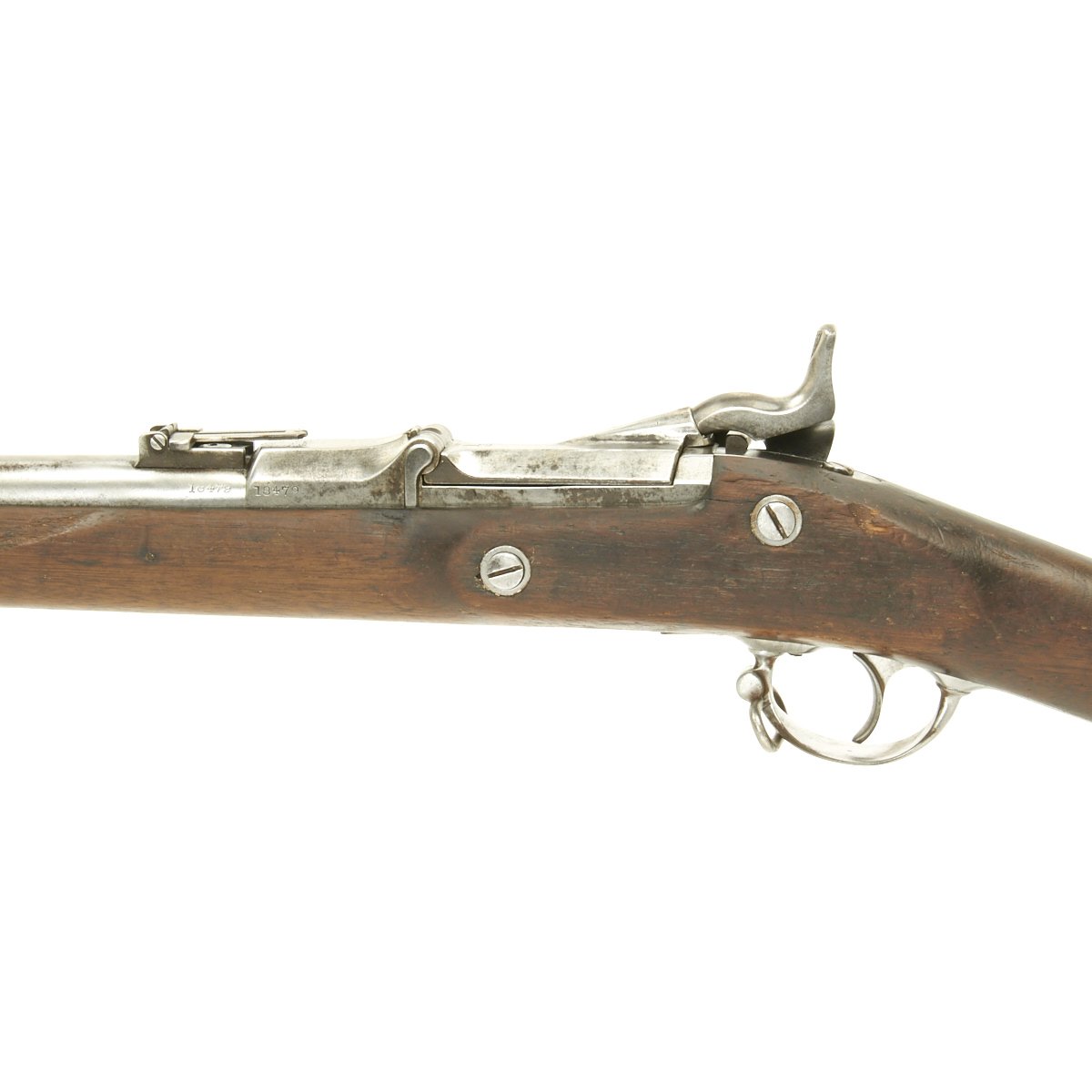

Originally, the trapdoor Springfields were created to convert Model 1863 Springfield rifled muskets to breech-loading rifles at a relatively low cost. This conversion consisted of replacing the percussion lock with the breech-loading trapdoor mechanism, and relining the barrels to convert them from .58 to .50 caliber. This proved problematic, because in the field, the lining tended to separate from the barrel.

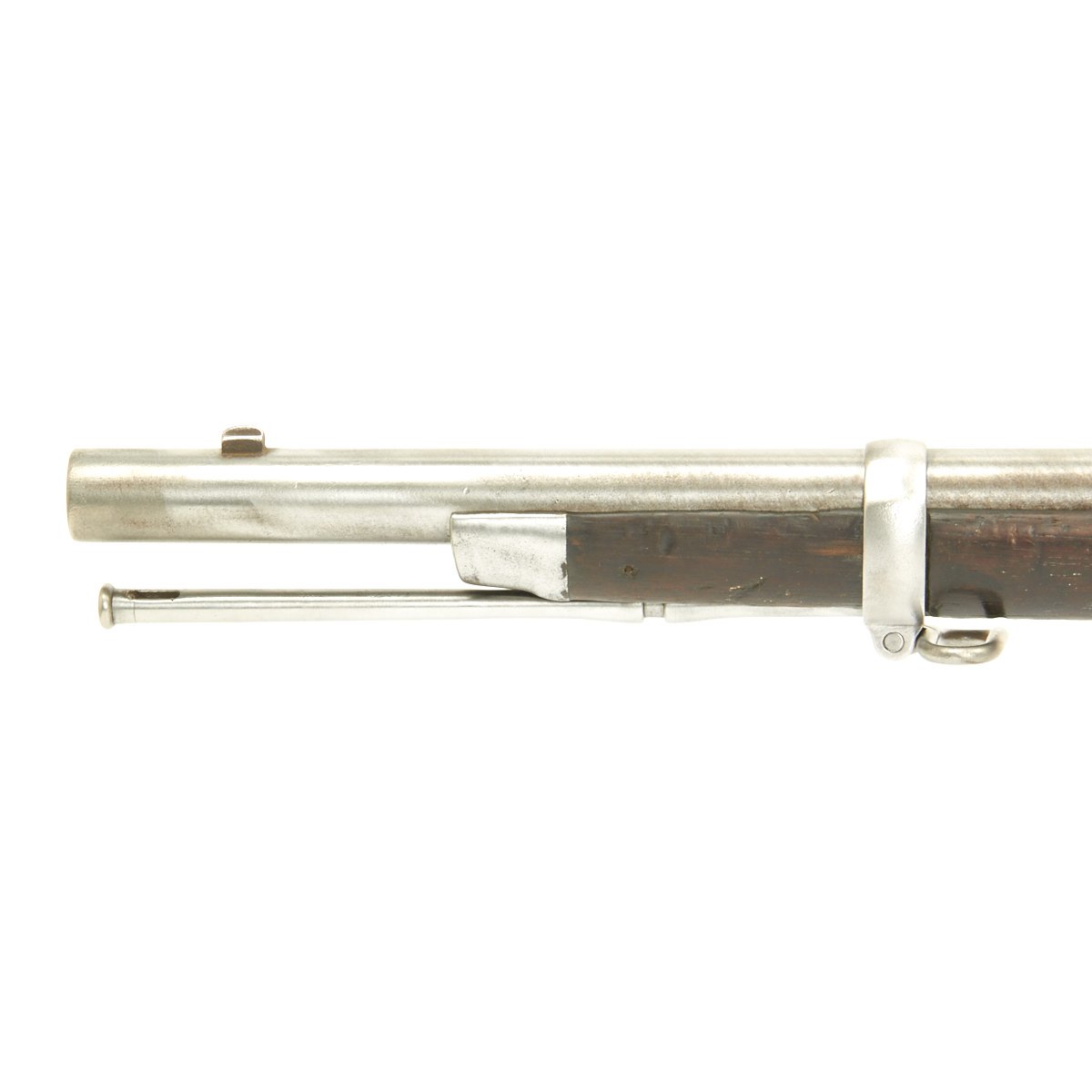

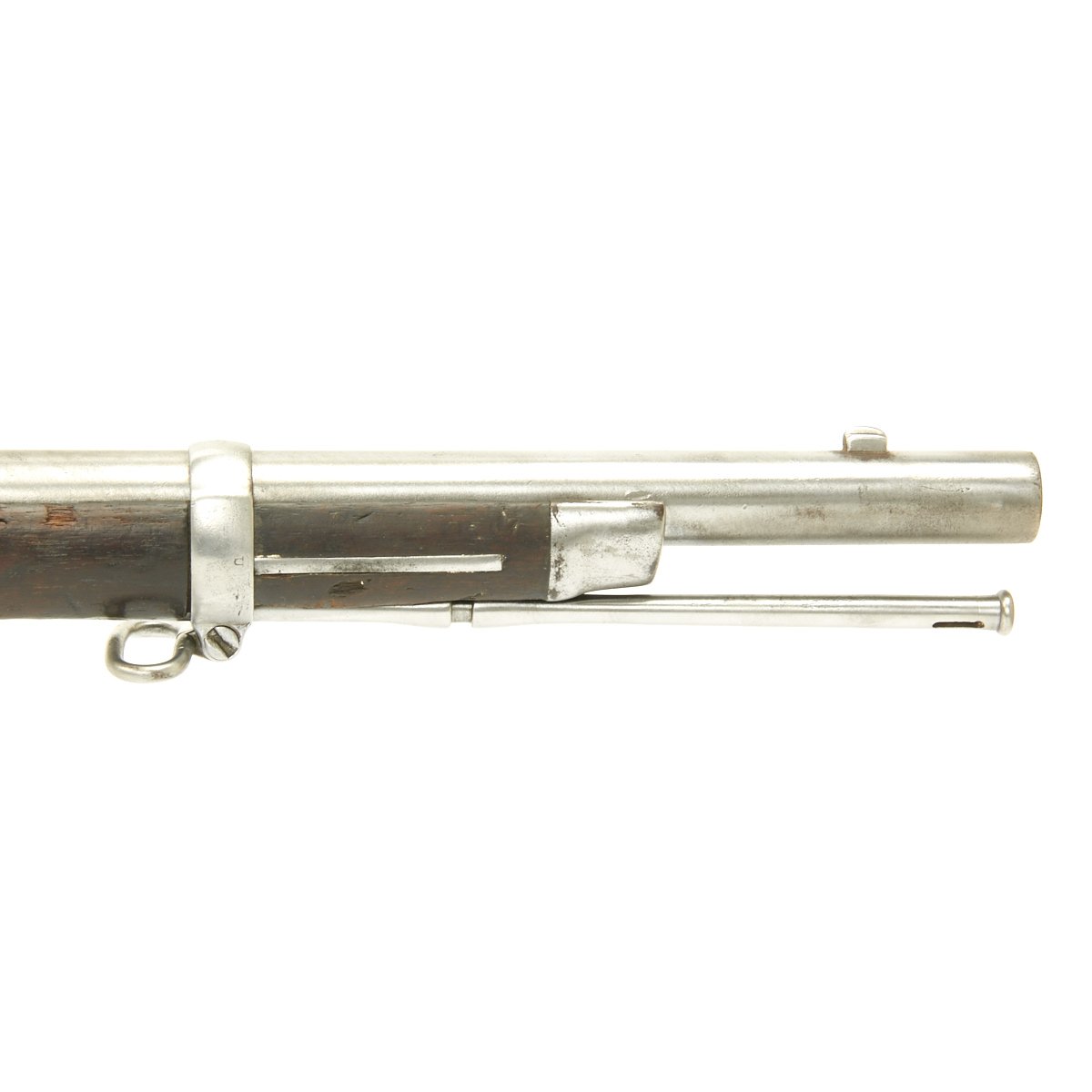

To correct this problem, the Model 1868 used a new barrel instead of relining the original older barrel. The new barrel was slightly shorter, 32.5 inches, compared to the 36.5-inch barrel used on the Model 1866. The shorter barrel was affixed using only two barrel bands, instead of the three used on the Model 1866. Since it lacked the middle barrel band, the sling was affixed to the upper barrel band instead. The Model 1868 also differed from previous models in that it used a separate Allin type receiver with the barrel attached to it. The Model 1868 was also the first trapdoor conversion to use the cartridge extractor covered by U.S. Patent No. 68,009, issued August 27, 1867 to W.H. & G.W. Miller. The Model 1868 had an overall length of 517⁄8 inches.
Over 50,000 Model 1868 rifles were manufactured, chambered for the .50-70 450 cartridge. This model served as the basis for the definitive Model 1873 "Trapdoor Springfield" series of rifles in .45-70-405 caliber, which was adopted in 1873 as the standard military longarm of the United States armed forces for the next 20 years.
This model is unique in the 'trapdoor' series by being marked with the actual year of manufacture (1868, 1869, or 1870) on the breech-block. The 1868 marking is extremely rare with probably no more than 150 so marked; about 16,000 were marked 1869, with the remaining 36,000 being stamped 1870.

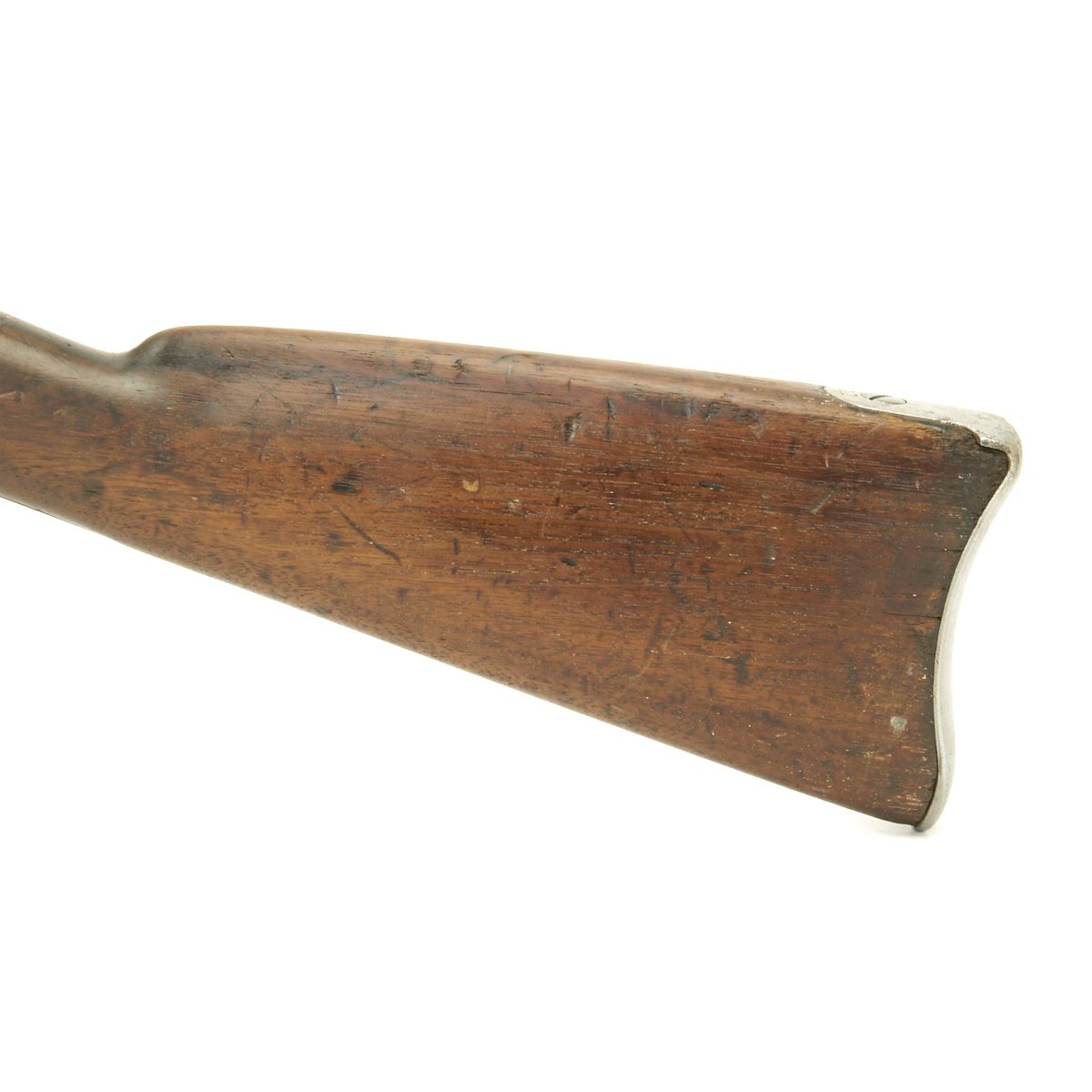

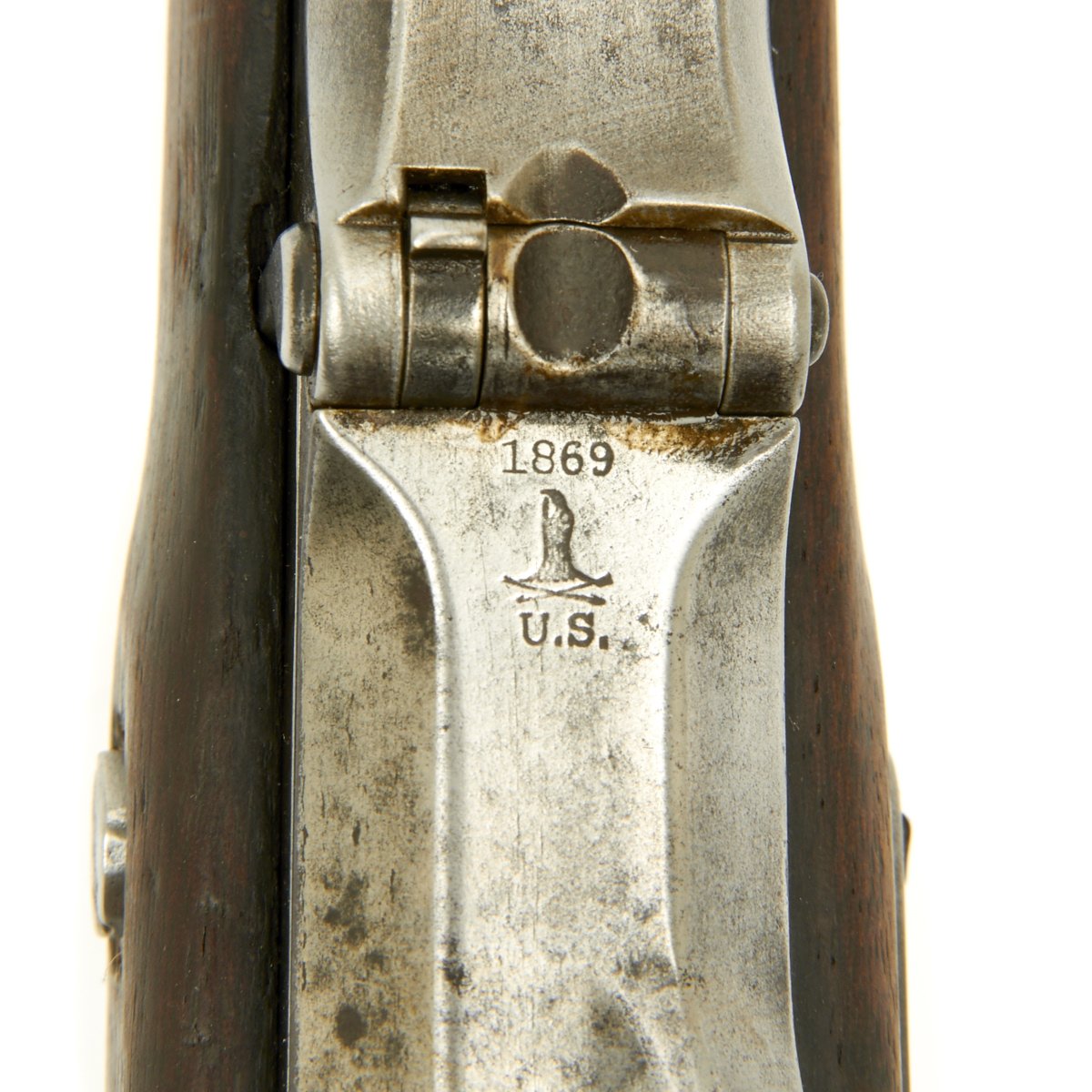

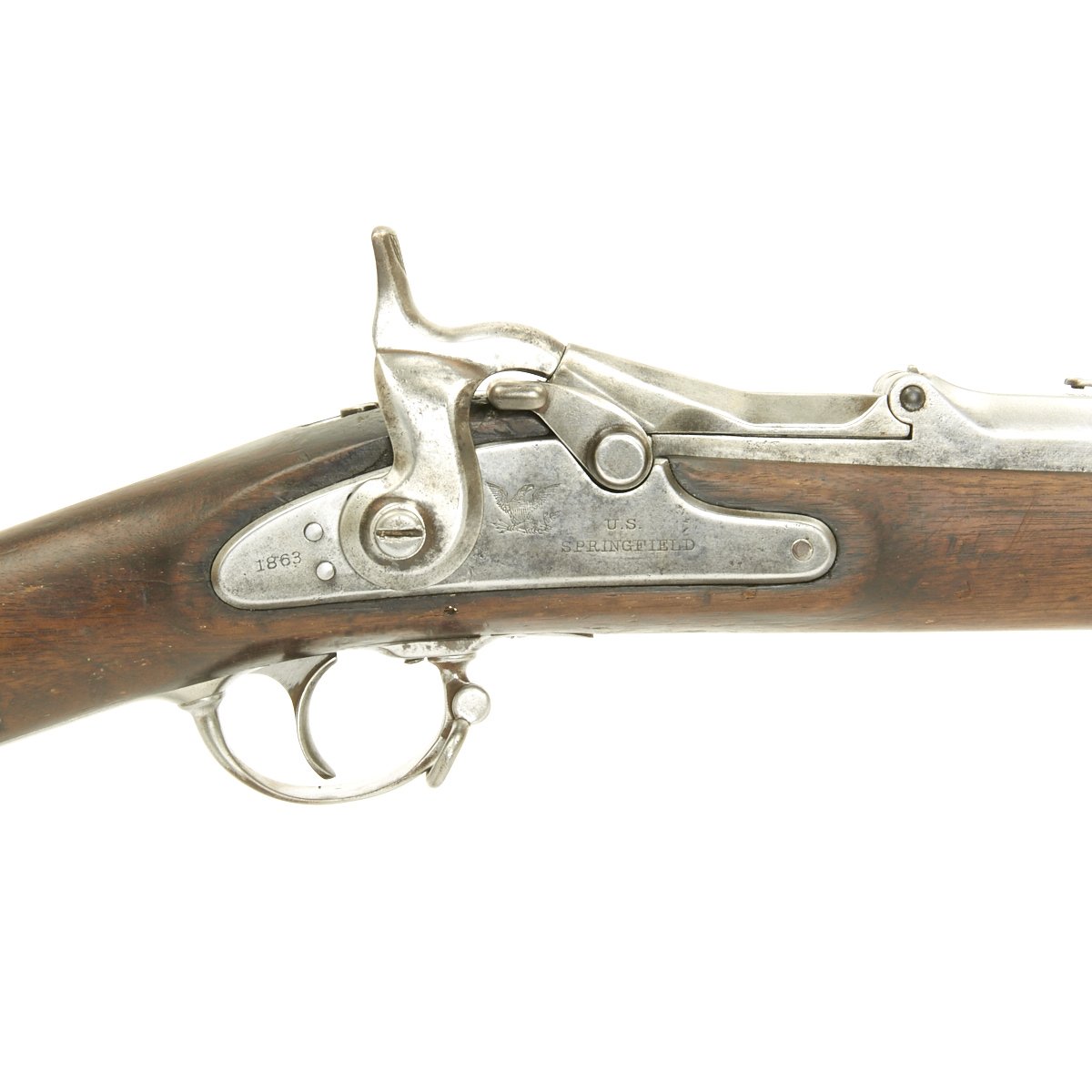

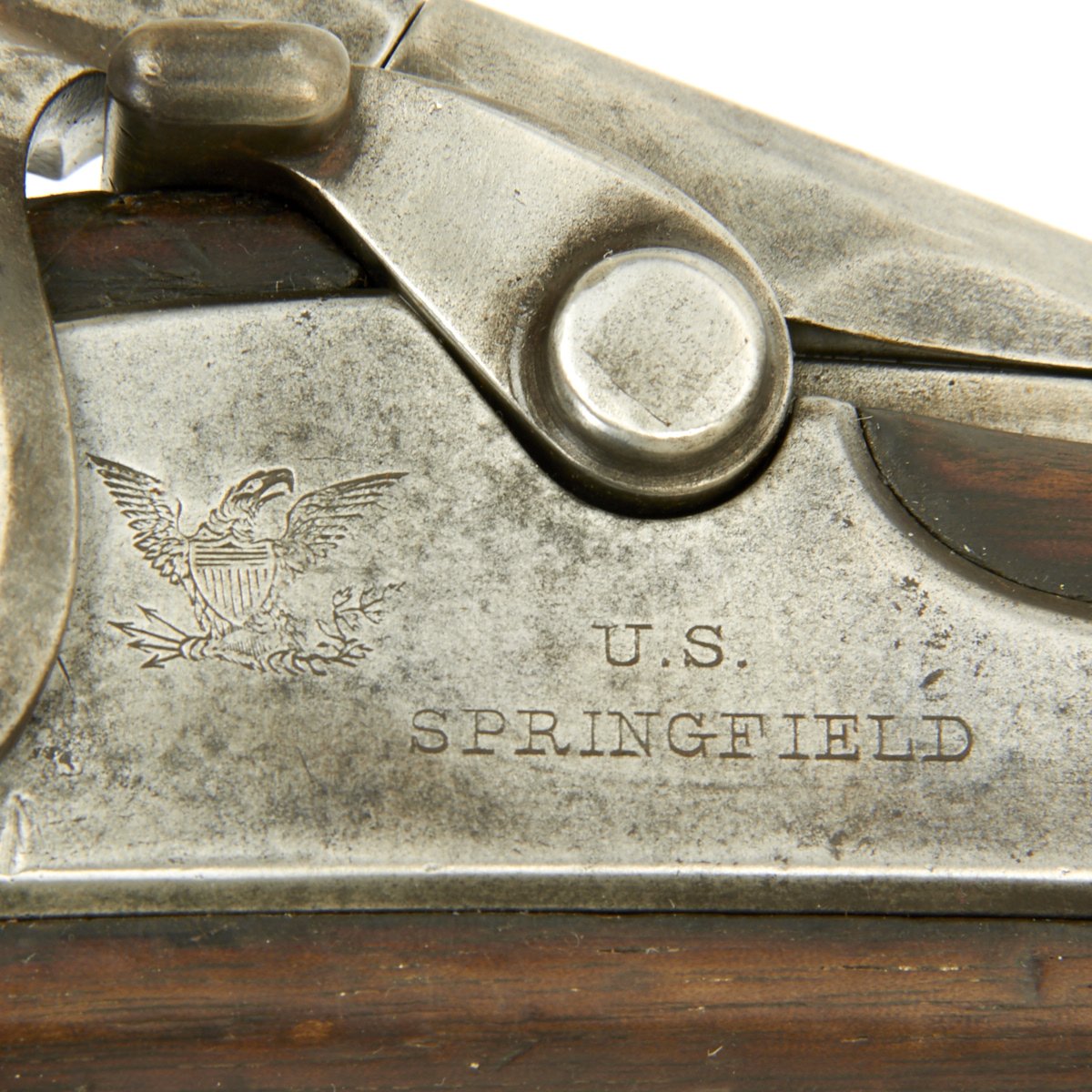

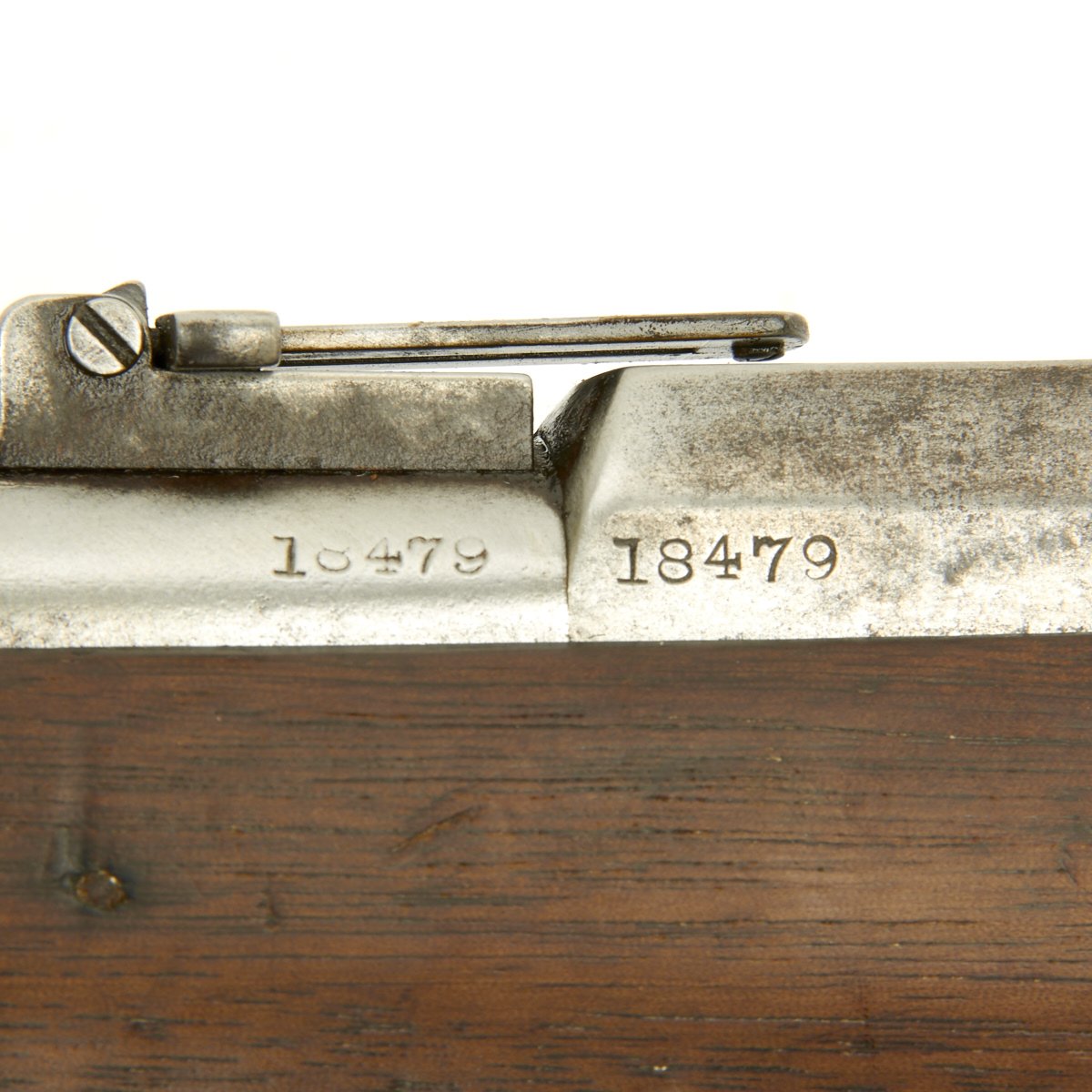

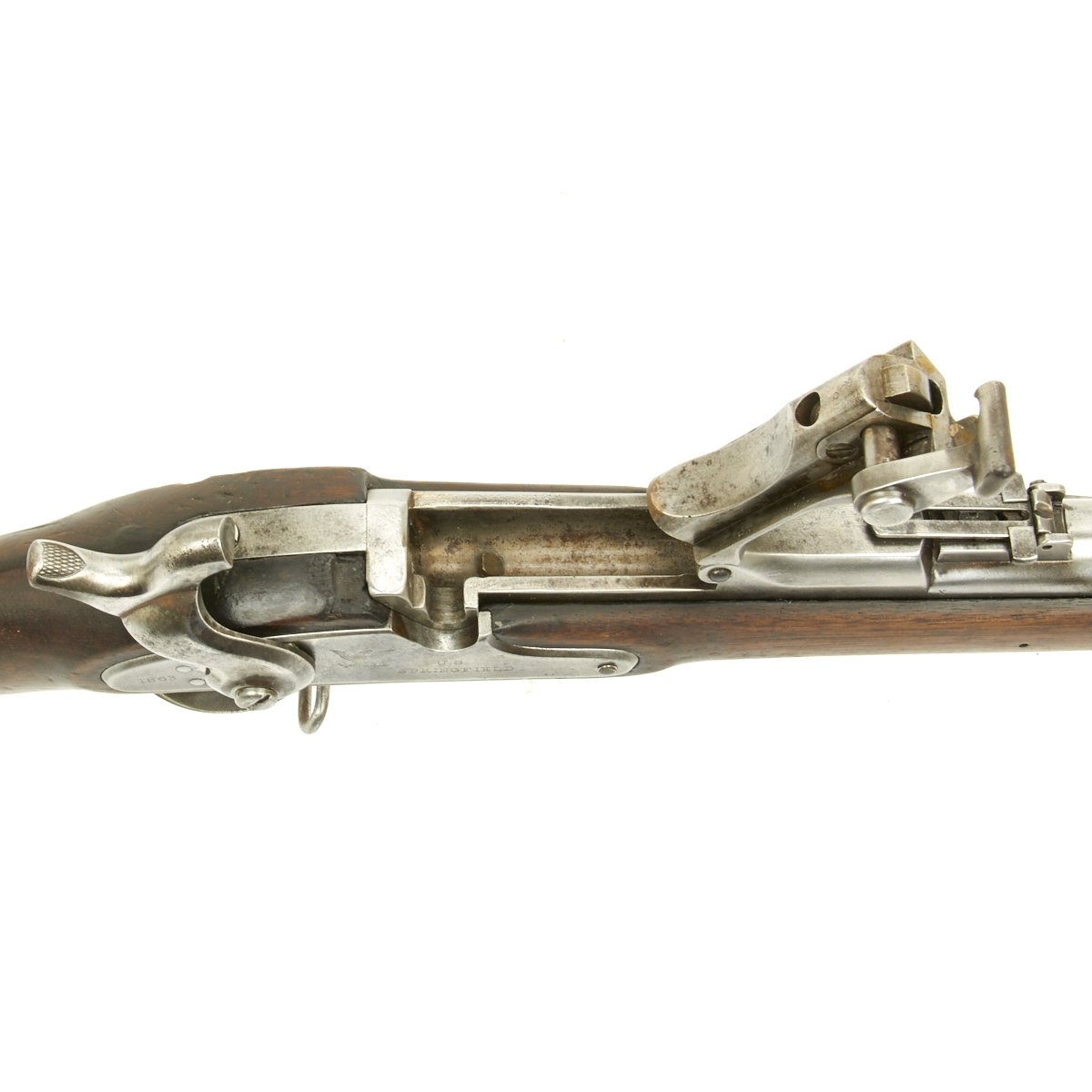

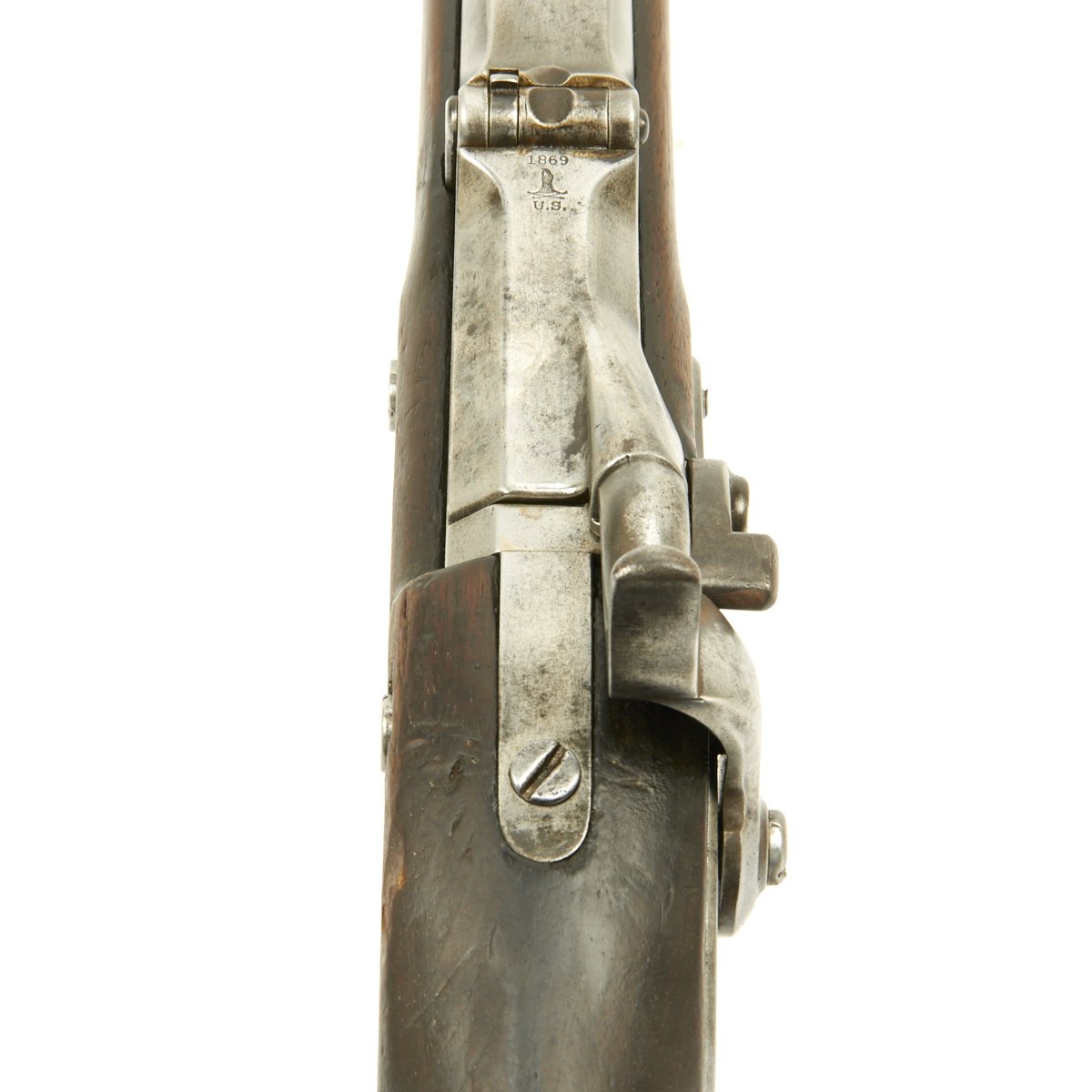

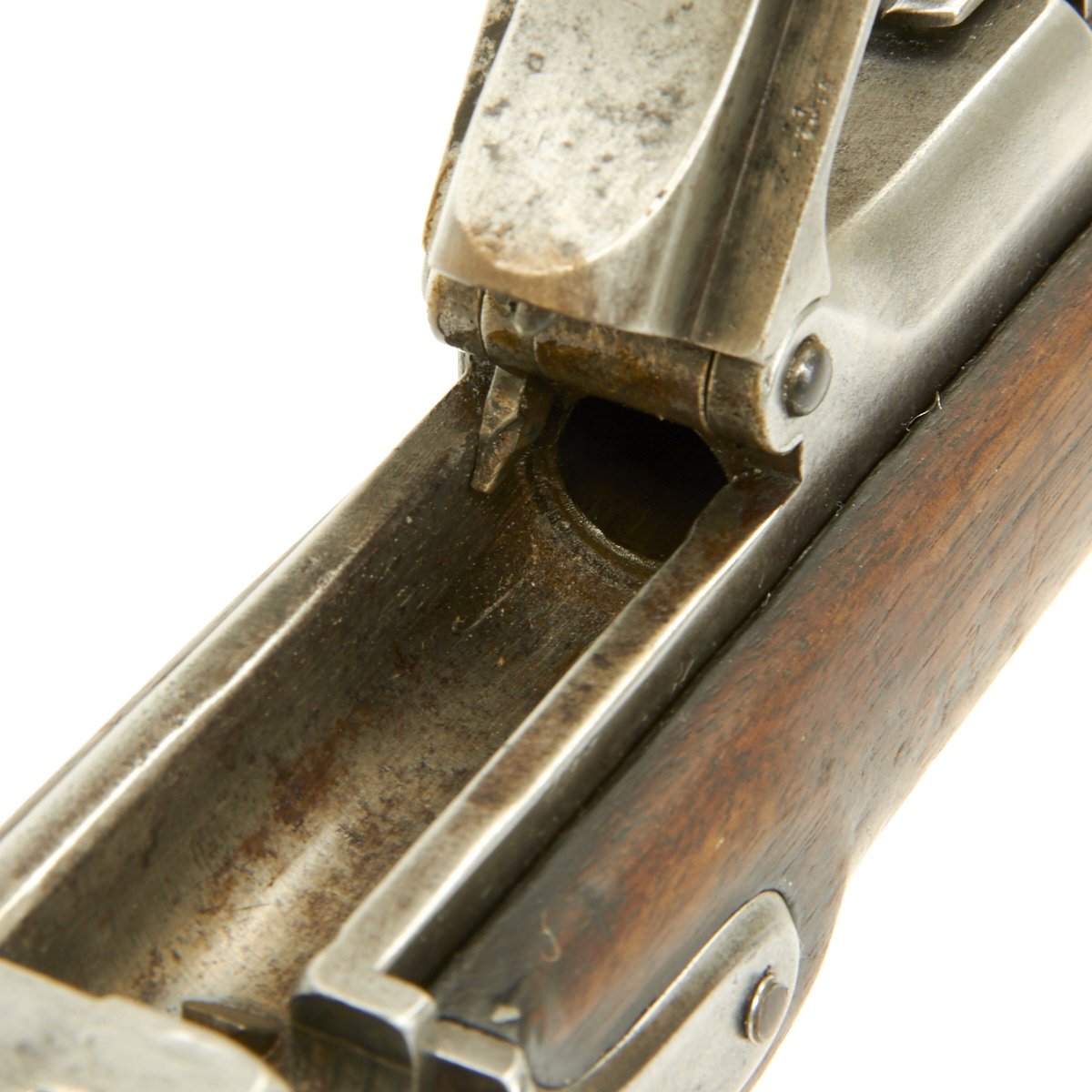

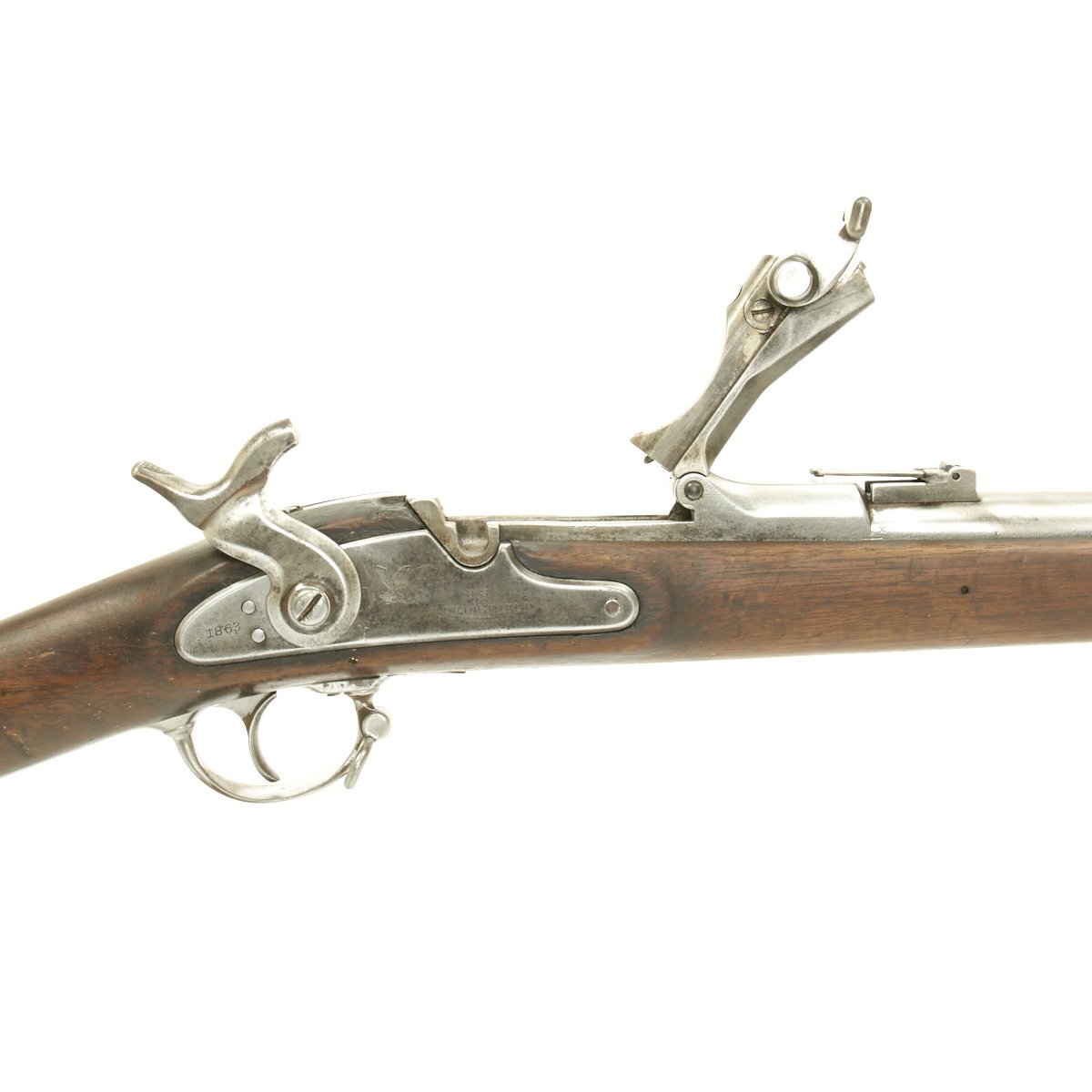

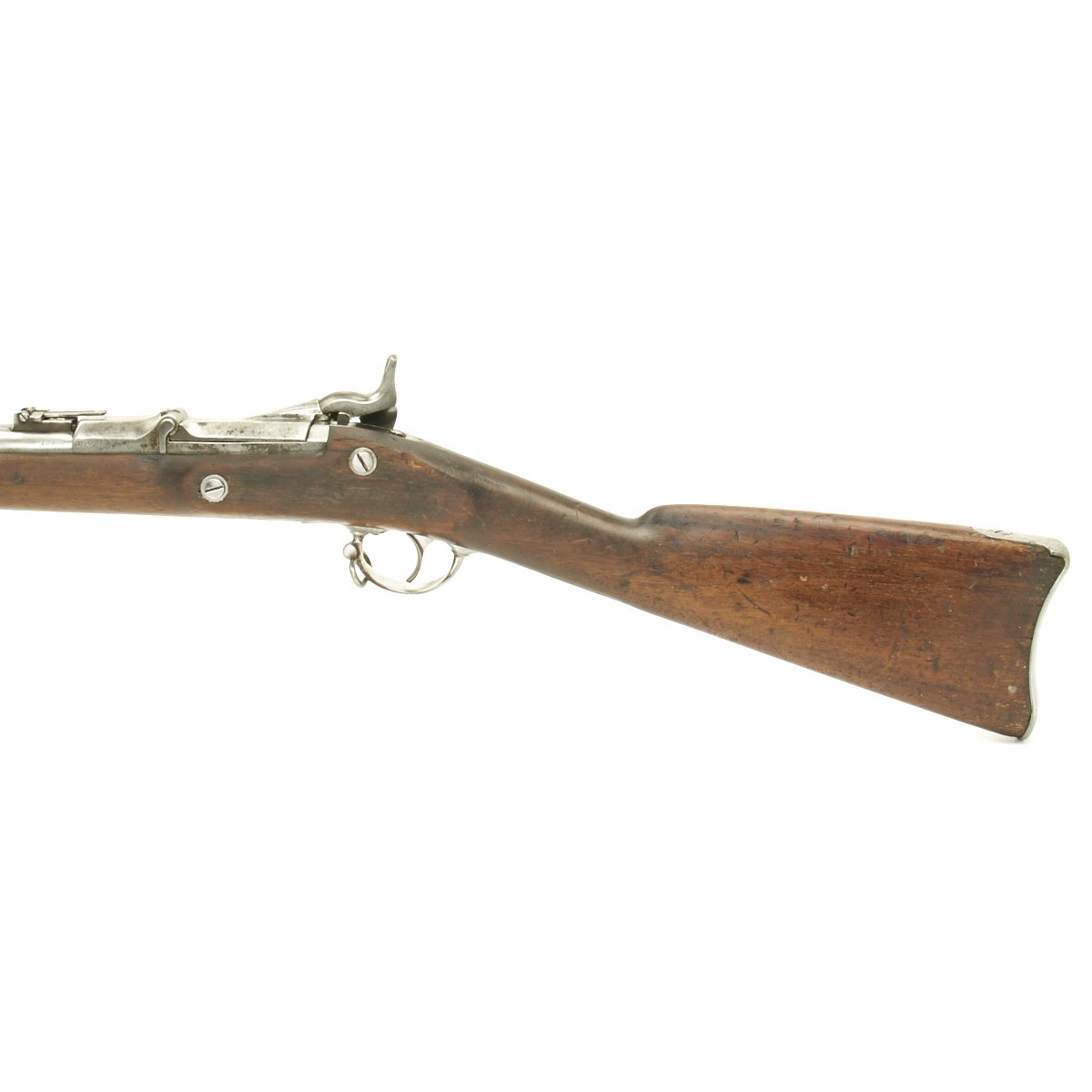

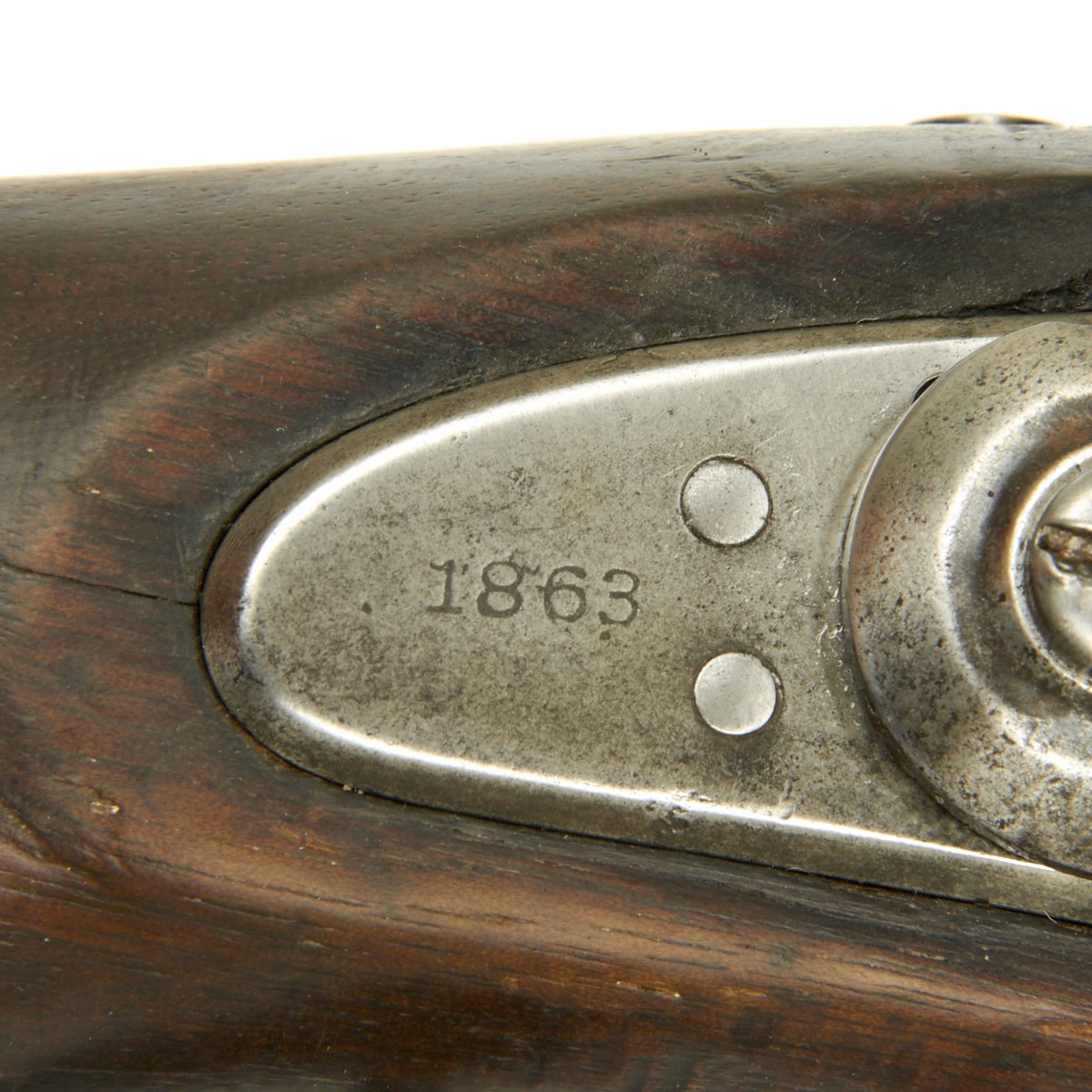

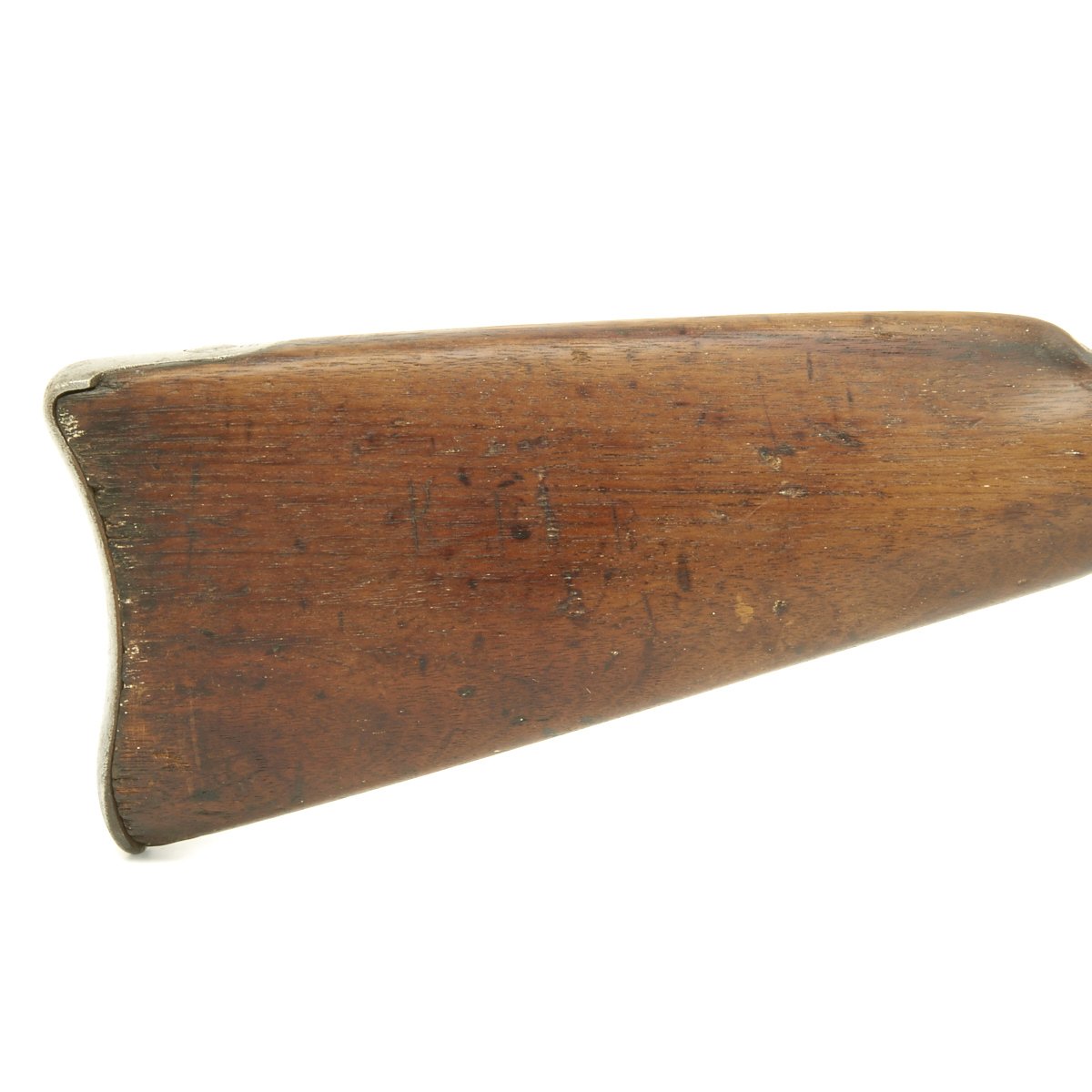

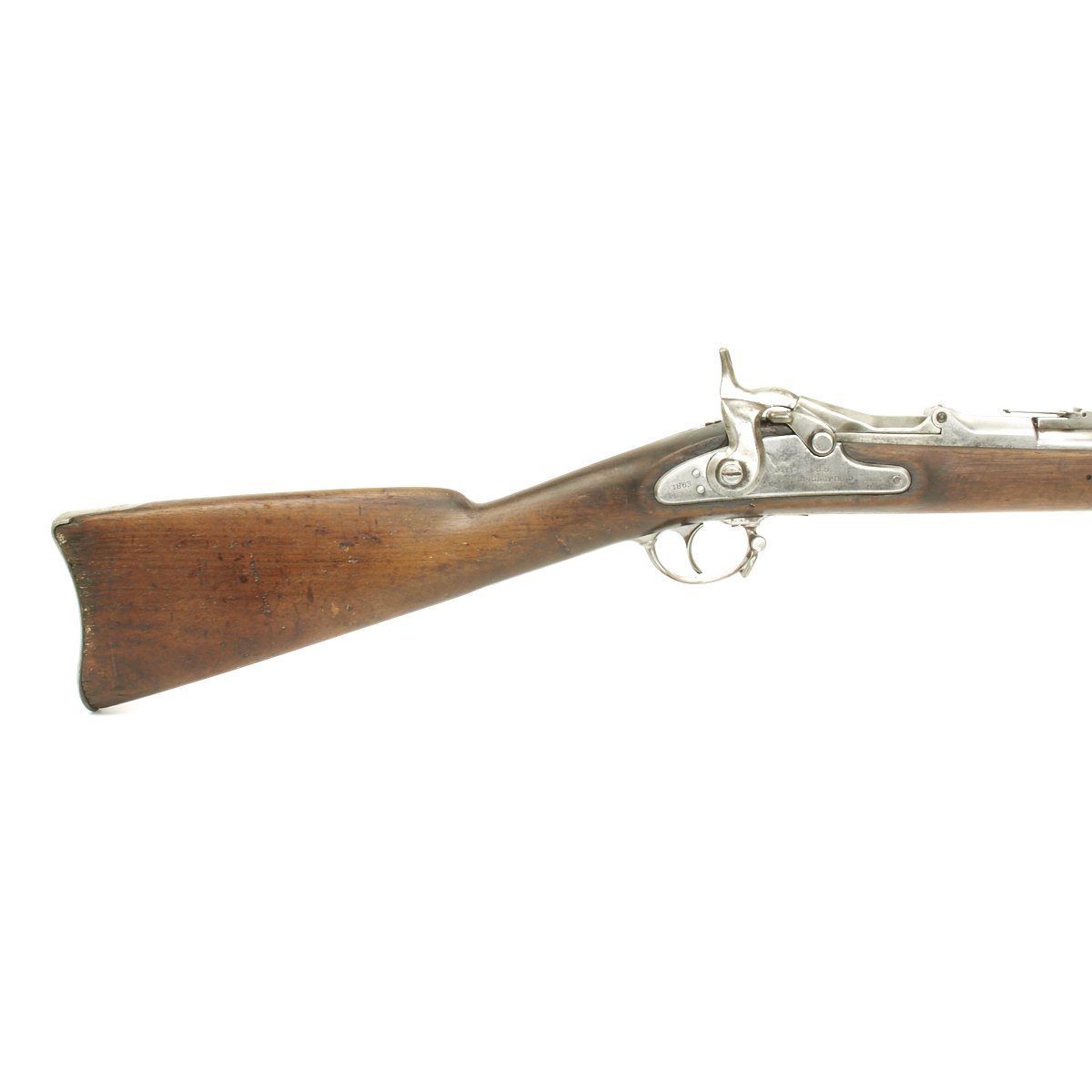

In fine condition, the lock is marked 1863 and an EAGLE over U.S. over SPRINGFIELD and the Breech Block is DATED 1869 with an Eagle head cartouche, indicating conversion in 1869. The barrel and receiver both bear serial number 18479 on the left hand side. In great condition this is a rare U.S. Military Rifle that led to the the legendary Model of 1873. Stock is in good condition with the expected dents and dings from age, as well as some gouges. The Metal components are in excellent condition. Bore shows clear lands and grooves, but does show some spots of corrosion..
Fully Cleaned and Ready to display.
NOTE: International orders of antique firearms MUST be shipped using UPS WW Services (courier). USPS Priority Mail international will not accept these.
- This product is not available for shipping in US state(s): New Jersey
This product is available for international shipping.
IMA considers all of our antique guns as non-firing, inoperable and/or inert. Title 18, U.S. Code, Section 921(a)(16) defines antique firearms as all guns made prior to 1899. This law exempts antique firearms from any form of gun control or special engineering because they are not legally considered firearms. No FFL, C&R or any license is required to possess, transport, sell or trade Antique guns. All rifles and muskets sold by IMA that were manufactured prior to 1899 are considered Antiques by the US BATF (United States Bureau of Alcohol, Tobacco & Firearms). Therefore, all of IMA's Antique guns may be shipped to all US States and most nations around the world.
These antique guns are not sold in "live" condition. They are sold as collector's items or as "wall hangers". Any attempt at restoring an antique gun to be operational is strongly discouraged and is done so at the risk of the customer. By purchasing an antique gun from IMA you thereby release IMA, its employees and corporate officers from any and all liability associated with use of our Antique guns.
Pre-1899 Manufacture, no licenses required, allowed to ship to almost any deliverable address across the globe. Please note that for international shipping, these MUST be shipped using UPS WW Services.
