Original Item: Only One Available. Over the years, IMA has purchased many collections and groups of antique guns, in which case we need to take all of them, as we did in Nepal. While these collections were generally full of guns that relatively good condition, they also had some that were less complete and unfortunately would take more restoration time than we were able to give them. We kept them in storage, possibly for future products, but have now decided to offer these "As Found" antique firearms to our customers as restoration projects. These are all original and as we received them, except for cleaning the dirt and grime off the exterior.

Please note that these are still real antique guns, and are being sold in "As is" condition at a significant discount from what they would sell at if we were to fully restore them. We will do our best to photograph and describe them and know that our customers will know exactly what they are getting. If they arrive and you find that they are not to your liking, they can be returned, however please be aware that there will most likely be restocking fees assessed.

The U.S. Model 1822 Musket was a .69 caliber smoothbore flintlock, with a 42-inch barrel and an overall length of 58 inches. It replaced the previous model 1816 musket, and often is viewed as a further development of that design. One of the most noticeable differences in the Model 1822 is the attachment of the lower sling swivel. The forward part of the trigger bow was provided with an enlargement which was drilled to receive the sling swivel rivet. Previously, the sling swivel had been affixed to a stud in front of the trigger bow.

The Model 1822 was produced by the Springfield Armory, Harpers Ferry Armory, and numerous other contractors. It was eventually replaced by the Springfield Model 1835, which is also considered by many to be a continuation of the Model 1816. These were sometimes referred to as "Whitney Flintlocks" due to the large number made in New Haven, Connecticut by Eli Whitney.

In the 1850s, many of the Flintlock Muskets in Arsenal were converted to Percussion, which was a much more reliable and water-resistant ignition system. This involved all variants of the Model of the 1816. This helped to standardize the types of ammunition carried by the soldiers in the field. The easiest conversion type, often referred to as the “Belgian” style conversion, was to simply tap a threaded hole in the top of the breach of the barrel to permit the fitting of a percussion cone (aka “nipple”). It also had the barrel shortened by 1 1/2 inches, possibly due to damage.

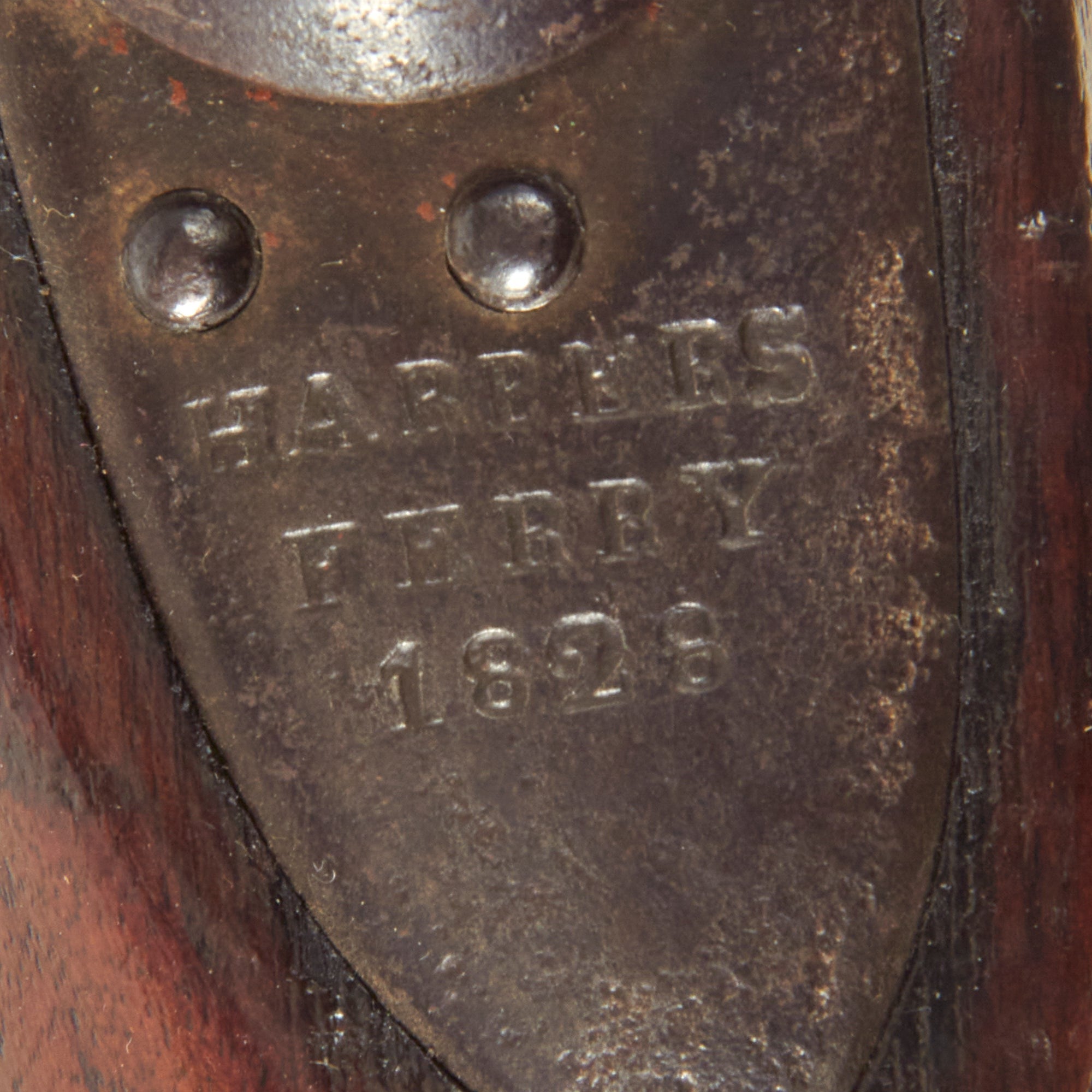

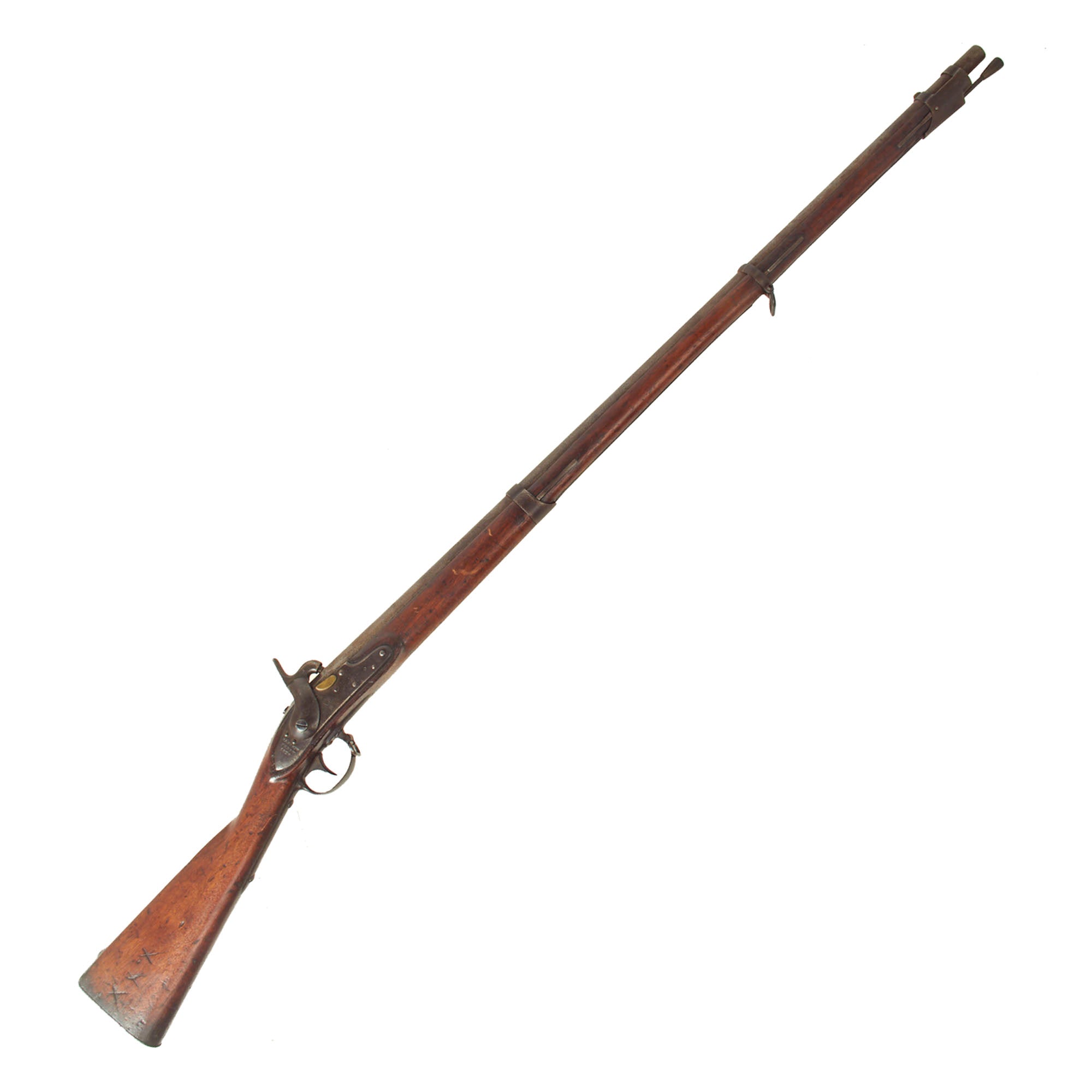

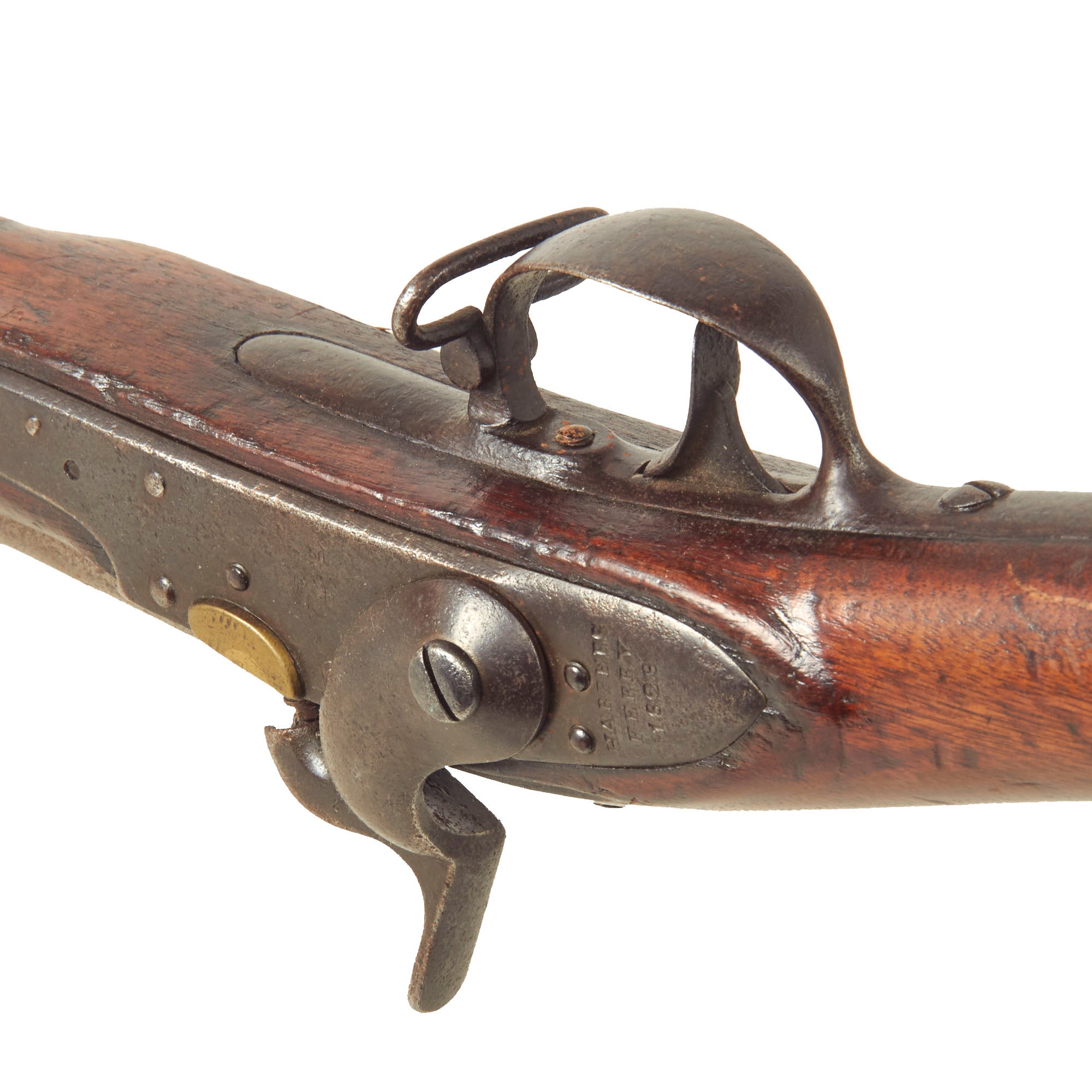

This "As Found" example was originally manufactured at the United States Armory and Arsenal at Harpers Ferry in 1828, as indicated by markings on the tail of the lock plate:

HARPERS
FERRY
1828

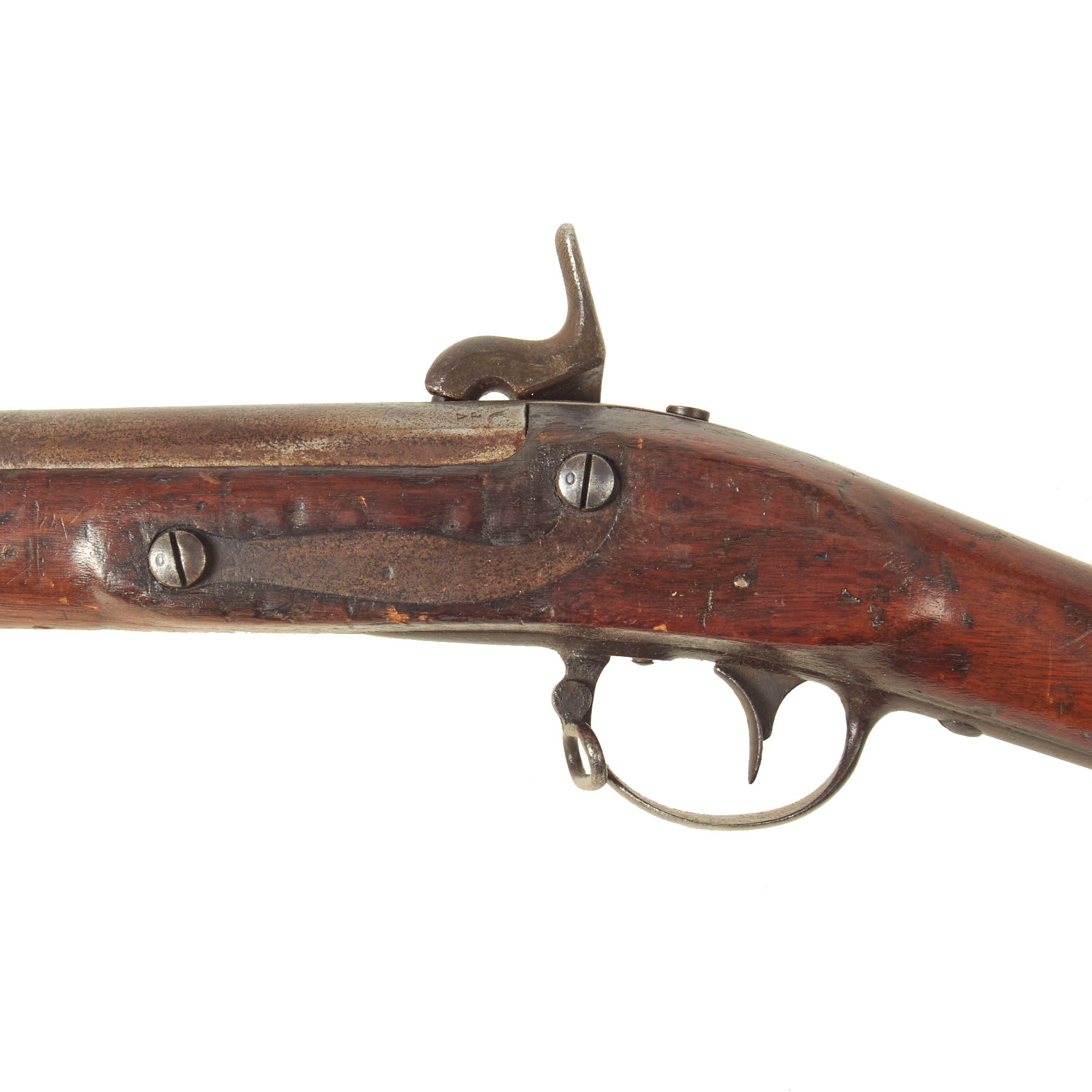

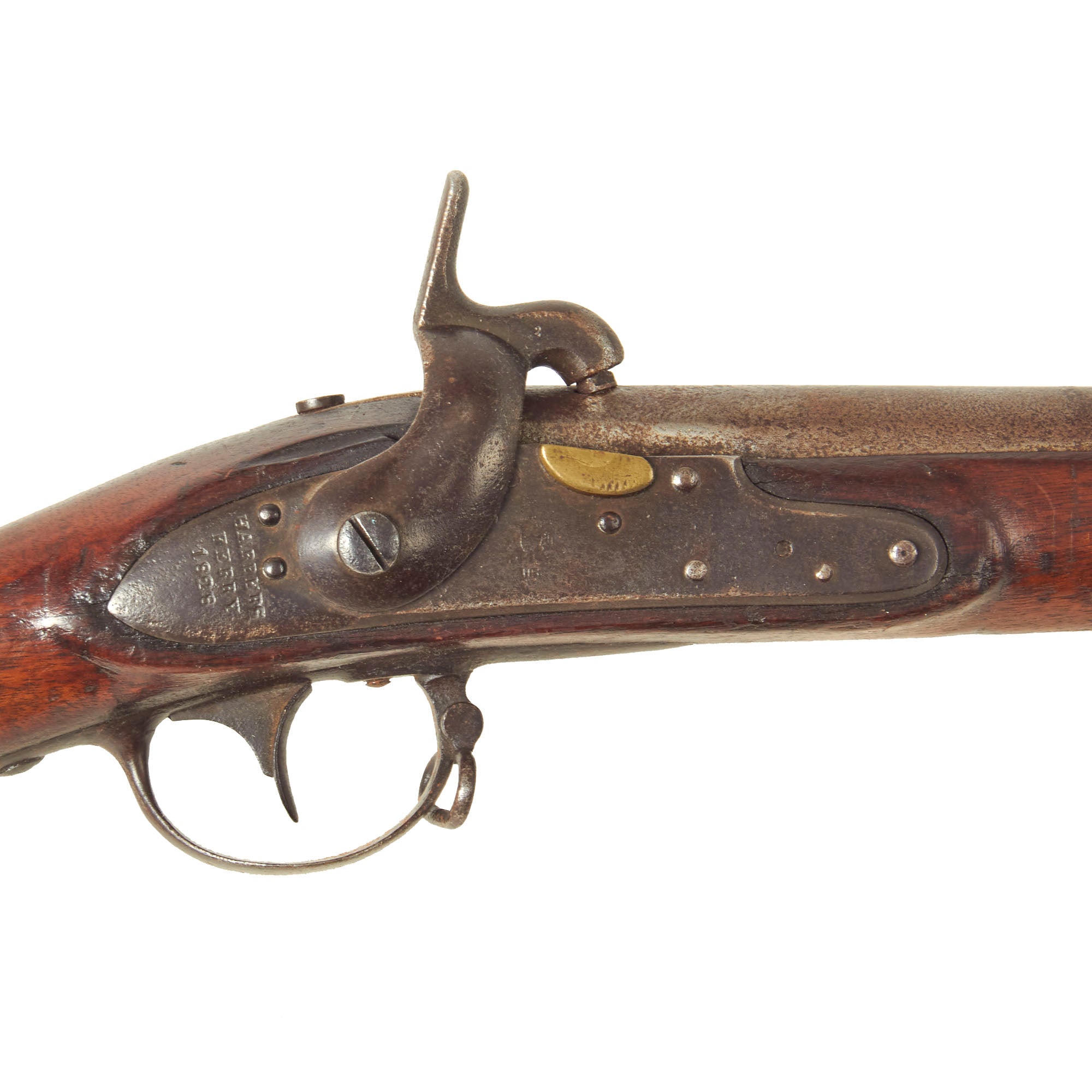

There is also a EAGLE over U.S. marking on the lock plate in front of the hammer, which is crisp on the excellent condition lock plate. The 40 1/2" smooth bore barrel is faintly marked with P / Eagle's head / V on the left top of the breech, the correct proof marks for this era. The lock plate and breech area have powder burn and light oxidation, which has made the markings faint.

Condition Notes:

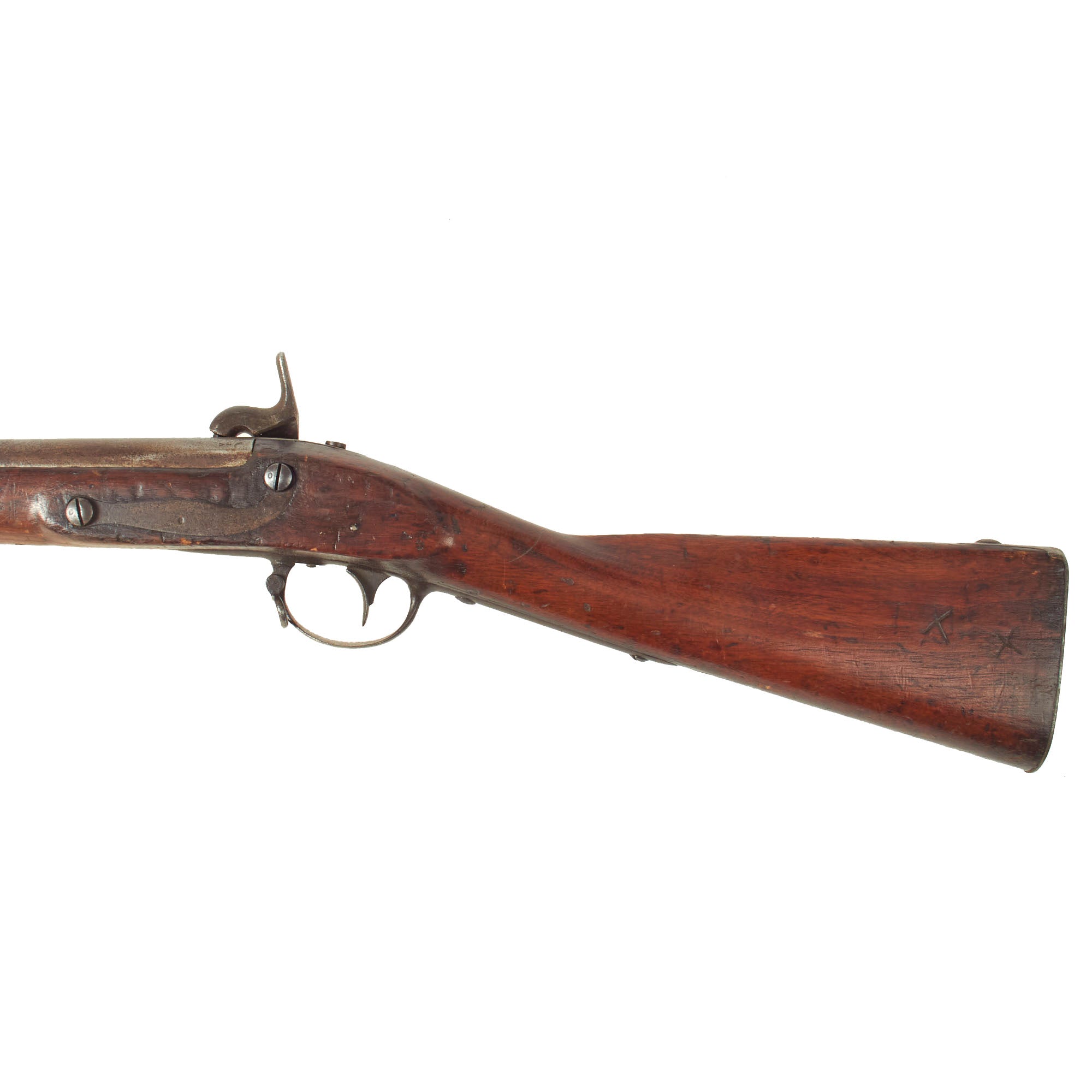

- Lock is fully functional, holding at half cock and firing at full. Lock action is very strong

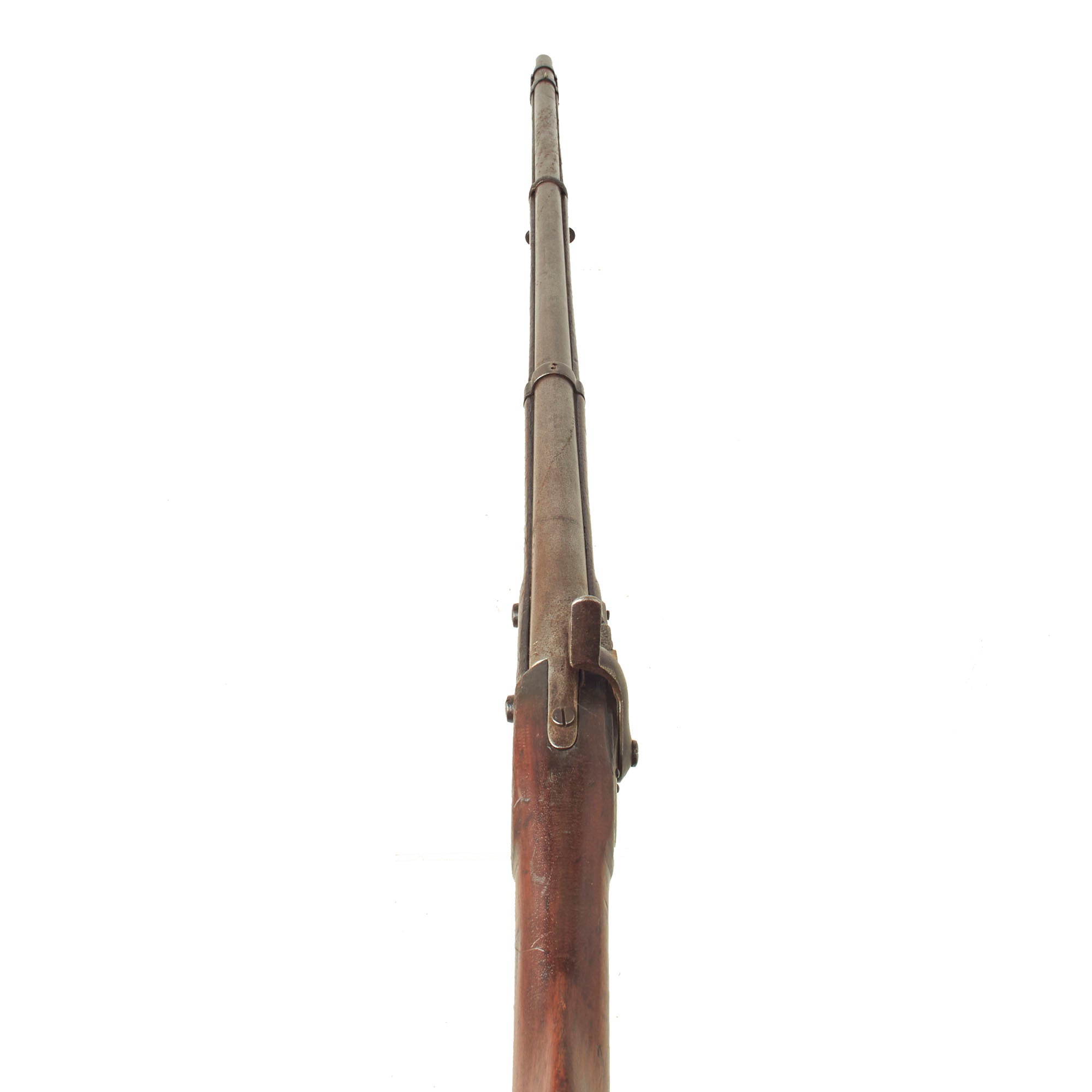

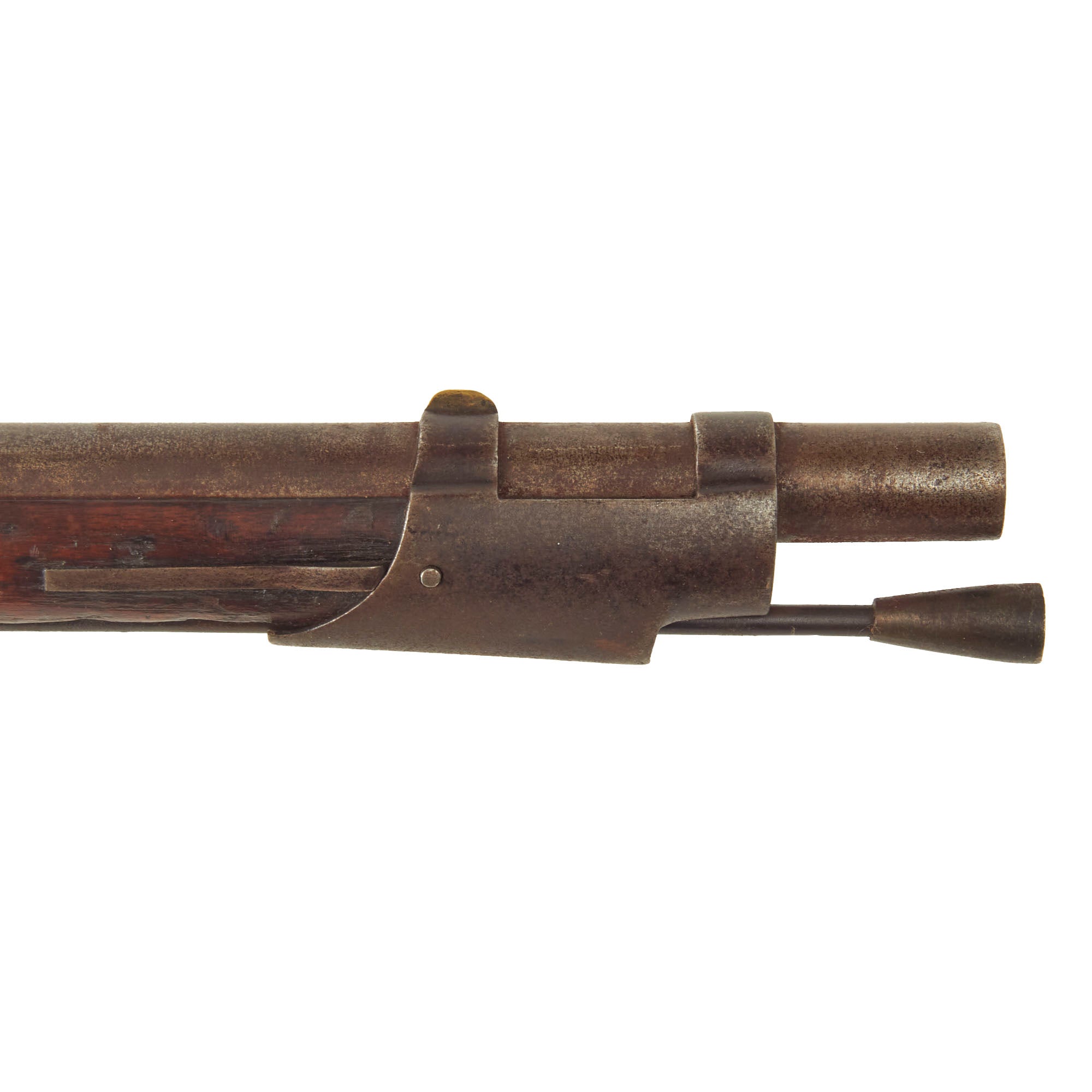

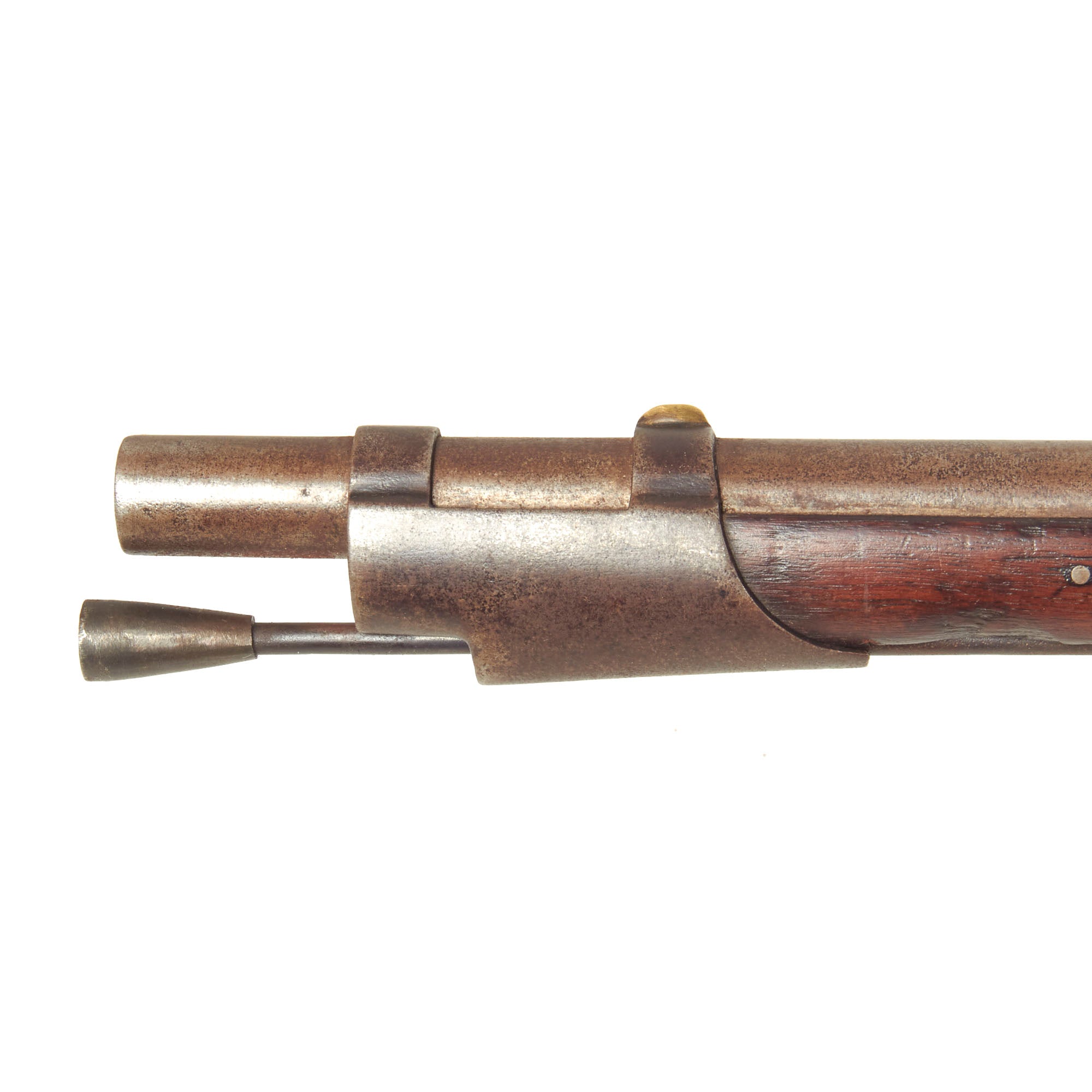

- Barrel has been shortened by 1 1/2 inches
- Ramrod has been replaced by a fabricated replacement at some point.

Please consult the high resolution (2000x2000) pictures for further details.

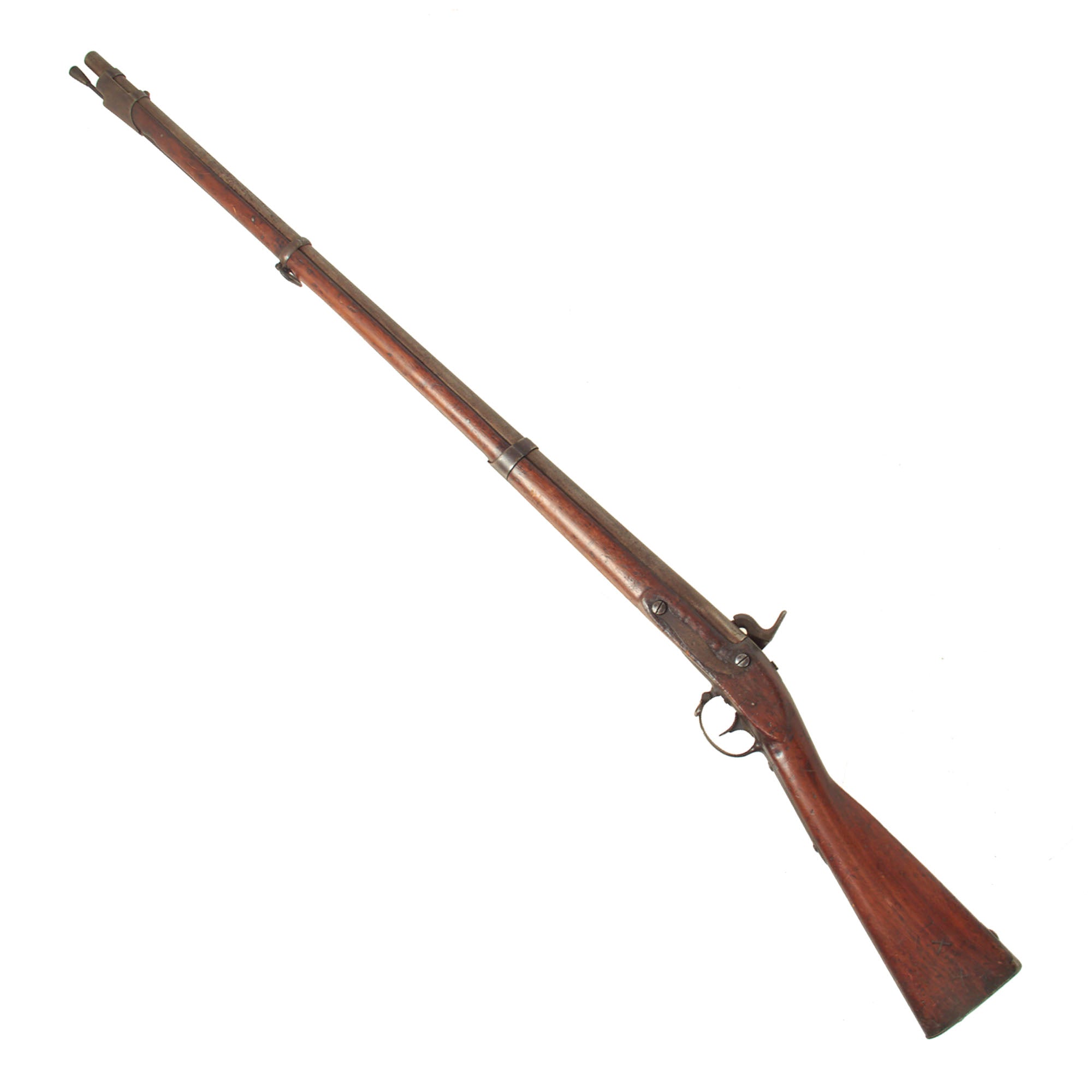

A very nice 'As Found' example of an early stage in the evolution of the U.S. Musket, later converted to percussion.

Specifications-

Year of Manufacture: 1828
Caliber: .69"
Cartridge Type: Ball and Powder
Barrel Length: 40 1/2 Inches
Overall Length: 56 Inches
Action type: Side Action Percussion Lock
Feed System: Muzzle Loading

History of the Model 1822 Musket:

The War of 1812 had revealed many weaknesses in American muskets. The Model 1812 Musket was created in an attempt to improve both the design and manufacture of the musket. The Model 1816 made further improvements, and replaced the Model 1812. The Model 1812 had borrowed heavily from the design of the French Charleville model 1777 musket, and this design was retained for the Model 1816. The Model 1816 had a 42 inch long .69 caliber smoothbore barrel, similar to the Model 1812, but had a longer lock plate, a shorter trigger guard, and a longer bayonet than the Model 1812. The Model 1816 also had a more straight lined stock. The overall length of the weapon was 58 inches.

The Model 1816 musket was originally produced at the Harpers Ferry and Springfield Arsenals between 1816 and 1844. Around 675,000 were made, more than any other flintlock in U.S. history.

The Model 1816 was originally produced as a flintlock musket. Like many flintlock muskets, many of these were later converted to percussion cap, as the percussion cap system was much more reliable and weather resistant.

This model of Springfield musket was used by Texans during the Texas Revolution and by the US Army and militia during the Mexican-American War. During this conflict, the flintlock version of the Model 1816 was preferred by U.S. regular forces, due to percussion cap supply concerns.

It was also used during the early years of the American Civil War until around 1862.

Many improvements to the Model 1816 were made, producing the Model 1822, Model 1835, Model 1840, and Model 1842. U.S. Ordnance Department referred to these as different models, but in other U.S. government documents they are referred to as a continuation of the Model 1816. Modern histories are similarly inconsistent in the nomenclature of these weapons.
