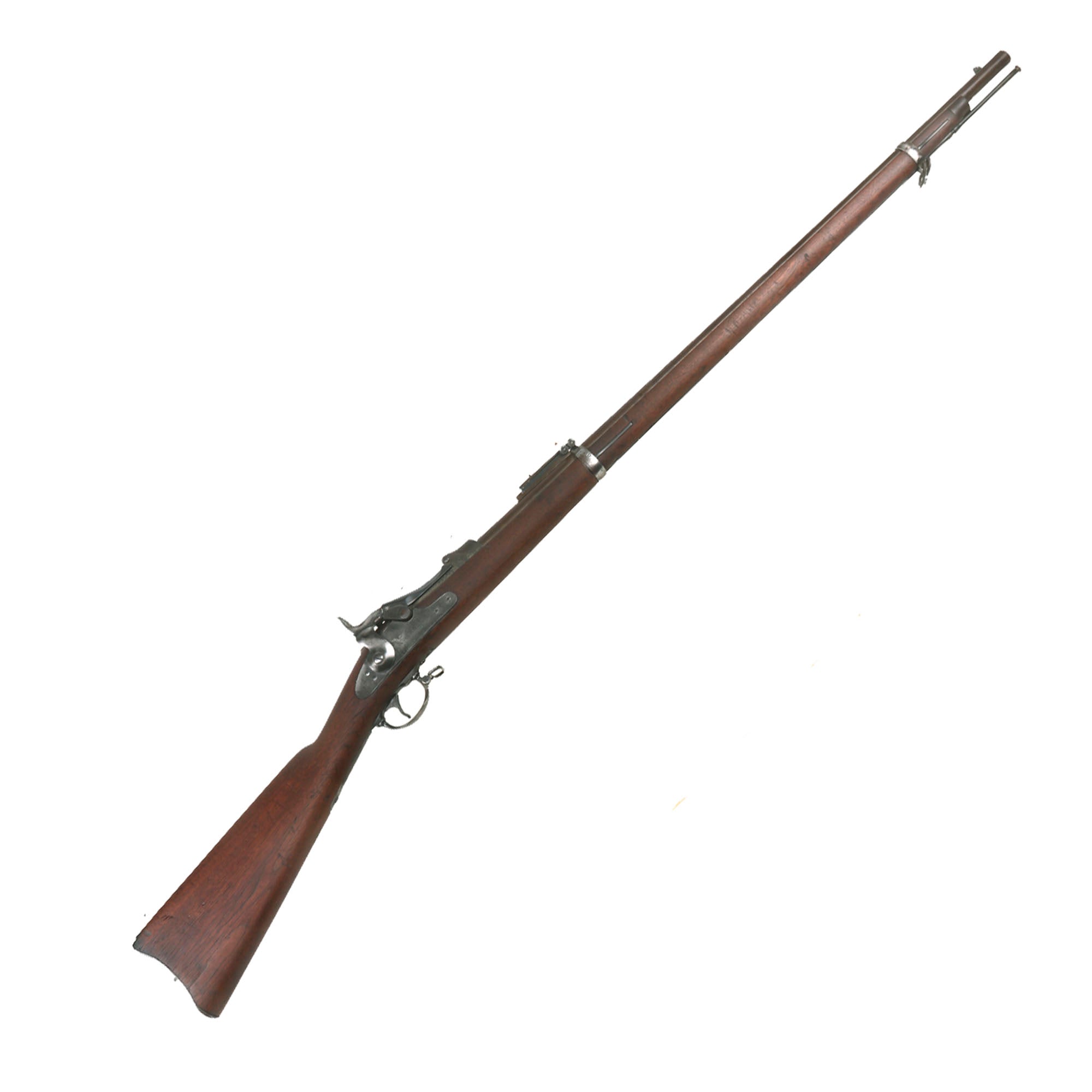

Original Item: Only One available. This is a fantastic example of the classic Springfield trapdoor rifle, the weapon used, in its carbine form, by the troopers of the 7th Cavalry that met their fate at the Battle of Little Big Horn in 1876.

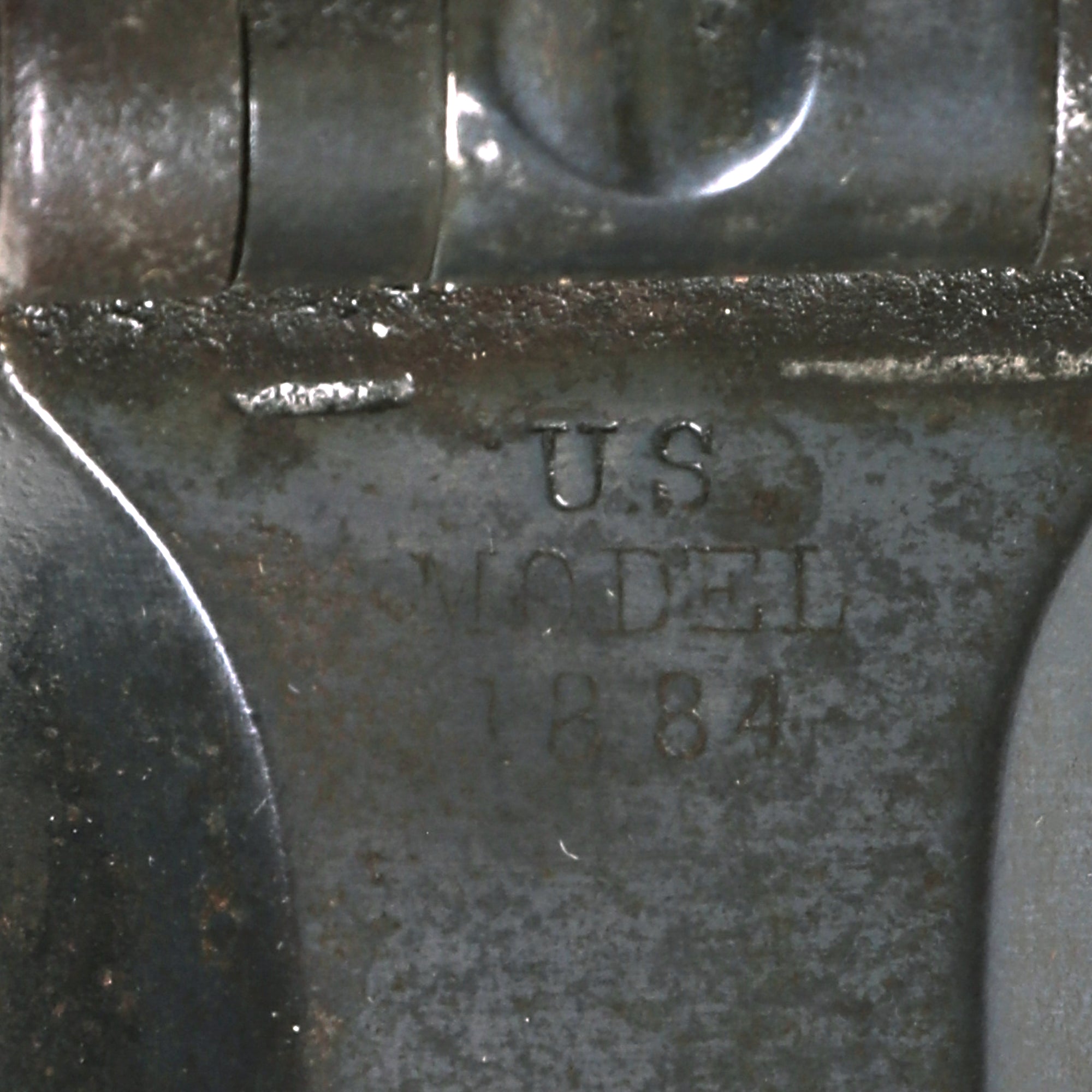

The breech block is marked:

In 1884 the integral Round Rod Bayonet was designed, which could double as a cleaning rod, a development that met with very limited success. However, it was not fitted to all rifles, and not usually seen until at least 1886. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

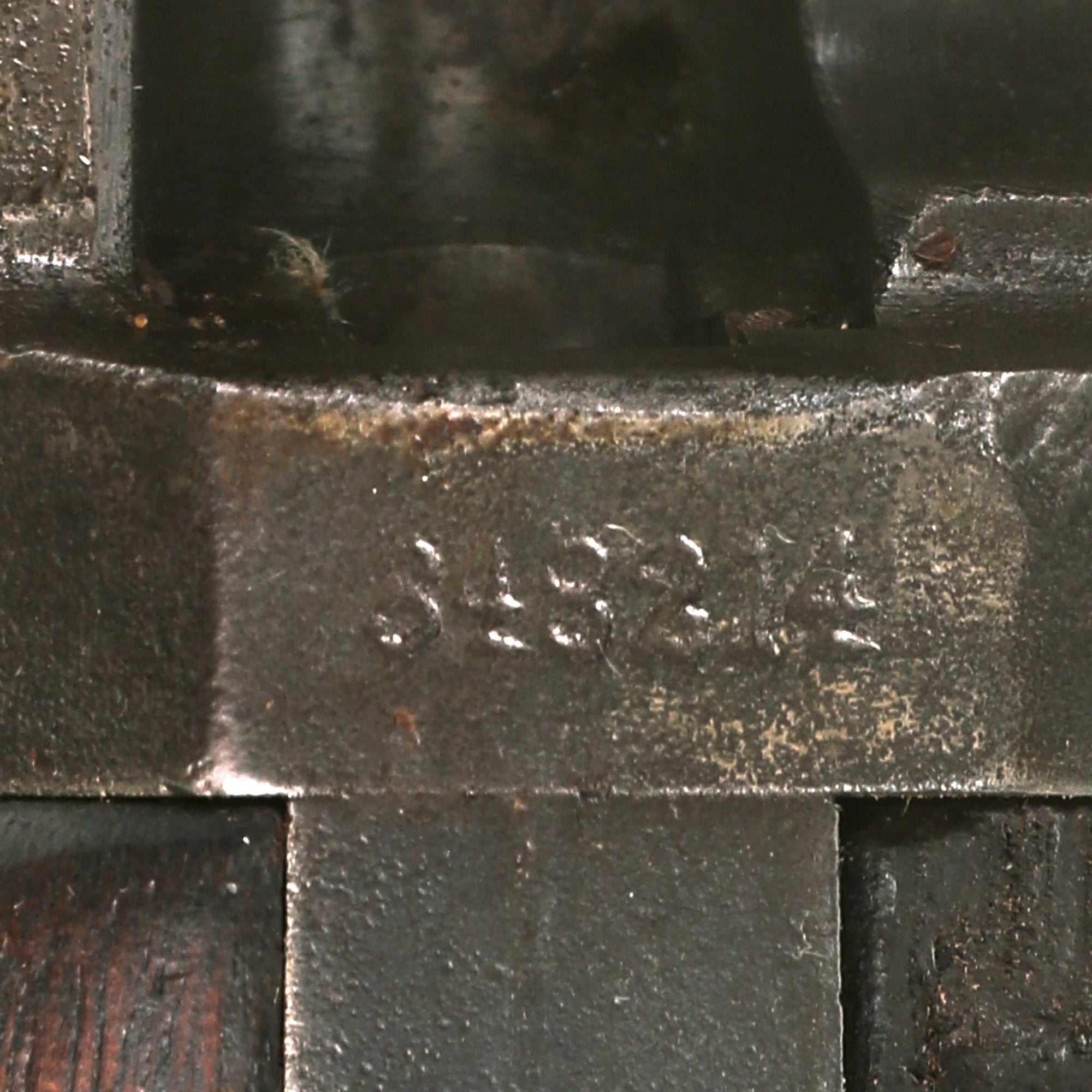

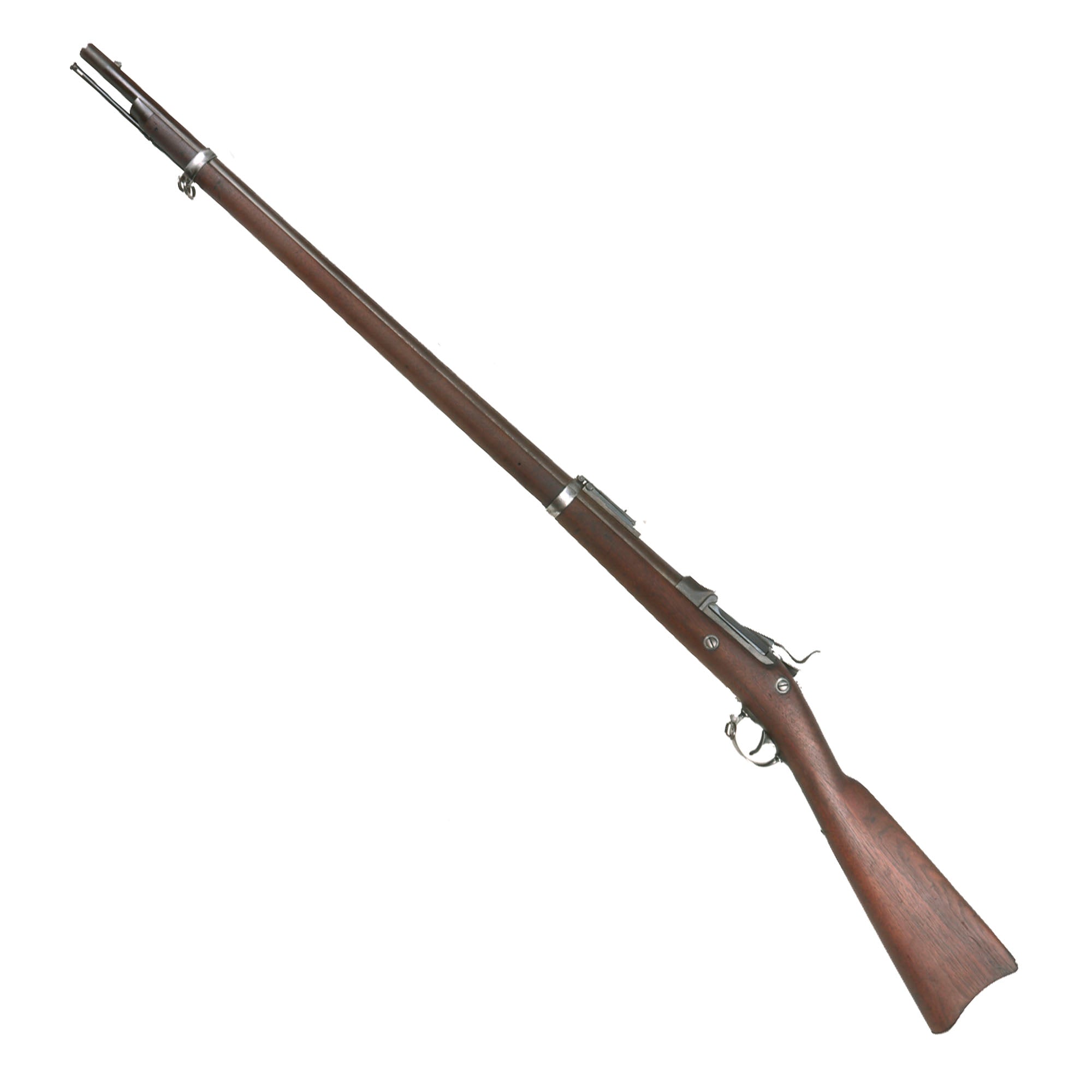

Offered in very good condition is this trapdoor rifle in .45-70 government caliber, Serial # 348214, which indicates production in approximately January 1887, per U.S. Government records. There is an inspection cartouche on the left side of the stock, however it is only partial, and too faint to read. The rifle has overall very good metal finish and all metal proofs still present, with the finish faded to plum on the barrel, showing some wear and peppering, which we have left intact to preserve the lovely patina.

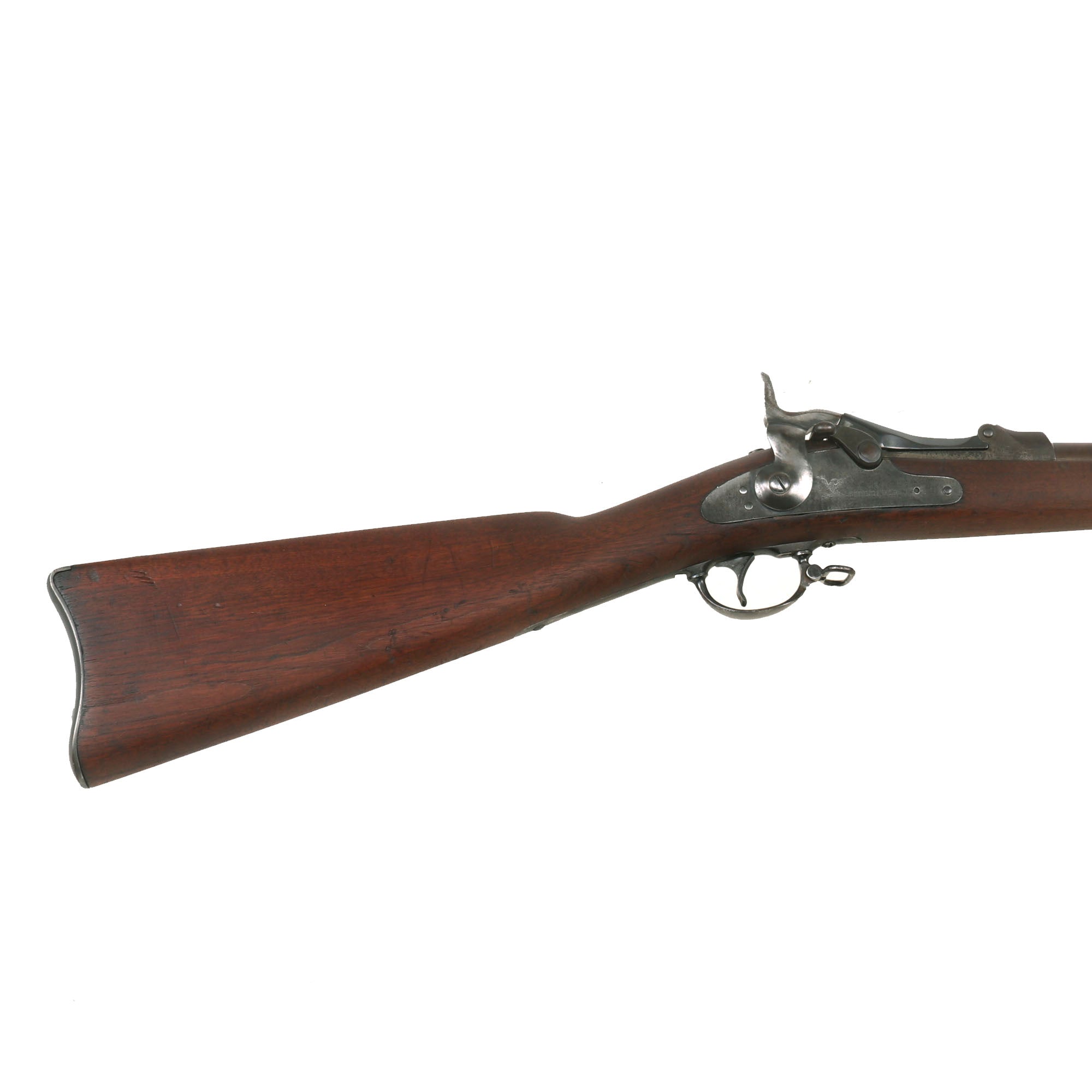

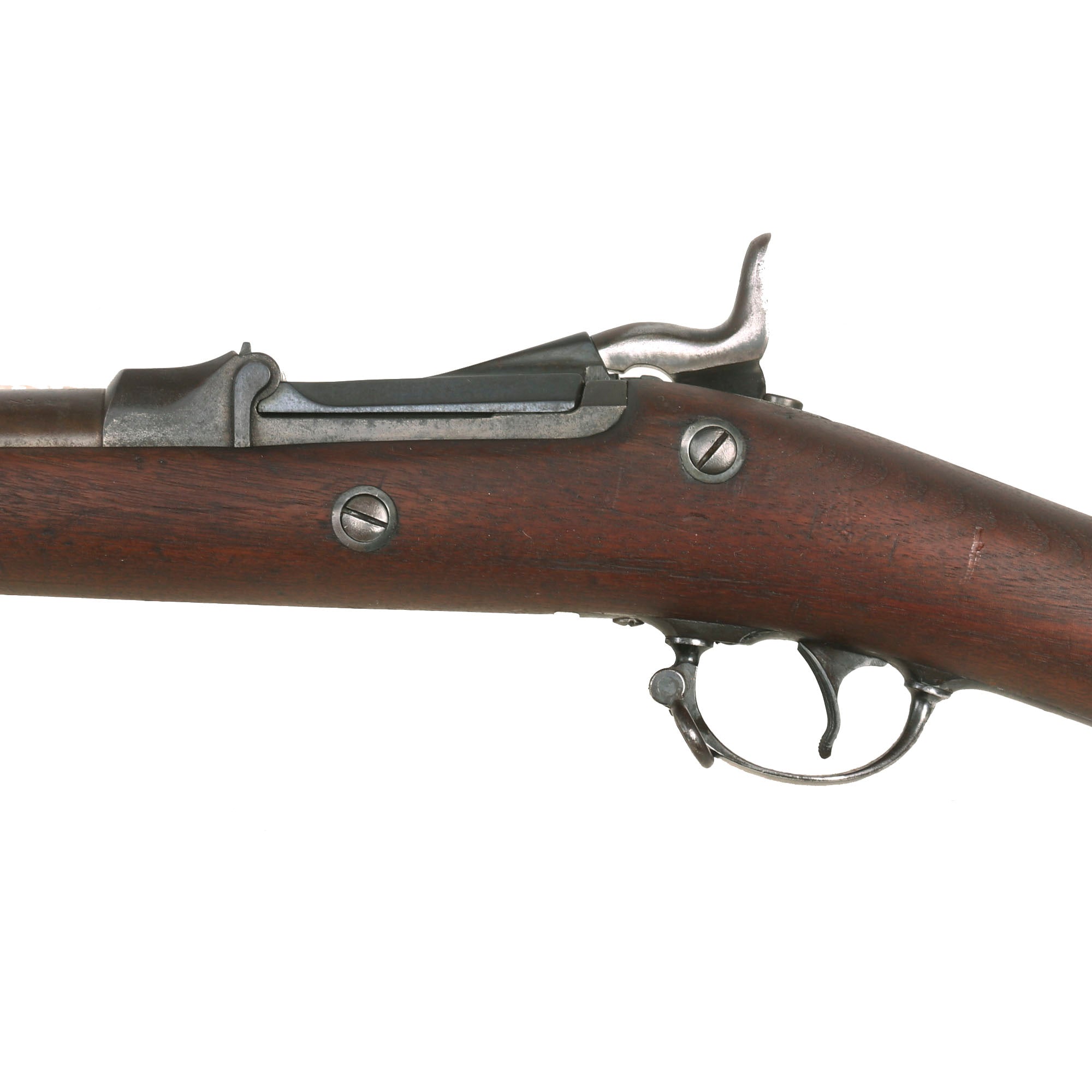

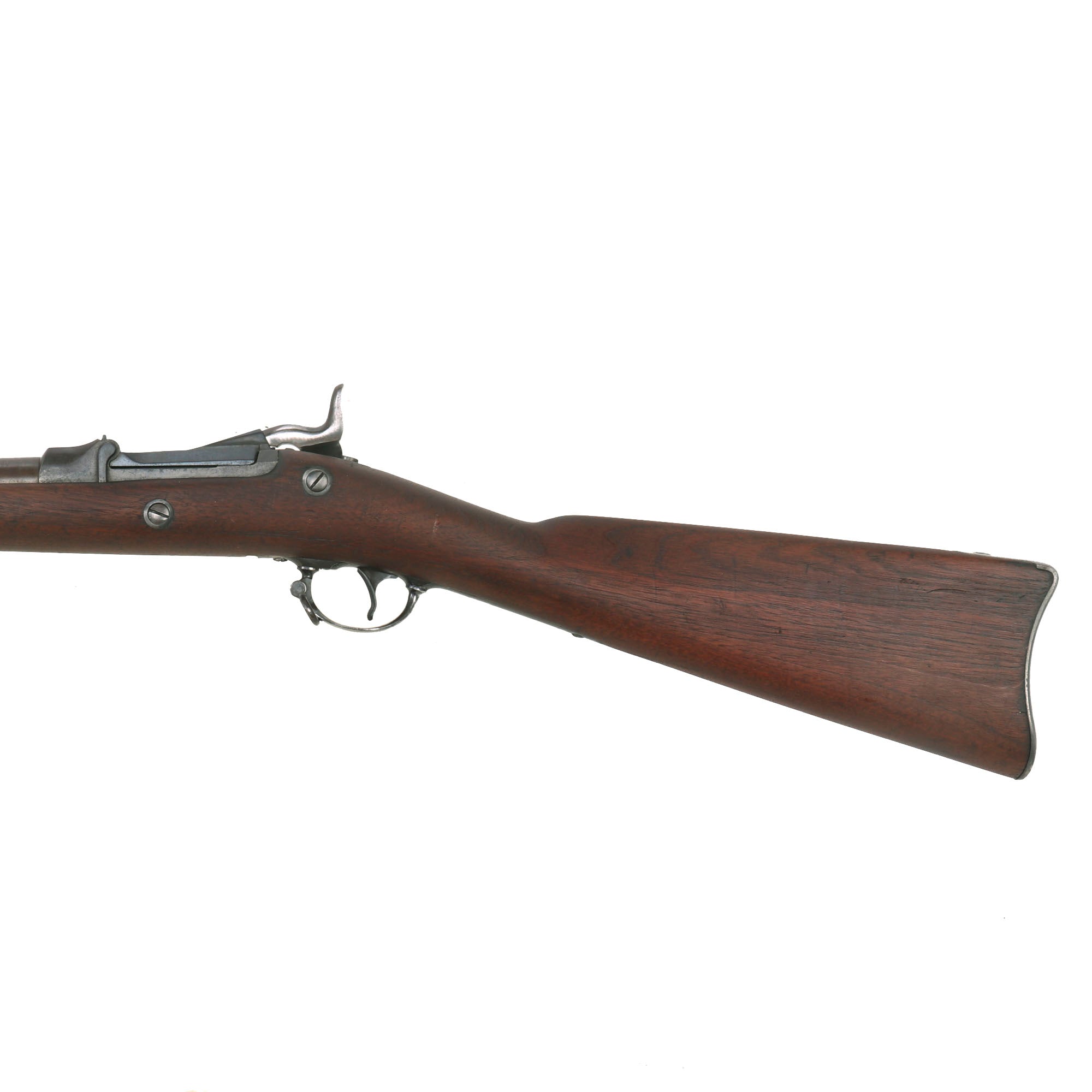

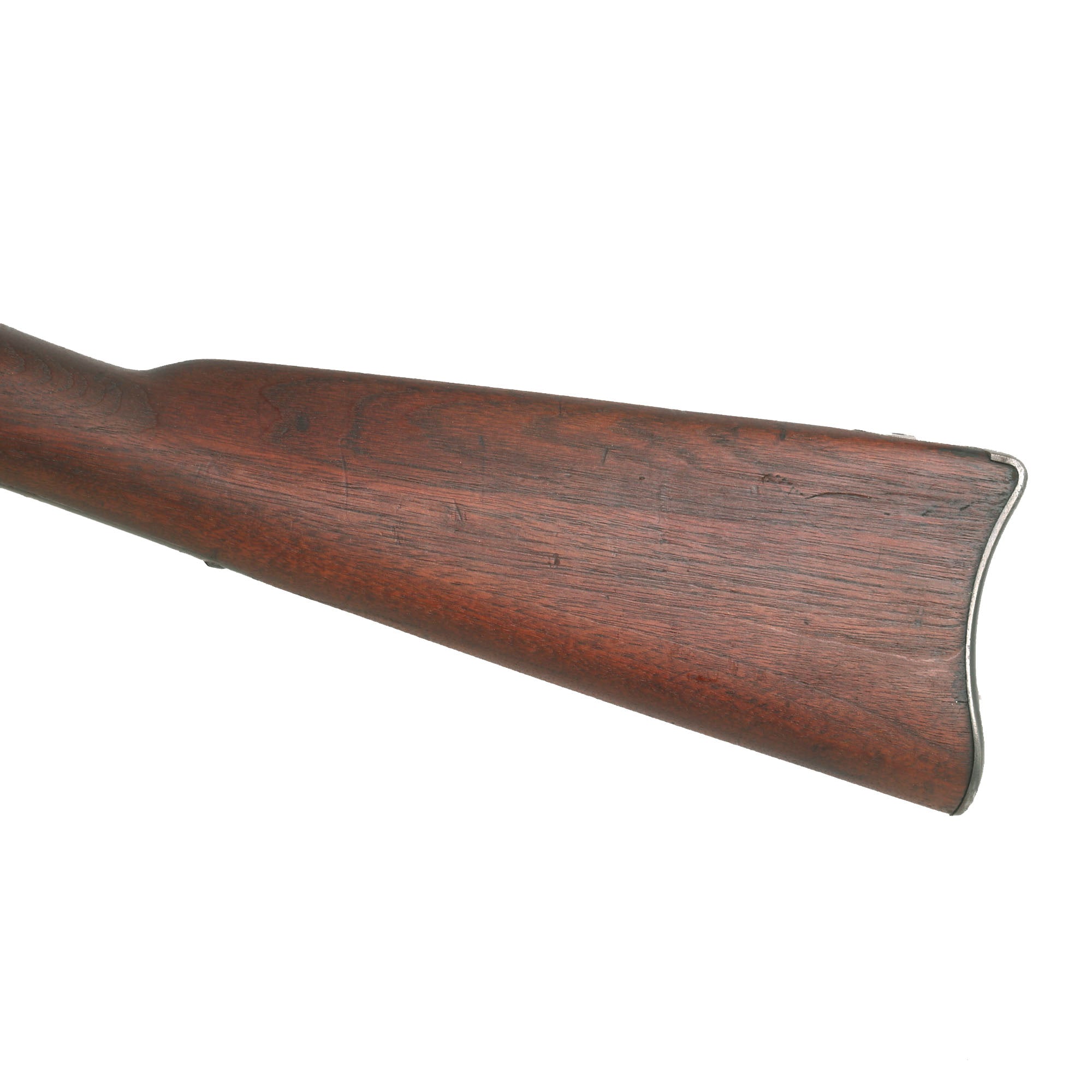

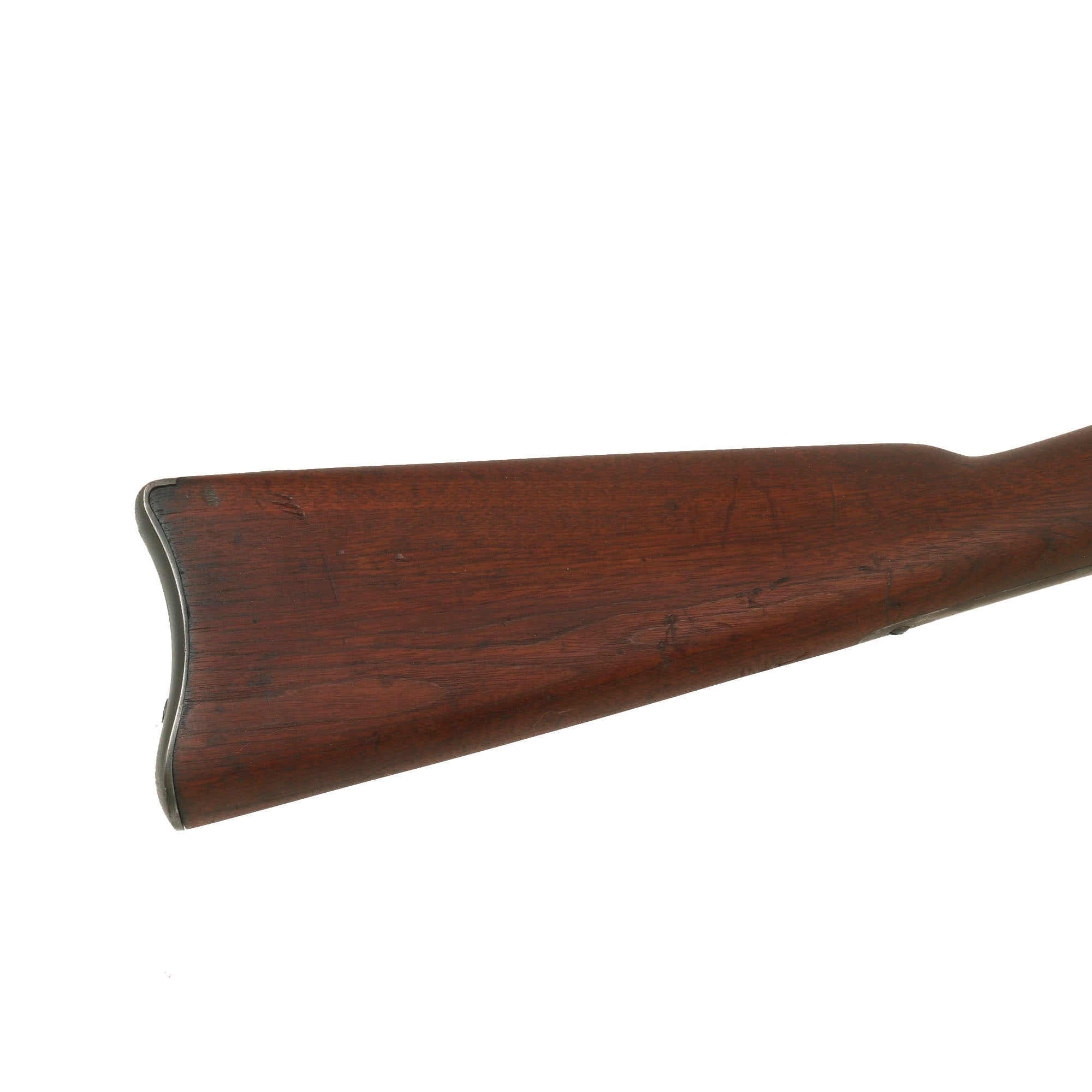

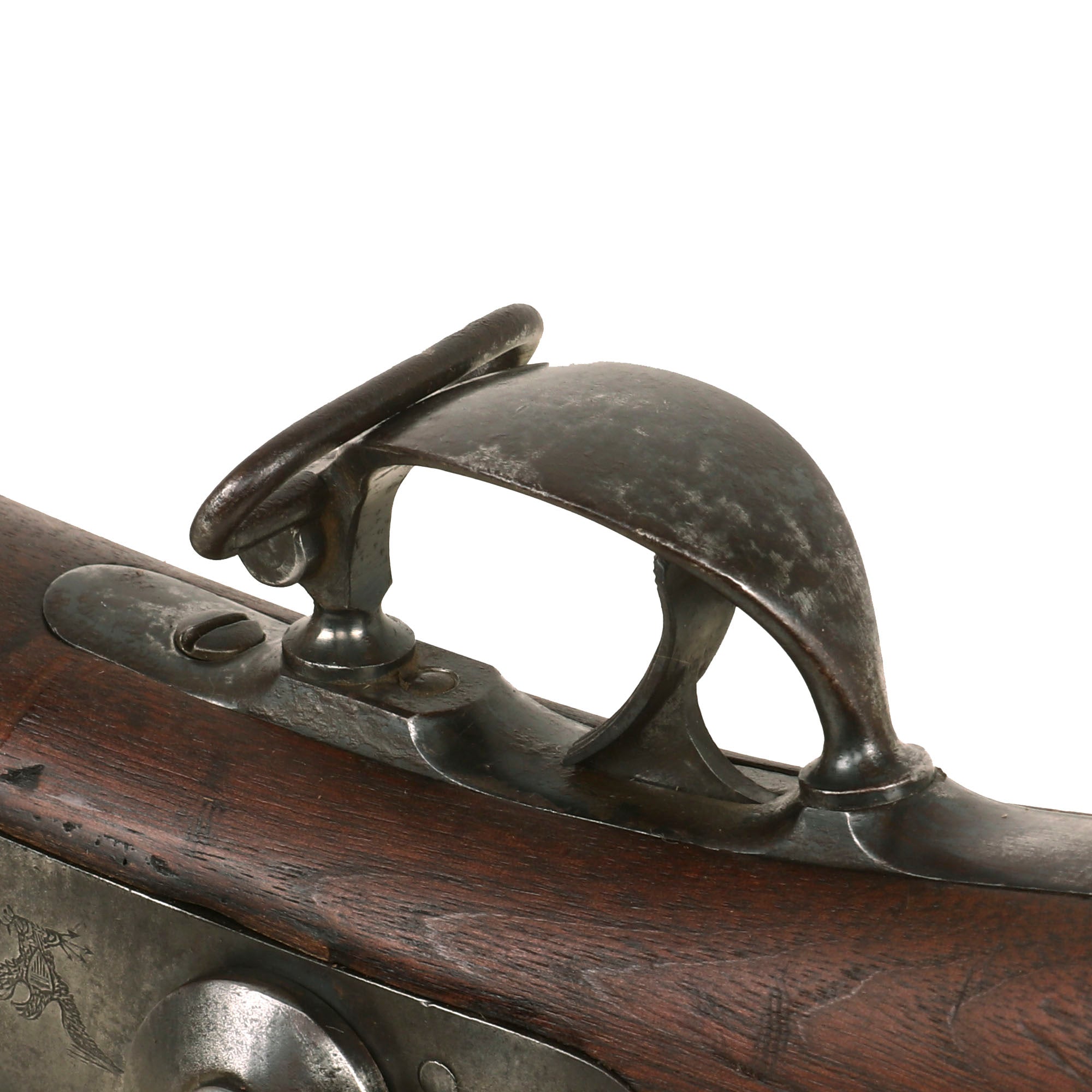

It has the model 1884 serrated trigger and Buffington sight fitted, along with the correct lower barrel band. However, the stock is in the 1873 configuration, with the standard ramrod and two part trigger guard, which is correct for this period. The stock is lovely, showing only light wear with the lovely red-brown color of aged and oiled walnut. It does look to have been arsenal reconditioned at some point, as the stock is even with or below the level of the lock plate. This removed some wood, especially around the wrist, which is why the inspection cartouches are almost worn away. There are no repairs or past major damage we can see any evidence of.

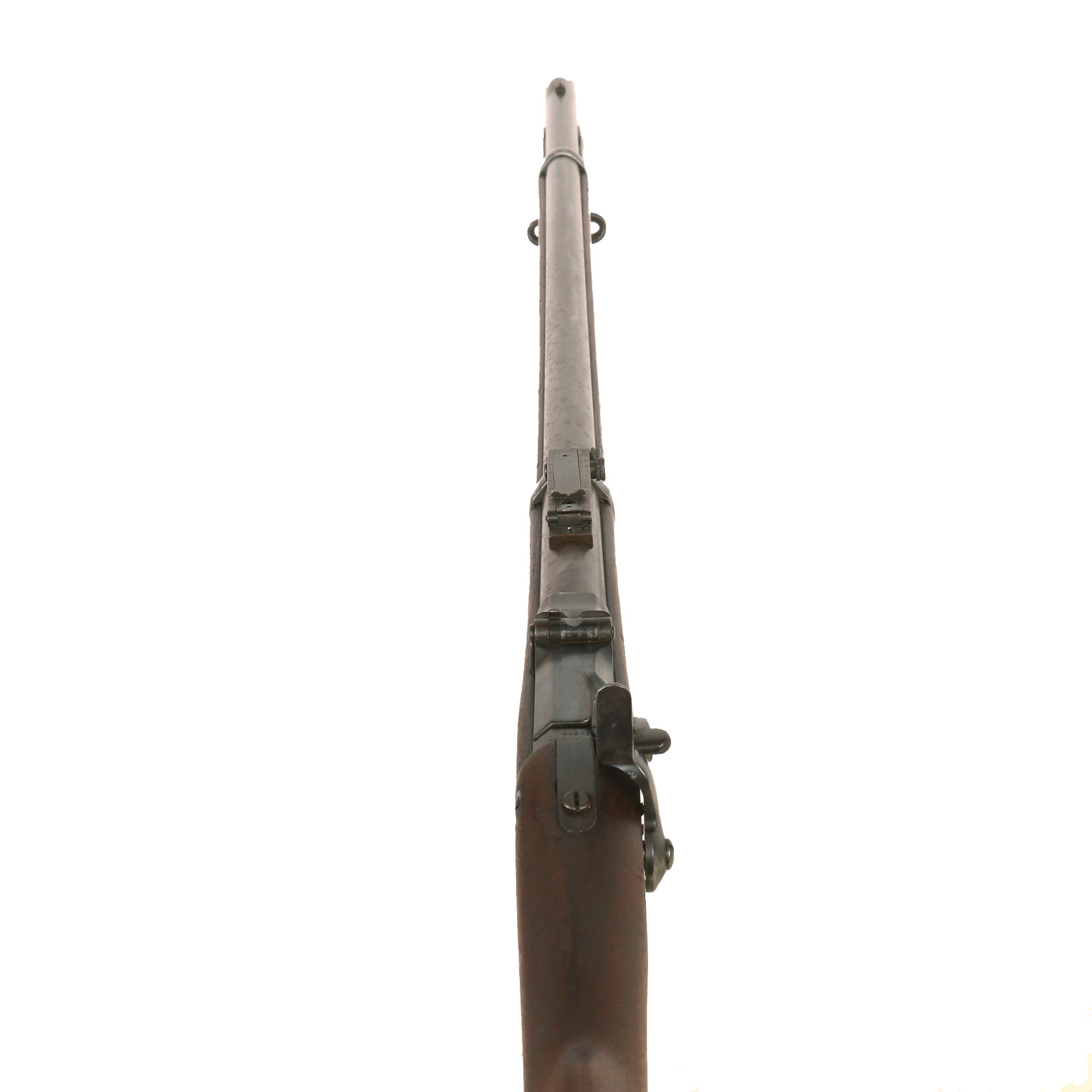

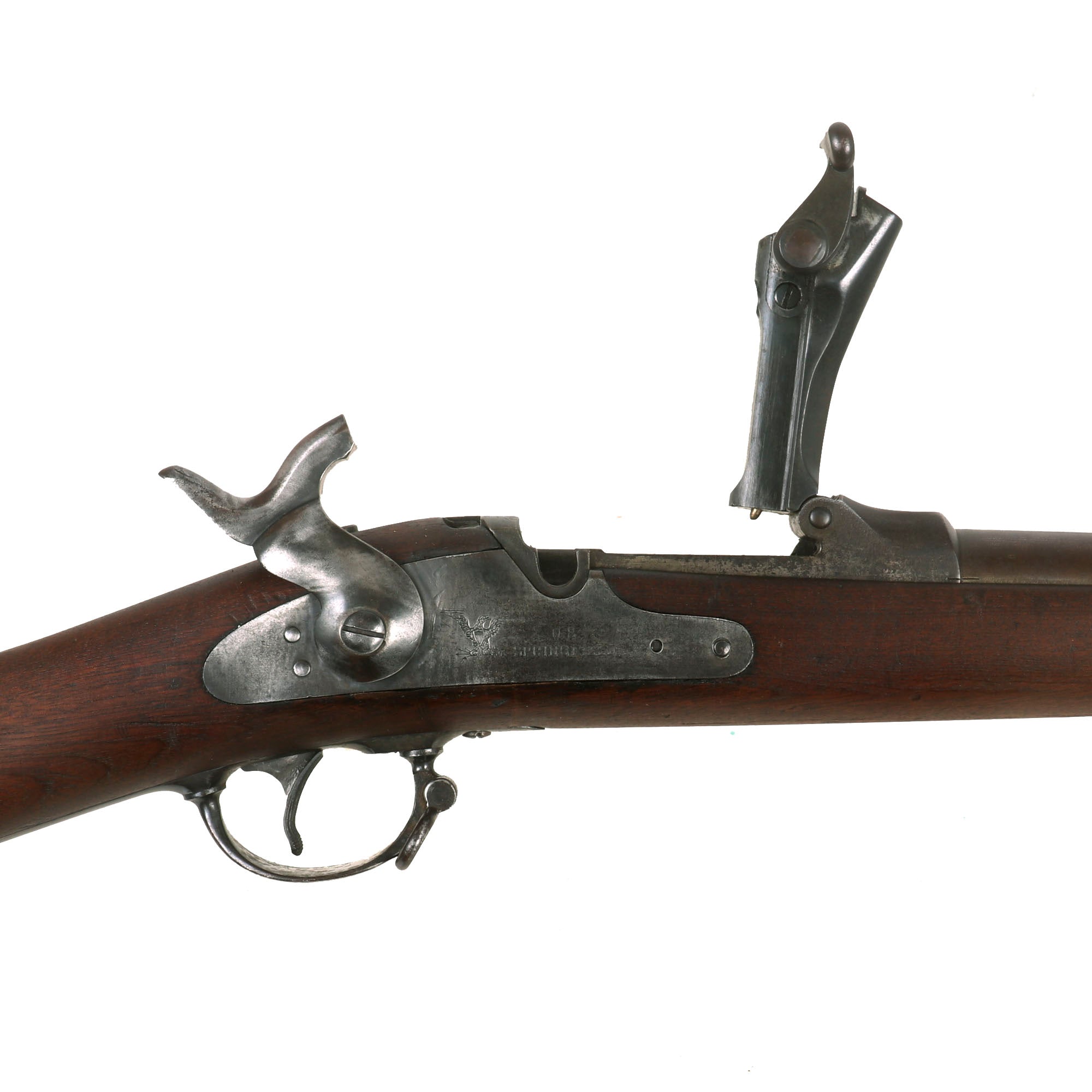

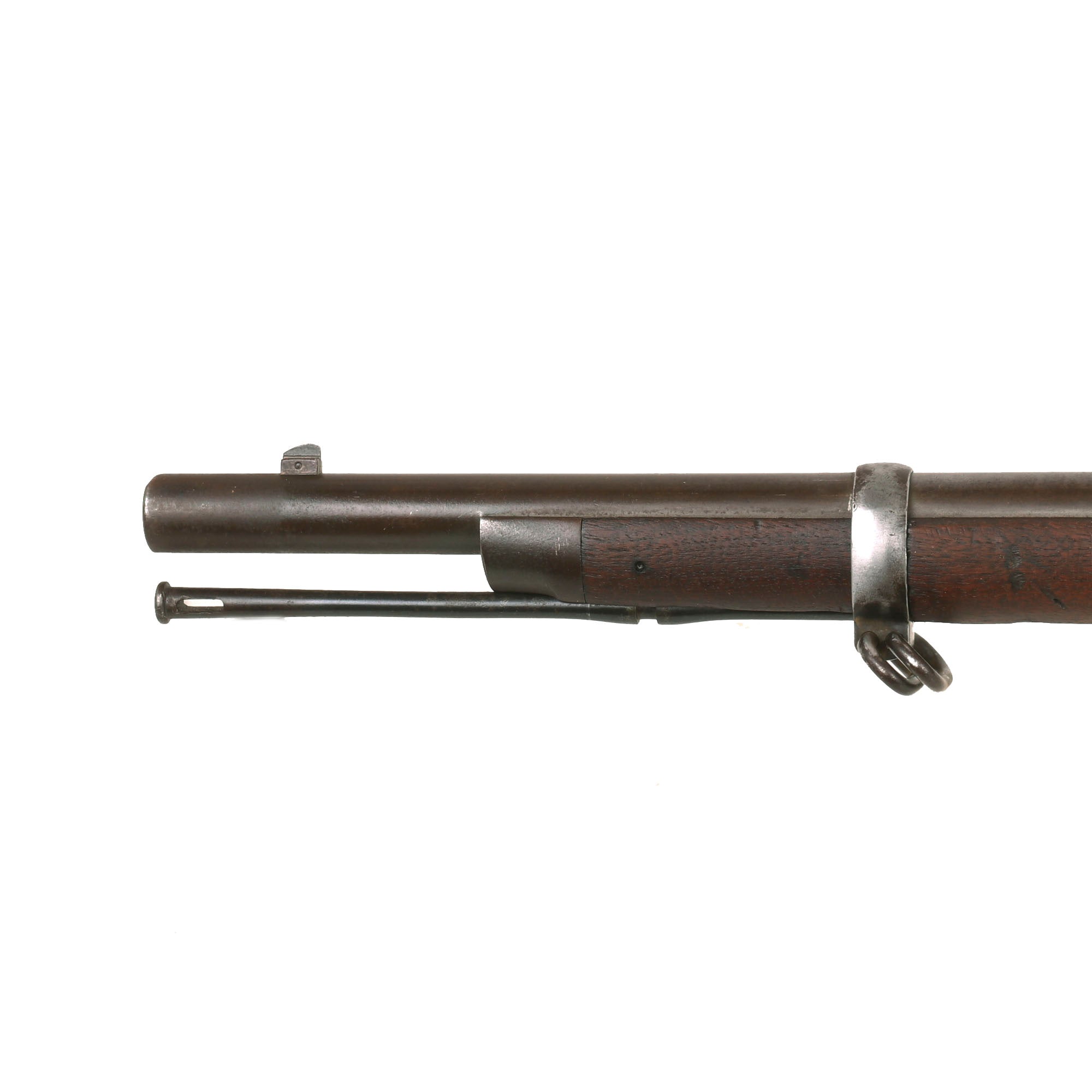

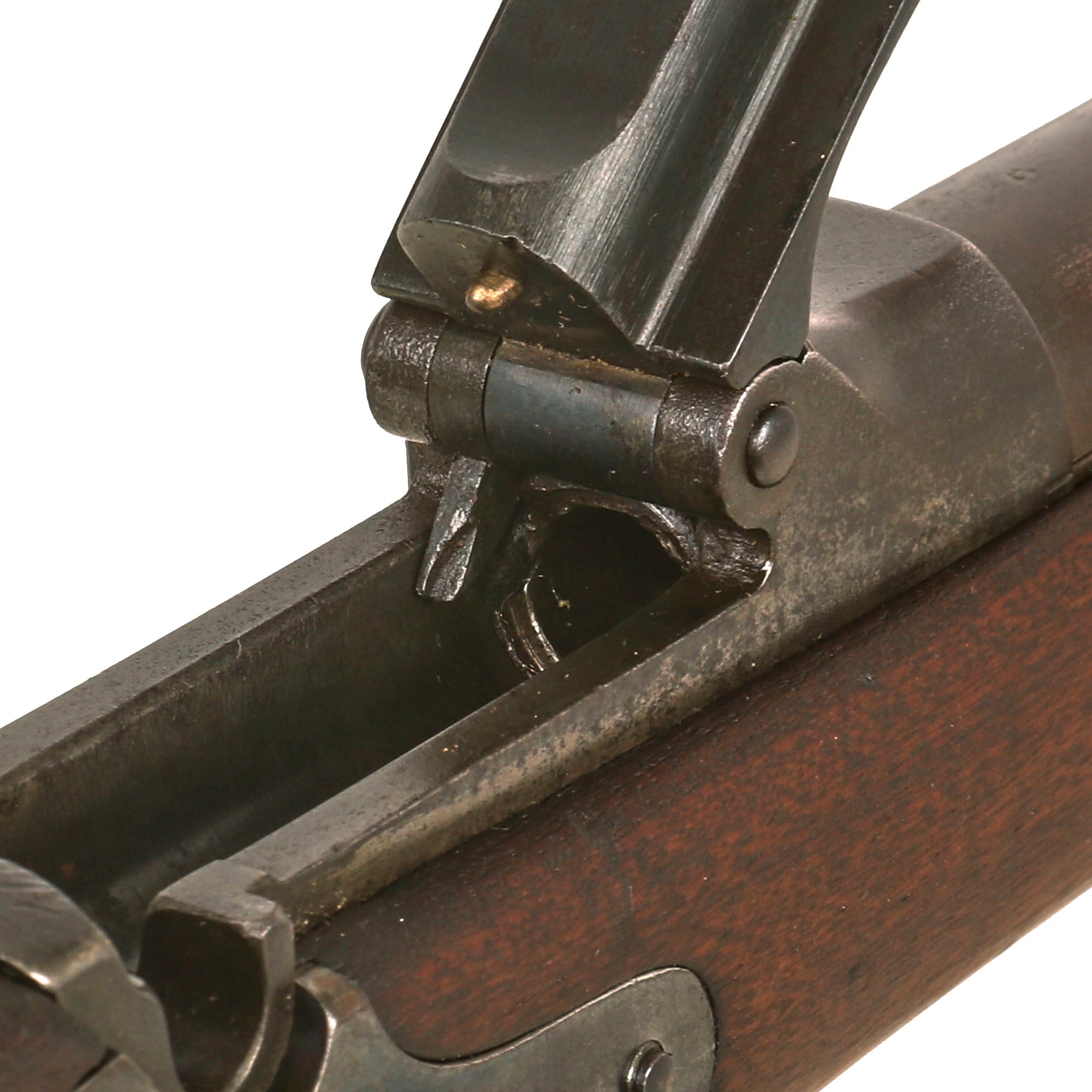

The bore is in very good condition, showing crisp lands and grooves with a mostly bright finish. There are just a few areas of wear and fouling visible in the grooves, showing that it was well cared for while in service. There is one area that shows a bit of a dark streak, which we ere not able to clean off. We would probably rate the bore at 8-9 out of 10. The breech block has an intact freely moving firing pin and moves correctly, with the ejector still present and functional, though we have not tested it with real brass. The ejector in the bottom of the breech is present as well. The rear sight works well, with an easily adjustable range and windage, something we do not often see. The original cleaning rod shows some wear, but is still complete with the cleaning jag on the end.

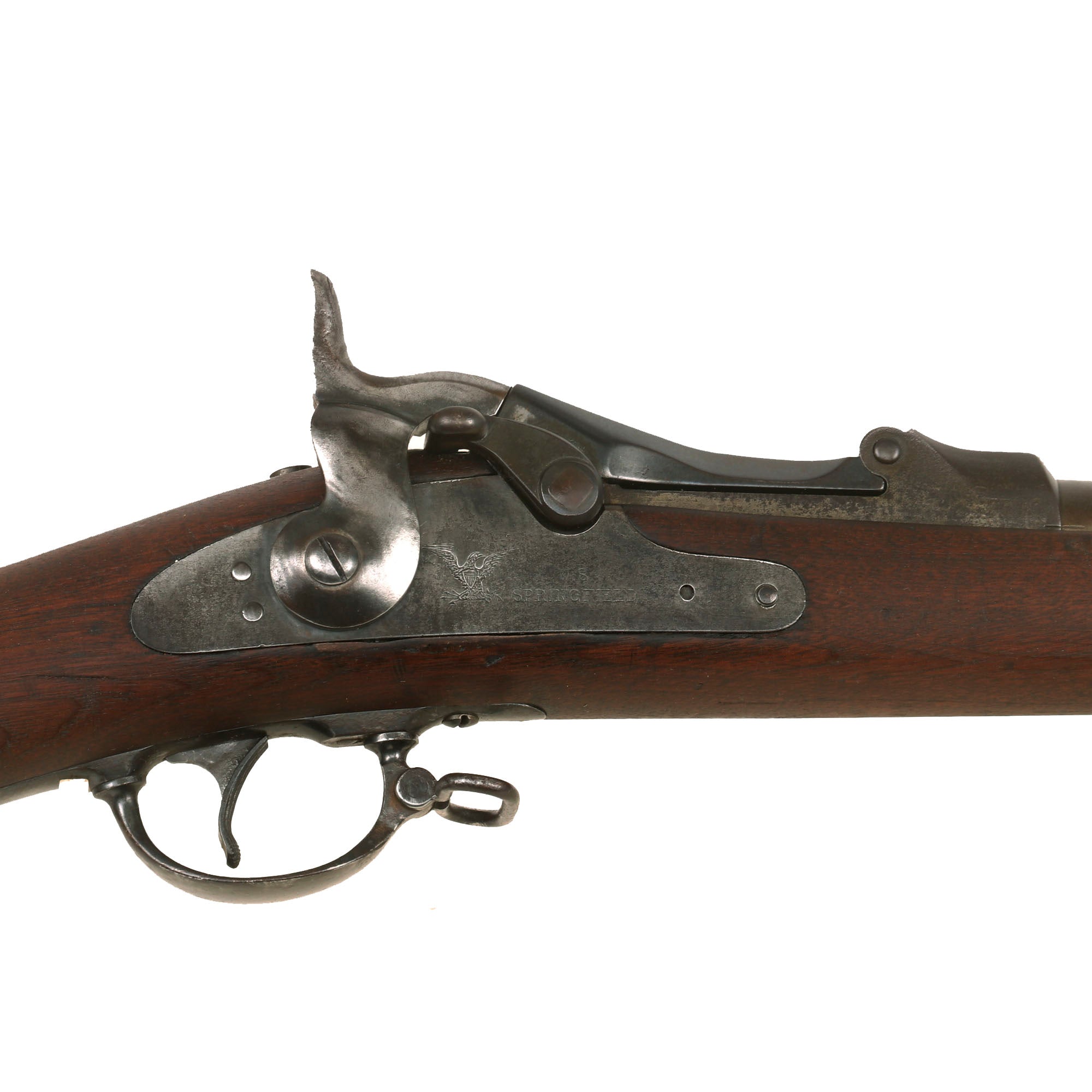

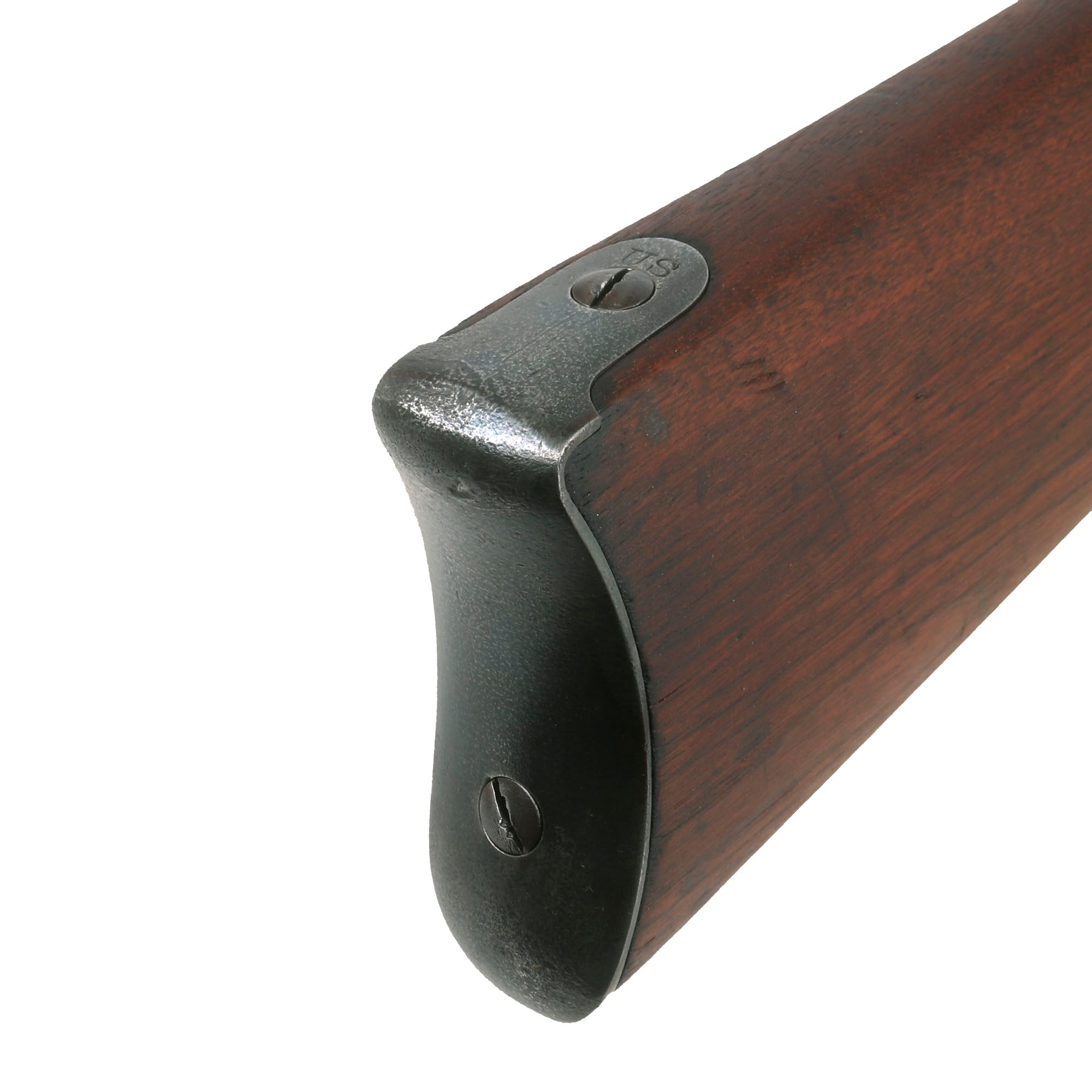

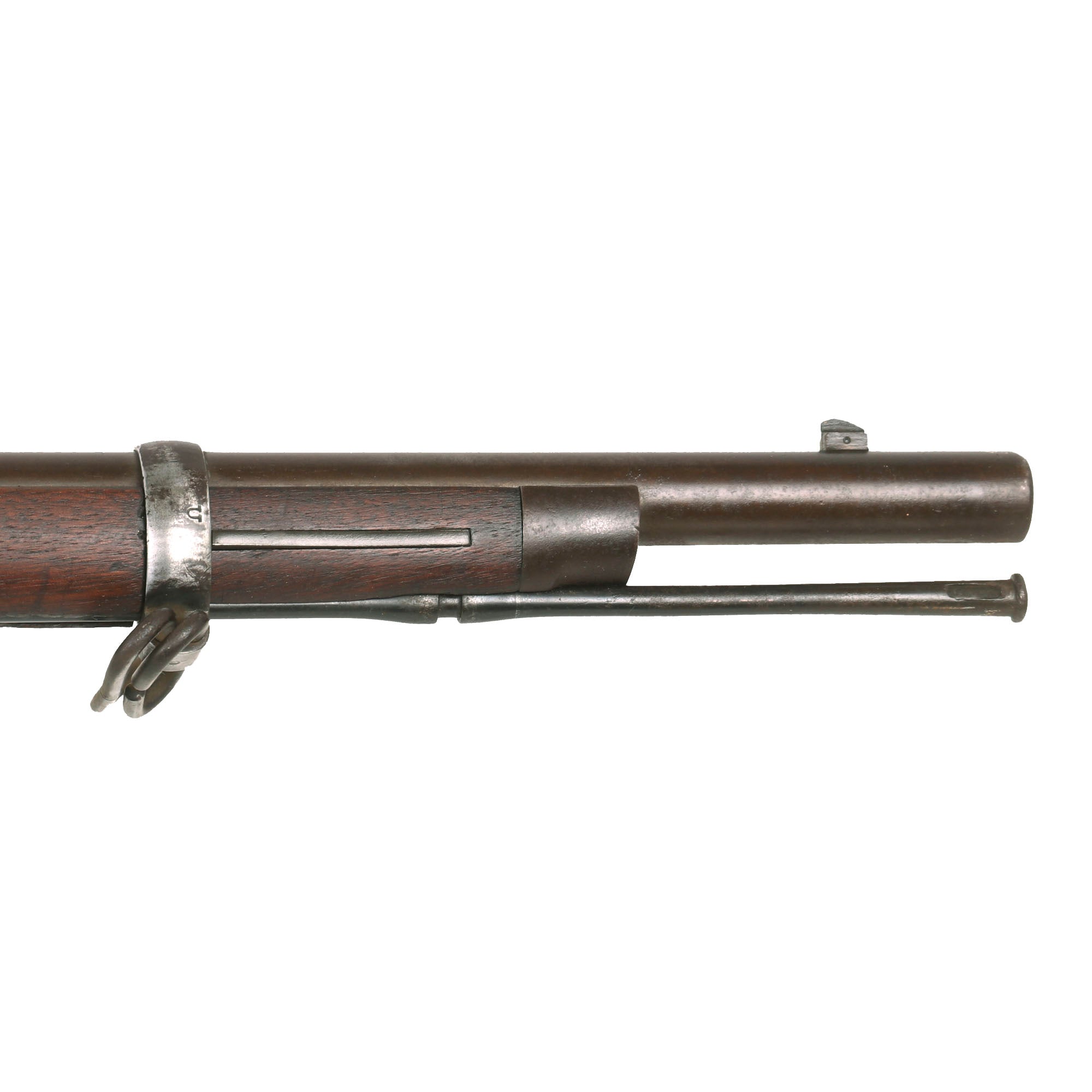

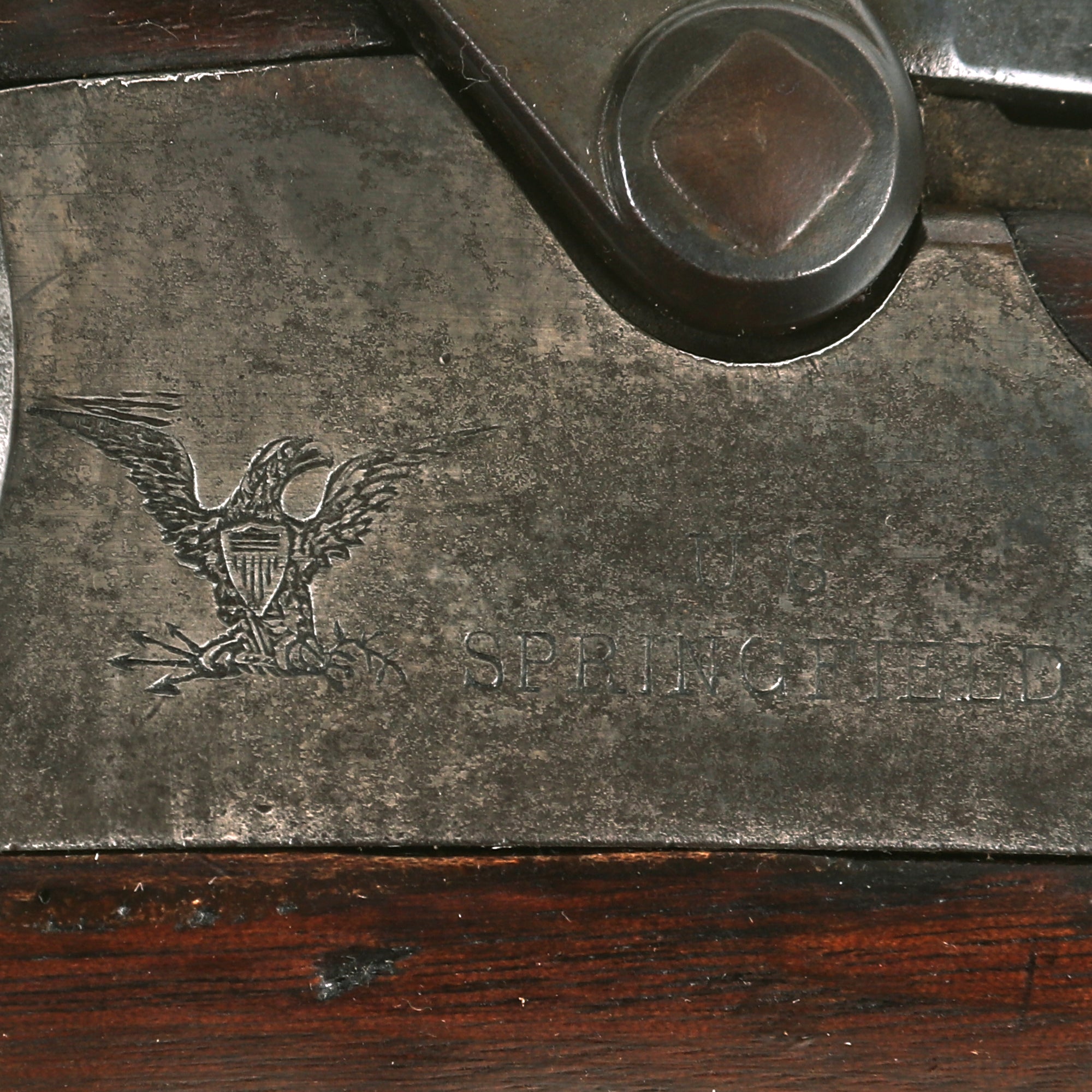

The both barrel bands are U marked, and the butt plate tang is marked with the correct U.S. stamp. Metal finish is a nice aged blued color, with a bit of light peppering in places, and an overall lovely patina of age. Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, with standard ramrod. Lock is marked with a Federal Eagle to the left of U.S. / SPRINGFIELD, indicating that it was manufactured at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts.

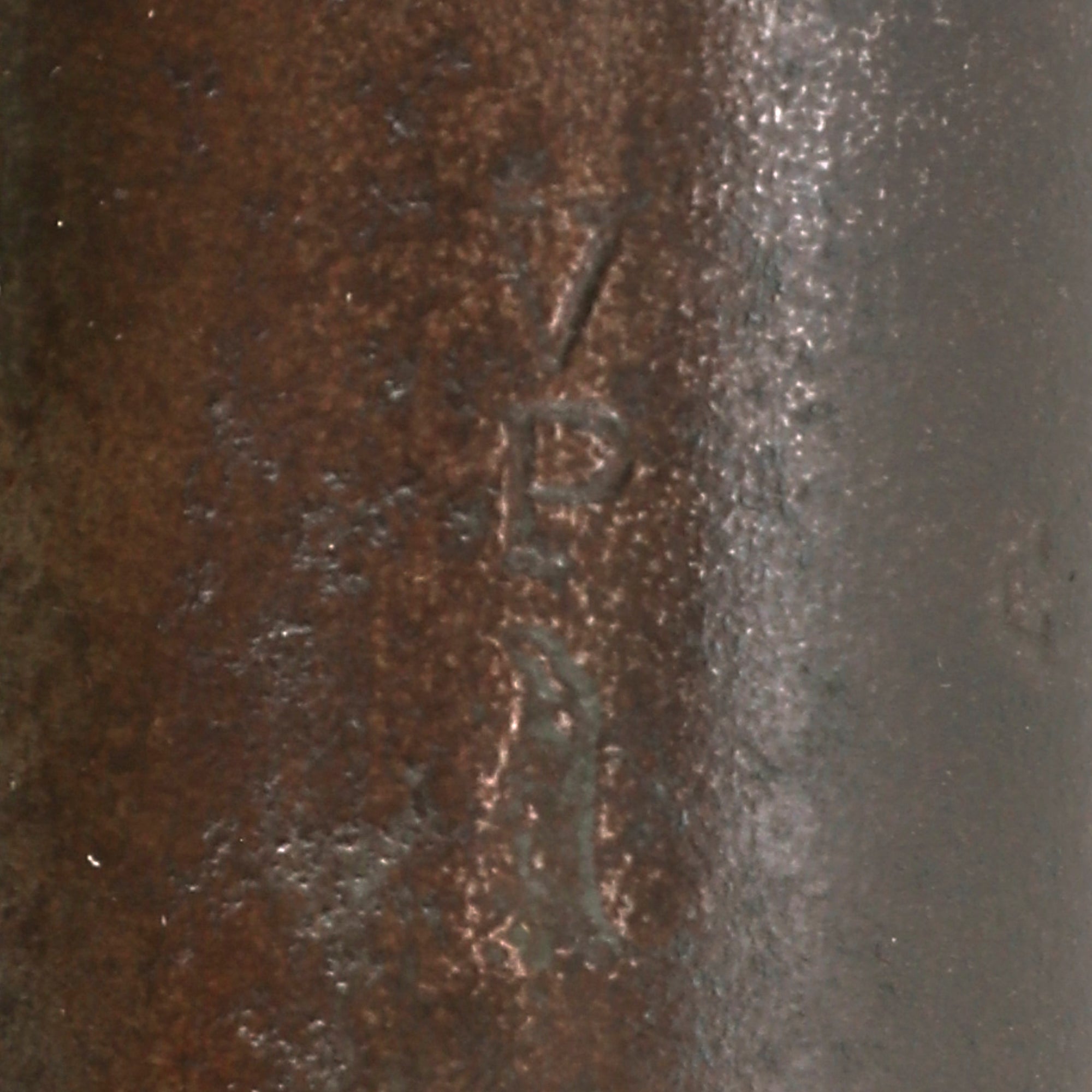

A VERY faint stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top; and a V over a P over an eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

This is an excellent opportunity to pick up a very nice example of a classic U.S. issue firearm. Ready to display!

Specifications-

Year of Manufacture: 1887
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot

Note: This gun is NOT considered obsolete calibre, so we are no able to ship to the United Kingdom. Please note that for international shipping, these MUST be shipped using UPS WW Services.
