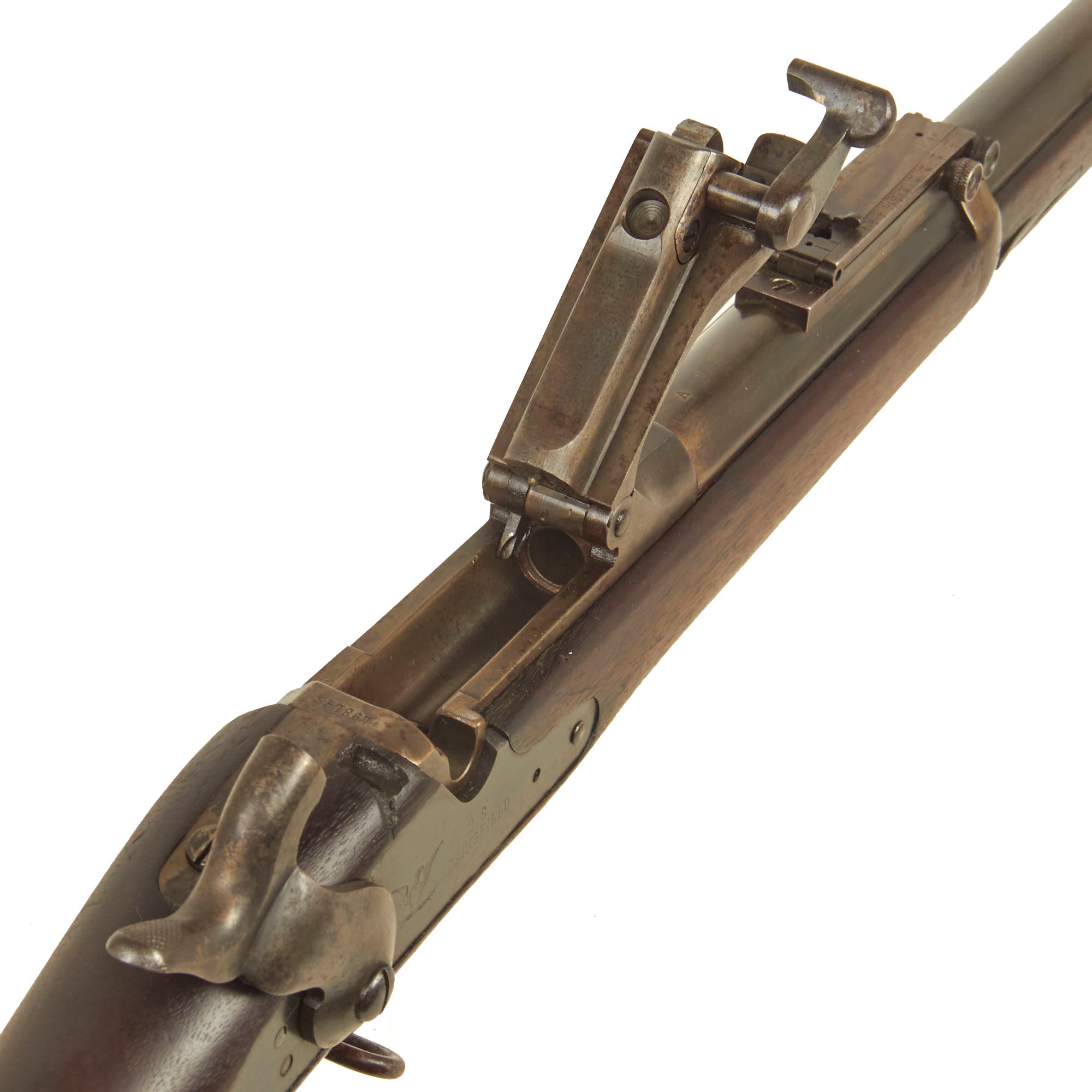

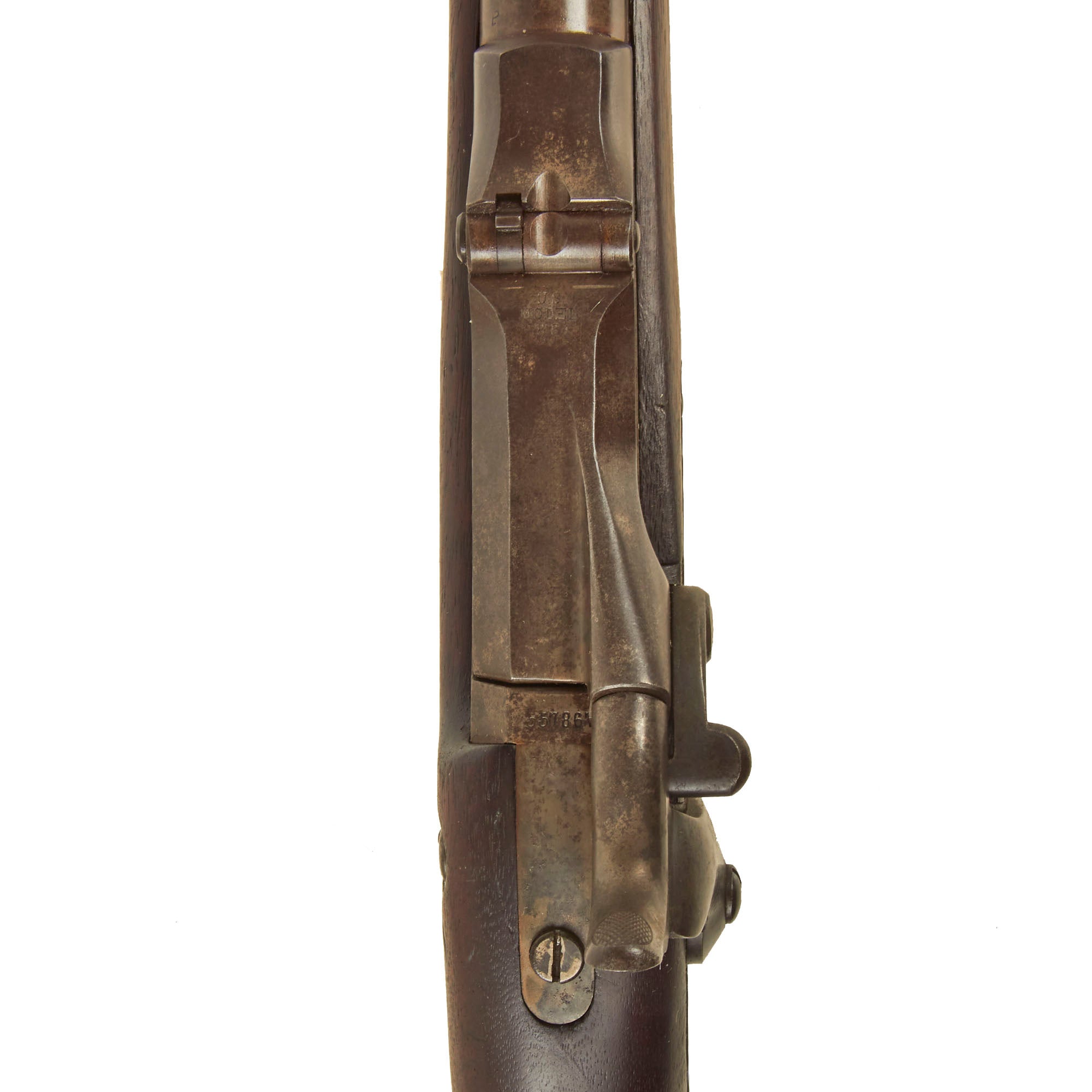

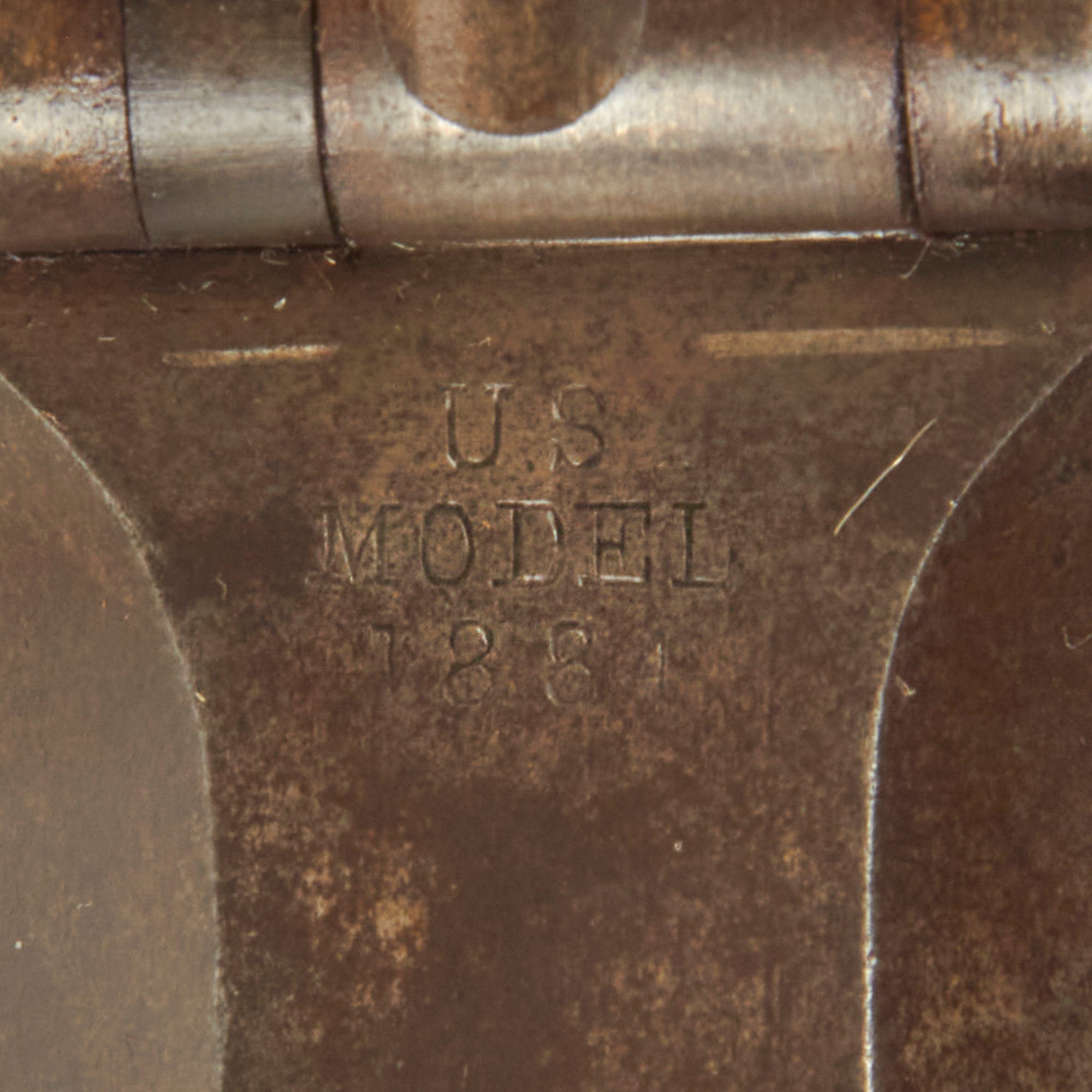

Original Item: Only One available. The U.S. breech loading Springfield "trapdoor" rifle was introduced in 1873 in .45-70 caliber. Basically it was the rifle the U.S. Army used to open the West and Springfield trapdoor carbines were used by Custer's Cavalry at the massacre at The Little Big Horn. This example has the breech block marking:

In 1884 the integral Round Rod Bayonet was introduced, which could double as a cleaning rod, a development that met with very limited success. It was finally replaced in 1892 with the .30-40 caliber Krag bolt action magazine rifle.

Model 1884 rifles saw service in the Spanish American War. The regular army was issued the new Krag rifles and the guard units received the trapdoor. There are a number of stereopticon pictures that show guard units armed with of 1884 rifles.

The Model 1884 round rod bayonet rifle was Springfield's third attempt at a rod bayonet system on a trapdoor rifle. They had used the triangular rod system on the Model 1880 and some Model 1882 rifles. The Model 1884 RRB rifle utilized a different, but no more reliable mechanism for retaining the rod. Because the small locking "fingers" are not clearly visible, the gun has been nicknamed "flatlatch."

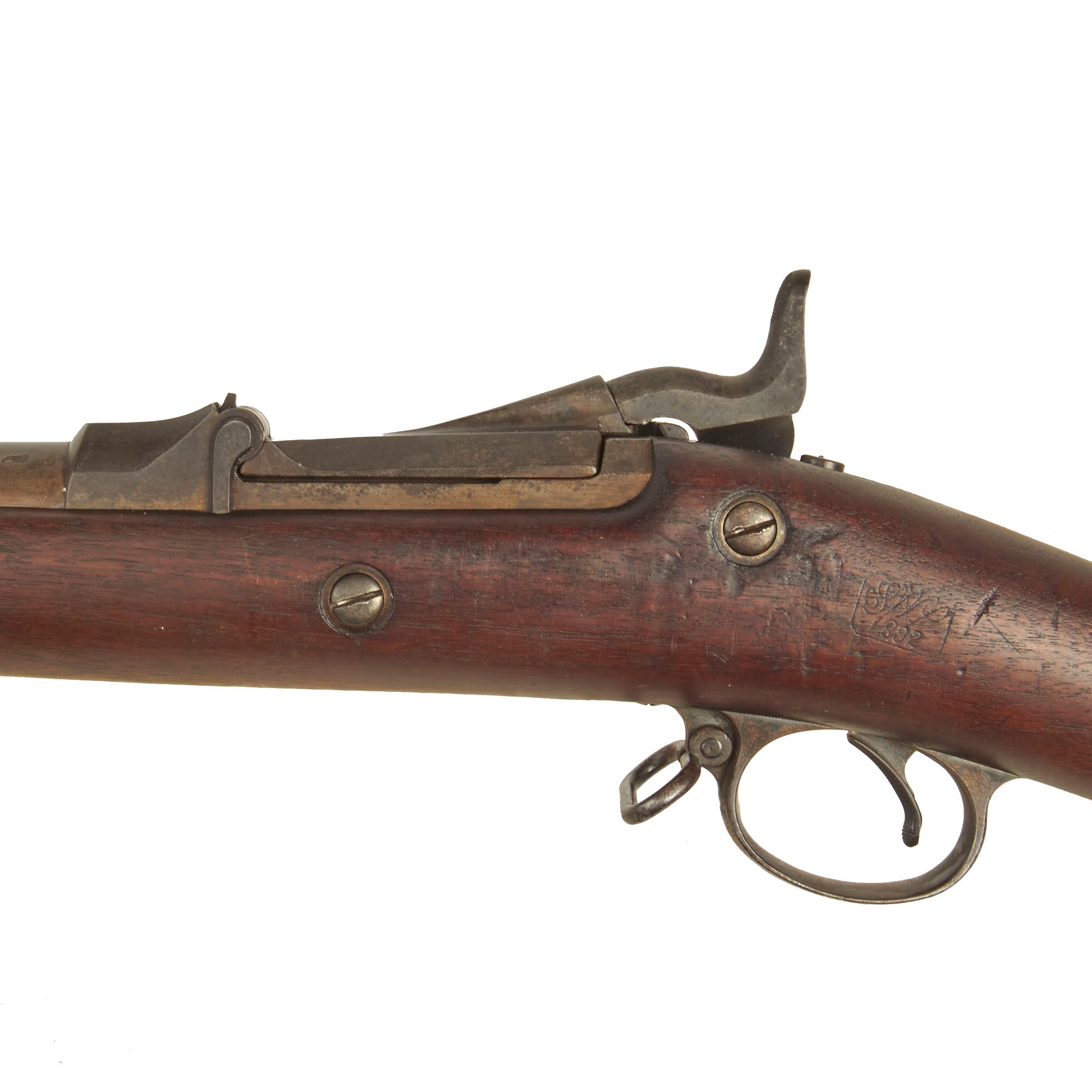

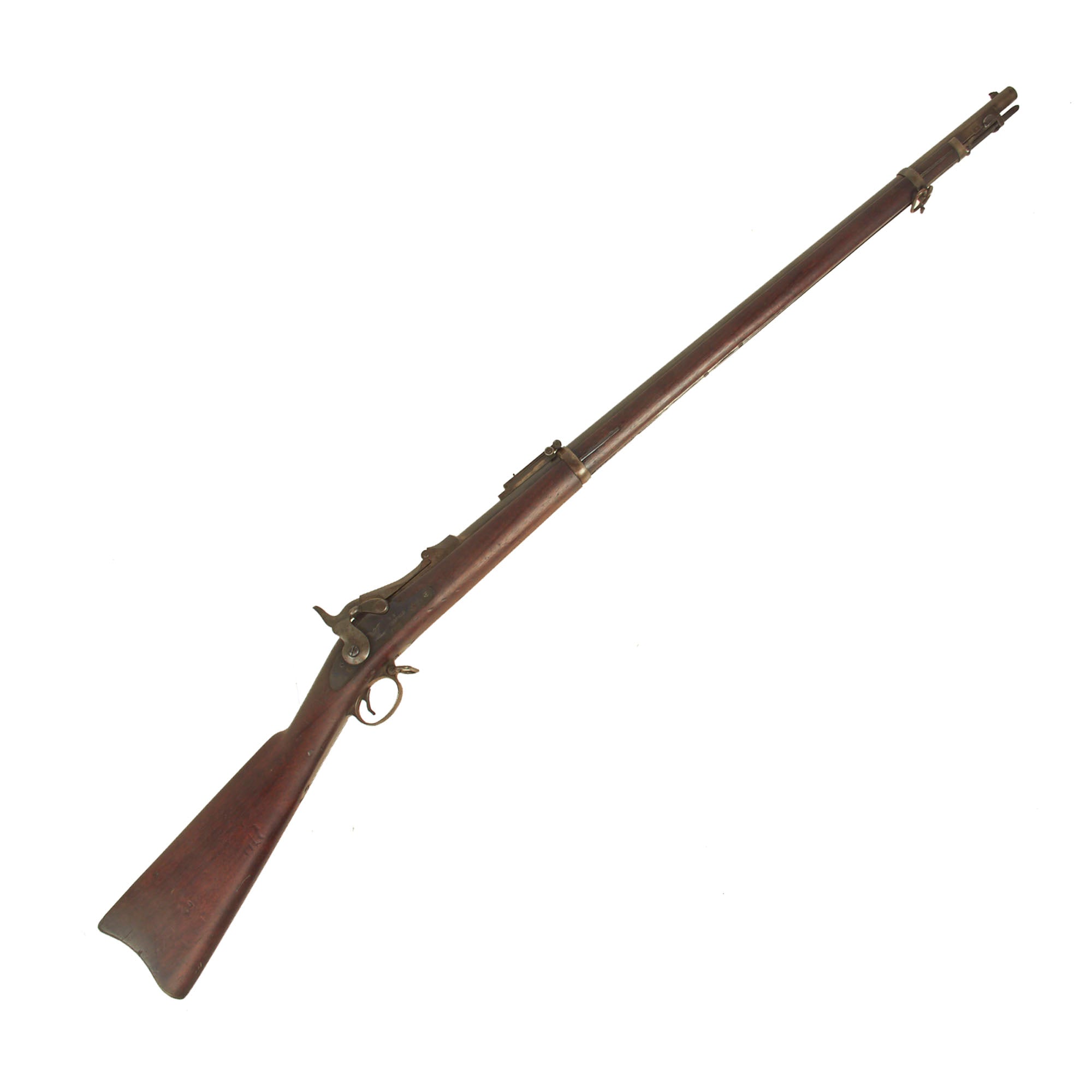

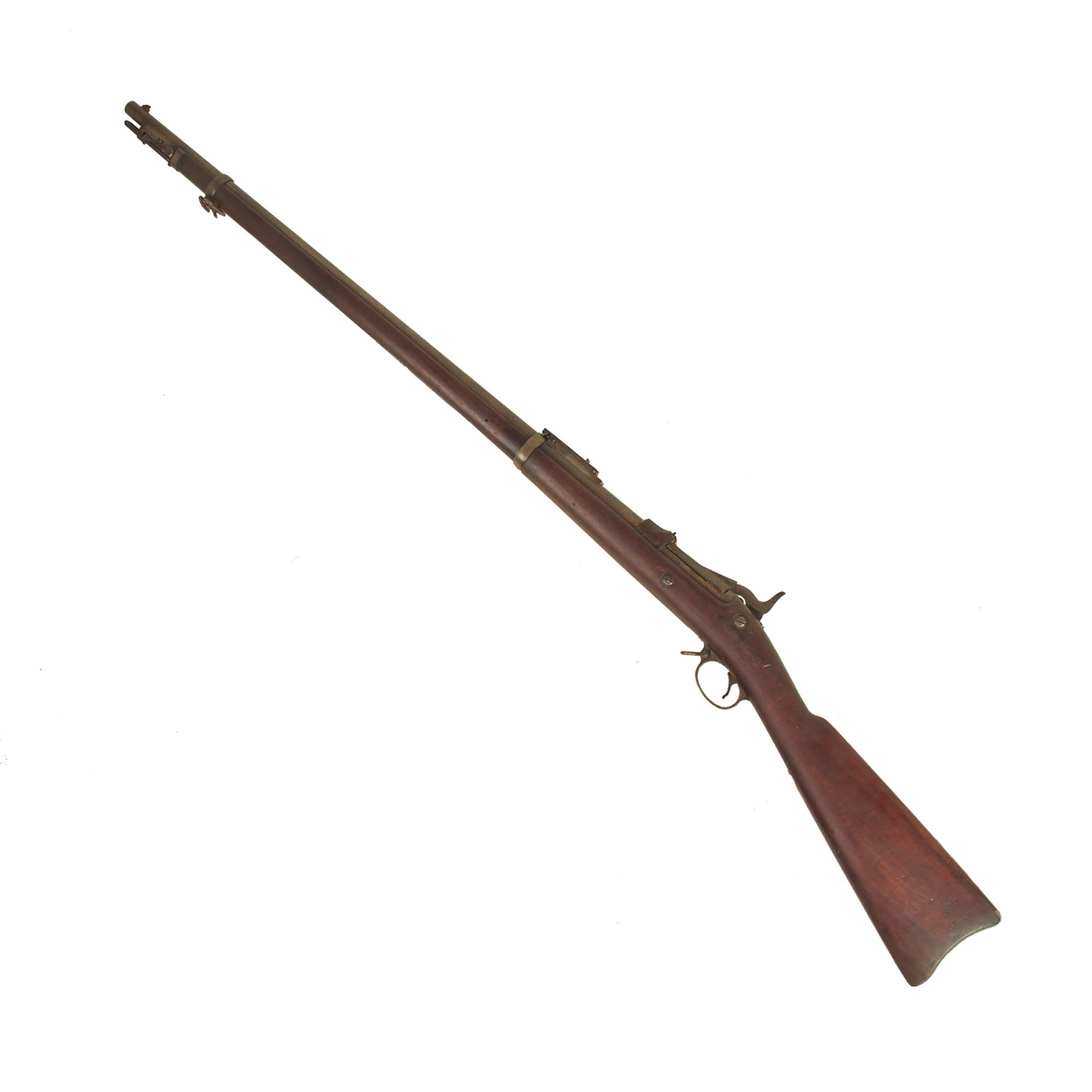

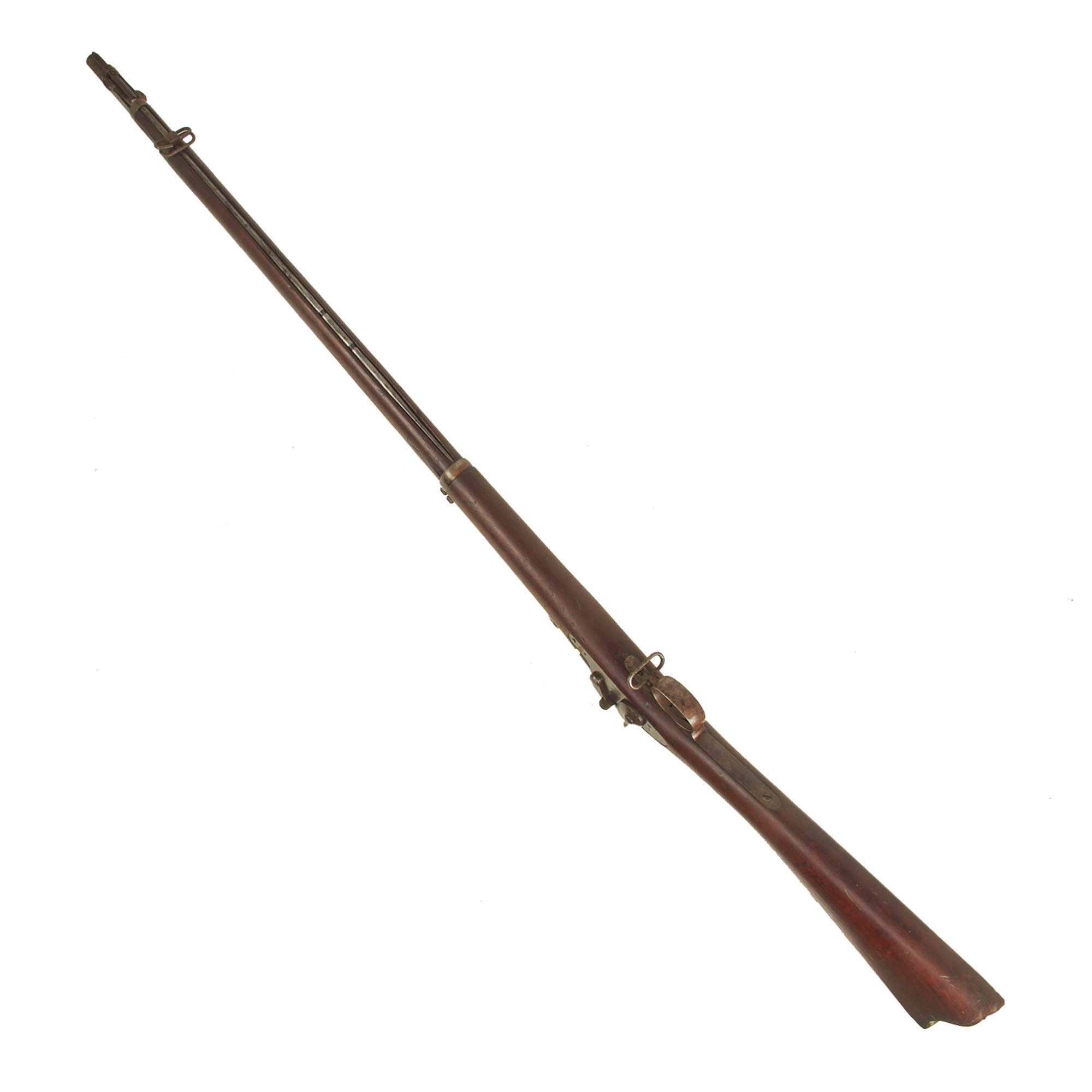

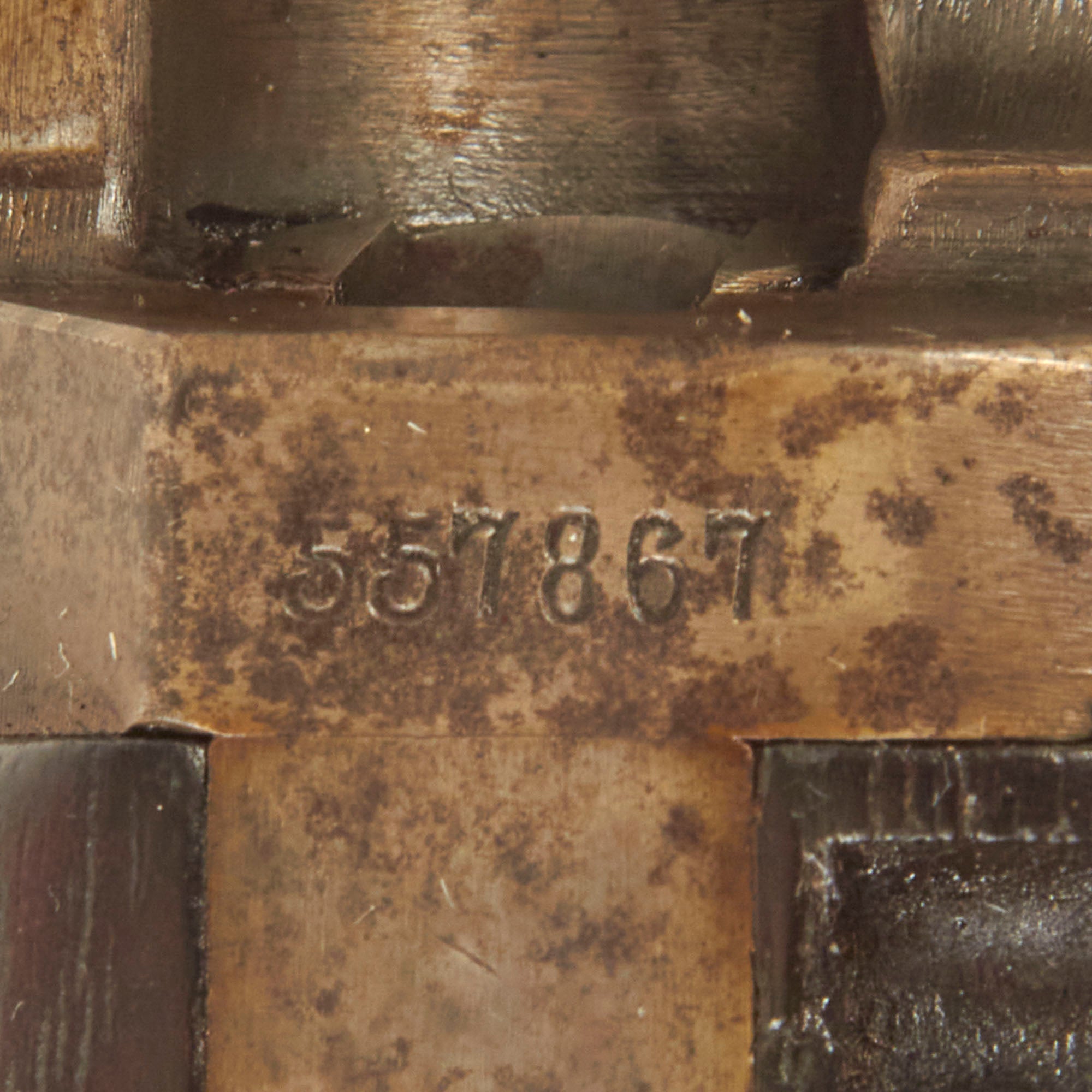

Offered in very good lightly used condition is this trapdoor rifle in 45-70 government caliber. The serial number is #557867, which indicates production in approximately December 1892, per U.S. Government records. This technically makes it a model 1888 according to some sources. This rifle has all of the gradual "updates" that were made to the original design. The left side of the stock bears a "boxed" government inspector SWP / 1892 cartouche, indicating stock inspection in the same year.

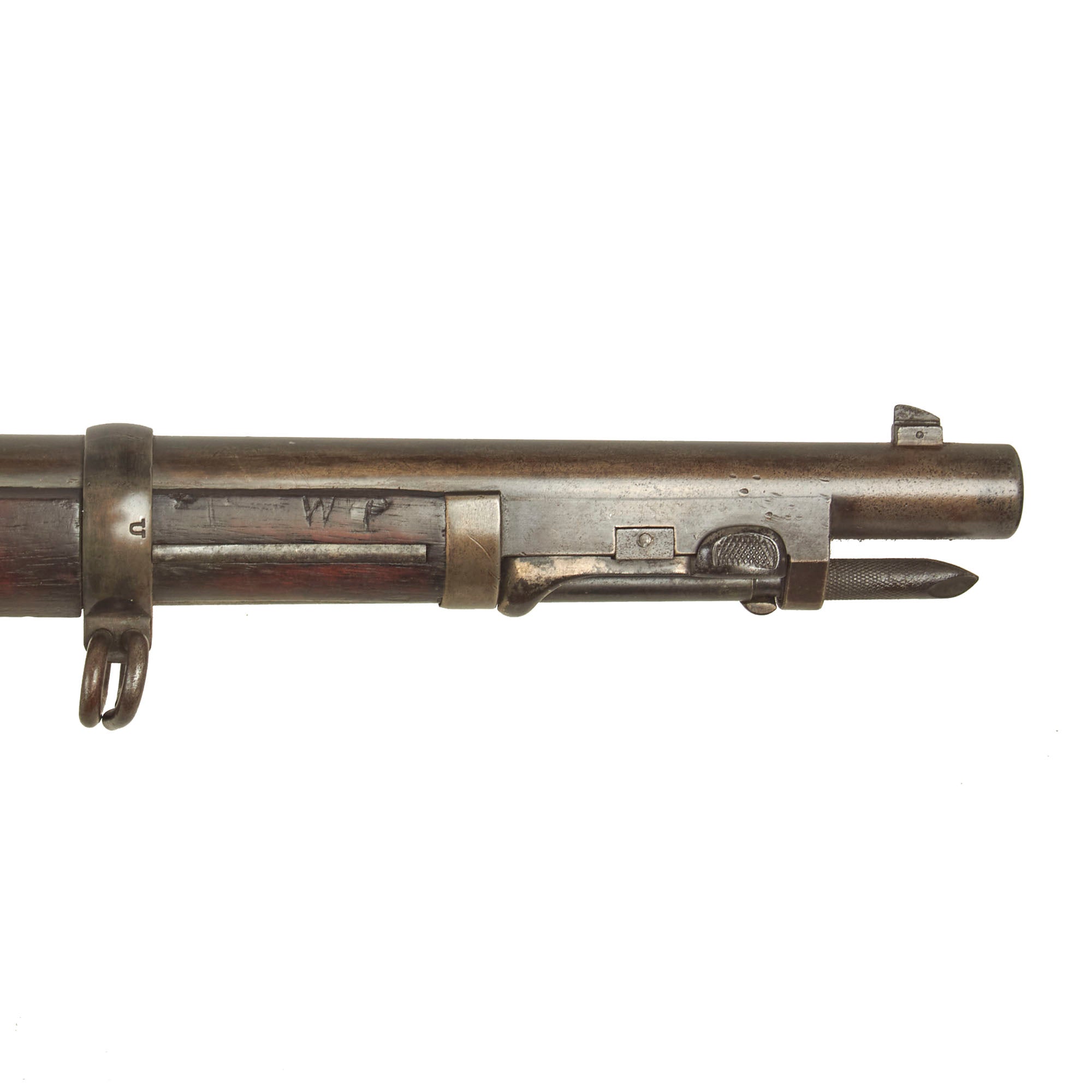

The metalwork on the rifle still shows much of the original blued finish, now faded to a plum patina overall. There are traces of the original case-hardening on the bottom of the breech block. The bore is in excellent condition, showing crisp lands and grooves and a bright finish. There is just a bit of very light wear to the lands. The cleaning rod / bayonet is functional, with a slightly worn finish, and intact threads on the end. The locking mechanism by the muzzle is fully functional.

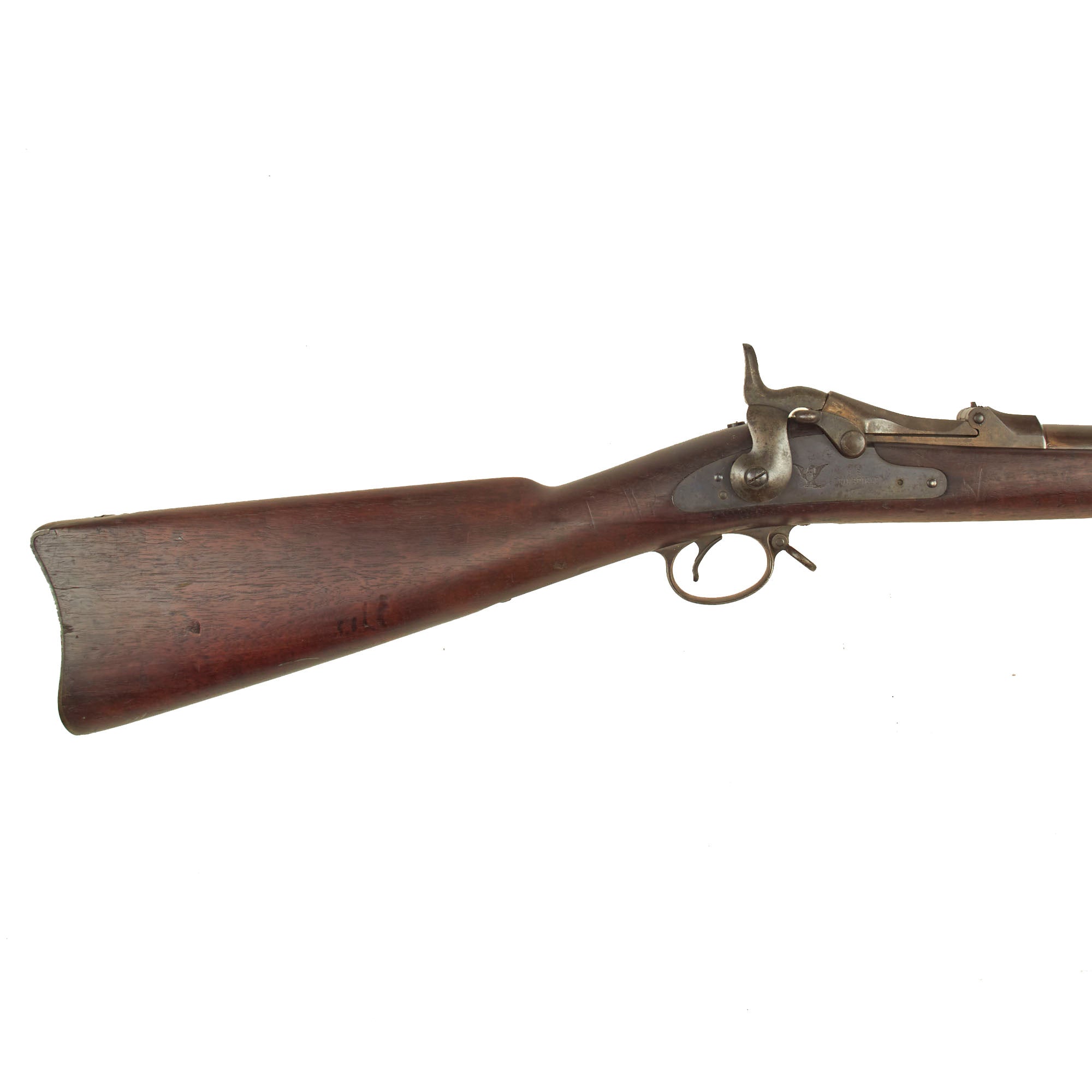

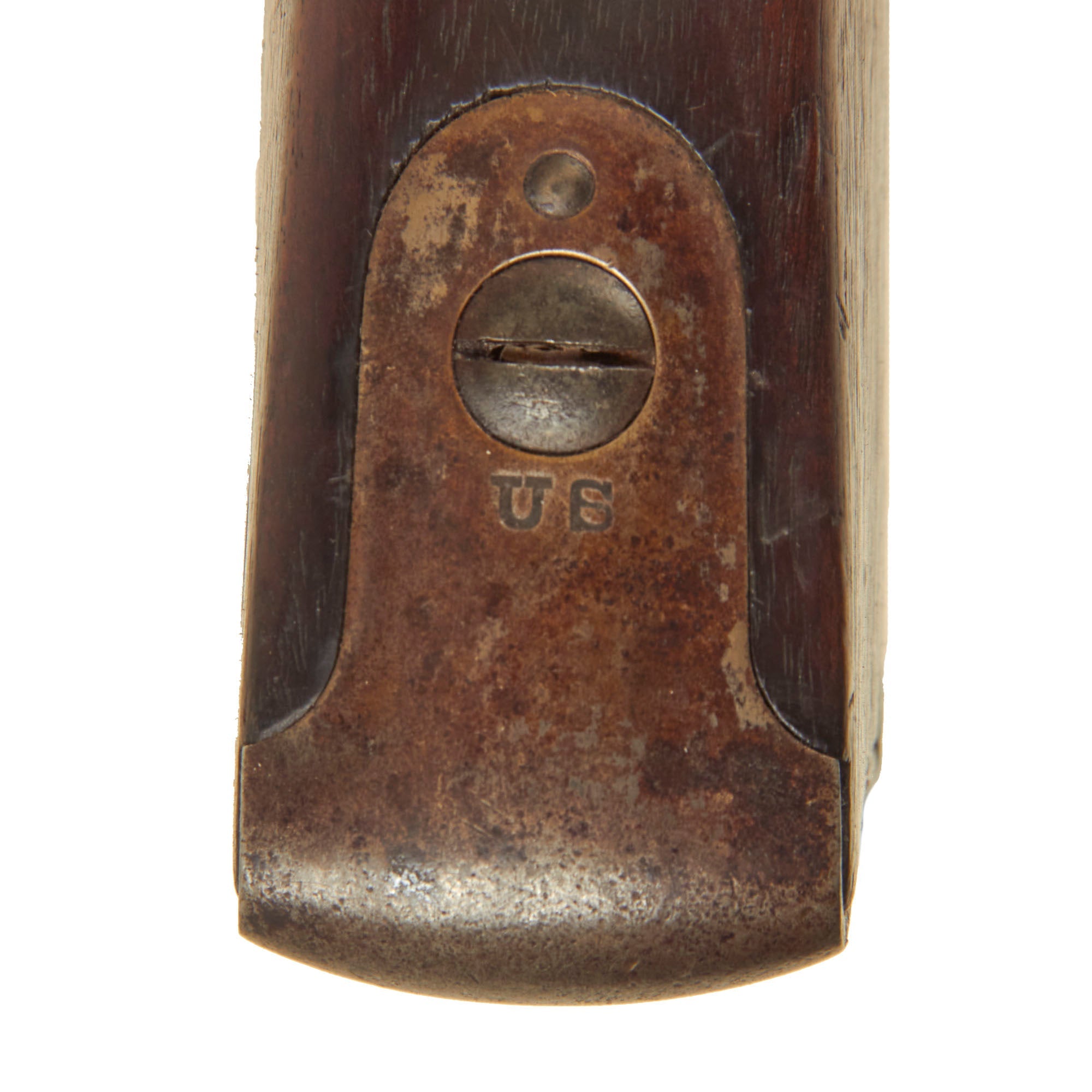

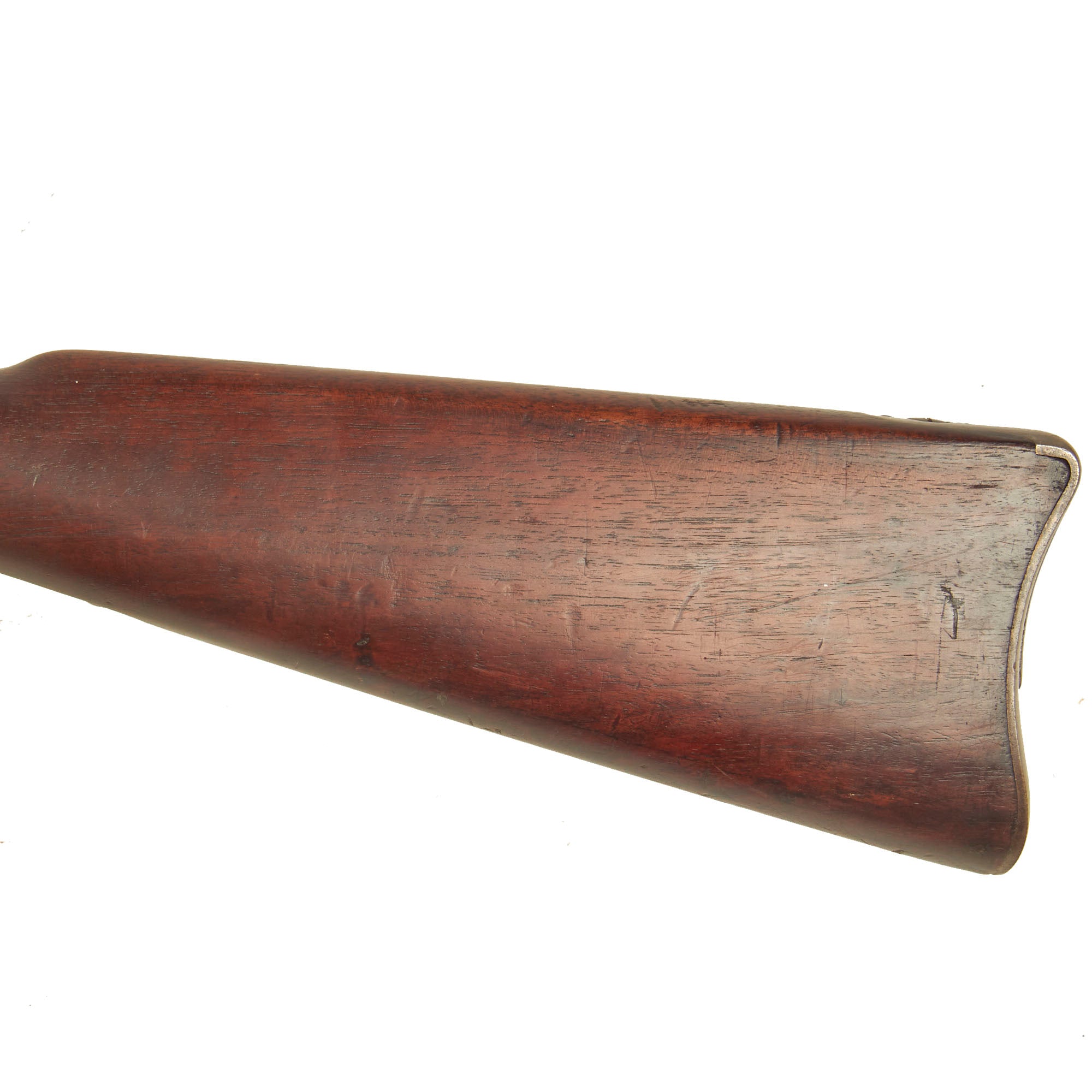

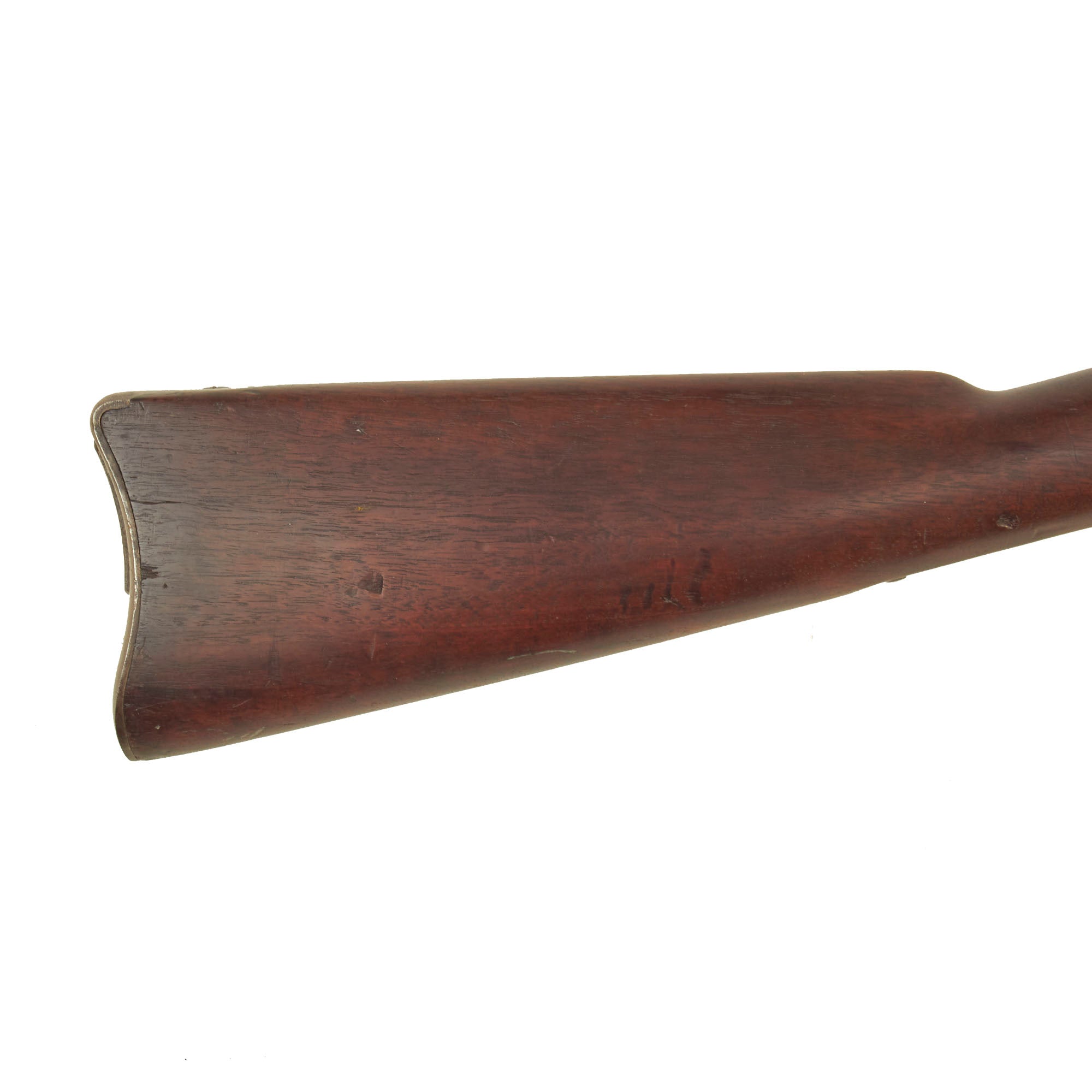

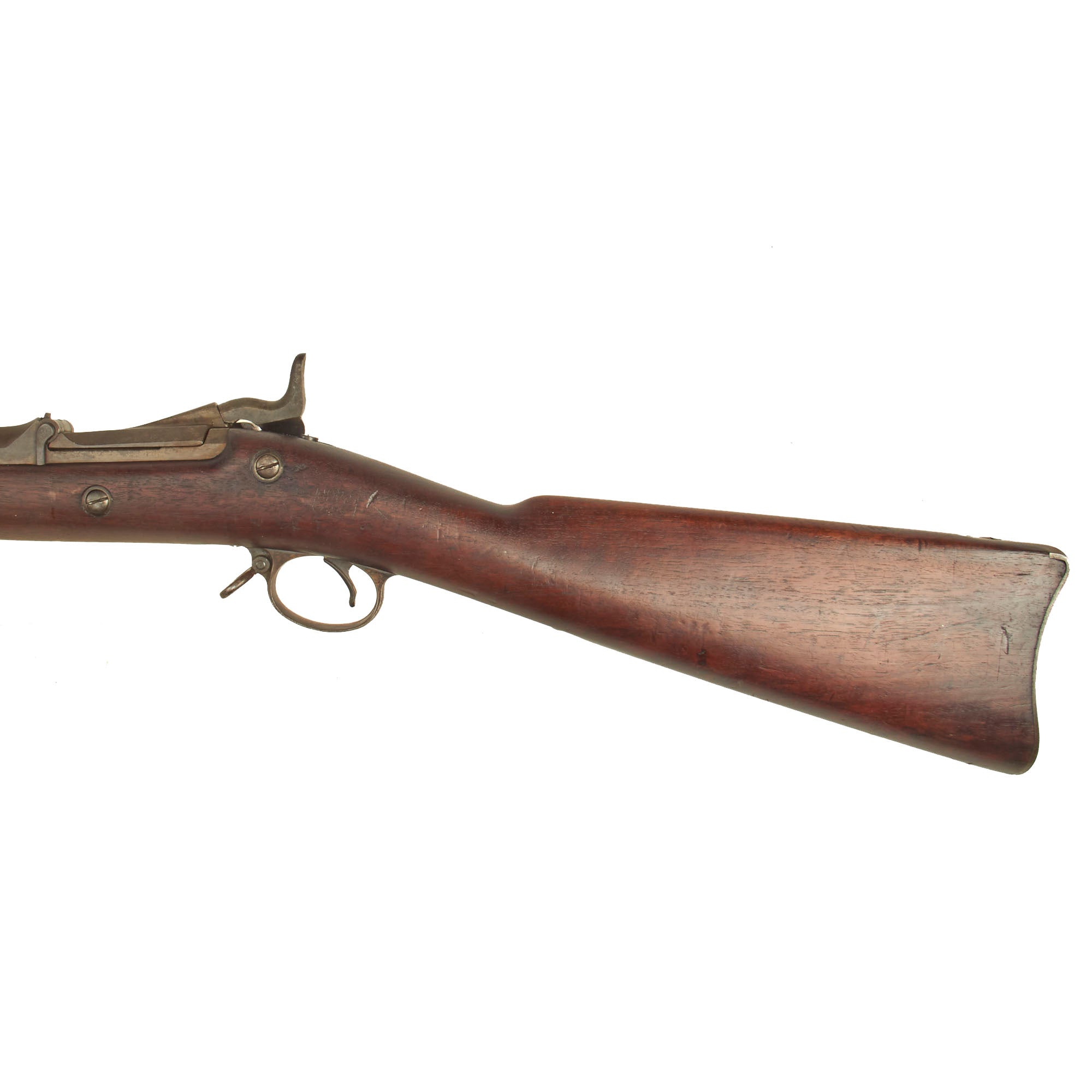

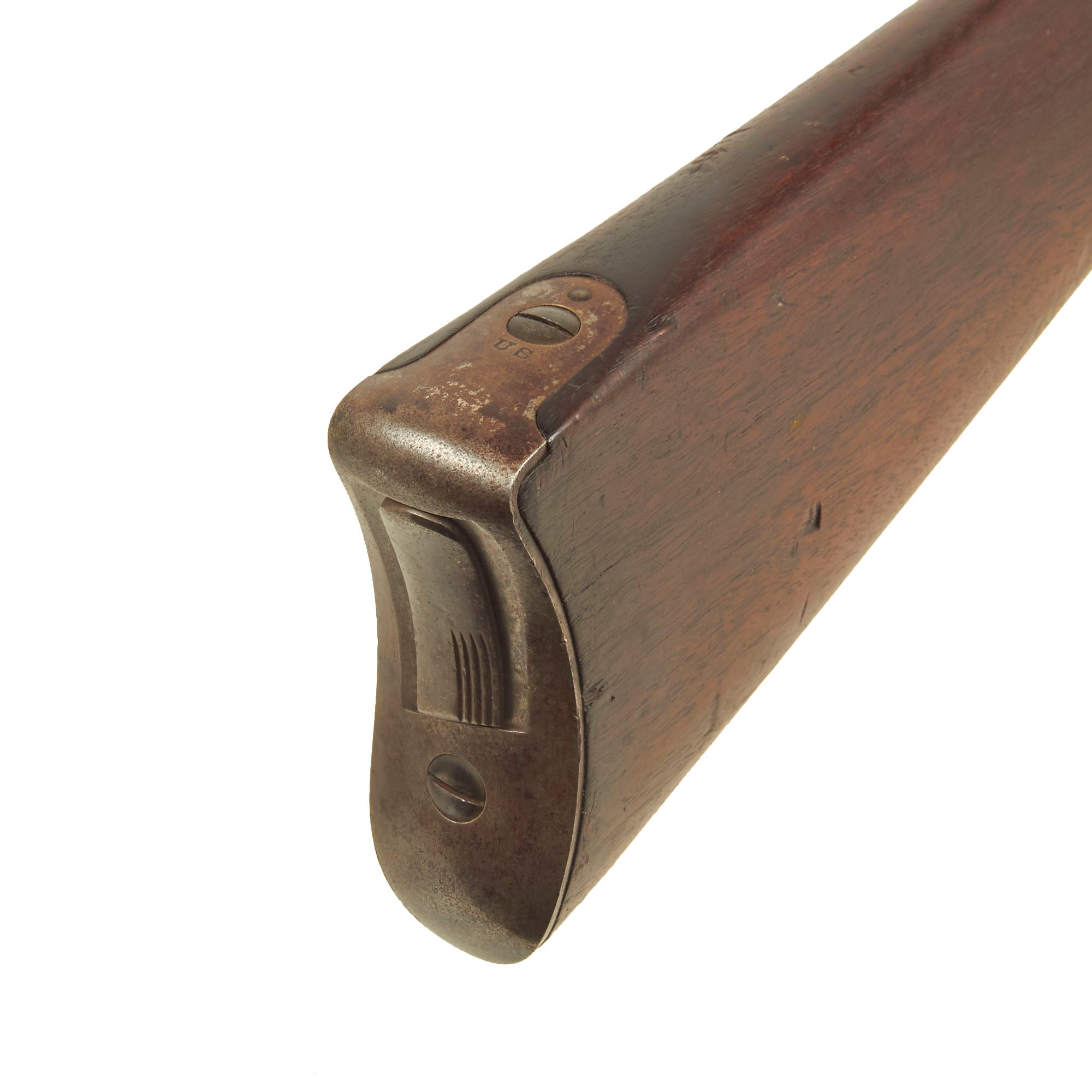

The stock is in very good condition, and is still fully proud over the lock plate, indicating the stock has not been worn down or reconditioned over the years. There is just some light denting and scratching from light use and storage. There is also a bit of cracking near the butt plate. It has a fantastic lovely dark red brown color with clear grain, only achieved after decades. Another nice feature on this example is the butt stock tool compartment, which is covered by a rotating door on the butt plate. This was used to store the take down tool and stuck cartridge extractor. Unfortunately this compartment is empty.

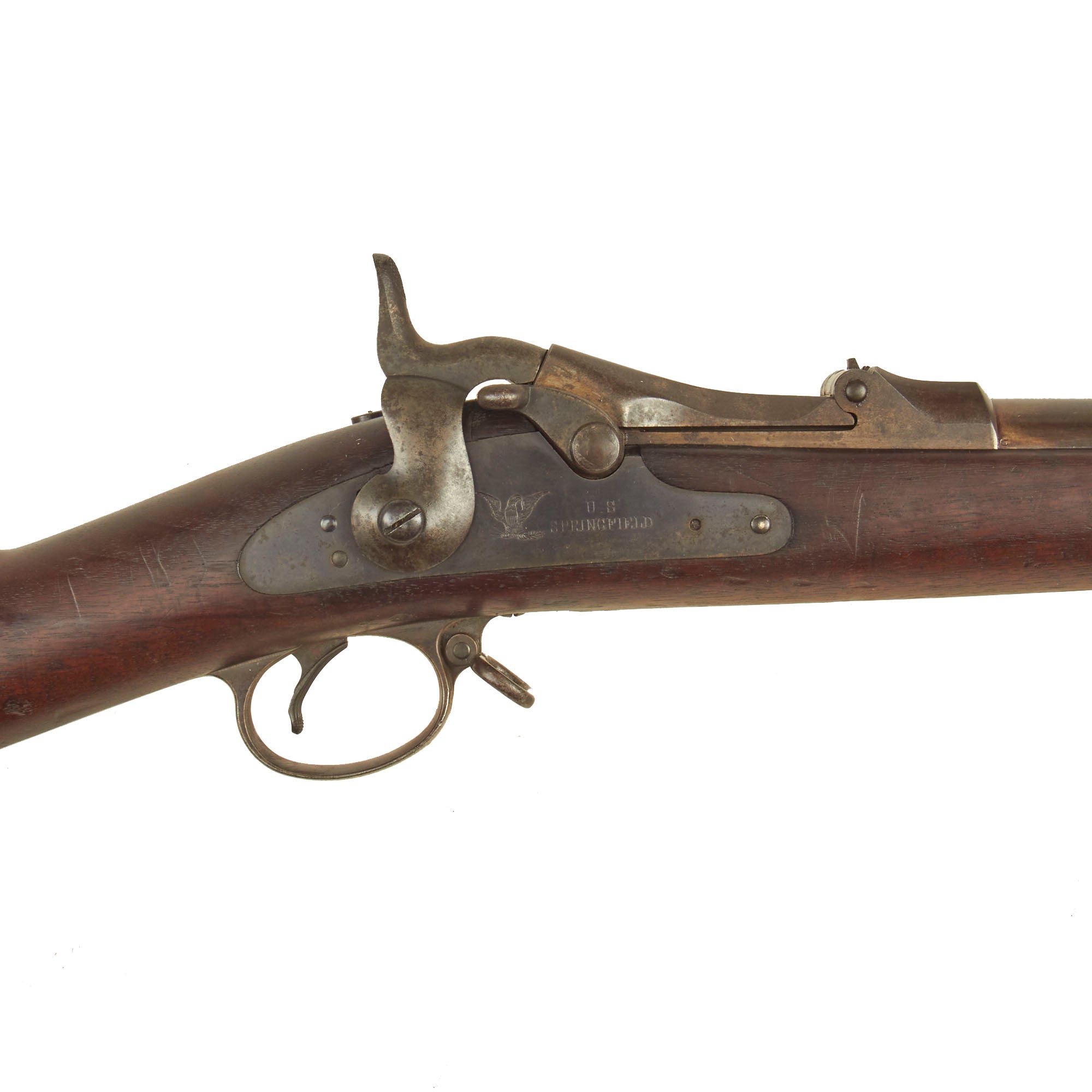

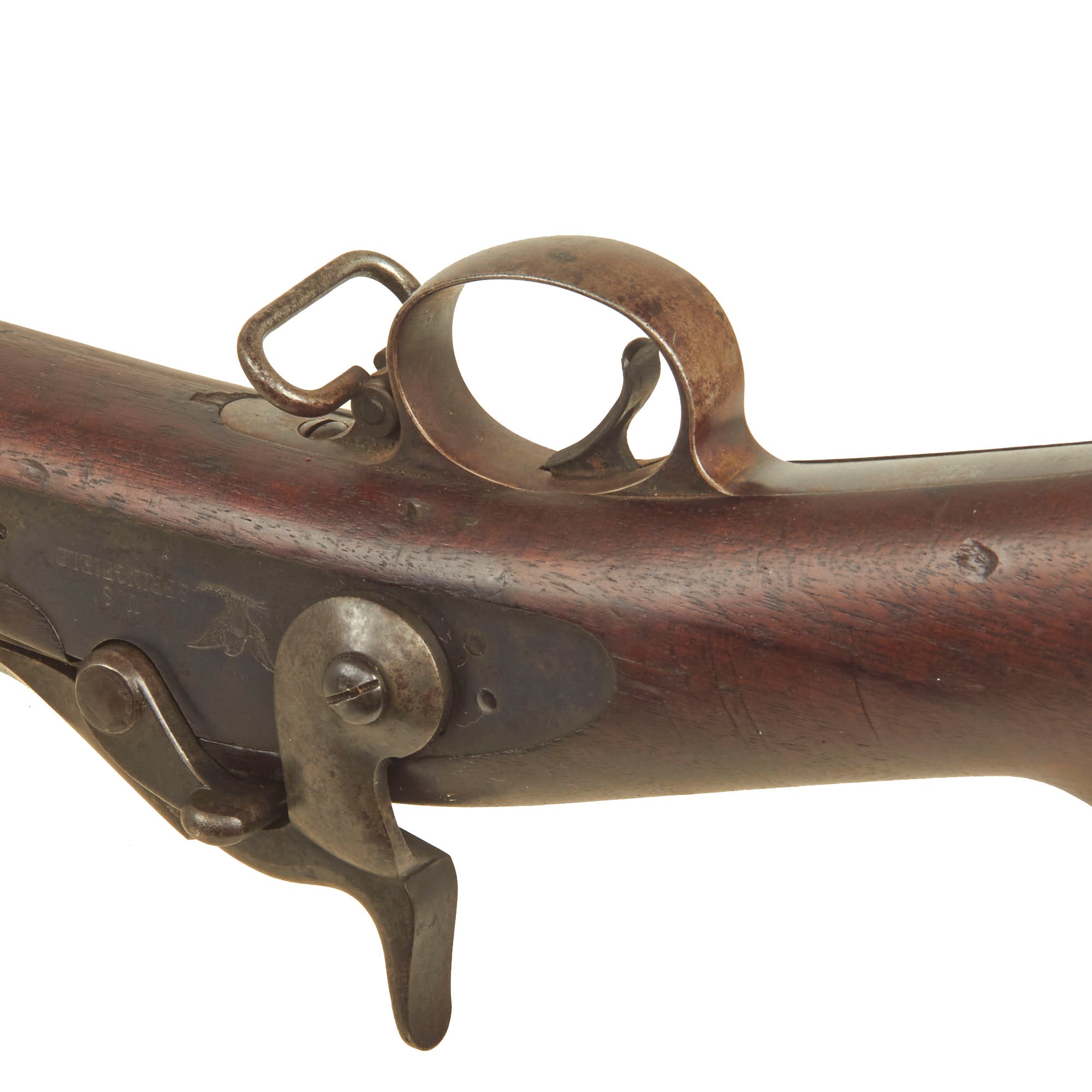

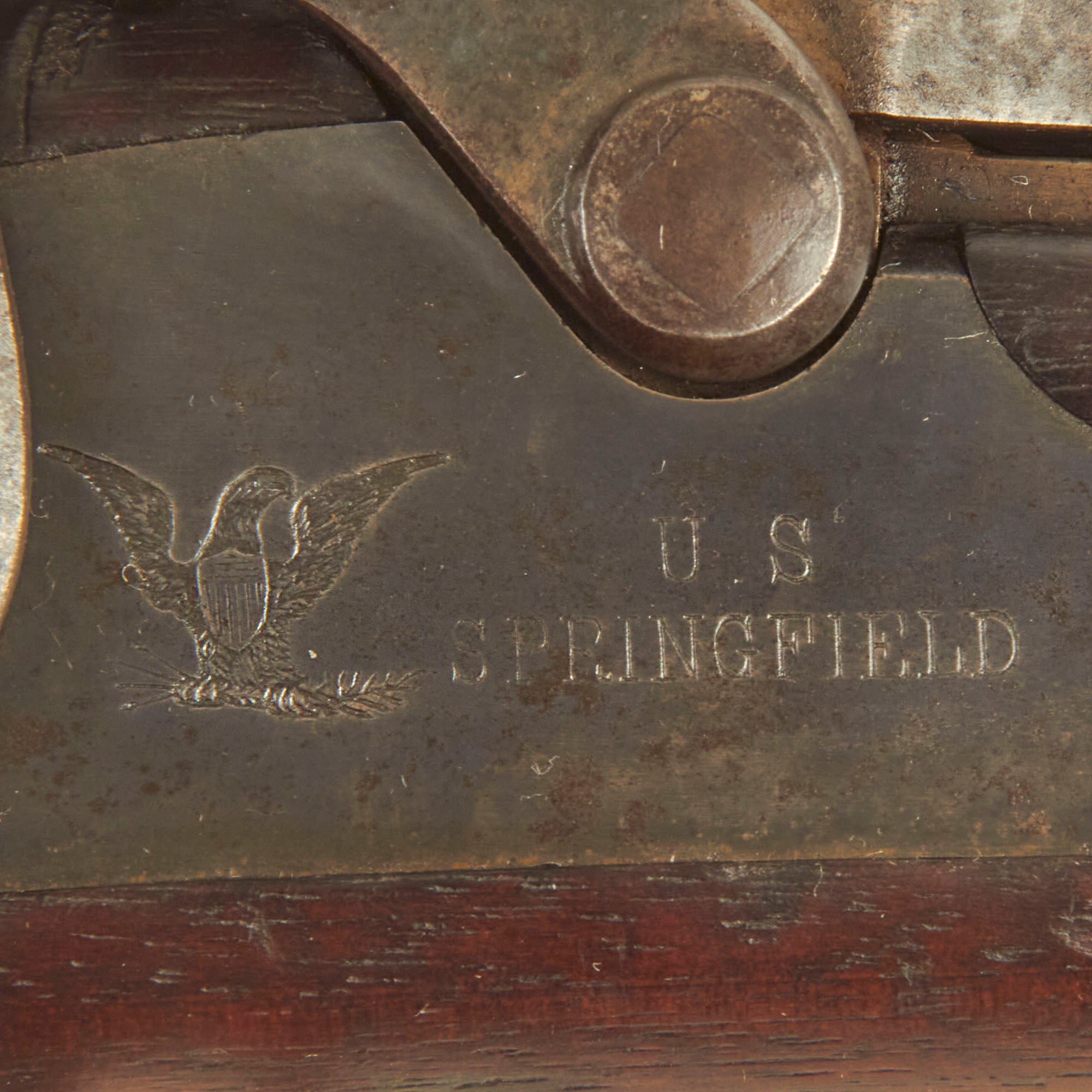

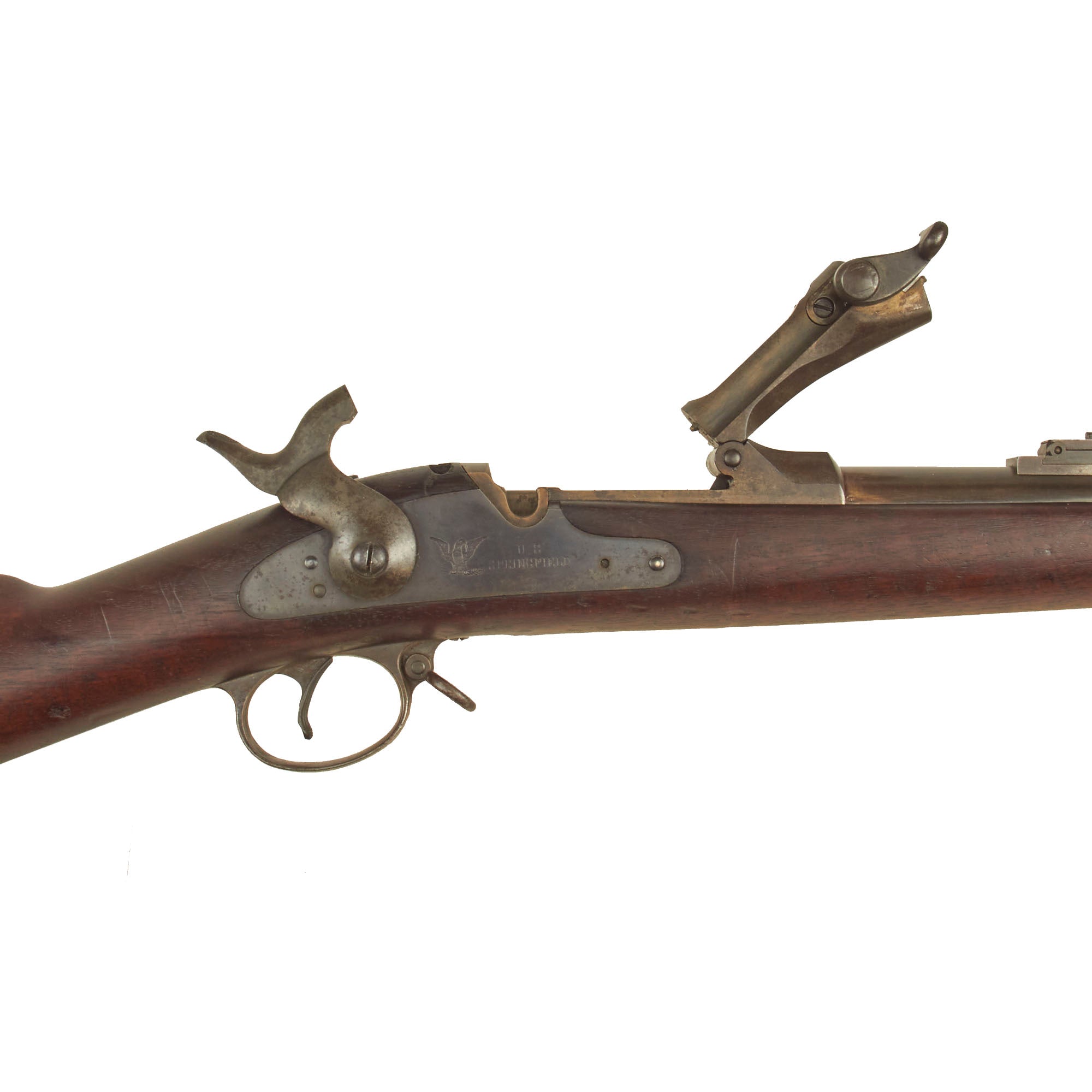

The both barrel bands are U marked, and the butt plate tang is marked with the correct U.S. stamp. Center fire breechloader, .45 cal., two bands, two sling swivels with stacking swivel, Buffington sight, sliding ramrod bayonet. Lock is marked with an eagle and U.S. / SPRINGFIELD, manufactured at the United States Armory and Arsenal at Springfield, in Springfield, Massachusetts. The lock is fully functional, and the cartridge extractor is intact and functional, though we have not tested it on spent brass. The rear sight is fully functional, with both range and windage easily adjustable.

The elegant script SWP belongs to Samuel W. Porter, who was the Master Armorer and Chief Inspector of Springfield Armory from 15 September 1879 to 18 June 1894. A very faint stylized P in a circle under the wrist of the stock indicates that the rifle passed all of its overpressure proof testing. Additional marks of interest include inspectors' and proof marks around the breech end of the barrel: a capital A on top; and a P over an Eagle's head over another P on the left side just above the stock. The upper right corner of the Buffington sight leaf is marked R to indicate that the sight graduations are for a rifle and not a carbine.

A great chance to pickup a great lightly used example of the United States last single shot rifle! Ready to display!

Specifications-

Year of Manufacture: 1892
Caliber: .45-70 Government
Cartridge Type: Centerfire Cartridge
Barrel Length: 32 Inches
Overall Length: 52 Inches
Action type: Hinged Breechblock with side action lock.
Feed System: Single Shot
