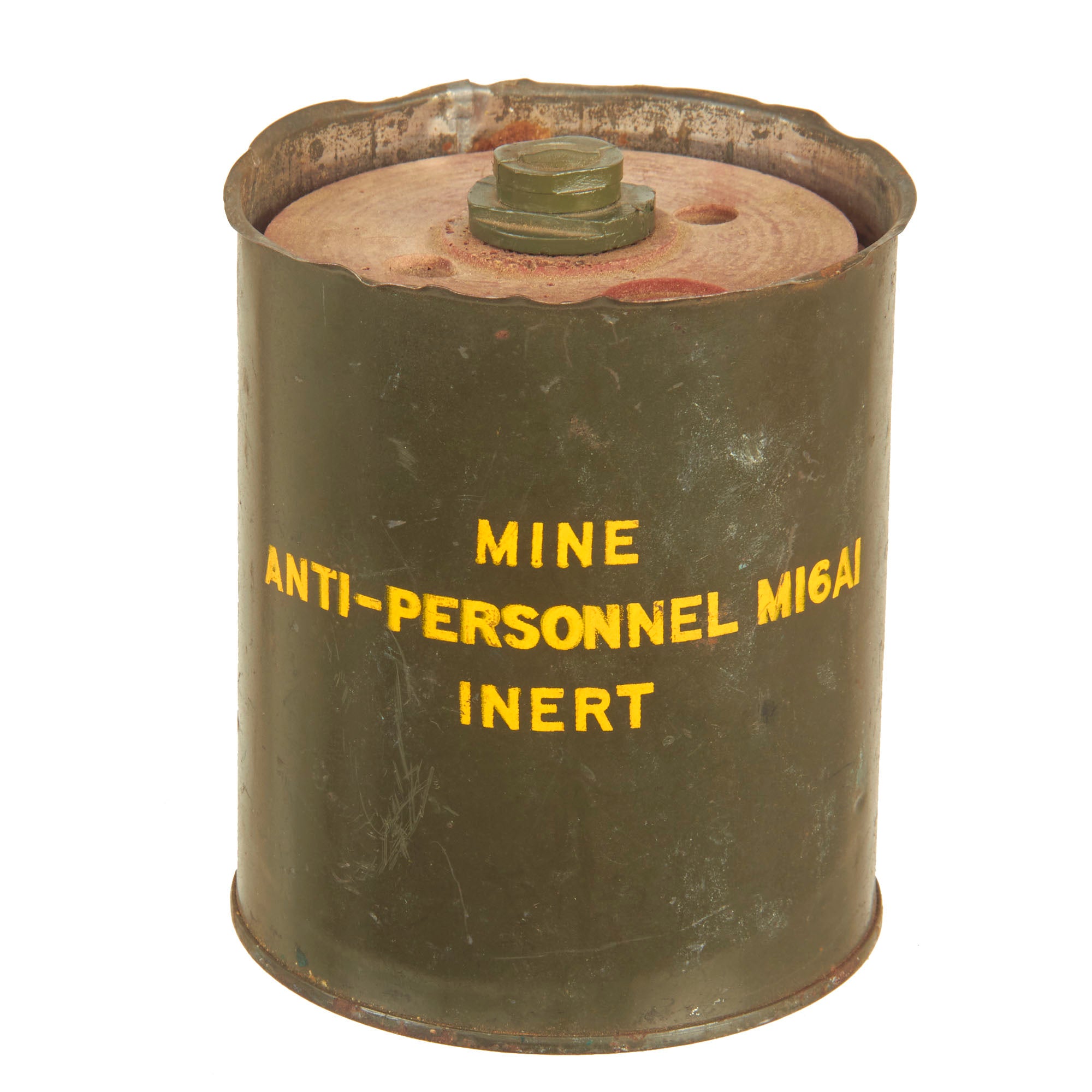

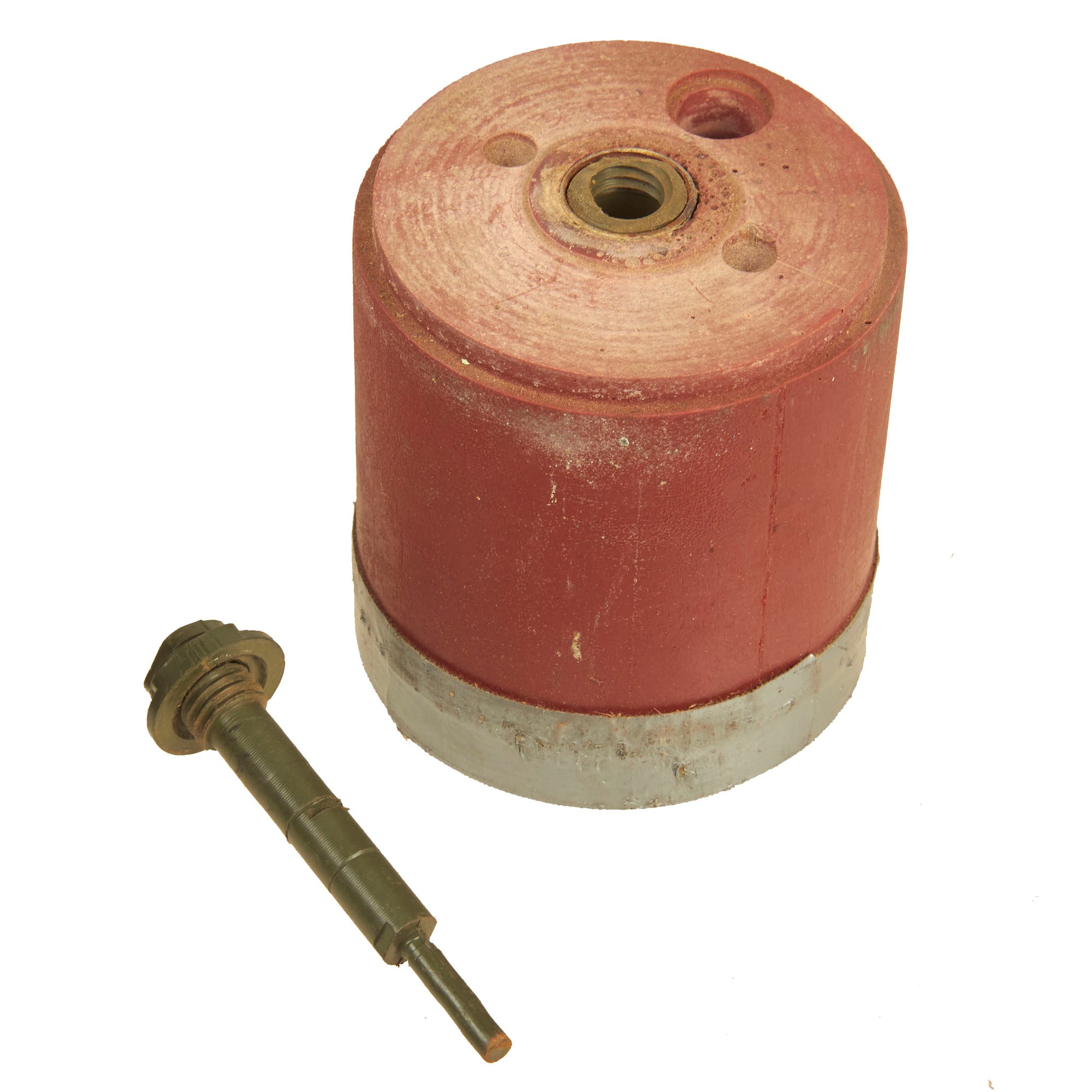

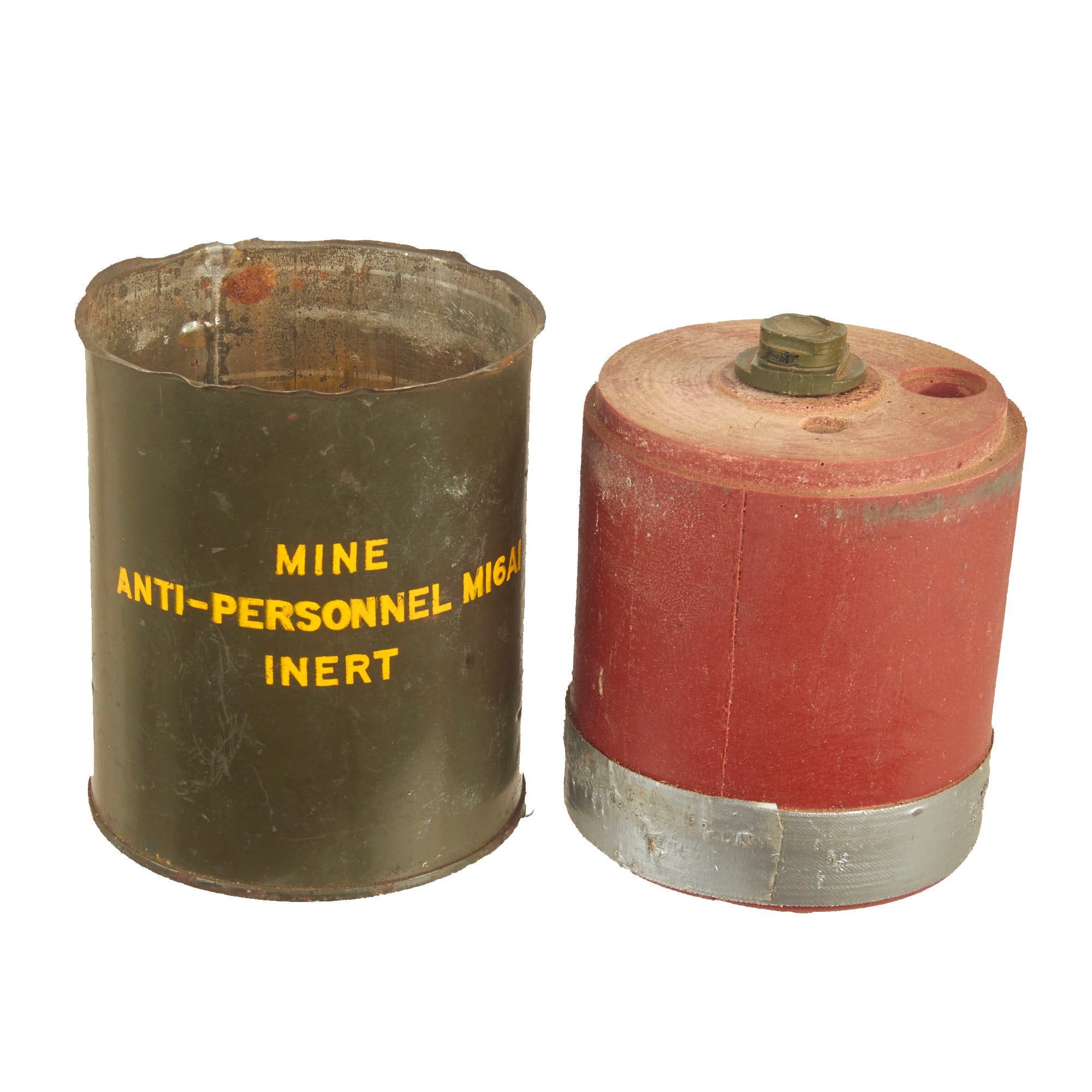

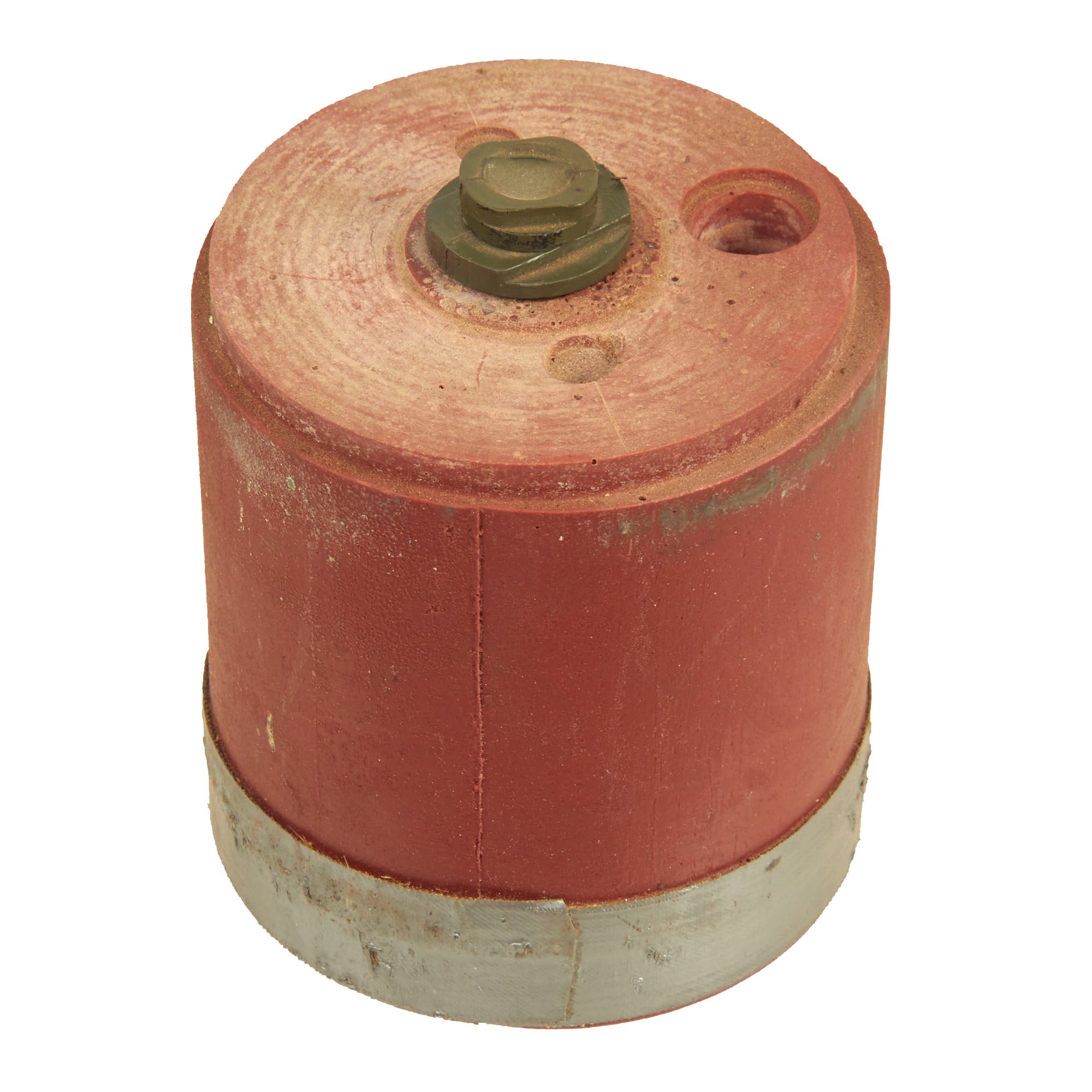

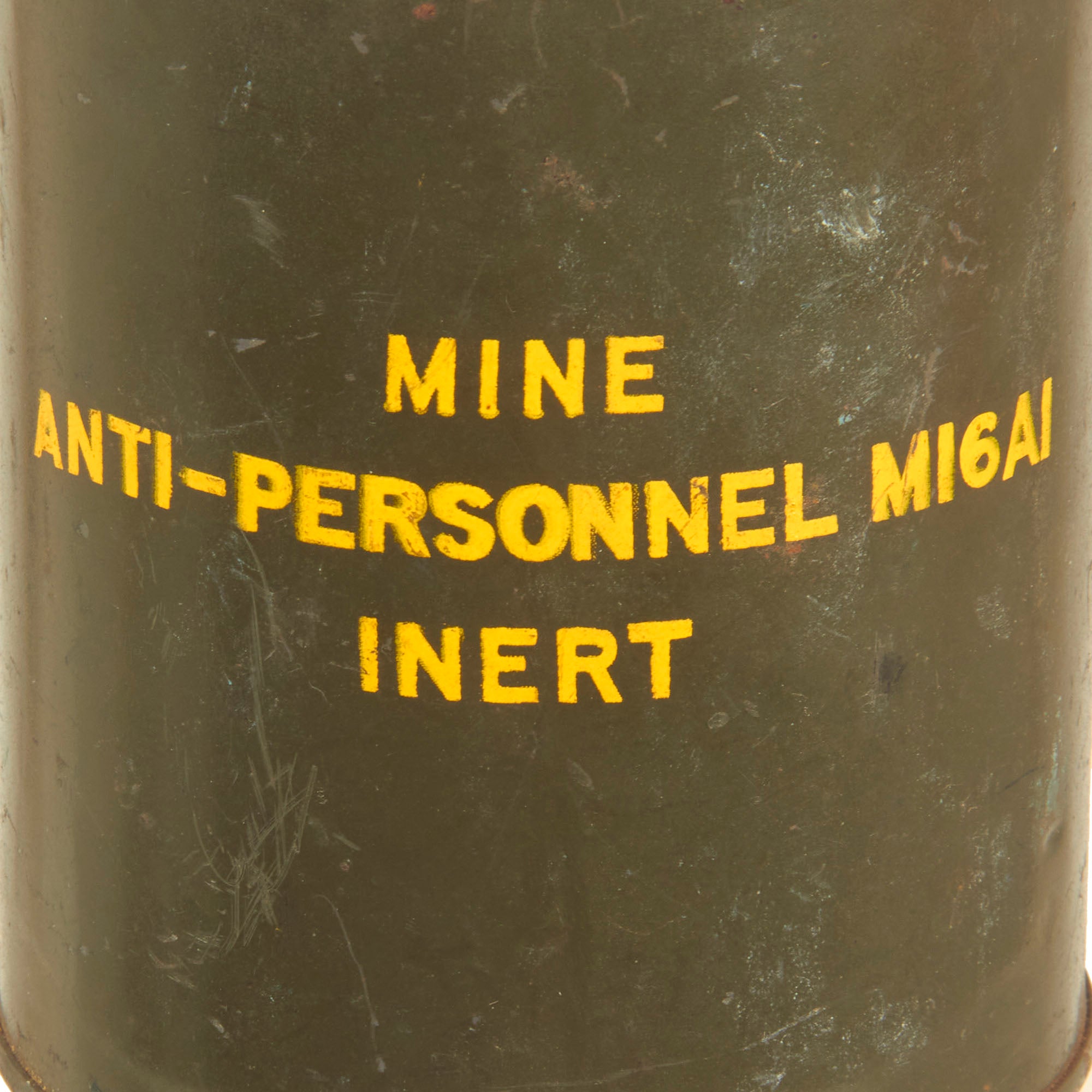

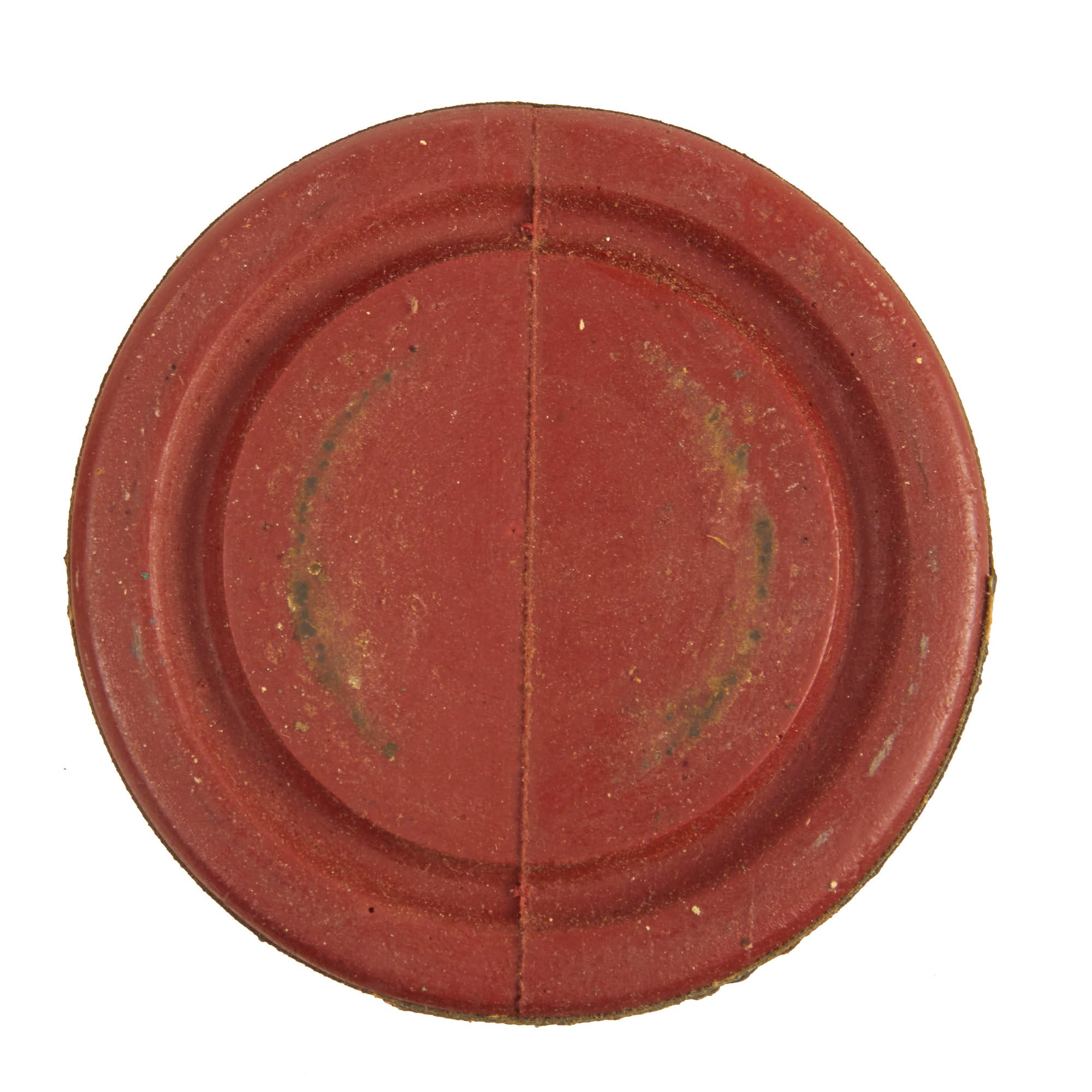

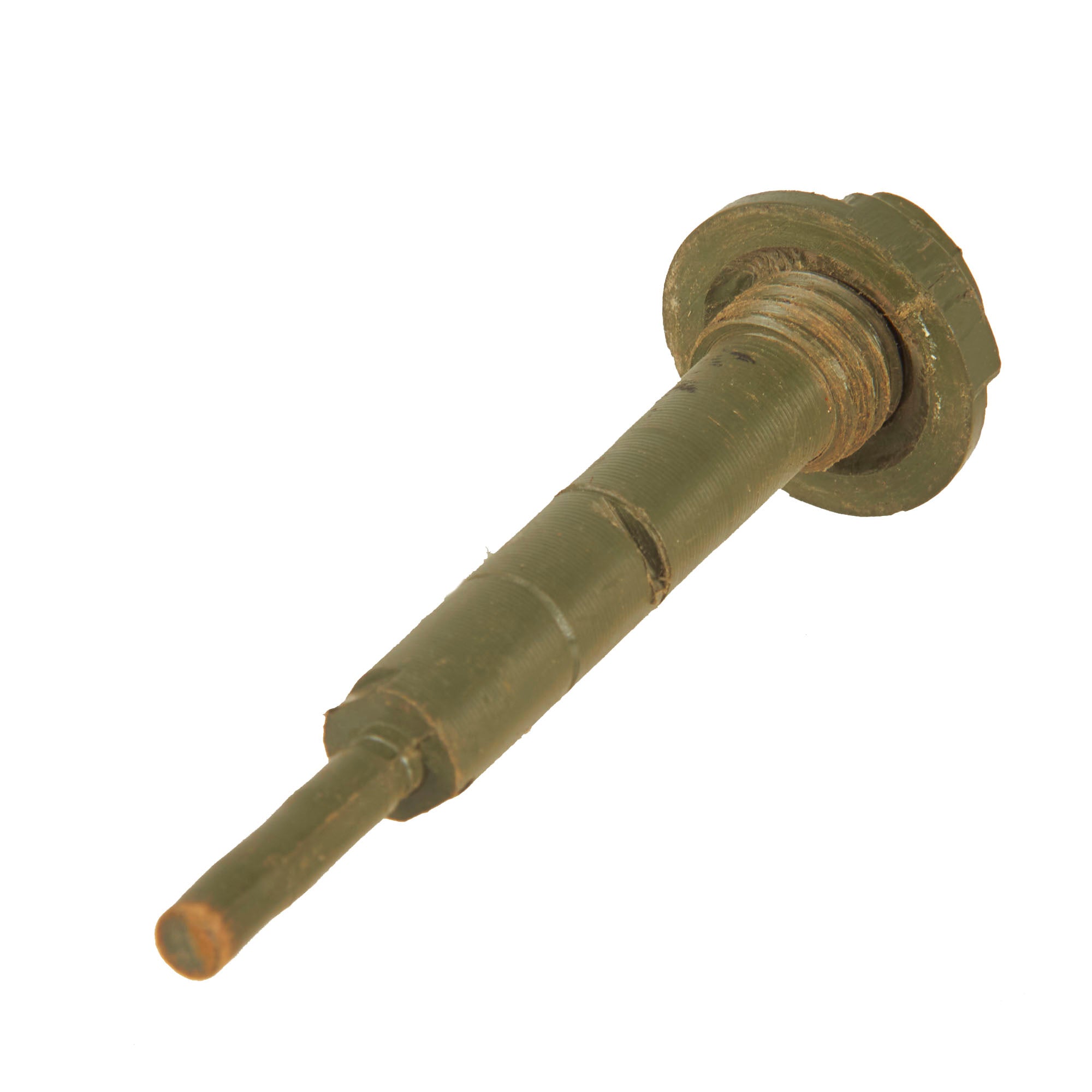

Original Item: Only One Available. This is a fantastic example of a rather hard to find “bouncing Betty” from the Vietnam War era. The mine retains the original tin can but has a resin main charge and fuse assembly.

Unloaded or dummy grenades, artillery shell casings, and similar devices, which are cut or drilled in an BATF-approved manner so that they cannot be used as ammunition components for destructive devices, are not considered NFA weapons. This example is in total compliance and is NOT AVAILABLE FOR EXPORT.

The M16 mine is a United States-made bounding anti-personnel mine. It was based on captured plans of the World War II era German S-mine and has similar performance. The mine consists of a cast iron body in a thin steel sleeve. A central fuze well on the top of the mine is normally fitted with a pronged M605 pressure/tension (tripwire) fuze. Sufficient pressure on the prongs or tension on an attached tripwire causes the release of a striker. The freed striker is forced into a percussion cap which ignites a short pyrotechnic delay. The purpose of this delay is to allow the victim to move off the top of the mine, to prevent its upward movement from being blocked. Once the delay has burned through, a 4.5-gram black powder charge is ignited, which launches the inner iron body of the mine up into the air (leaving behind the steel outer sleeve). The charge also ignites a second pair of pyrotechnic delays.

The mine rises to a height of 0.3 to 1.7 meters before one or both of the pyrotechnic delays detonates the main charge of the mine, which sprays high-speed metal fragments 360° around the point of detonation. These metal fragments have an expected casualty radius of 27 meters for the M16 and M16A1 mines, and out to 30 meters for the M16A2 mine.

The M16 and M16A1 mines are similar; the M16A1 has redesigned detonators and boosters but remains largely the same. The M16A2 is considerably different, having an offset fuse well and only a single pyrotechnic delay element. This change reduces the weight of the mine considerably (2.83 kilograms) while allowing it to carry a slightly larger main charge (601 grams)

According to the United States Army, one platoon of combat engineers assisted by a hauling vehicle was expected to be able to emplace 300 M-16 mines in 120 minutes, creating a minefield 300 meters long and 50 meters wide with a linear density of one mine per meter of front.

The mines were sold widely and copies were produced in several countries including Greece, India, Myanmar, South Korea and Turkey. They can be found in the 'wild' in Angola, Burma, Cambodia, Chile, Cyprus, Eritrea, Ethiopia, Iran, Iraq, Korea, Lebanon, Laos, Malawi, Mozambique, Myanmar, Oman, Rwanda, Somalia, Thailand, Vietnam, the Western Sahara, and Zambia. The United States retains stocks of M16A2 mines for use in any resumption of war in Korea.
