Original Item: Only One Available. In 1909, John Redfield established the Redfield Gunsight Company in Denver. Initially, John spent more time designing firearms than sights. He developed a gas-driven 7mm rifle and a pistol with collapsible stock. But demand for his sights kept him focused there.

His son Watt showed the mechanical aptitude of his father and later designed much of the machinery used to produce the company's sights. In 1916, the shop announced the ingenious dovetail scope mount that's since been widely appropriated. Easily adjustable for windage, it remains, a century later, among the most attractive, secure and versatile of scope mounts.

A Redfield was the scope first adopted on the USMC M40 sniper rifle during the Vietnam conflict as well as the US Army XM21. Unfortunately, Redfield changed through the 1970’s and 1980’s and eventually ended up going out of business at the end of the last century.

The XM21 Sniper Weapon System was issued to U.S. Army snipers during the Vietnam War, along with a commercially available sniper scope for day use, and a PVS-2 starlight scope for night operations. These men were trained at Army Division Base Camps; if a unit in country was a Brigade, Battalion, or smaller, and that unit requested snipers for their units, the requesting unit could send their sniper applicant to the next closest Division, such as Camp Eagle, 101st (Airmobile) Airborne Division, if that requesting unit was located in I Corps (Military Region 1), Republic of South Vietnam. The newly designated M21 saw limited actions during military operations after the Vietnam War ended in 1975. It was used by the U.S. Army Rangers during the Invasion of Grenada in 1983. There are limited numbers in some Army National Guard units and in a few specialized active units such as the OPFOR units of the Joint Readiness Training Center. The XM21 served from 1969 to 1975, and the M21 officially served as the main Army sniper rifle from 1975 to 1988 until the introduction of the M24, which had supplanted the M21 in Ranger Battalions by 1990. However, many M14 and M21 variants came back into favor in the Iraq and Afghan wars in the 2000s.

This example, as far as we can tell, is fully functional with clear optics and even has the rangefinding reticle still highly visible. During the war, the moisture from the jungle humidity would get inside of the scopes and fog up the lenses eventually “dissolving” the reticle, so to find one with it still fully intact is great!

On the side of the windage adjustment you will find the following information:

3X - 9X
A R TEL
SER NO 1024

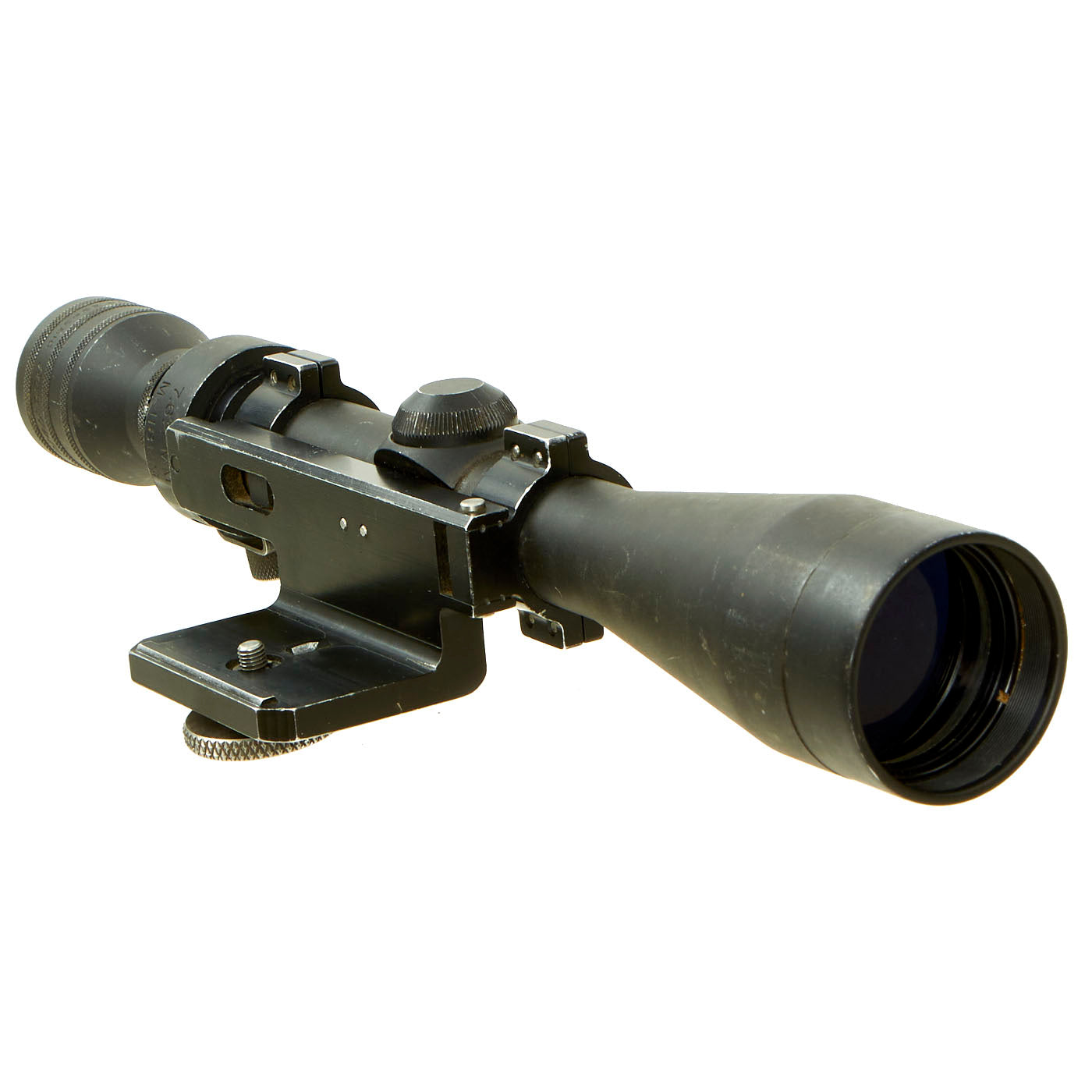

The rifle base mount only has the serial number 3157 marking on it. These serial numbers never match to the one on the optic. The serial numbers that were engraved on the mount matches the last 4 numbers of the issued rifle it was keyed for and mounted on.

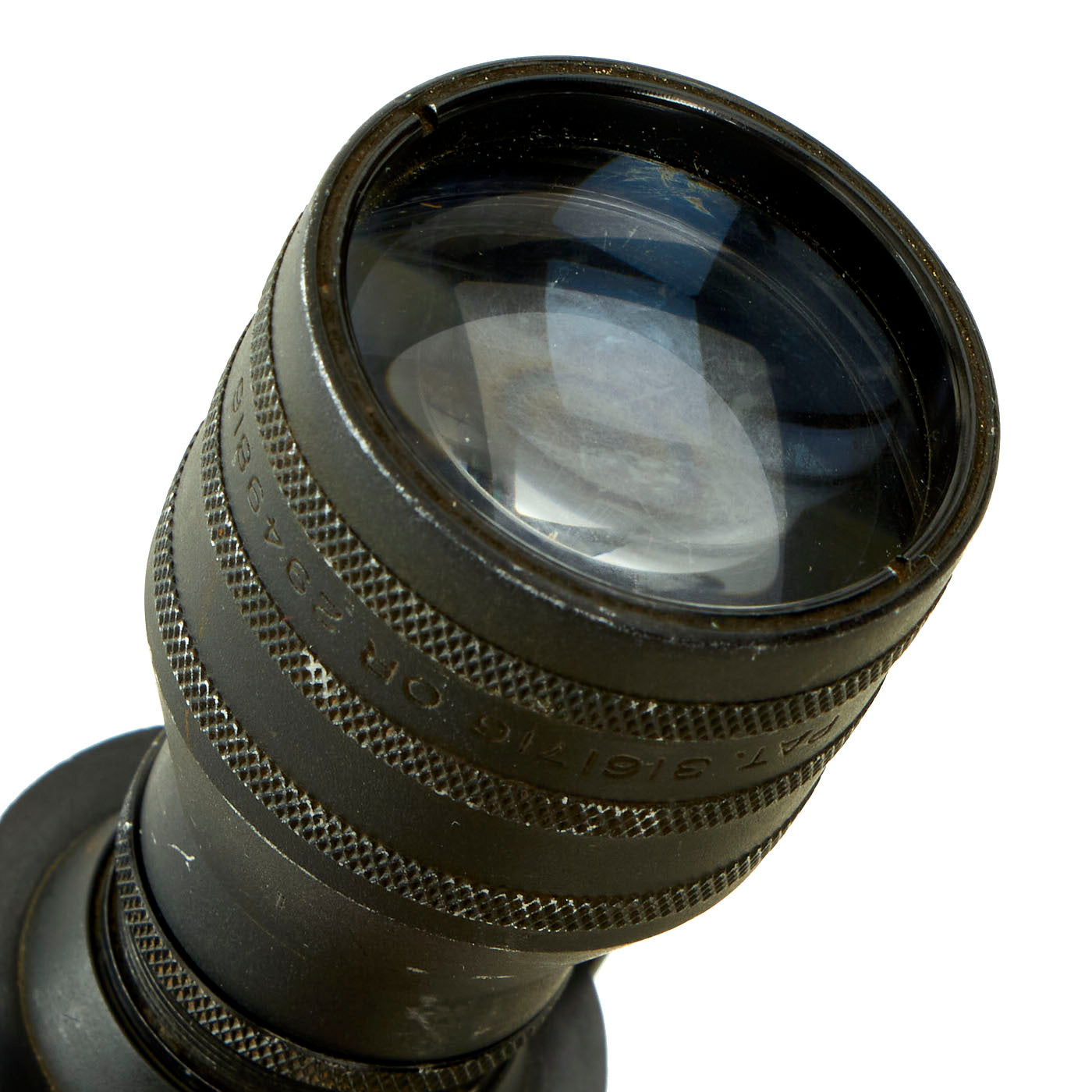

The rear eyecup is properly marked with the manufacturer information as well as patent information:

Redfield DENVER, COLO. U.S.A. PAT. 3161716 OR 2949816

On the adjustment ring you will find the following nomenclature information:

7.62 MM
M-118 NM

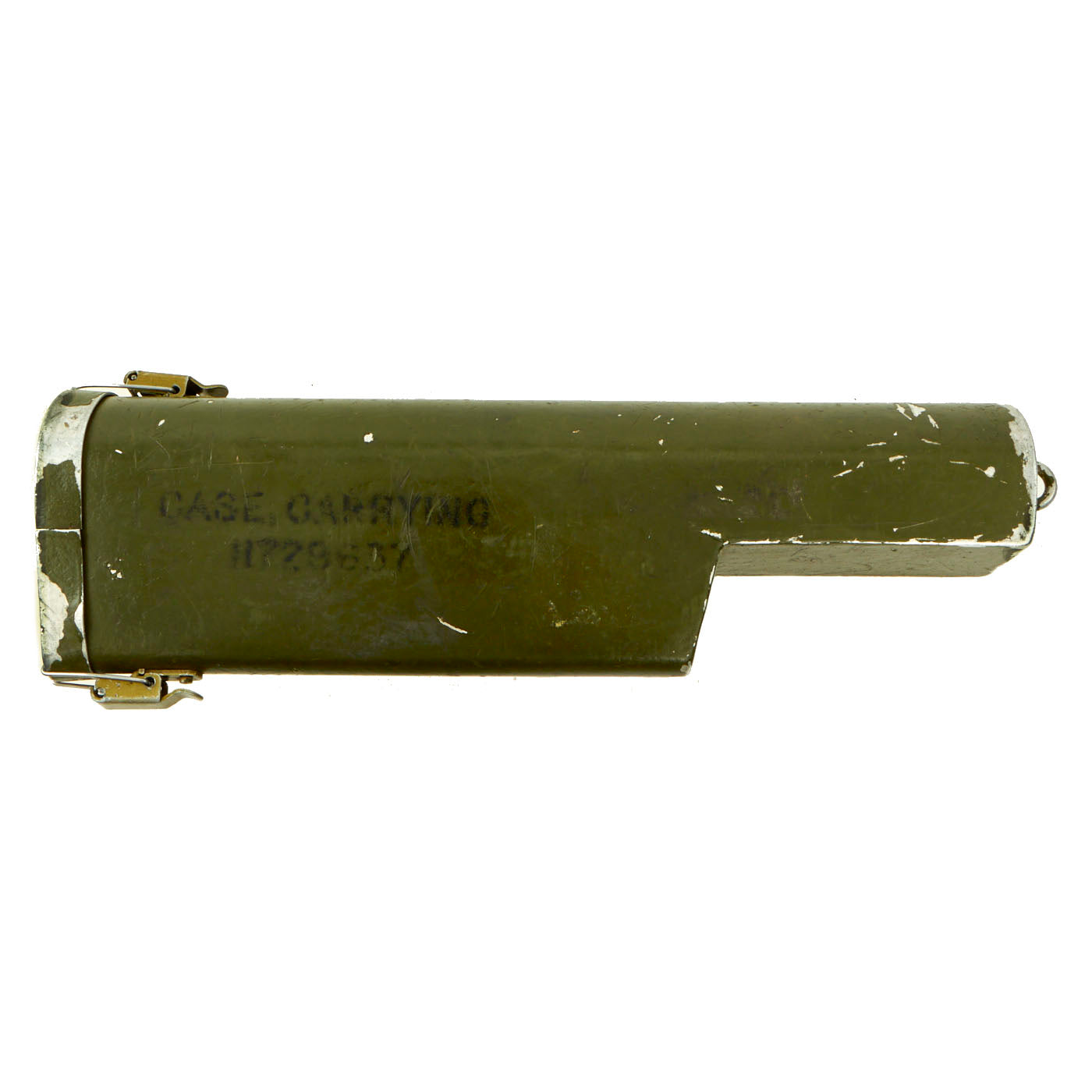

The green hard case still retains a good majority of the original paint and still has faint, but readable markings: CASE, CARRYING / 11229637. The condition reflects many years of service use and it definitely served its purpose in protecting the optic. There is no extensive damage present to either the case or the belt loop attachment on the back side.

The is a fantastic example of a rather rare Redfield XM21 M14 Sniper Rifle scope. Comes more than ready for further research, display and even use!

M21 Sniper Weapon System
The M21 Sniper Weapon System (SWS) in the US Army is a national match grade M14 rifle, selected for accuracy, and renamed the M21 rifle. The M21 uses a commercially procured 3–9× variable power telescopic sight, modified for use with the sniper rifle. It is chambered for the 7.62×51mm NATO cartridge.

"The use of "sharpshooters" (or snipers) can be traced in U.S. military history from the time of the Revolutionary War of 1775–1781. Every U.S. military action since that time has required the special talent of such men. After the war sniping became a lost art."[6] From 1955–1956, the United States Army Marksmanship Training Unit undertook a program to "reiterate the lessons learned" from past wars. However, "this program was short-lived because of the lack of understanding and appreciation for the value of a sniper throughout the United States Army. The prevailing military attitude then envisioned any future conflict as nuclear with defeat or victory decided in hours."

"With the adoption of the M14 service rifle no provision was made for an M14 sniper rifle, [and] the designation of a sniper in the rifle squad was discontinued. "The conflict in Vietnam revived the need for snipers." Snipers became optional and no table of organization and equipment (TOE) authorized sniper organizations [units]." However, units could train and deploy snipers on a limited basis depending upon...requirements." As a result, U.S. Army snipers were trained in South Vietnam at Division. During the Vietnam War, U.S. Marines were issued bolt-action hunting rifles, U.S. Soldiers were issued XM21 rifles. The Rock Island Arsenal converted 1,435 National Match (target grade) M14s by adding a 3-9x Redfield Adjustable Ranging Telescope (ART) and provided National Match grade (7.62 Lake City Long Range XM-118) ammunition. The ART scope, designed by 2nd Lieutenant James Leatherwood (U.S. Army), combined rangefinding and bullet drop compensation. The innovation came just in time as the U.S. military found itself losing servicemen to Viet Cong snipers who had the home field advantage in terrain that was, to say the least, difficult.

This version, designated as the XM21, had a specially selected walnut stock and was first fielded in the second half of 1969. An improved version with a fiberglass stock was designated the M21 in 1975. The M21 remained the Army's primary sniper rifle until 1988, when it was replaced by the M24 Sniper Weapon System; some M21s were later re-issued and used in the Iraq War.

In standard military use, the M21 uses a 20-round box magazine as the other members of the M14 family and weighs 11 pounds (5.27 kg) without the scope. The U.S. military never officially authorized or purchased magazines in any other capacity, although 5- and 10-round magazines are available.

The M21 was criticized by an internal Fort Benning publication in 1989 warning that "The M21...cannot be maintained under field conditions, and its inflexible design makes it highly susceptible to malfunctions" due to the scope not being easily removable if needed and the glass bedded action that made disassembly in the field problematic.
