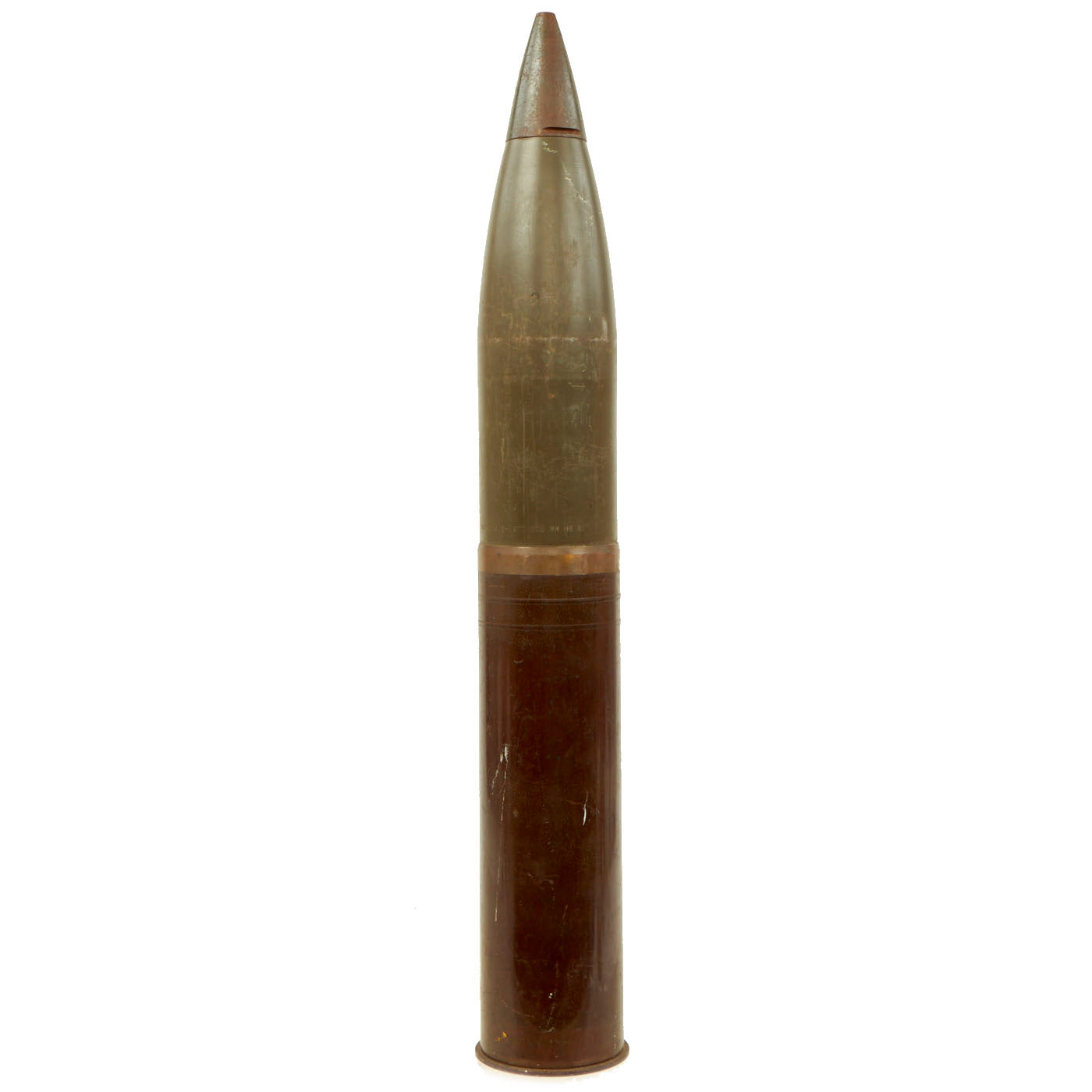

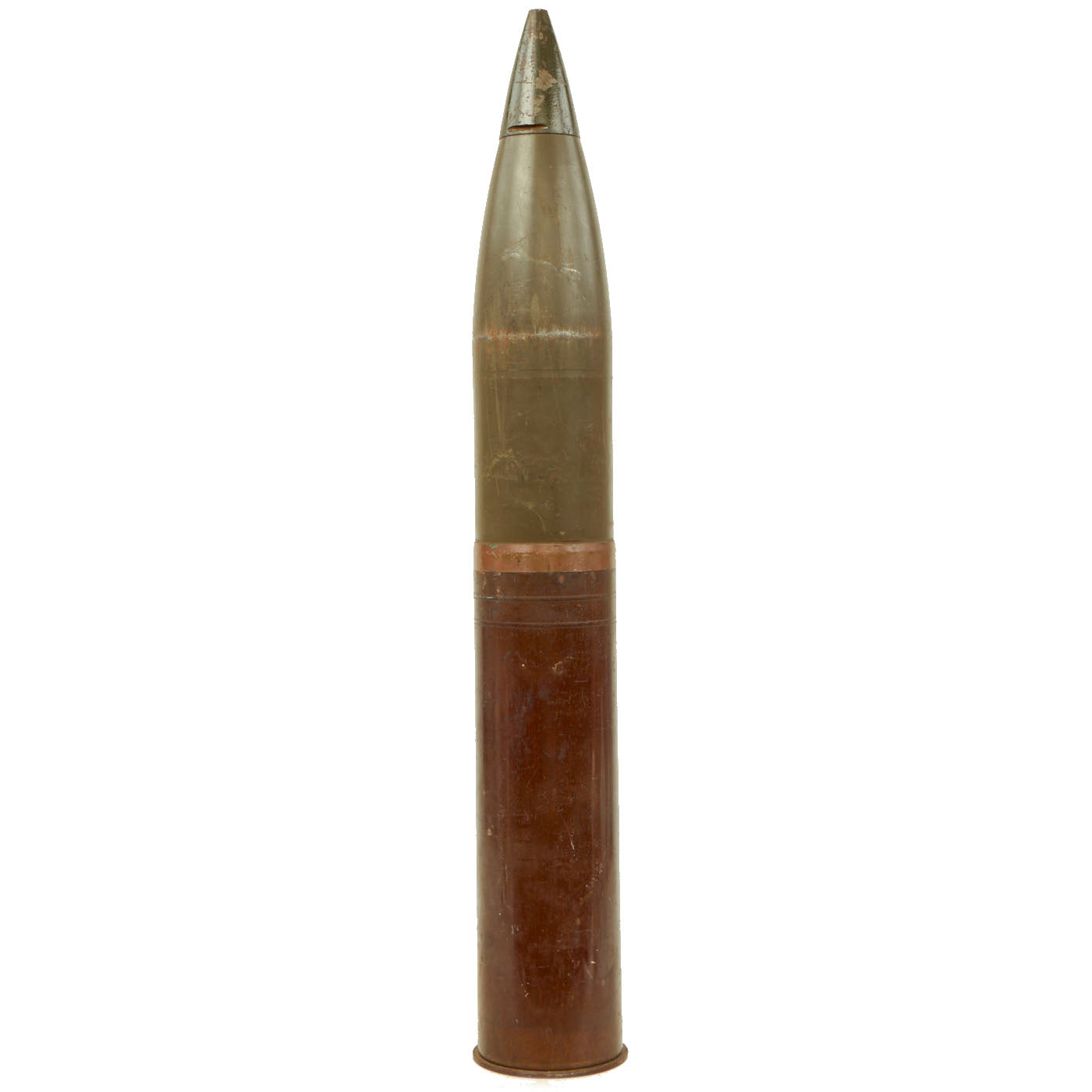

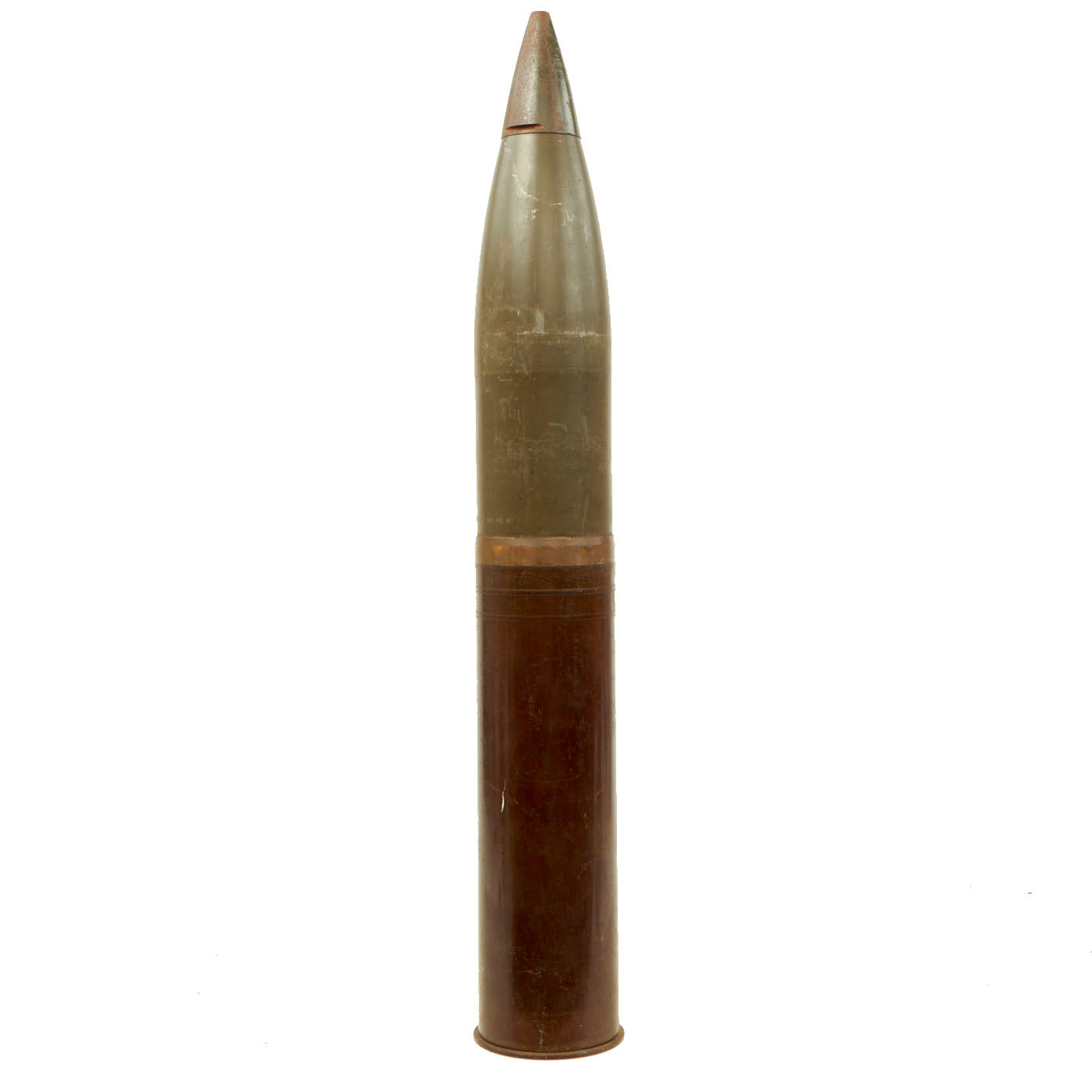

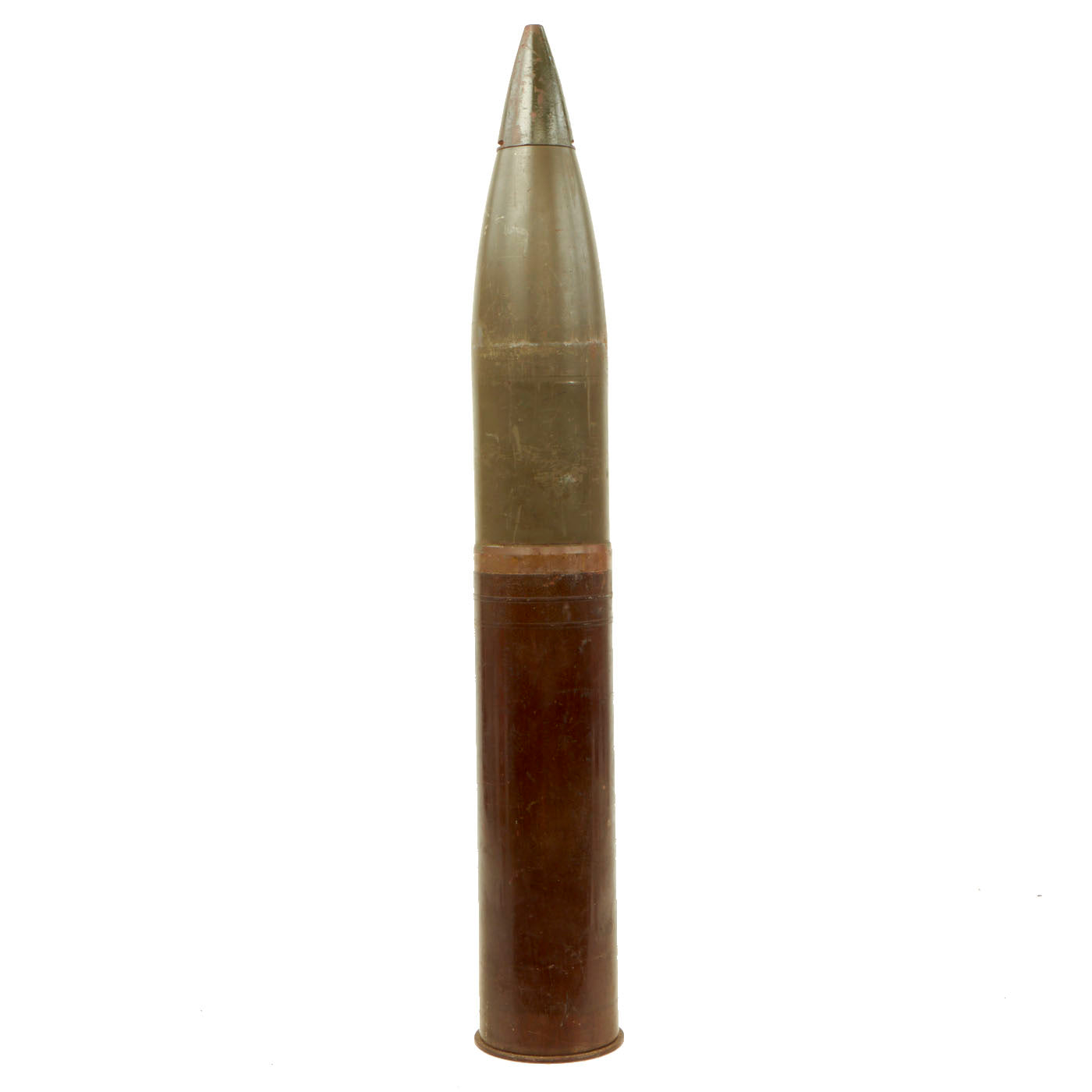

Original Item: Only One Available. This 105mm Artillery round has been deactivated and rendered completely inert per BATF guidelines and cannot be converted back to an explosive device and is not available for export.

Since the early 21st century, most NATO armies have centred on 155 mm weapons as having a good compromise between range and destructive power whilst having a single calibre simplifies logistics; however some military forces have retained 105mm towed howitzers for their lightweight and portability. The lower power and shorter range of 105mm ammunition has led to its obsolescence in full-sized self propelled guns such as the American M108 and British Abbot. During the Cold War, the concept of the main battle tank was established and guns of 105mm (NATO) and 100mm (Warsaw Pact) were the standard until the advent of guns of 120mm (NATO) and 125mm (Warsaw Pact) from the 1960s to the 1990s. The L7 was widely used by NATO countries, and is still used in lighter-weight applications such as the Stingray light tank and the Stryker Mobile Gun System as well as older MBTs.

This 105mm round appears to have been for the M102 Howitzer, which is a light, towable 105mm howitzer that saw extensive use in the Vietnam War, First Gulf War and the War in Iraq.

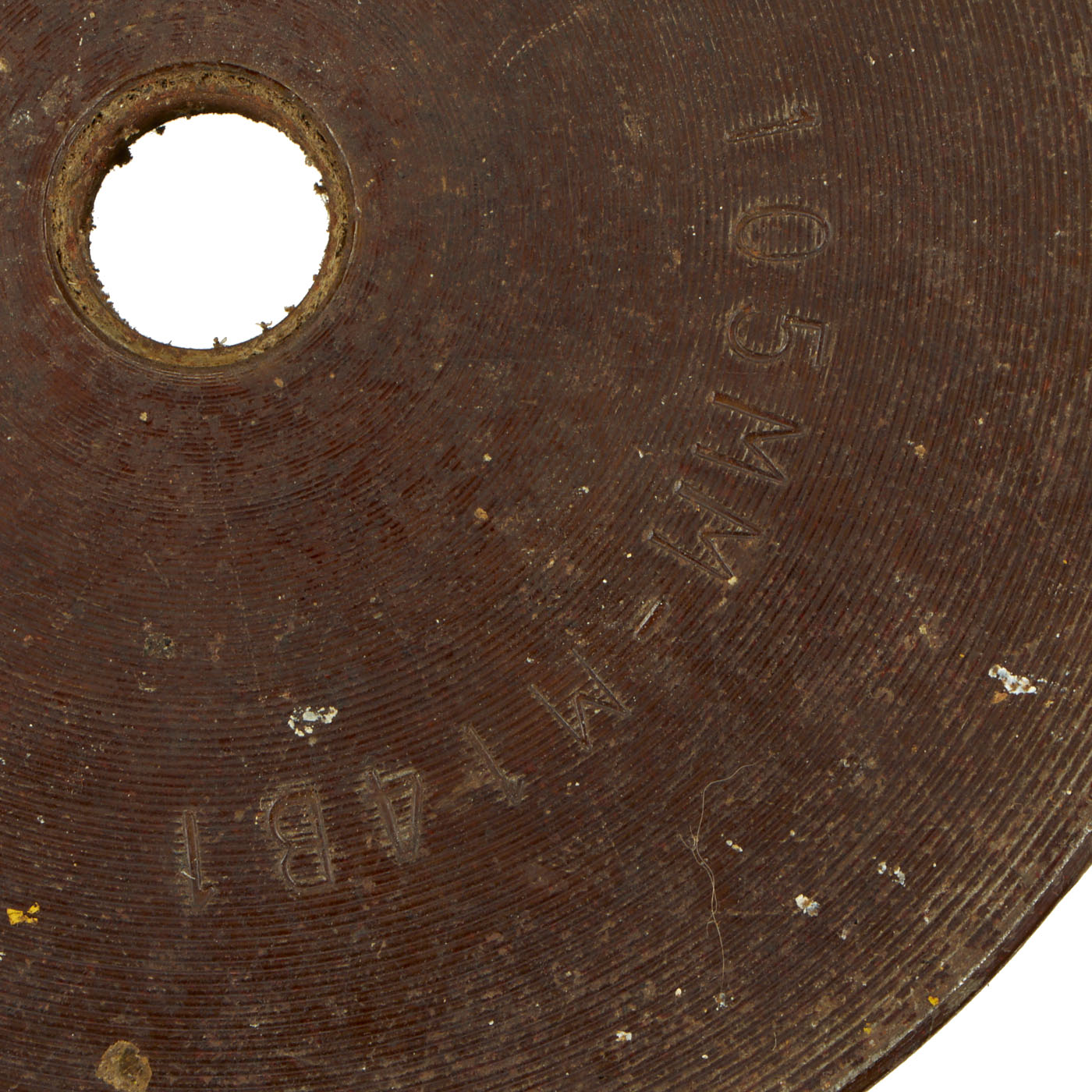

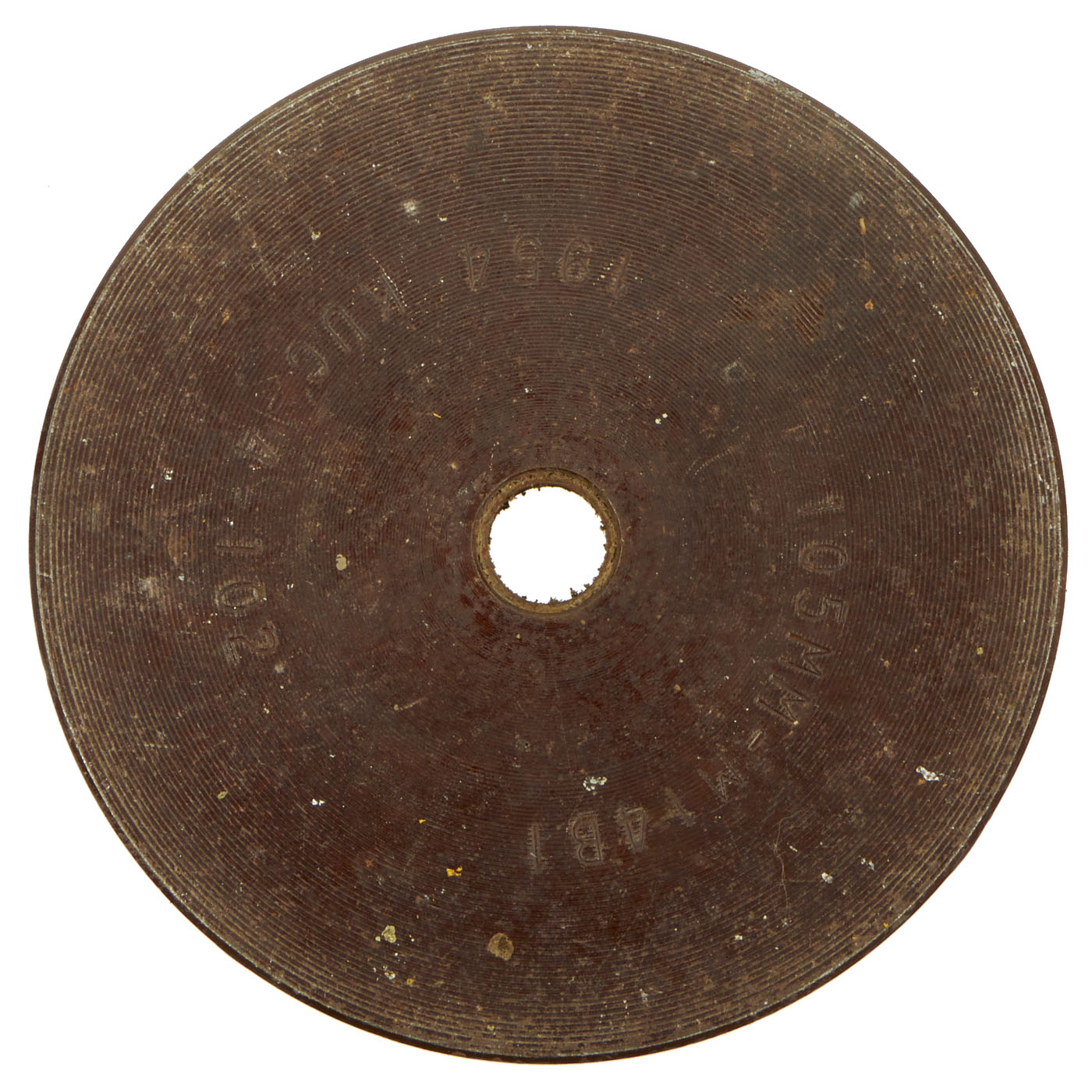

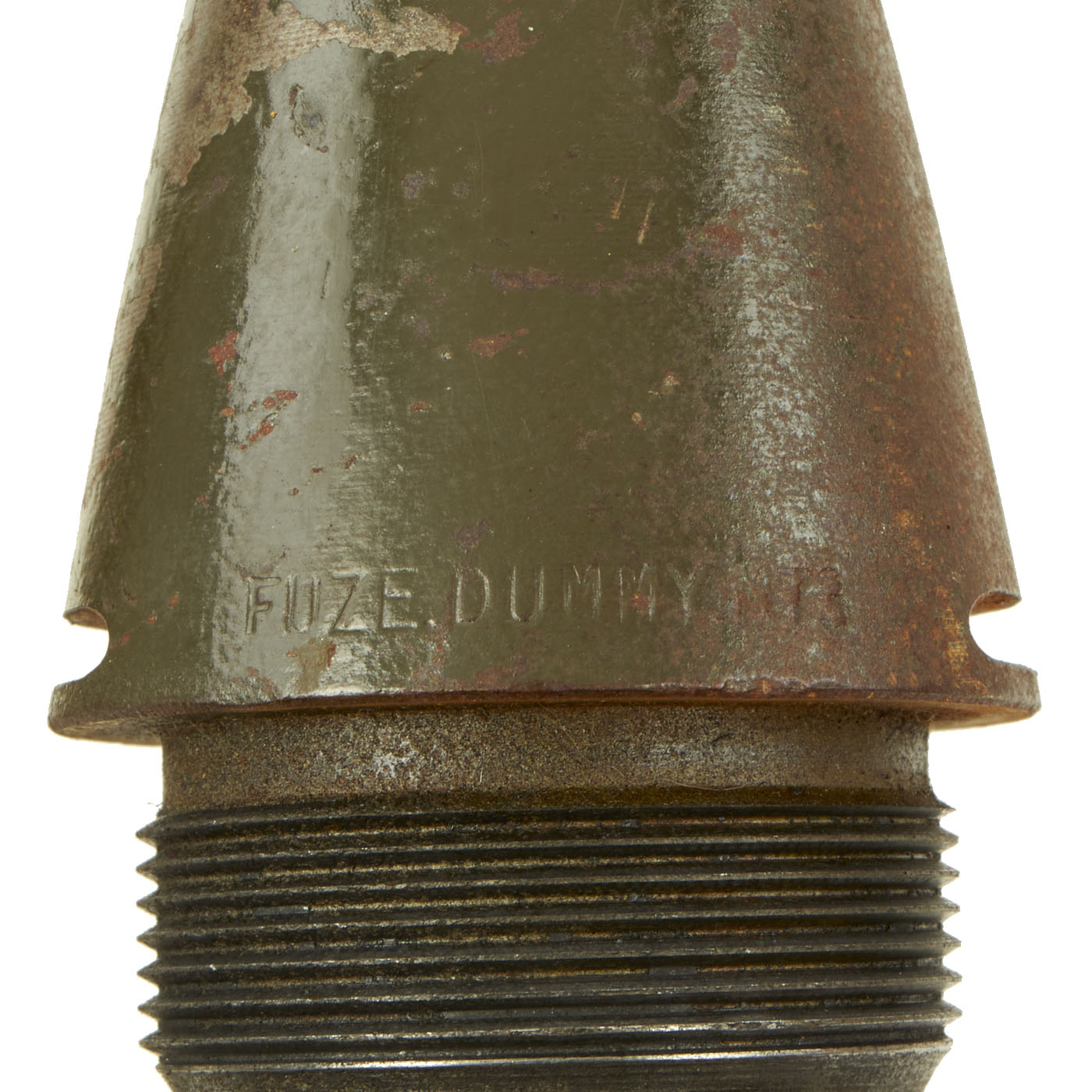

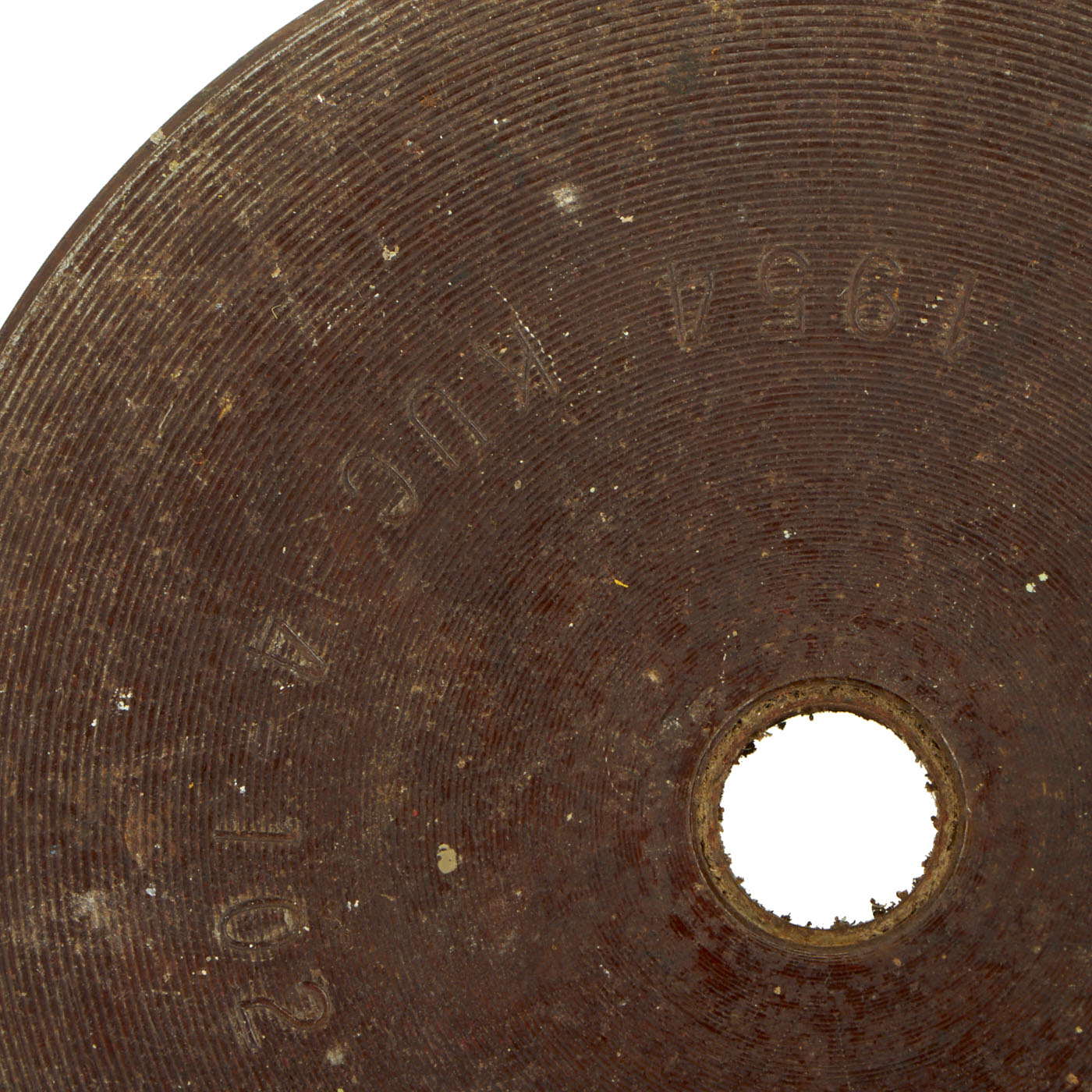

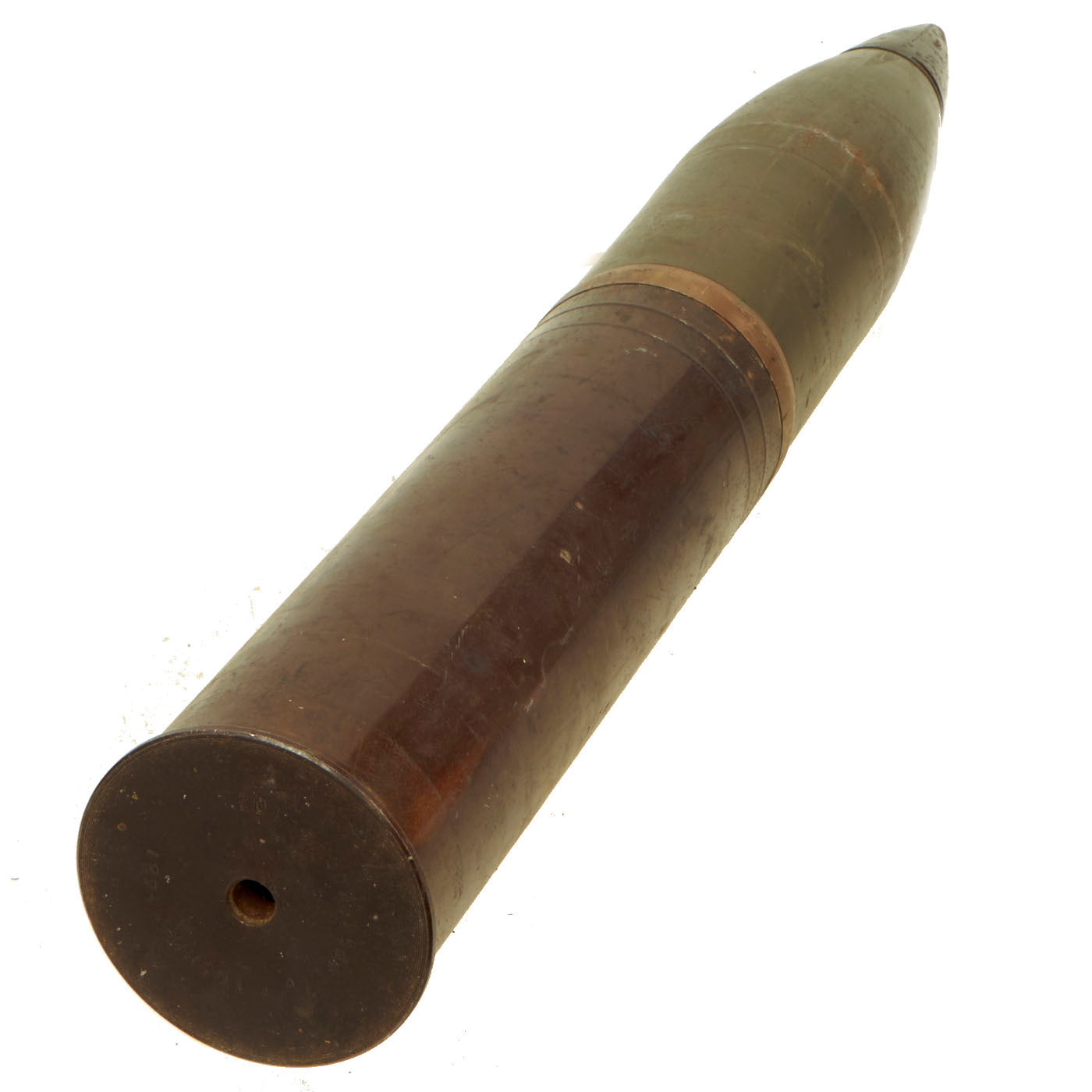

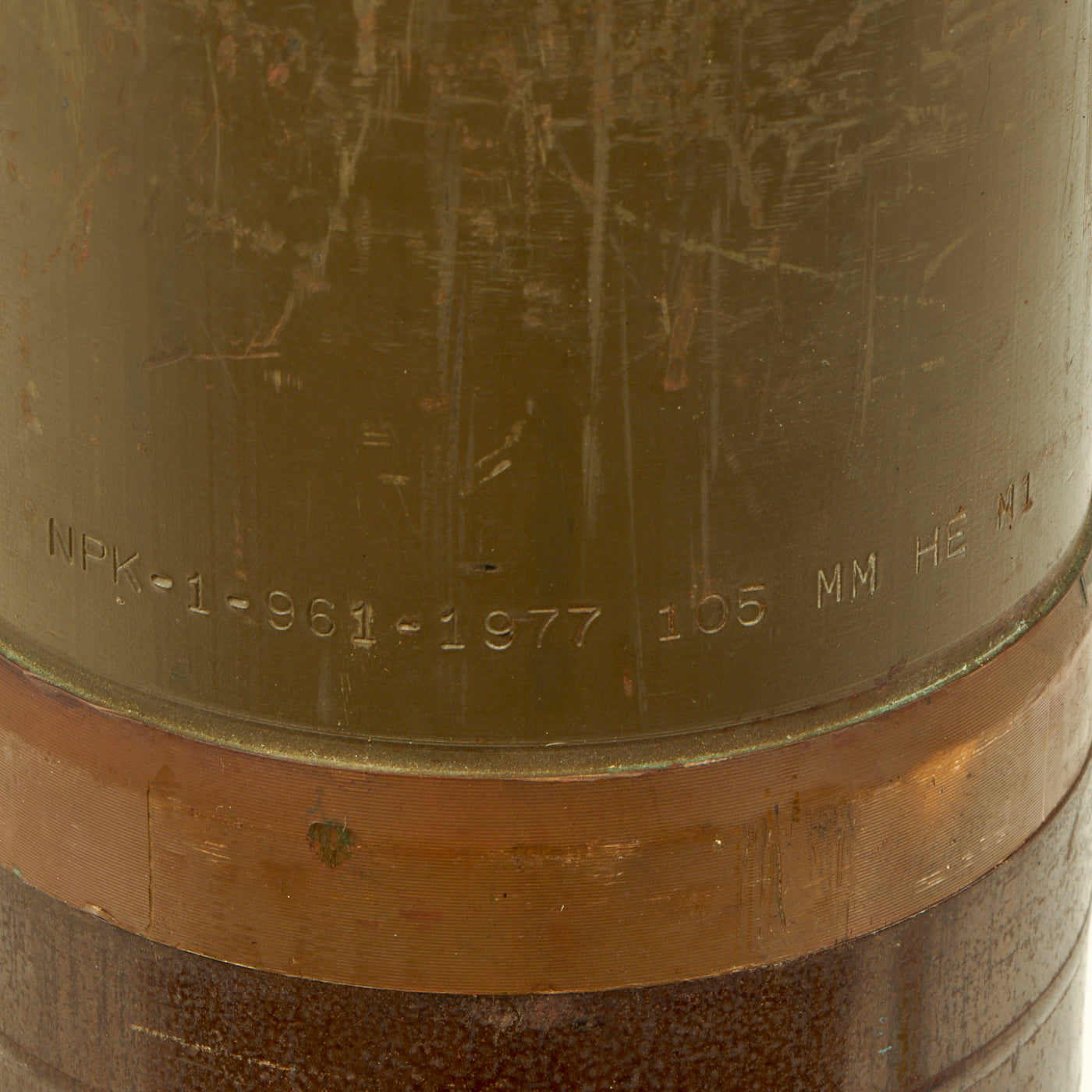

The round comes complete with a M73 Dummy Fuze which is marked as such. The shell still has it’s stampings visible as well: NPK-1-961-1977  105 MM HE M1. The round doesn’t appear to have been repainted and it has retained quite a bit with only a small amount of wear to it. The casing is dated 1954 and the following information can be found on the bottom: 105MM-M14B1 / 1954  KUC-14-102. The casing has not been painted and still retains a lovely bronze colored patina.

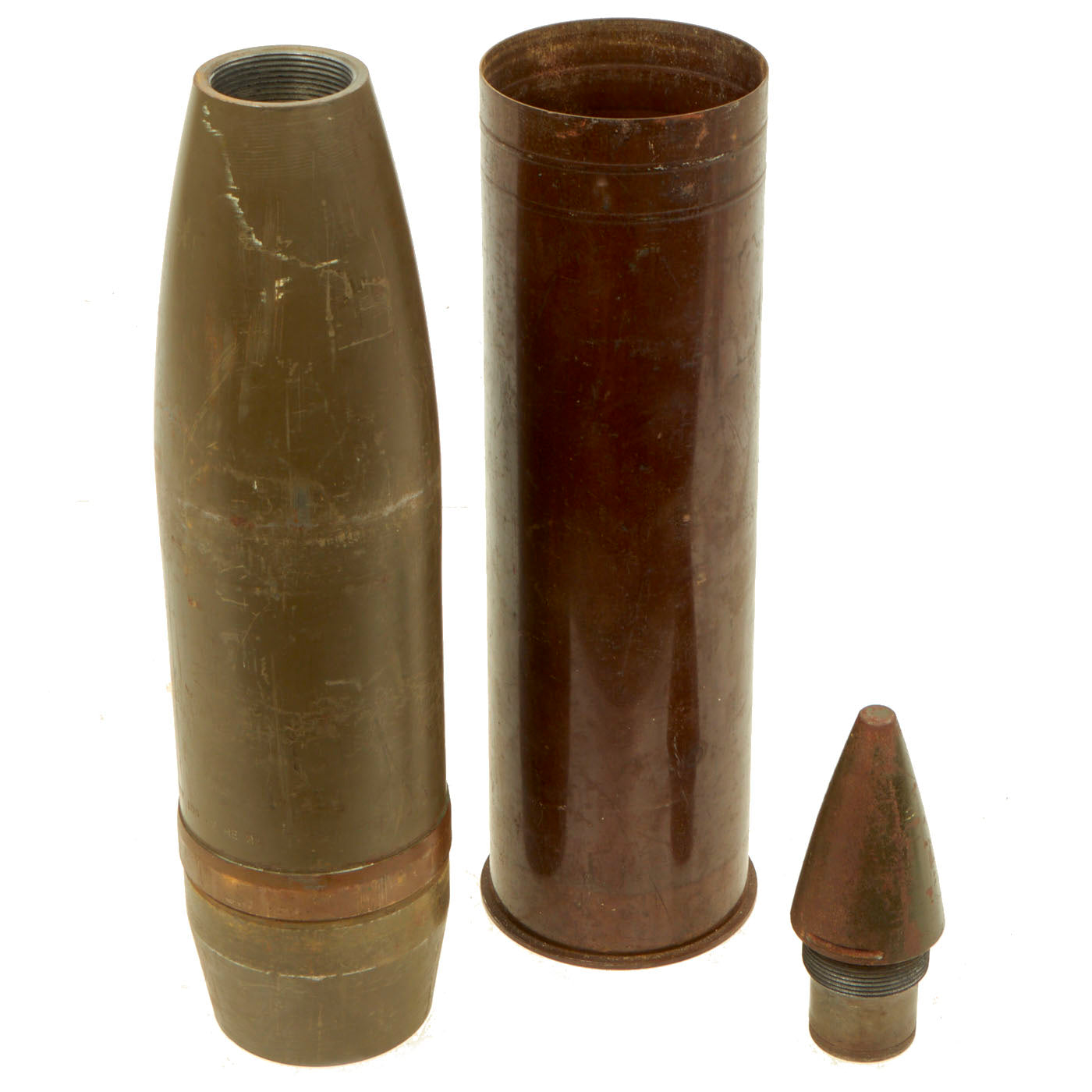

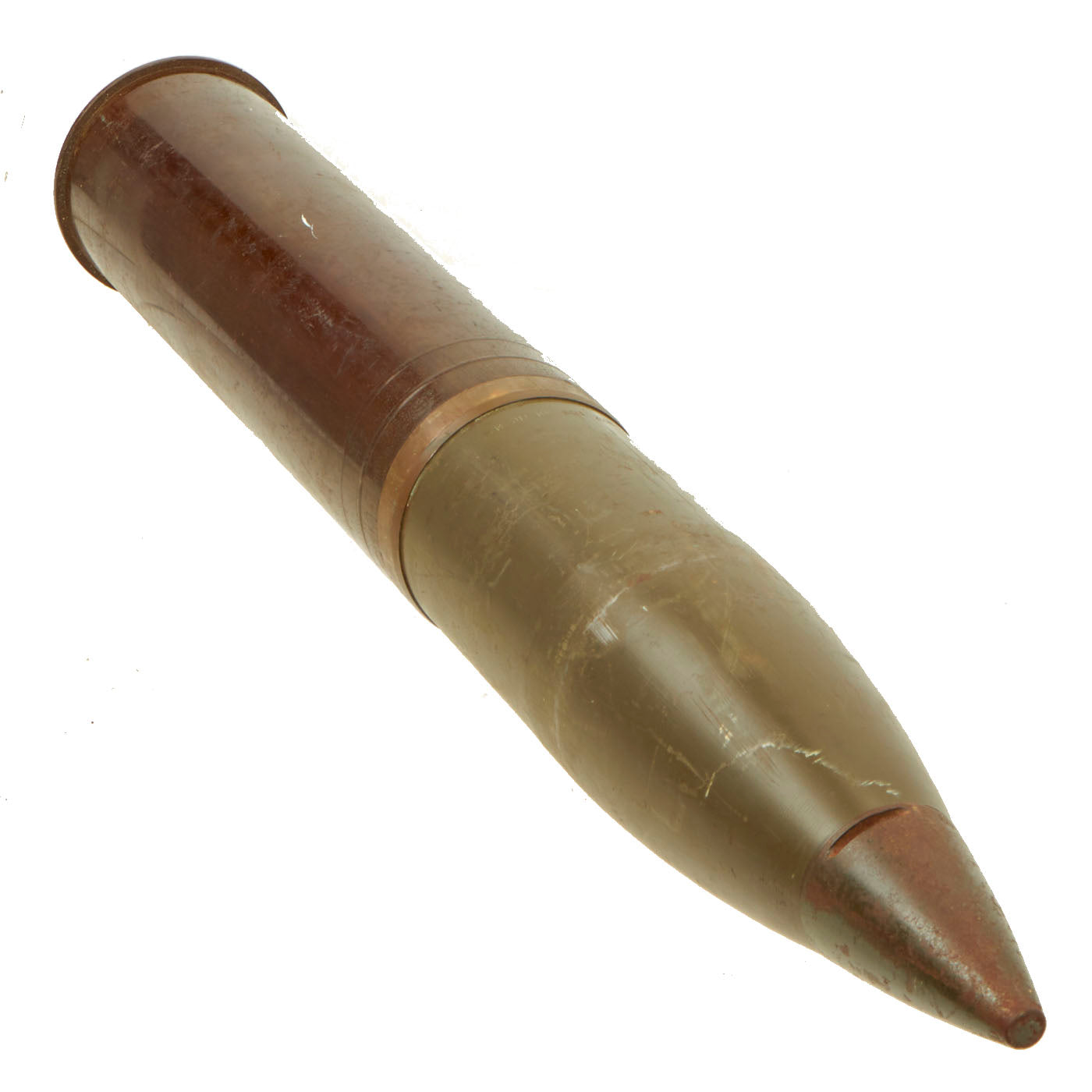

Both pieces together make for an impressive display piece and would look great in any collection from WWII up to modern day!

Dimensions
Shell Height: 19 ½”
Shell Base Width: 3 ½”
Casing Height: 14 ½”
Casing Width: 4 ½”
Total Height: 31”


M102 howitzer
The M102 105 mm howitzer is used in air mobile (helicopter), attack plane, and light infantry operations. The weapon carriage is lightweight welded aluminum, mounted on a variable recoil mechanism. The weapon is manually loaded and positioned, and can be towed by a 2-ton truck or High Mobility Multipurpose Wheeled Vehicle (HMMWV), can be transported by UH-60 Black Hawk helicopters, or can be dropped by parachute with airborne units. When emplaced, the howitzer's high volume of fire compensates in large measure for the lower explosive weight of the projectile compared to the Army's 155 mm and 8-inch howitzers. Since 1964, the Army acquired 1,150 M102 towed howitzers. The weapon is being replaced by the M119-series 105 mm howitzer.

Units were initially equipped with the M101A1 howitzer, virtually the same 105 mm howitzer that had been used to support U.S. forces since World War II. In 1966 a new 105 mm towed howitzer, the M102, was received in Vietnam. The first M102s were issued to the 1st Battalion, 21st Field Artillery, in March 1966. Replacement of the old howitzers continued steadily over the next four years.

Many of the more seasoned artillerymen did not want the old cannon replaced. Over the years they had become familiar with its every detail and were confident that it would not disappoint them in the clutch. These experienced artillerymen could offer some seemingly convincing reasons why the M101 was still the superior weapon: its waist-high breech made it easier to load; it had higher ground clearance when in tow; but most important, it was considerably less expensive than the M102. Their arguments, however, were futile.

The new M102 was substantially lighter, weighing little more than 1.5 short tons (1.4 t) whereas the M101A1 weighed approximately 2.5 short tons (2.3 t); as a result, more ammunition could be carried during heliborne operations, and a 3/4-ton truck rather than a 2½-ton truck was its prime mover for ground operations. Another major advantage of the M102 was that it could be traversed a full 6,400 mils; the M101A1 had a limited on-carriage traverse, which required its trails (stabilizing legs) to be shifted if further traverse was necessary. The M102 fires the same semi-fixed ammunition as the M101, but it's longer barrel (32 caliber versus 22 caliber on M101) allows a slightly higher muzzle velocity and thus enhanced firing range. A low silhouette made the new weapon a more difficult target for the enemy, an advantage that far outweighed the disadvantage of being somewhat less convenient to load.

The 105 mm howitzer M102 is a lightweight towed weapon, which has a very low silhouette when in the firing position. The M102 howitzer fires a 33 lb (15 kg) projectile of semi fixed ammunition and at charge 7 will fire 11,500 meters. It has a muzzle velocity of 494 metres per second (1,620 ft/s). The maximum rate of fire is 10 rounds per minute for the first 3 minutes, with a sustained rate of 3 rounds per minute.

A roller tire attached to the trail assembly of the M102 permits the weapon to be rotated 6,400 mils (360 degrees) around a firing platform, which provides the pivot for the weapon. It can be elevated from −89 mils (−5 degrees) to a maximum of 1,333 mils (75 degrees). The panoramic telescope has a four power, fixed focus optical system, with 178 mils field of view. It contains dry nitrogen gas to retard fogging and condensation. The parallax shield used during boresighting protects the lens.

The trails are made of aluminum alloy. They are a single box trail in wishbone shape, and serve three purposes: mobility; stability; and stowage of section equipment. The lunette is the towing pintle that allows the weapon to be connected to the vehicle. When towing, the vehicle has a fixed or seized tow pintle; remove the lock plate located under the lunette. The drawbar has two positions: lowered for travel and raised for firing. There are two lifting brackets to connect slings to when the howitzer is being lifted by helicopter. A third bracket is located on the front yoke. The carriage handles are used by crew members to lift and shift the howitzer during loading, unloading, and emplacing the howitzer.

The firing platform attaches to the howitzer lower carriage by using a socket and a locking handle. The eight holes are for the stakes needed to stake the howitzer in position. Platform stakes are issued in three sizes. There are four 15 in (38 cm) stakes issued for use in frozen or rocky terrain, and are normally issued only where needed, such as extremely cold areas. There are eight 24 in (61 cm) stakes issued, and are used for hard packed ground. Four 38 in (0.97 m) stakes are issued for use in soft ground.

The first production versions were displayed with a muzzle brake, most likely to allow long range 105 mm rounds to be fired, but was discontinued before shipment to Vietnam.

While the M102 is no longer in active use by the United States Army, having been replaced by the M119, it is still in use by the National Guard. The M102 was last deployed to combat in 2004 by the 1st Battalion, 206th Field Artillery, Arkansas Army National Guard. Seventeen M102 howitzers were deployed to Camp Taji, Iraq. The 1-206th FA provided fire and conducted counter-fire missions in support of 39th BCT operations, an element of the 1st Cavalry Division. The 1-206th scavenged spare parts from nine M102 howitzers that were located in the Camp Taji Boneyard. These howitzers were allegedly captured by the Iraqi Army during the Iran–Iraq War in the 1980s.

The M102 is also used on the United States Air Force's Lockheed AC-130 gunship. The M102 105 mm cannon was modified to be fired from the left rear side door of the AC-130. To accommodate the cannon, the rear side-firing 40 mm guns were replaced by the radome that formerly had been installed in the door cavity. That change provided enough space for the 105 mm gun to be mounted in the doorway in place of the radome. The gun was first used in the later stages of the Vietnam War and is still used in the AC-130U gunship. The latest AC-130J Ghostrider gunship was not originally planned to include the 105 mm, but designed with enough spare power and room to mount it at some later point. The Air Force decided to include it in January 2015, starting installation on the third aircraft, then having the first two be retrofitted when guns become available; M102s will be pulled off retiring AC-130Us and put into the AC-130Js.

The M102 is used in extremely limited roles by the United States Marine Corps, primarily for firing salutes.
