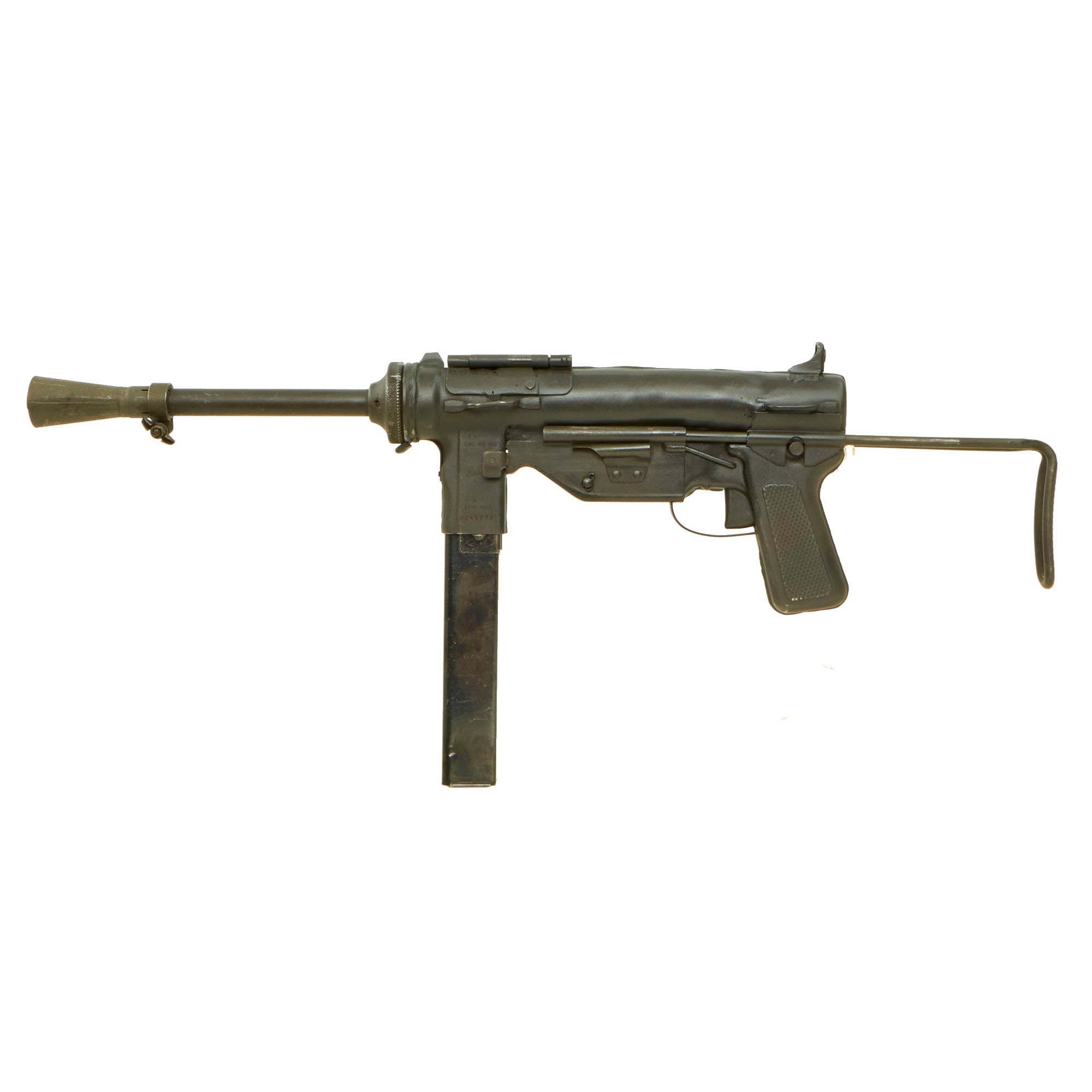

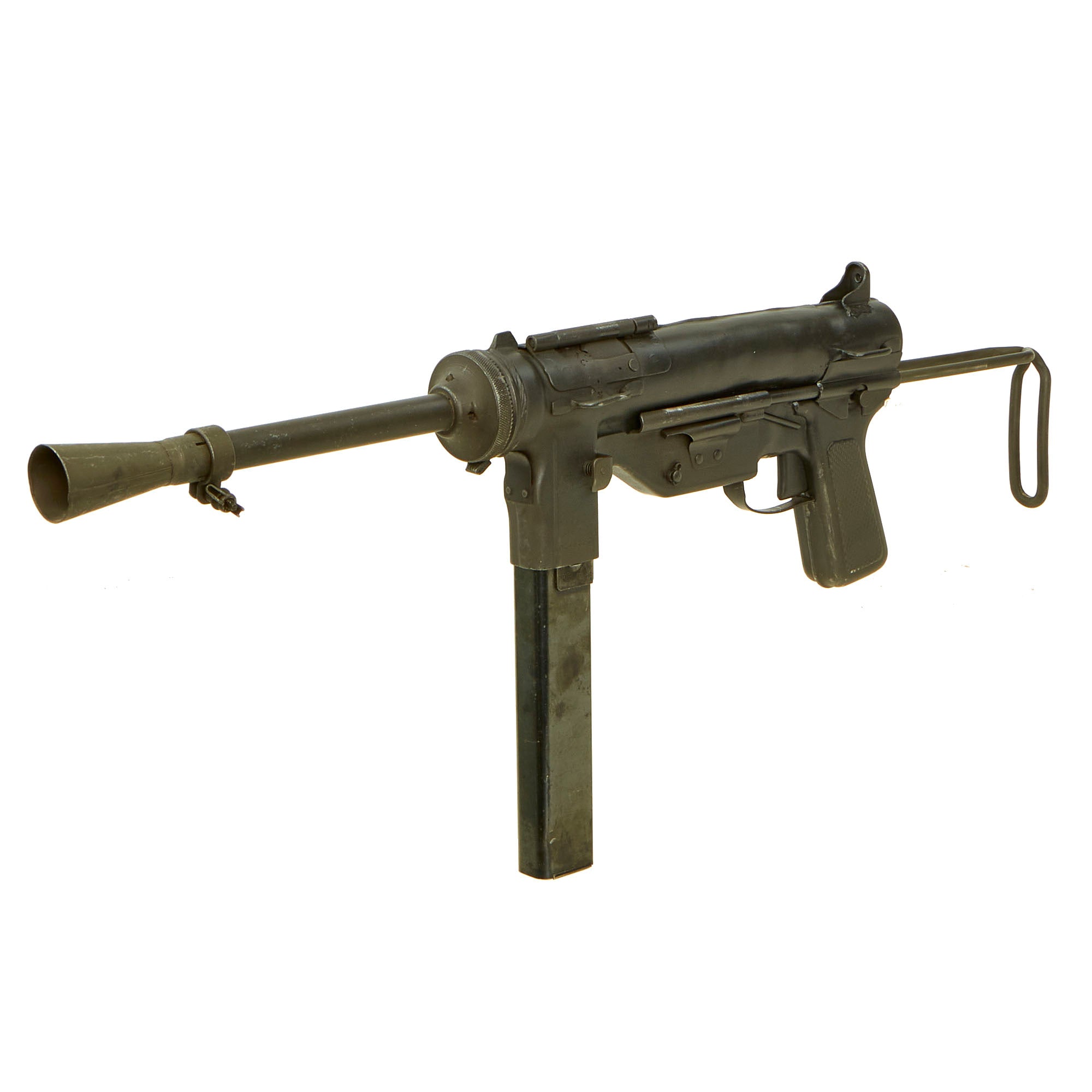

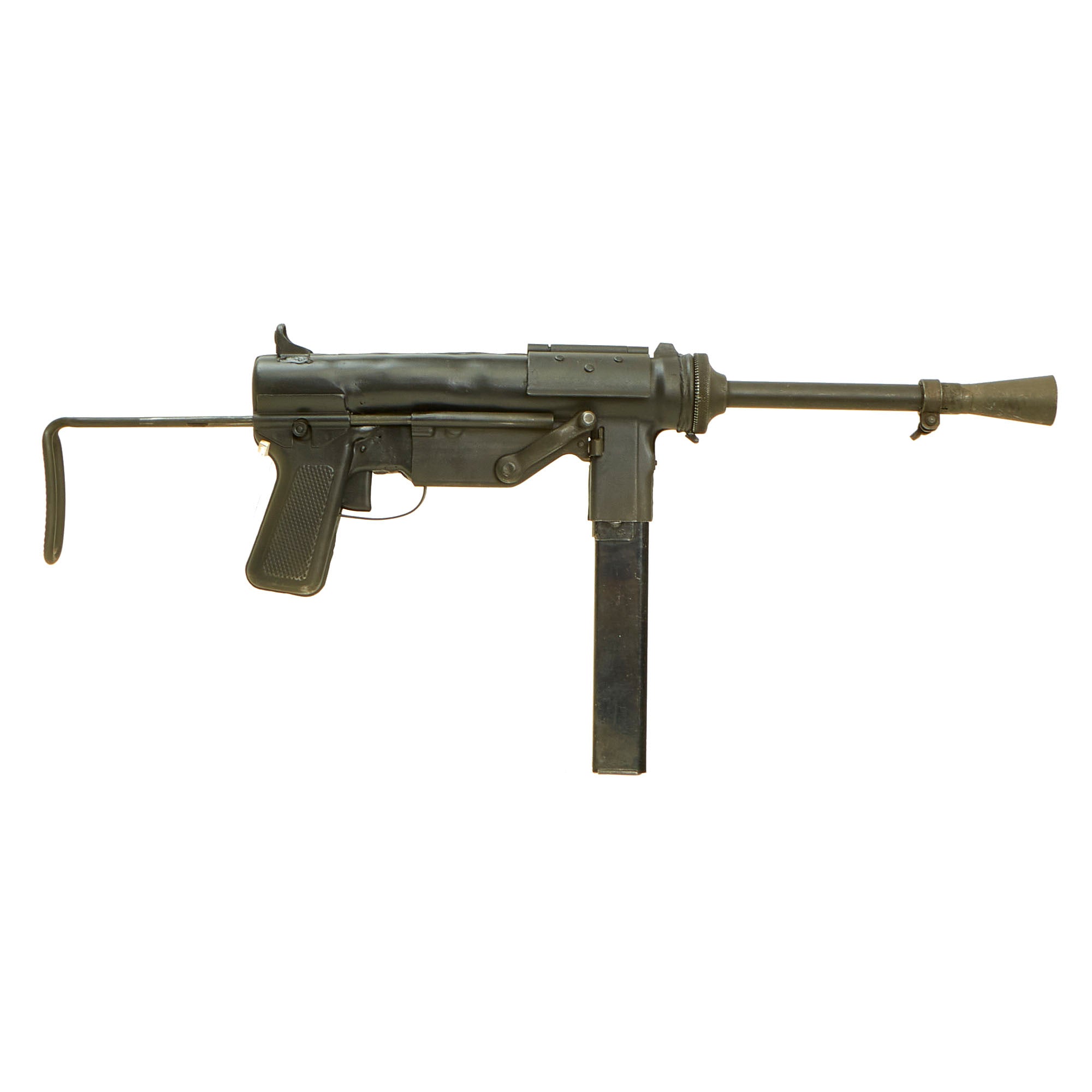

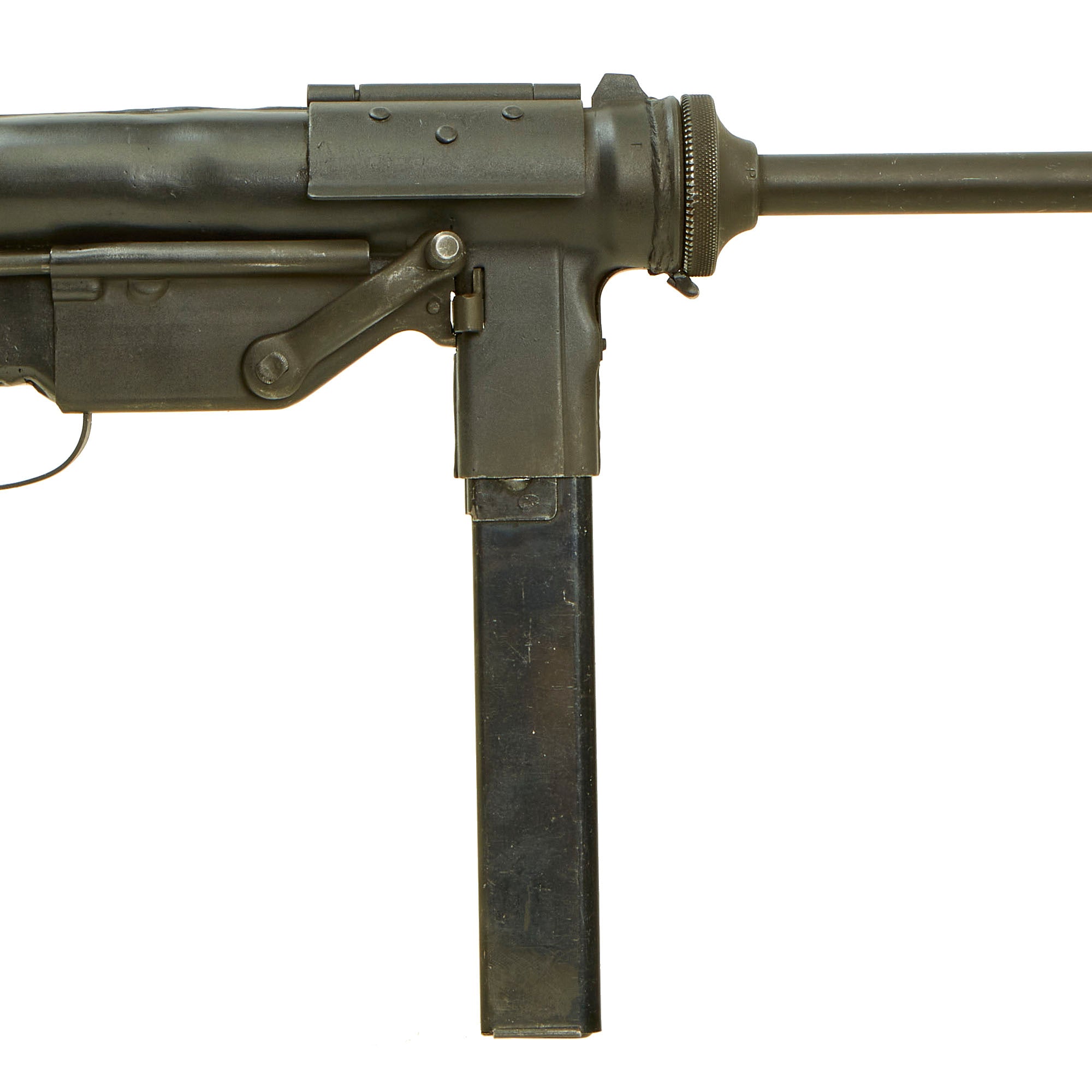

Original Item: Only One Available. This is a magnificent WWII "SUB-MACHINE GUN, CAL 45, M3" display gun, usually referred to as the M3 "Grease Gun" due to the resemblance. It is built from all original USGI issue parts on an original BATF compliant non-firing display receiver, making this a 100% legal display Sub-Machine gun. This receiver was created by using portions of the original torch cut receiver, including the barrel bushing, combined with some new made steel portions. It has properly had a 30% section of the total length completely replaced entirely with solid steel bar stock. Meaning a 1/3 length section of the display receiver is solid steel, making this totally legal to own without a license of any kind. Every part on this display gun is original WWII manufacture other than 25% of the receiver replaced by solid steel (as required by BATF).

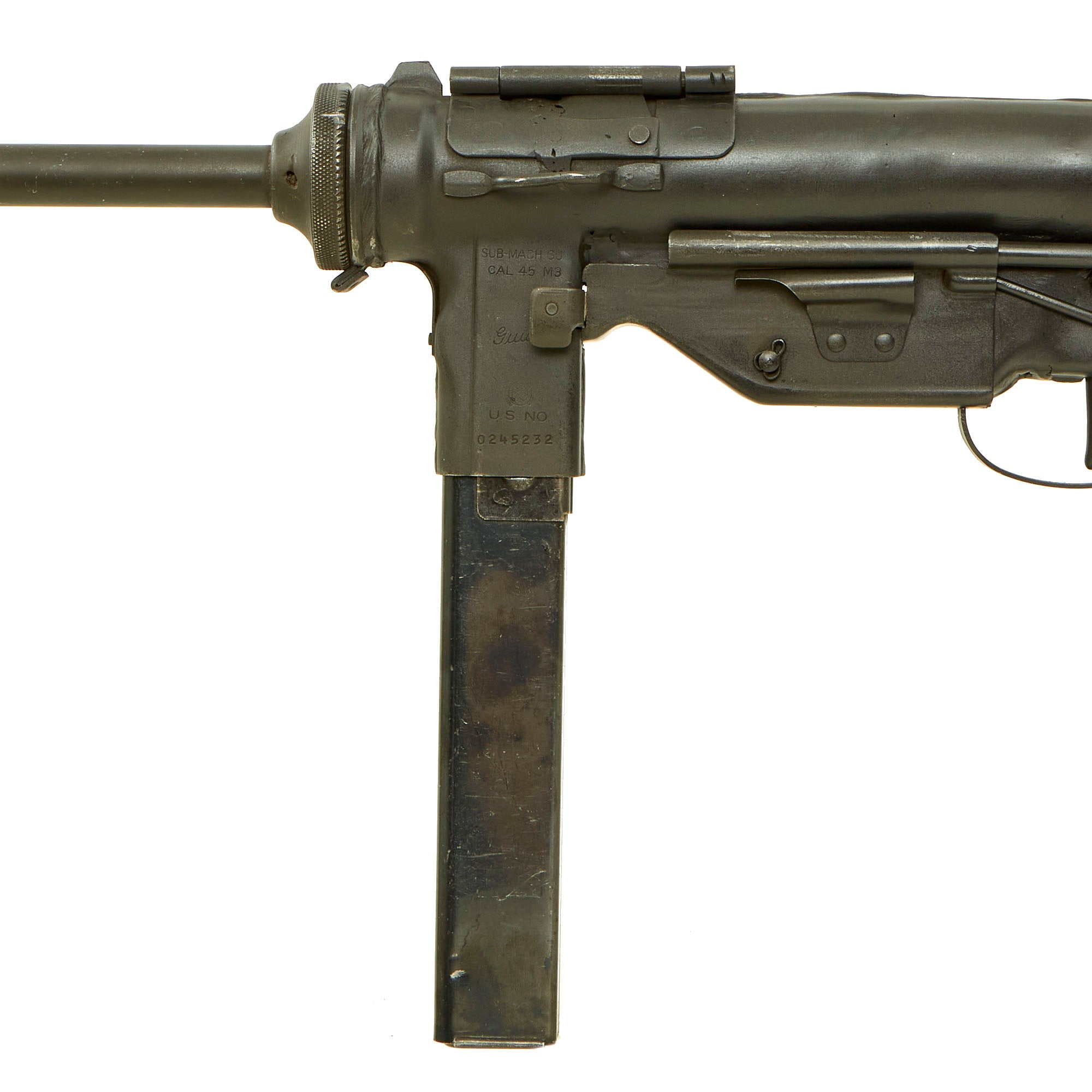

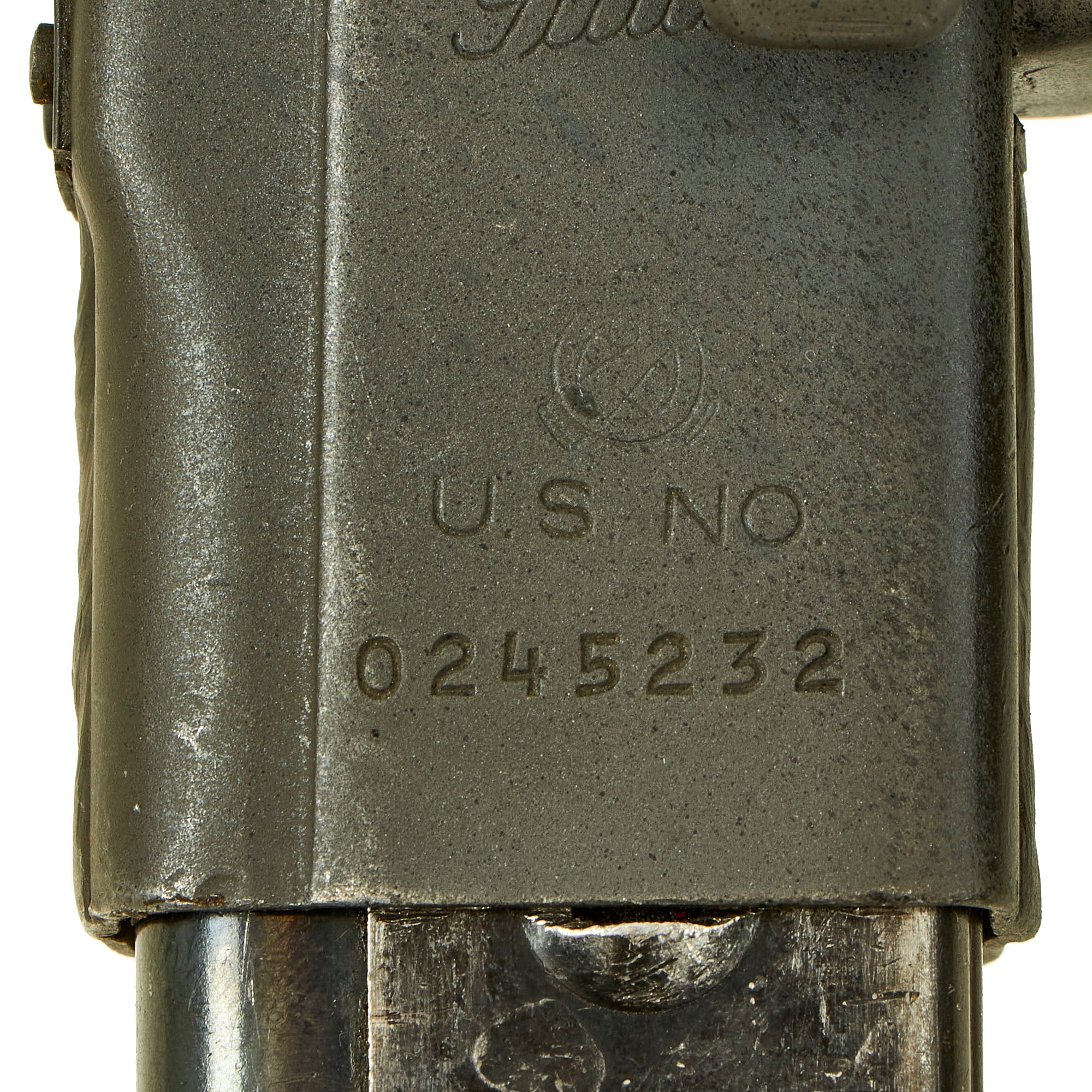

This wonderful condition Grease Gun was manufactured by the Guide Lamp Company and is complete with US ordnance "Crossed Cannons" markings on left side of magazine and serial number 0245232. This eye catching example is nicely maker marked and shows the serial number clearly. It also still has the official designation marked clearly, often worn away, above the complete markings:
SUB-MACH. GUN
CAL. 45 M3
Guide
(CROSSED CANNONS)
U.S. NO.
0245232
We've rarely seen examples where the markings are still so well preserved! The display gun is comprised of totally original WWII parts with the exception of the replaced portions of the BATF approved display receiver. The barrel has also been slightly altered by having the chamber welded up. This is a ATF approved non-gun making it 100% legal for sale, trade and ownership within the USA.

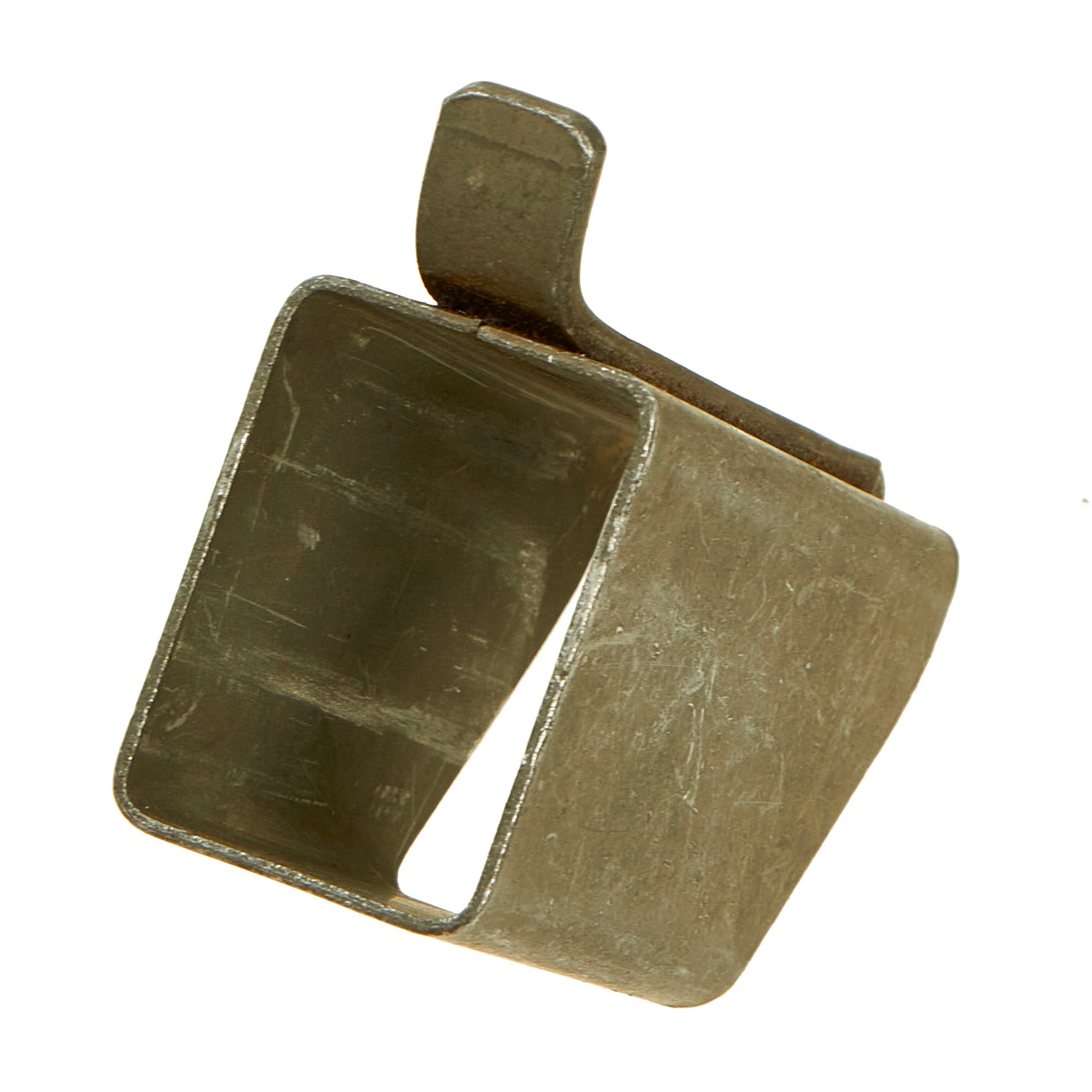

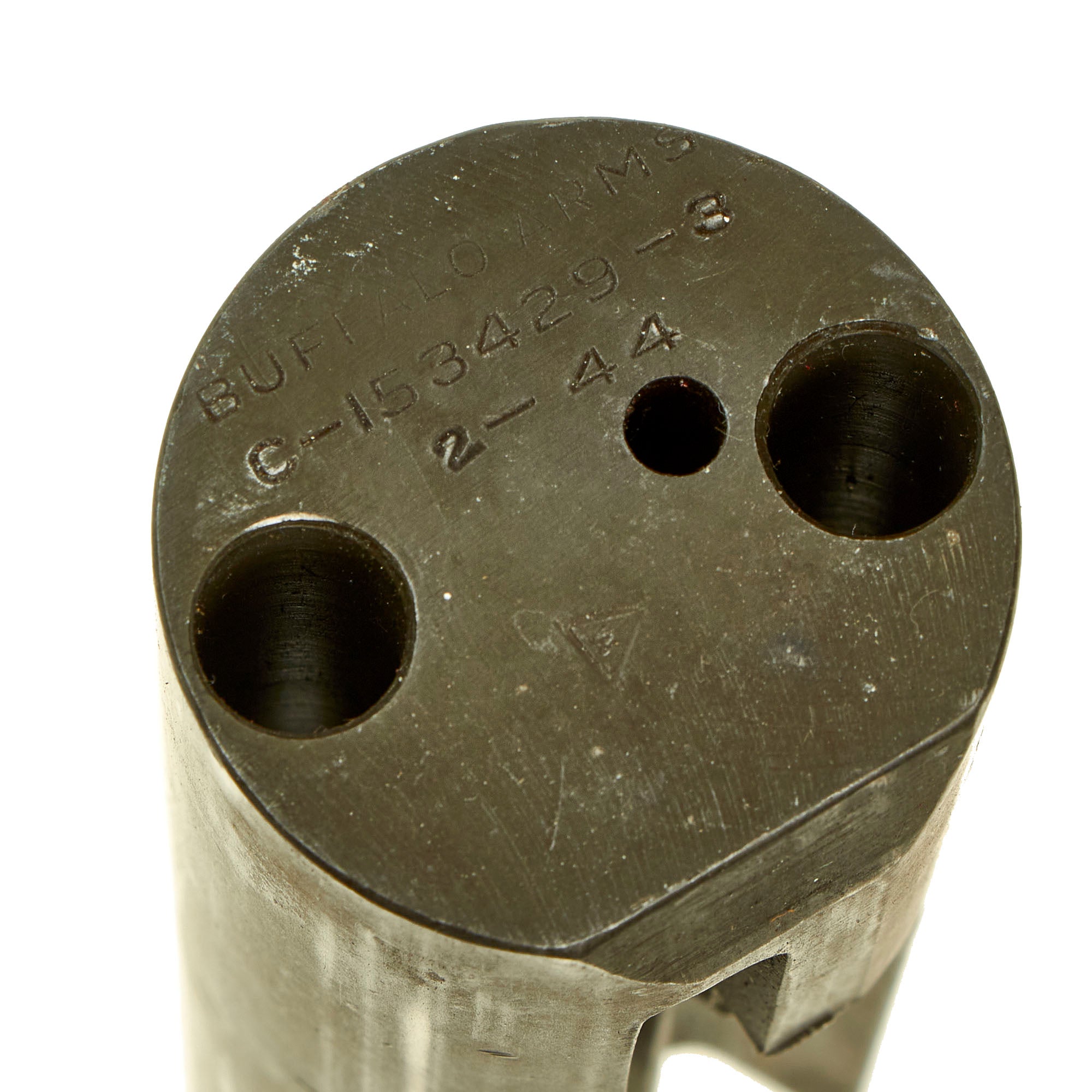

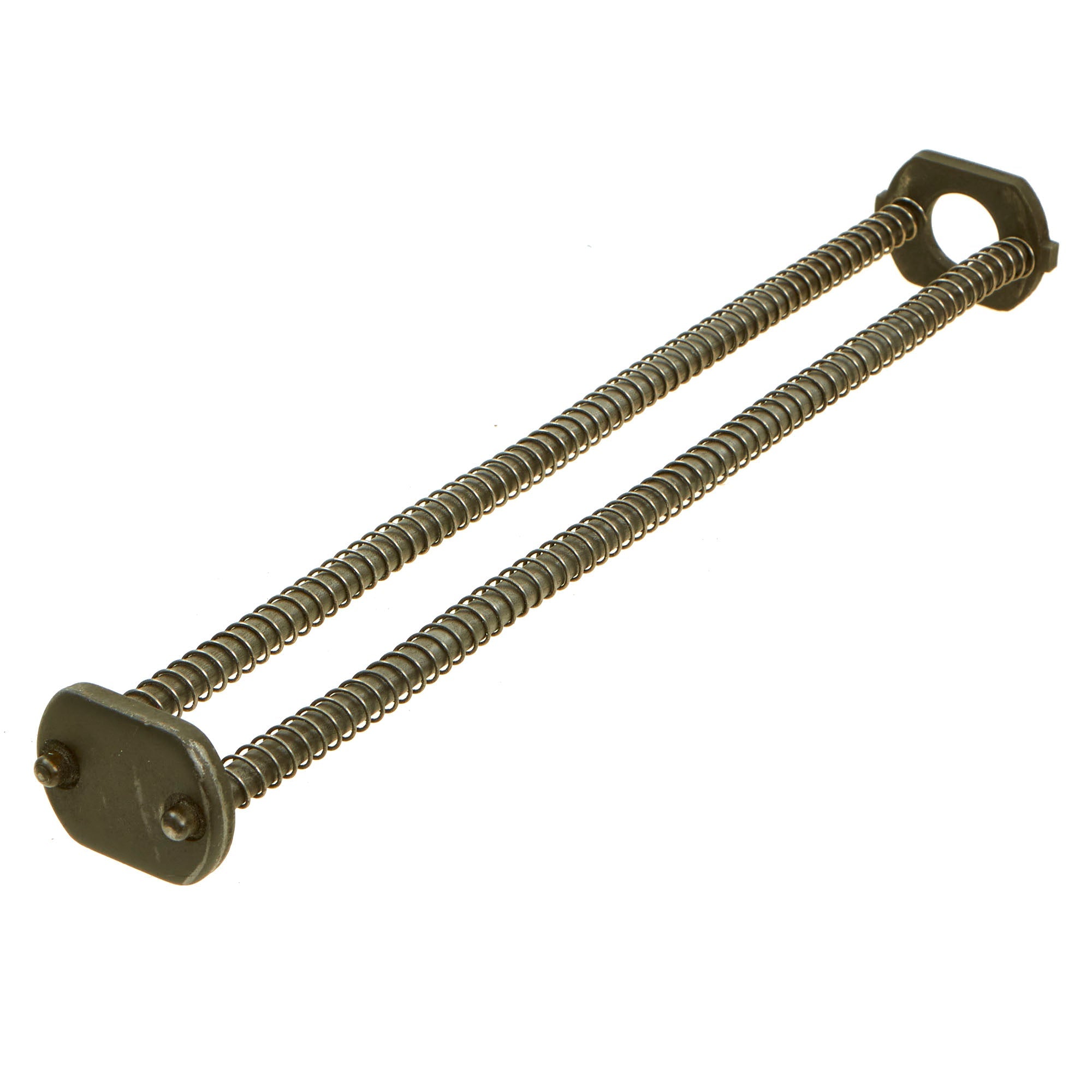

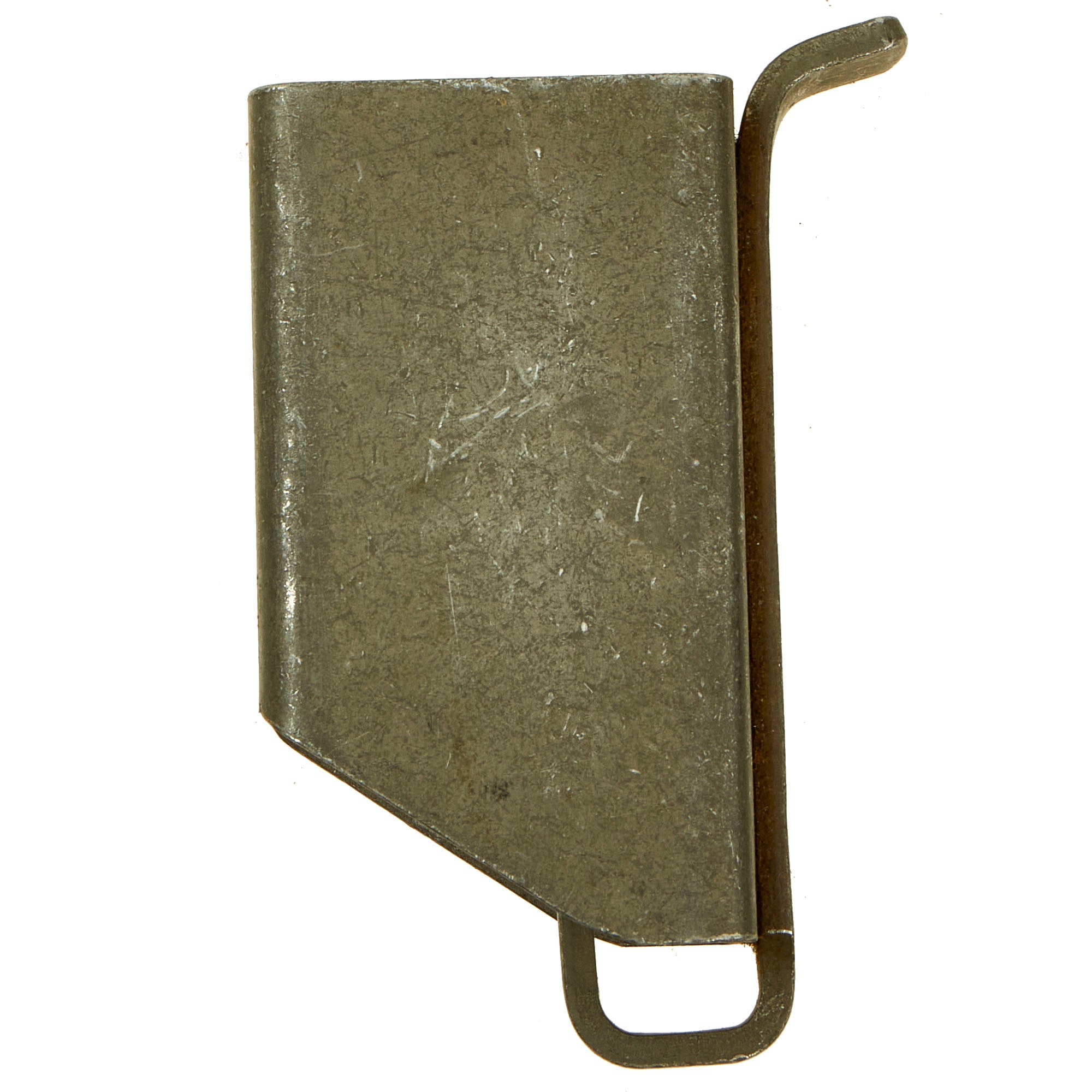

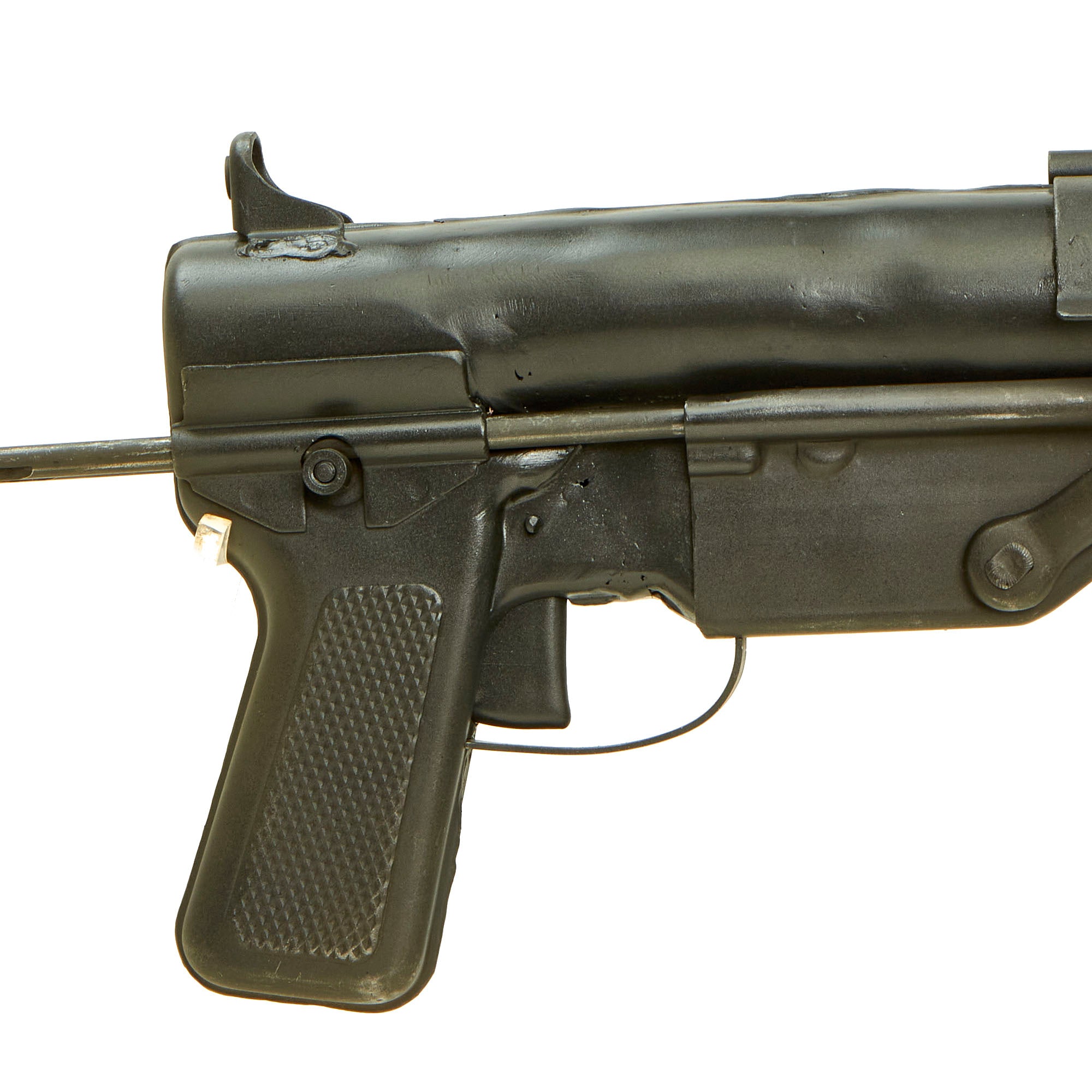

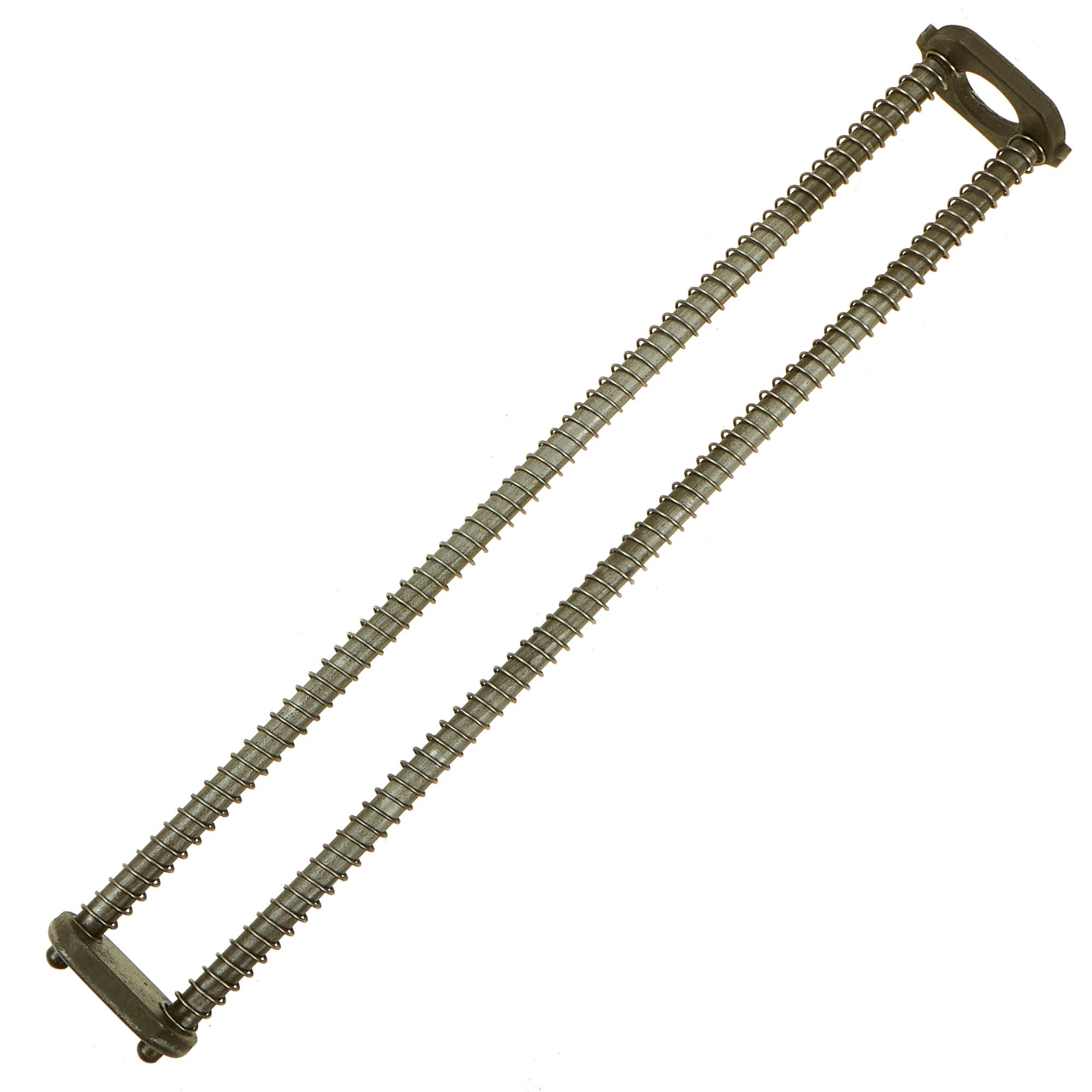

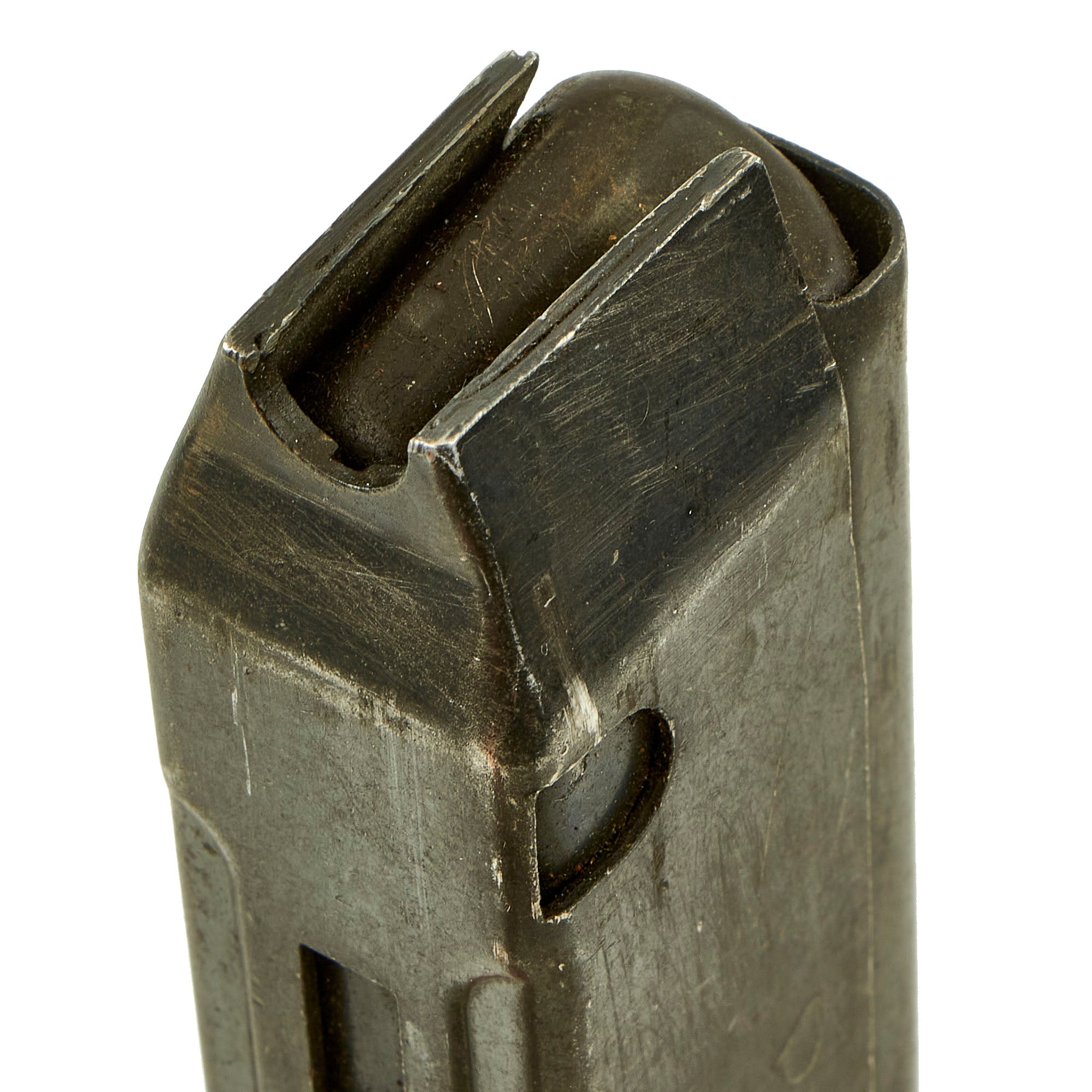

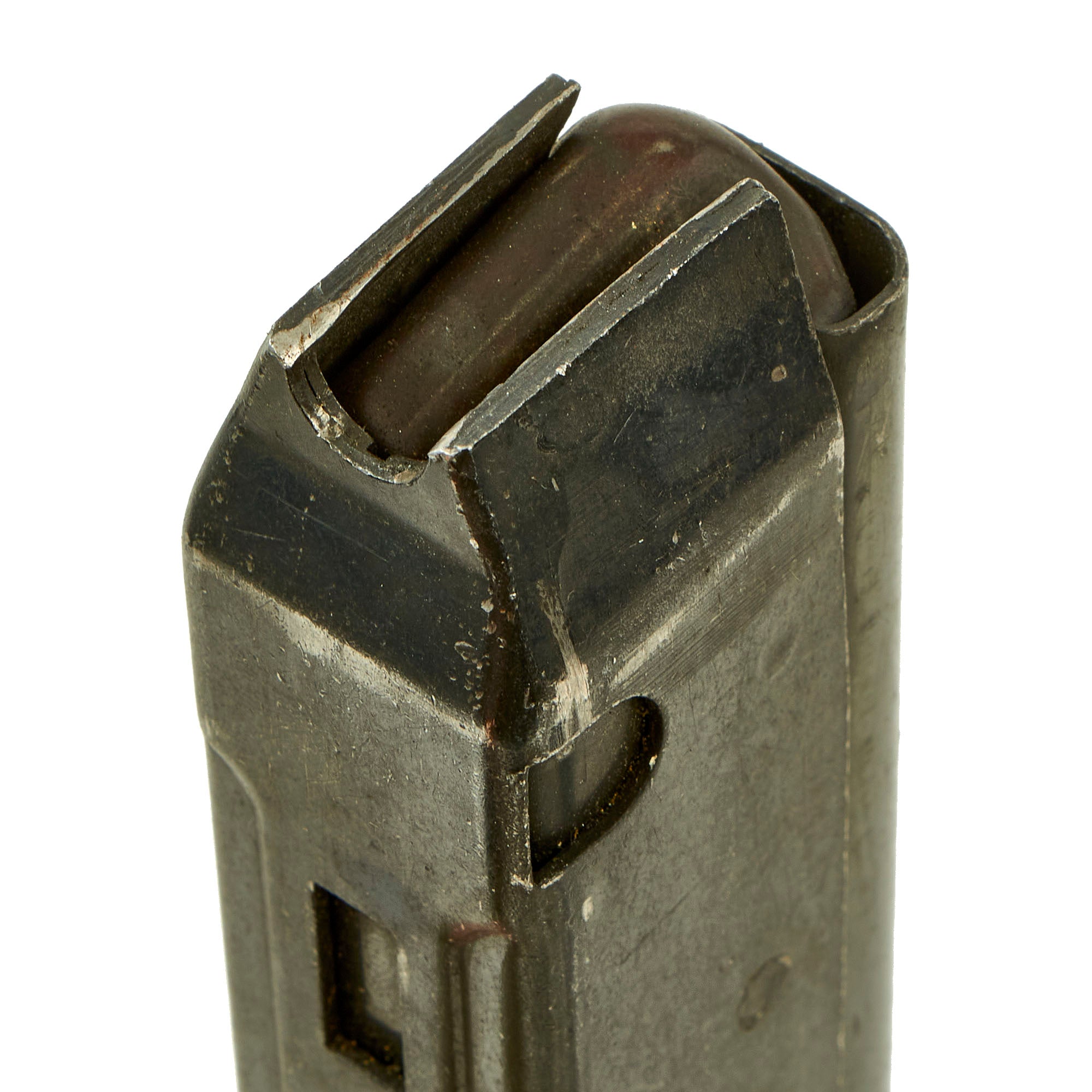

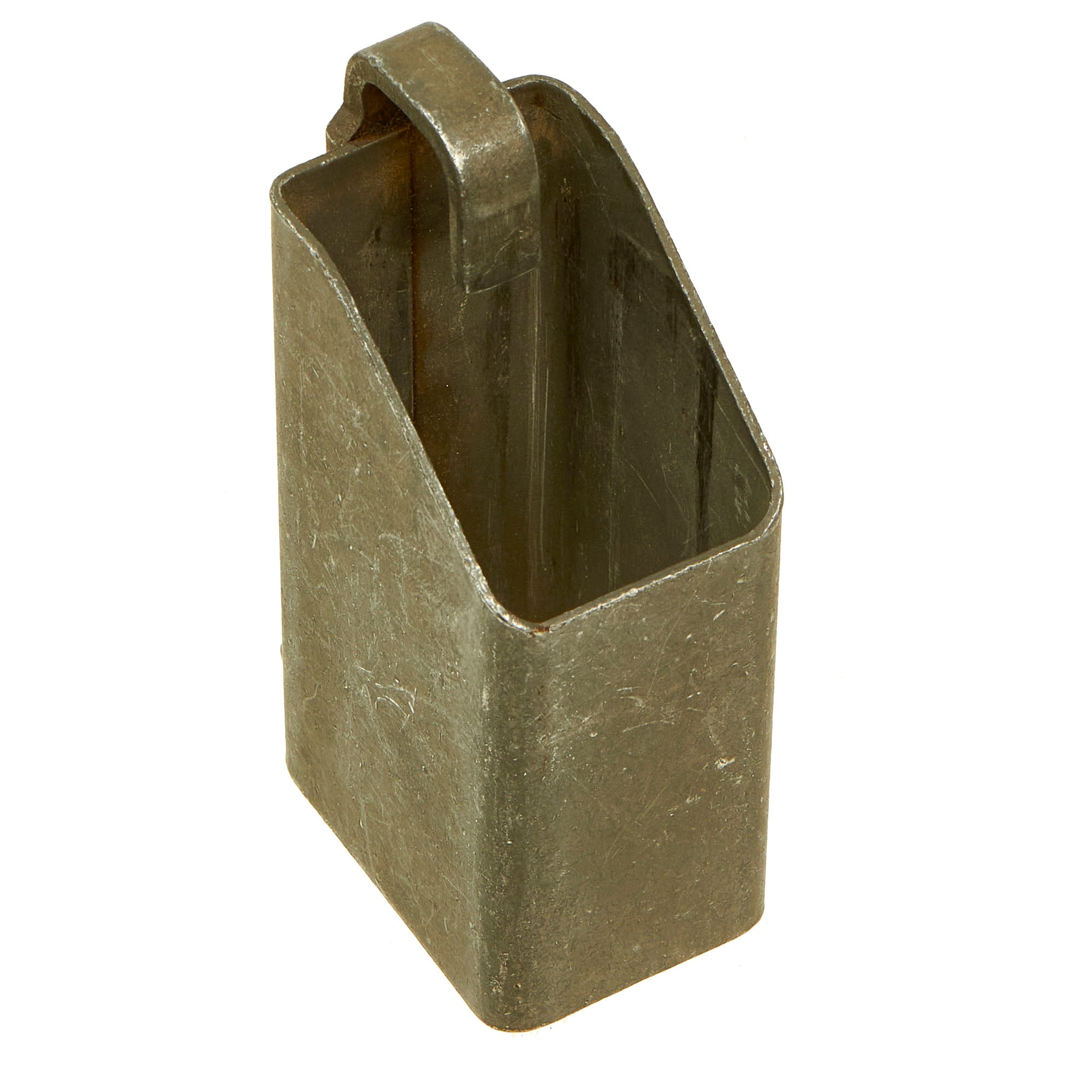

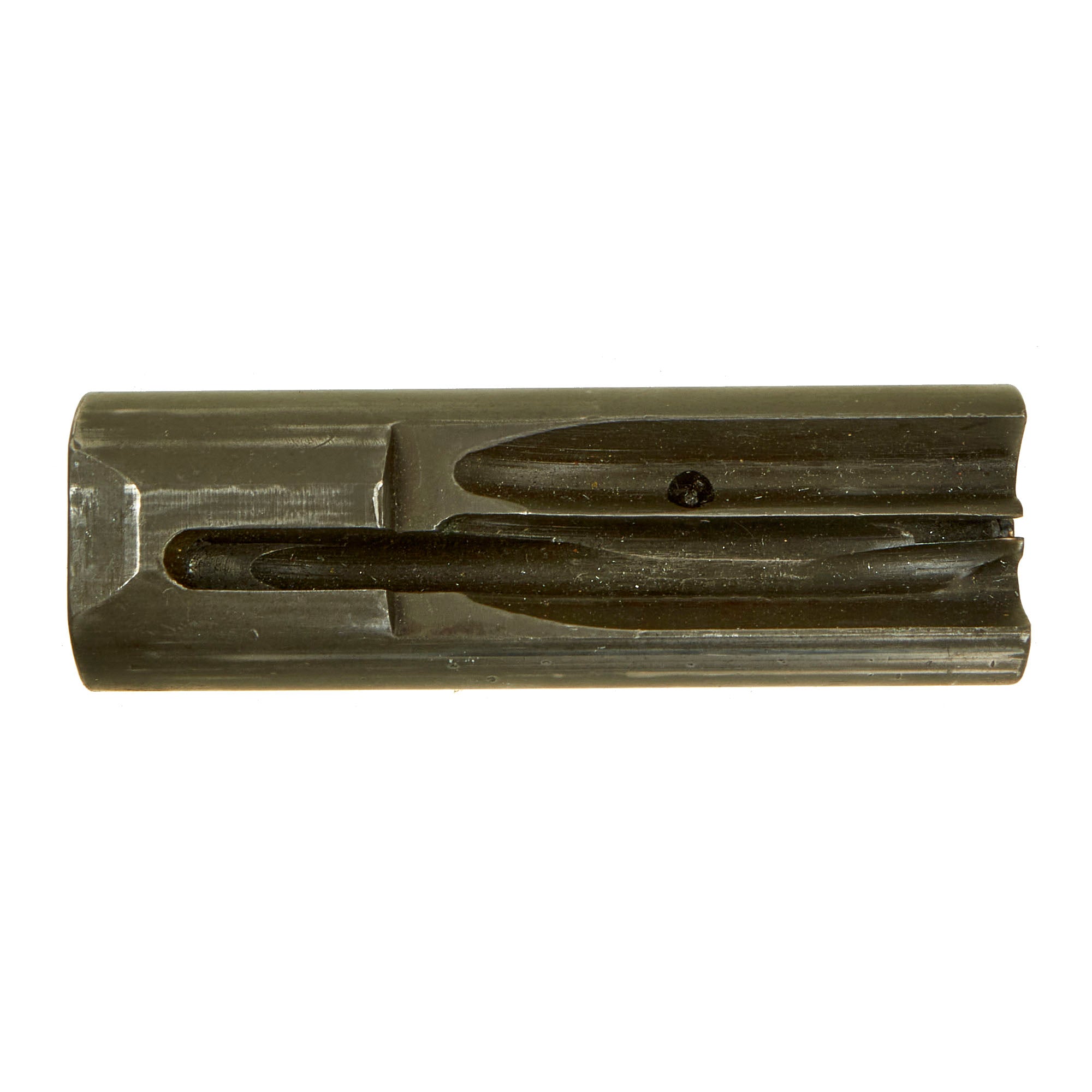

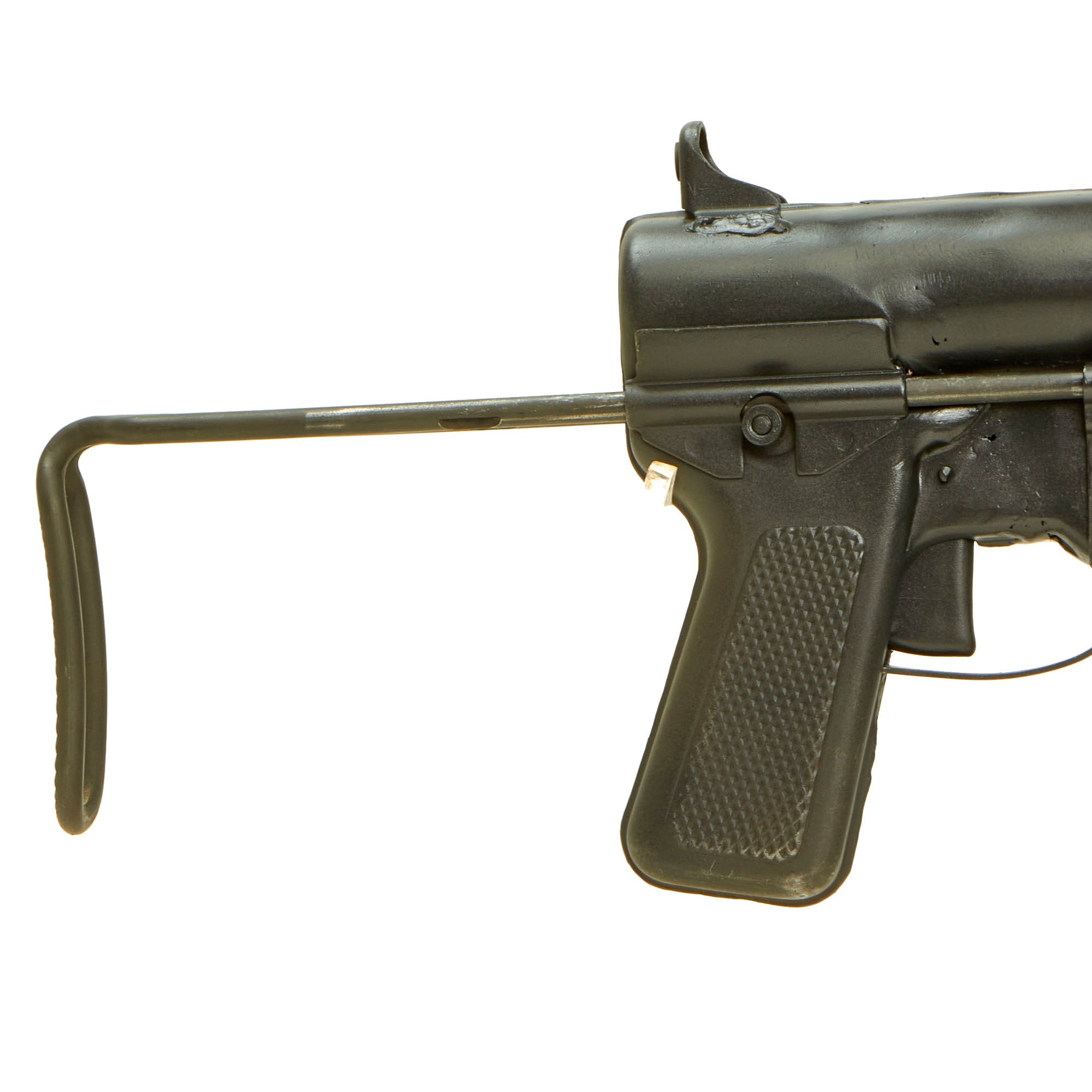

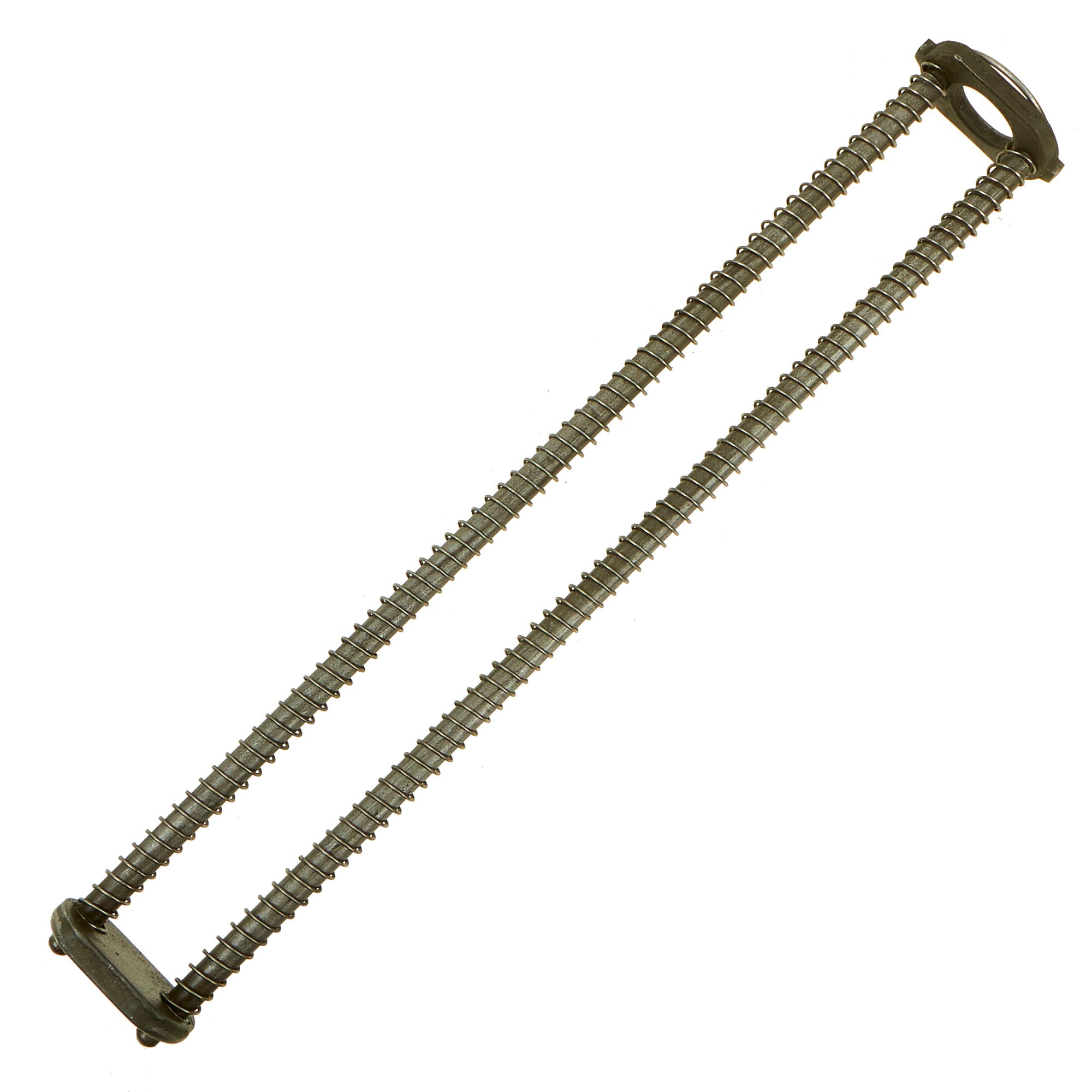

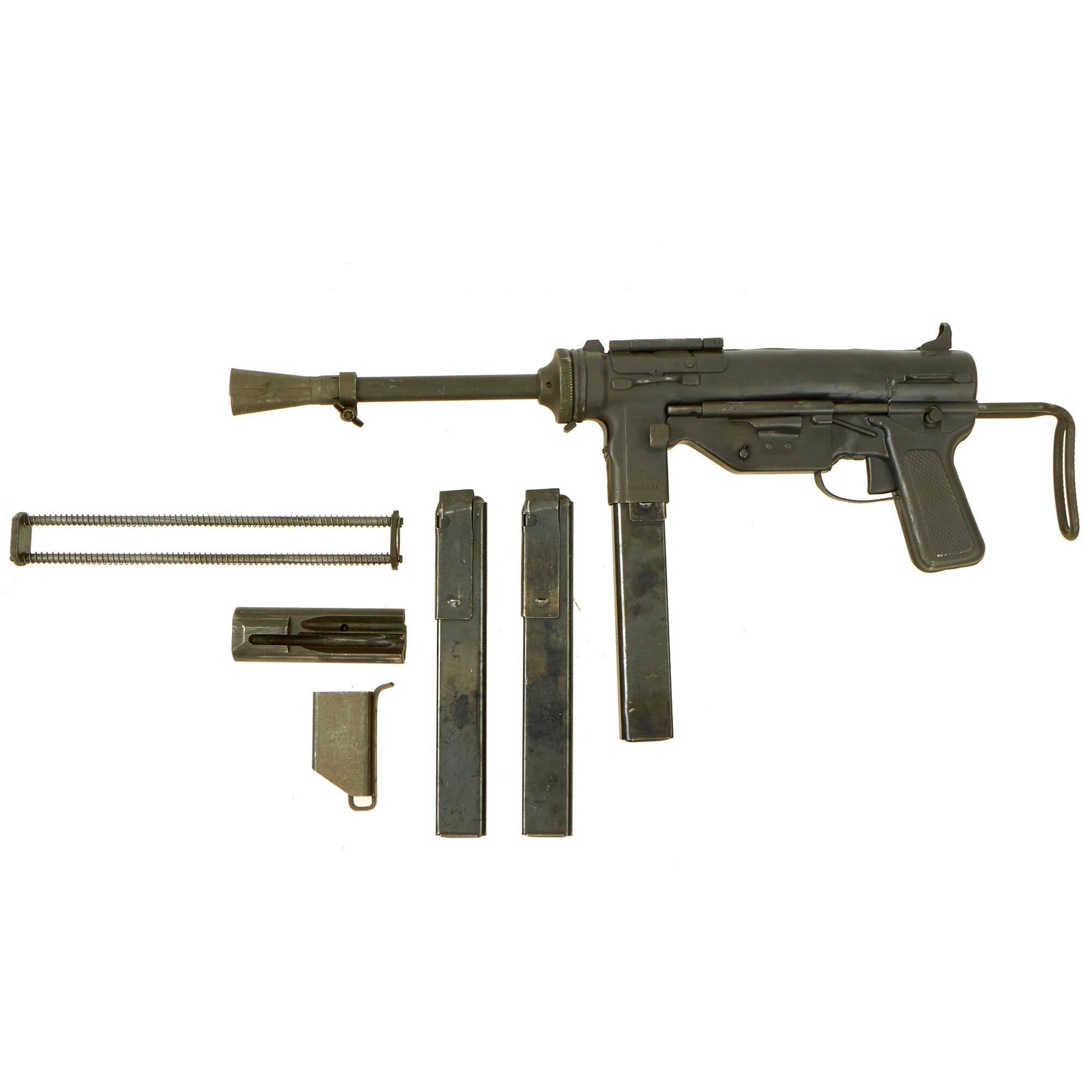

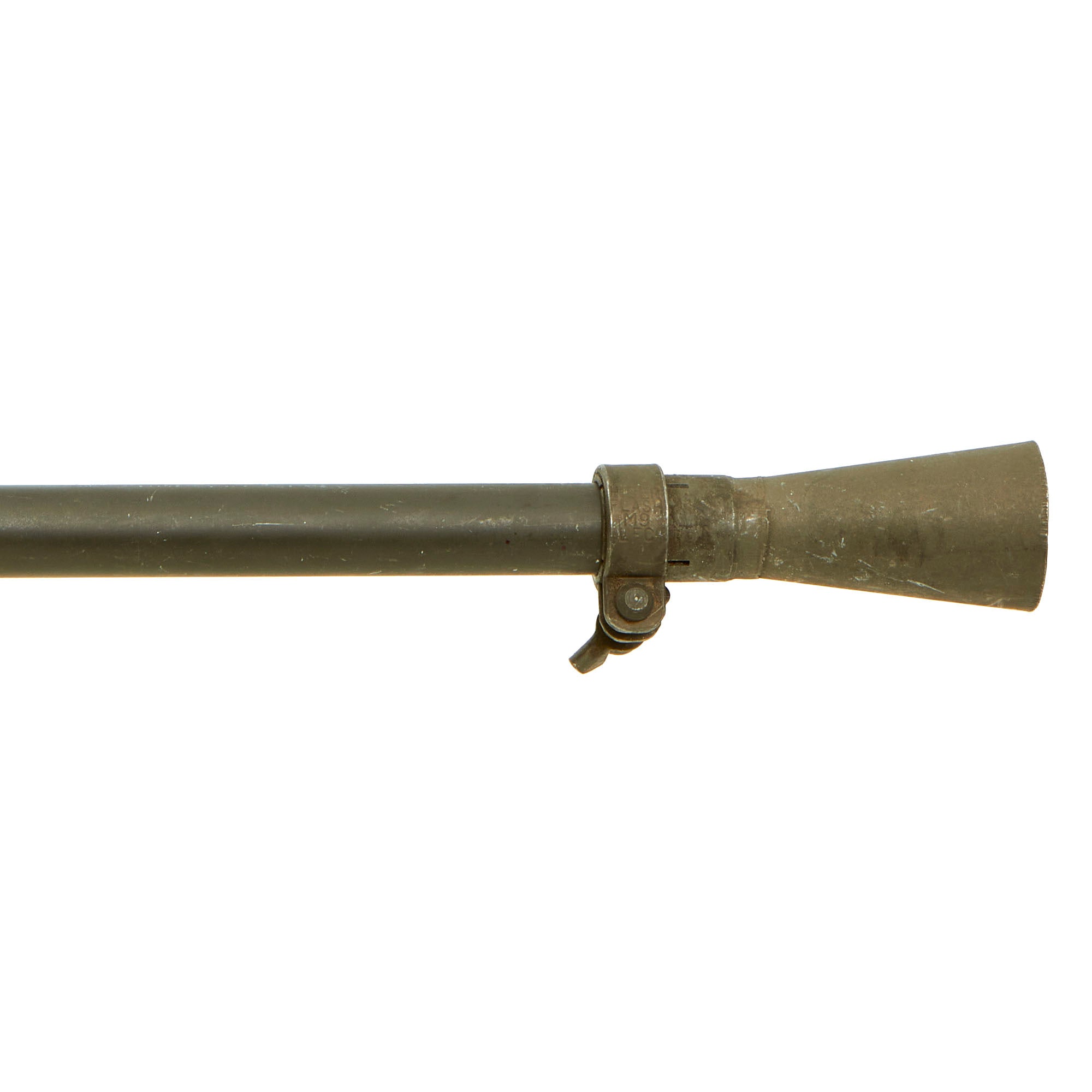

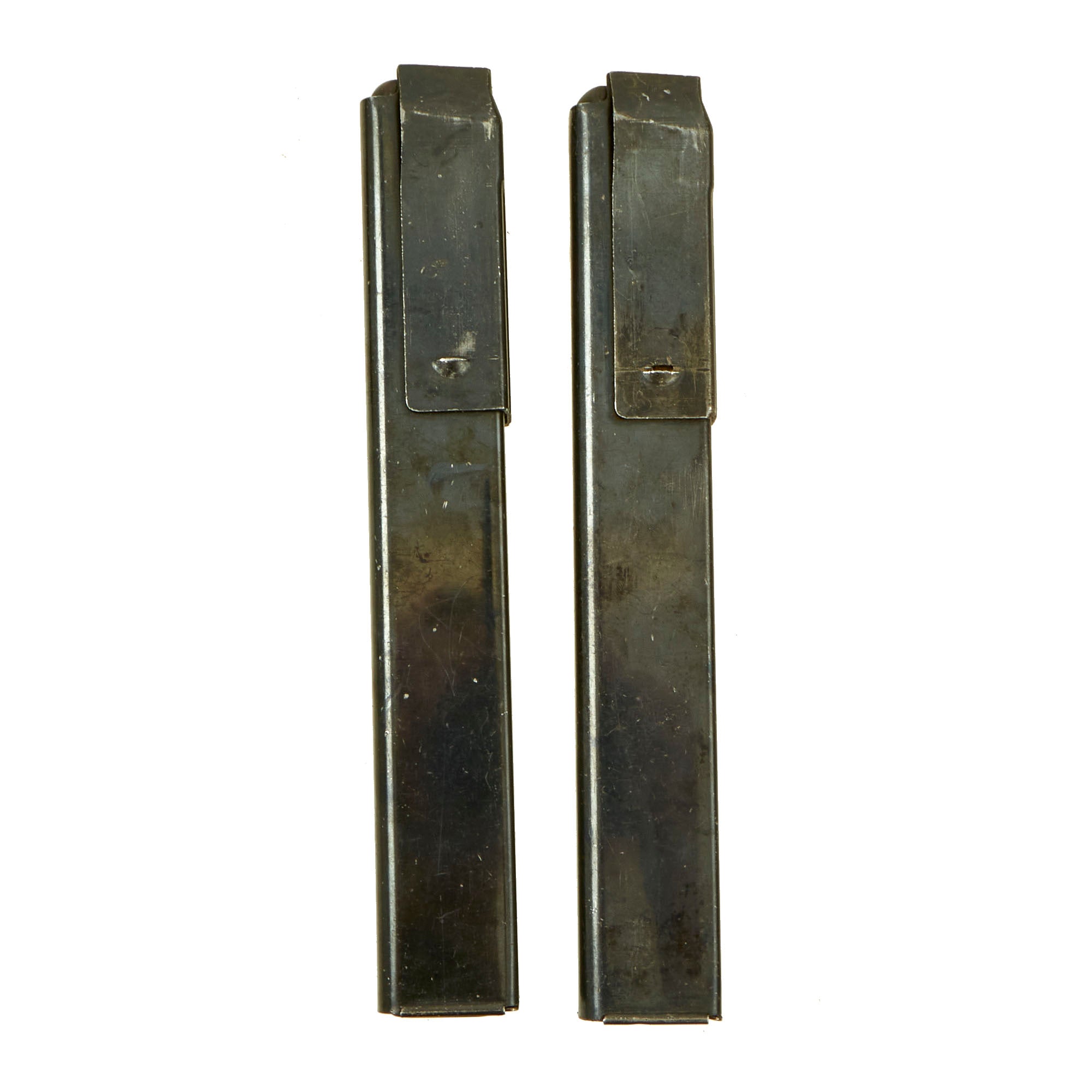

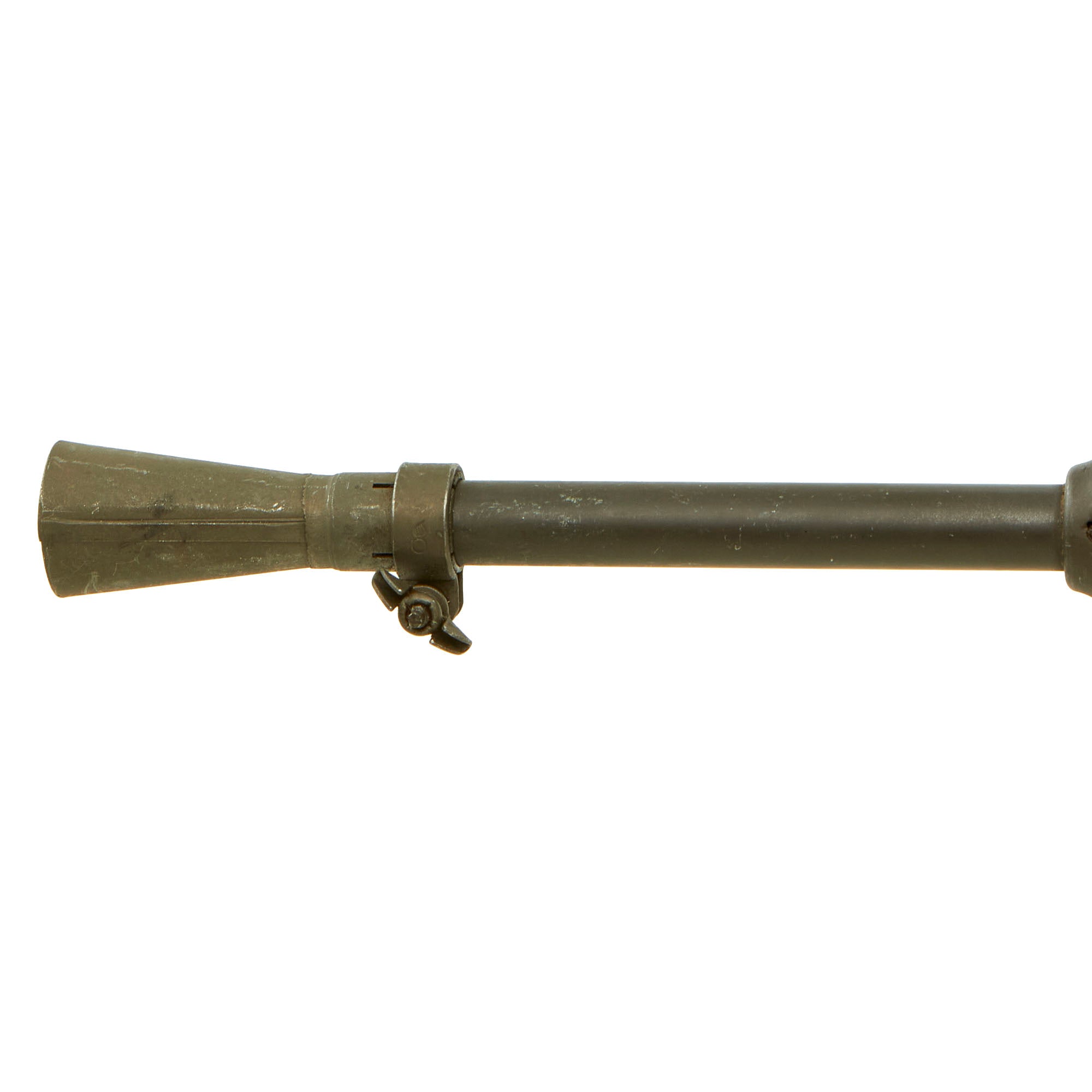

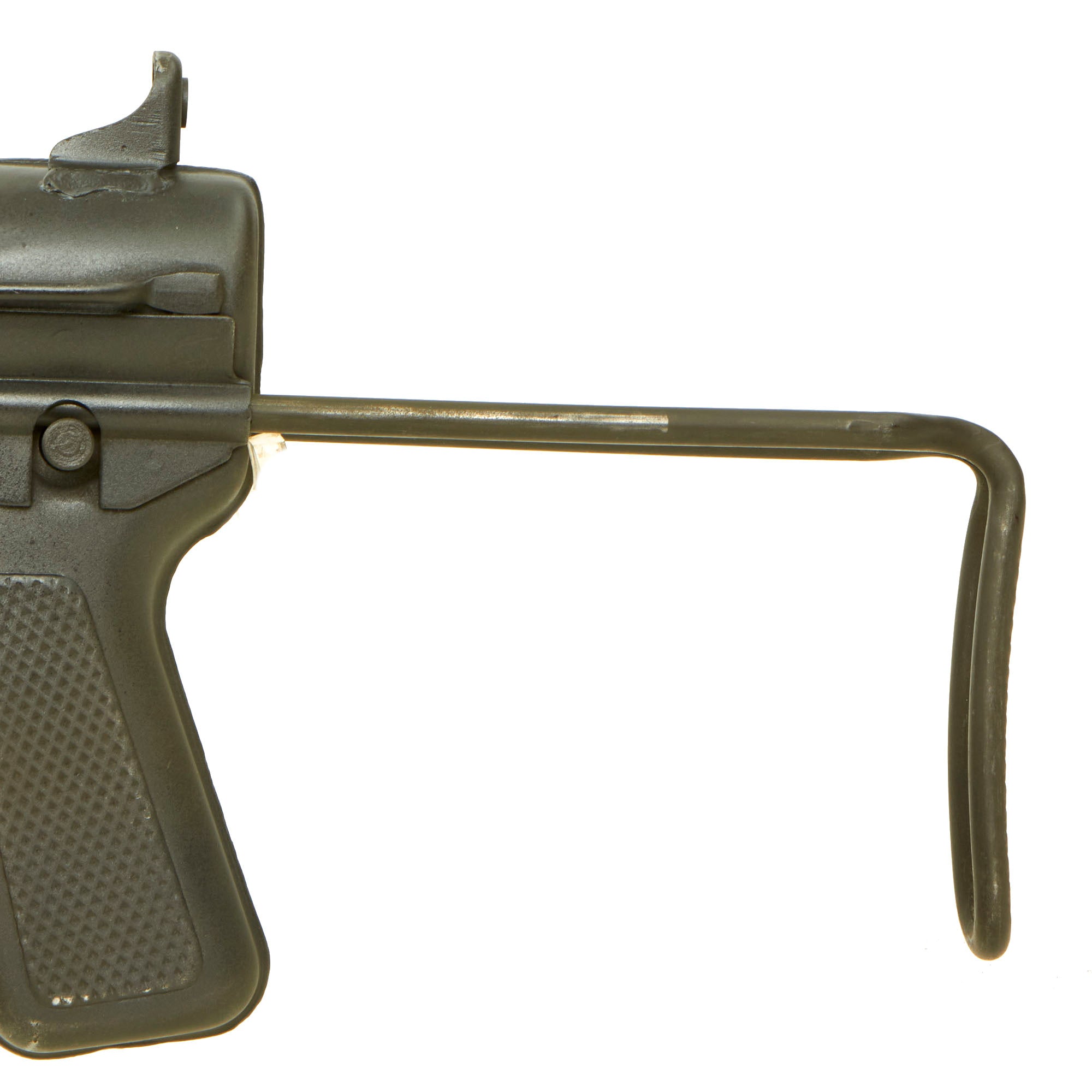

Comes complete with three magazines (high capacity restrictions will apply), the front flash hider, a telescoping wire shoulder stock, and fixed peep sights. Also included is a hard to find grease gun magazine loader, as well as the recoil spring and deactivated bolt, which were not used in the construction. With great markings and fantastic condition, this is one of the best looking M3 grease guns that we have ever had!
Its steel stamped construction made this the must less costly successor to the Thompson and Rising sub-machine guns of WWII. It has an interesting safety mechanism that when the bolt is back and the ejector port cover is closed, a tab on the cover holds the bolt in the rear position, even when the trigger is actuated. One must open the ejector port cover in order for the bolt to move forward and fire. We haven't had, or even seen, a Grease Gun dummy gun in nearly 20 years, and we expect it could be another 20 years before we get another. Act now or be sorry later!
The M3 submachine gun, also known as Grease Gun, was developed as a cheaper war-time alternative to famous Thompson M1 and M1928 submachine guns. The basic requirements were set by US Ordnance Corps in February, 1941. George Hyde and Frederick Sampson, working together at Inland Division of general Motors Corp developed a prototype, which was designated the T20. The T-20 was a very simple weapon, made mostly from steel stampings. In November 1942 T20 was tested against several other prototypes, and was found superior to all other contestants. Late in 1942 the T20 was recommended for adoption, which followed in 1943. Combat use of a newly adopted M3 submachine gun showed some problematic points in design, most notably in the failing cocking mechanism. The problems were solved by elimination of this unit in 1944 when a further simplified weapon received the designation M3A1, and served with US Armed forces through the later part of WW2, Korean and Vietnam wars. M3A1 was issued to US tank crews all the way up until 1980s.
M3 submachine gun was a full-automatic blowback-operated firearm that fired from an open bolt. The receiver was made from steel stampings. M3 featured spring-loaded ejection port cover (which also acted as safety, locking the bolt when it is closed) and crank-type bolt retracting (cocking) handle at the right side of the receiver.
Characteristics include:
Caliber: .45ACP
Weight: 3.7 kg
Length (stock closed/open): 570 / 745 mm
Barrel length: 203 mm
Rate of fire: ca. 450 rounds per minute
Magazine capacity: 30 rounds
Effective range: 50 meters
- This product is not available for shipping in US state(s): New Jersey, and Washington
This product is not available for international shipping.
- This item is completely legal within the USA. International Military Antiques, Inc observes all Federal, State and Local laws. Everything for sale on ima-usa.com is completely legal to own, trade, transport and sell within the United States of America. Every display machine gun and machine gun parts set and gun sold by IMA, Inc is engineered to be inoperable according to guidelines provided by the US Bureau of Alcohol, Tobacco, Firearms and Explosives (BATF). Please note that the requirements for each display gun are decided on a per case basis by the BATF, and may require deactivation or omission of some internal components. For more information on this display gun, please contact us. Not available for Export.
Due to State & Federal law we do not ship magazines that exceed the following capacities to the following locations, and a deactivated magazine will be sent:
California - 10 round maximum for all magazines.
Colorado - 15 round maximum for all magazines.
Connecticut - 10 round maximum for all magazines.
Hawaii - 10 round maximum for all magazines.
Illinois - 15 round maximum for Chicago and Aurora. 10 round maximum for Oak Park and Cook County.
Maryland - 10 round maximum for all magazines.
Massachusetts - 10 round maximum for all magazines
New Jersey - 10 round maximum for all magazines.
New York- 7 round maximum for all magazines.
Washington, D.C. - 10 round maximum for all magazines.
Washington (State) - 10 round maximum for all magazines.
