Original Item: Very few Available. The M7 grenade launcher, formally rifle grenade launcher, M7, was a 22 mm rifle grenade launcher attachment for the M1 Garand rifle that saw widespread use throughout World War II and the Korean War. The M7 is a tube-shaped device, with one end slotting over the barrel of the rifle, the other end holding the grenade in place. Blank cartridges were loaded into the rifle prior to firing. When fired, the expanding gases generated by the cartridges propelled the grenade forward with considerable force. The M7 could fire grenades up to 350 metres (380 yards), compared with the maximum of 30 metres (33 yards) achieved by hand grenades. Fragmentation, anti-armor and smoke grenades were all available for the M7.

Our stock is offered in very good condition with little use and no rust.

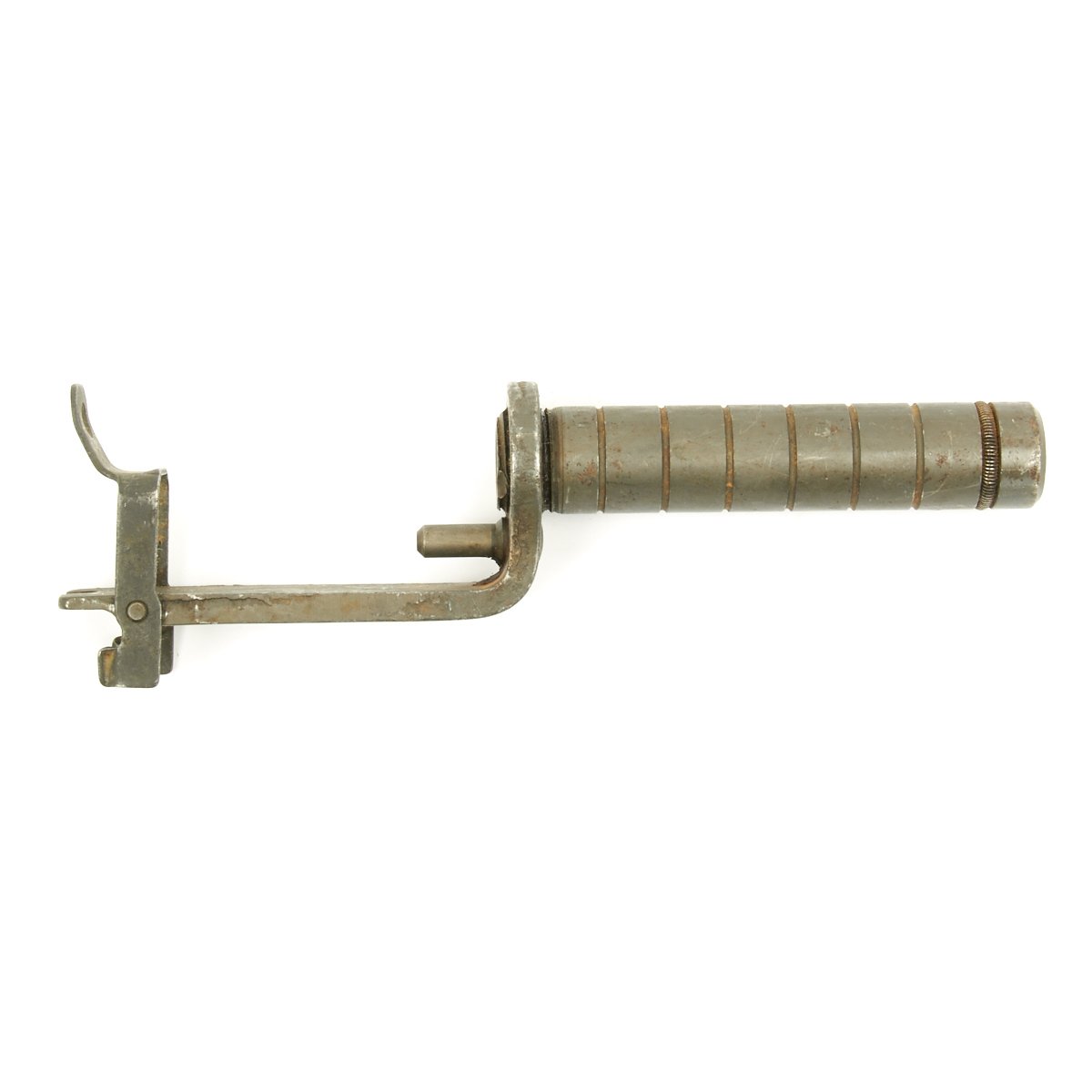

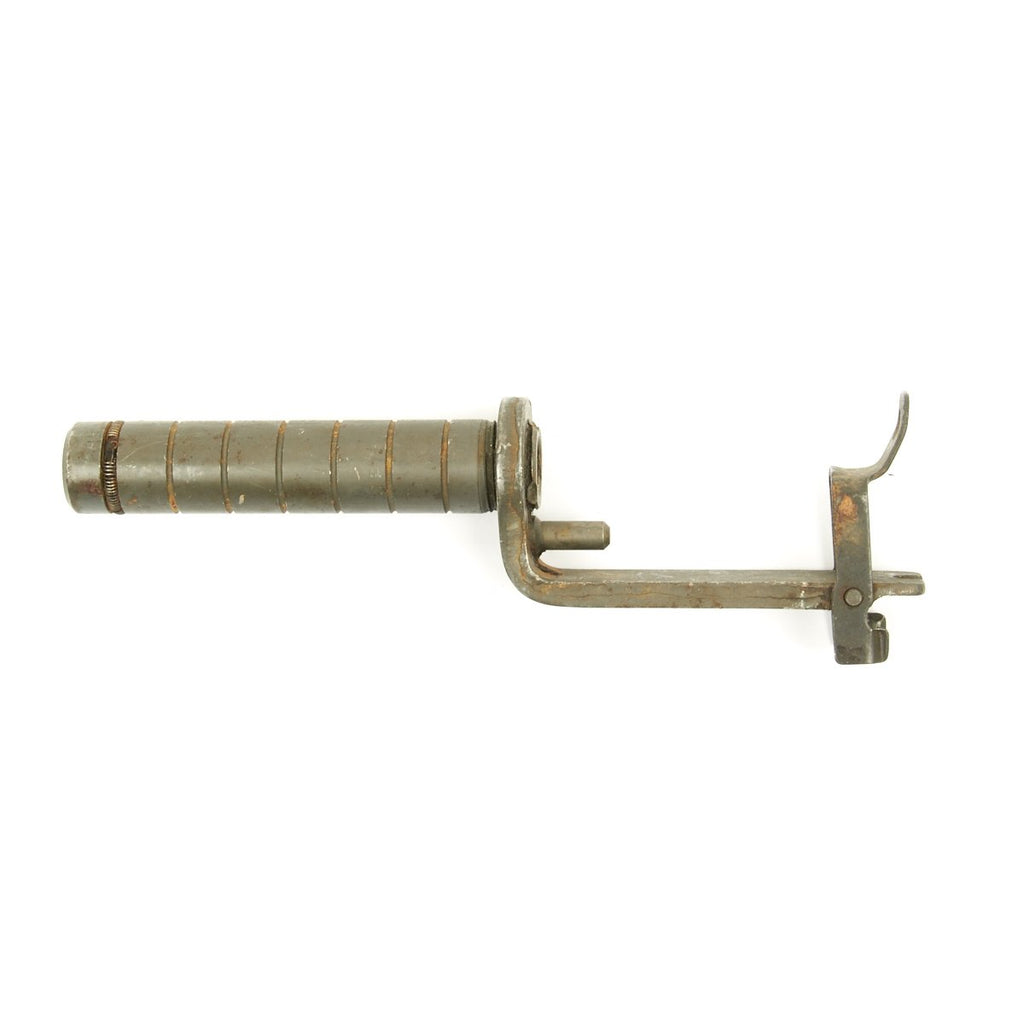

The M7 grenade launcher was a tube-shaped device with an overall length (including the mounting bracket) of 7.5 inches. One end fitted onto the barrel of the M1 Garand rifle enclosing the muzzle, and was held in place with the rifle's bayonet lug. The other end was cylindrical with a small clip that held the grenade in place by friction. To launch a grenade, a special high-powered cartridge made specifically for the purpose (the .30-06 Springfield M3 grenade cartridge) was chambered in the rifle. Using markings engraved onto the device to determine the desired range, the rifle grenade was slipped over the launcher. When fired, the resulting expanding gases propelled the grenade a considerable distance depending on the grenade type, the vertical angle that the rifle was held, and how far the grenade was positioned onto the launcher. Since the device disabled the semi-automatic function of the rifle to prevent damage to the gun from firing grenades, the rifle could not be fired normally when the M7 launcher was in place; the gun could be fired in an emergency by cycling the action by hand. Fragmentation, anti-tank, and smoke grenades and pyrotechnic signals were available along with an adapter to enable the use of hand grenades. One to three M7 grenade launchers were issued to each rifle squad depending on period. It was also issued to support and headquarters elements.

Improved models

M7A1 (Springfield Armory T95) [July, 1945 - 1951]: The major problem with the M7 grenade launcher is that it left the gas cylinder lock closed when attached, venting the cylinder. This meant the operator would have to cock the weapon to extract the spent cartridge and load a fresh one from the en-bloc clip. The M7A1 incorporated a spring-loaded piston designed to keep the gas cylinder closed when loaded until the grenade was fired, but then opened to allow normal semi-automatic function. The spring-loaded launcher also recoiled when fired, preventing damage to the rifle. The M1 Garand design was modified to use a hardened gas cylinder lock (marked with an 'H', for "hardened") dubbed the "flat-edged lock" (ordnance part No. 7265959). This allowed prolonged use of the new launcher system.

M7A2 [July, 1951 - 1952]: The only problem with the M7A1 was that sometimes the launcher would get stuck when fired or the gas cylinder lock would break. This rendered the rifle and launcher useless and required repair by an armorer with special tools. The jamming problem was solved by using a heavier spring-loaded piston on the launcher and introduced a redesigned grenade retaining spring. The M1 Garand was then modified with a distinctive dual gas cylinder lock (marked with a 'M', for "modified") dubbed the "high hump lock" (ordnance part No. 7265871). The launcher had a mount machined into it to take a proposed leaf-sight that was never adopted.

M7A3 (ordnance part No. 7266167) [September, 1952 - 1961]: During the Korean War, it was found that World War II-era anti-tank grenades were useless against the Soviet T-34 tanks fielded by the North Korean Army. A new high-velocity anti-tank rifle grenade called the Mecar ENERGA (dubbed the M28 in US Army service) was soon issued. However, its grenade launcher (dubbed the T119) had the same problems as the original M7 launcher and the M28 was inaccurate when launched from the M7A2. The M7A2 launcher was simply redesigned with a longer tube to fire the improved grenades and could be used with either the "flat edge" or "high hump" lock. After the war (from early 1956 to late 1959) it could be fitted with a leaf-sight that was calibrated for use with the M28. The M7A3 kit ( ordnance part No. 5750089) consisted of a M7A3 launcher packed with a "high hump" gas lock to allow the grenadier to upgrade an earlier model M1 Garand to the new specification.
